Toyota Lexus IS250/350/2##D

2005-08 → 2013-04 · chassis ALE20,GSE2# · catalogue 242520 · Europe

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

18 part groups · 8 illustrations

Illustrations

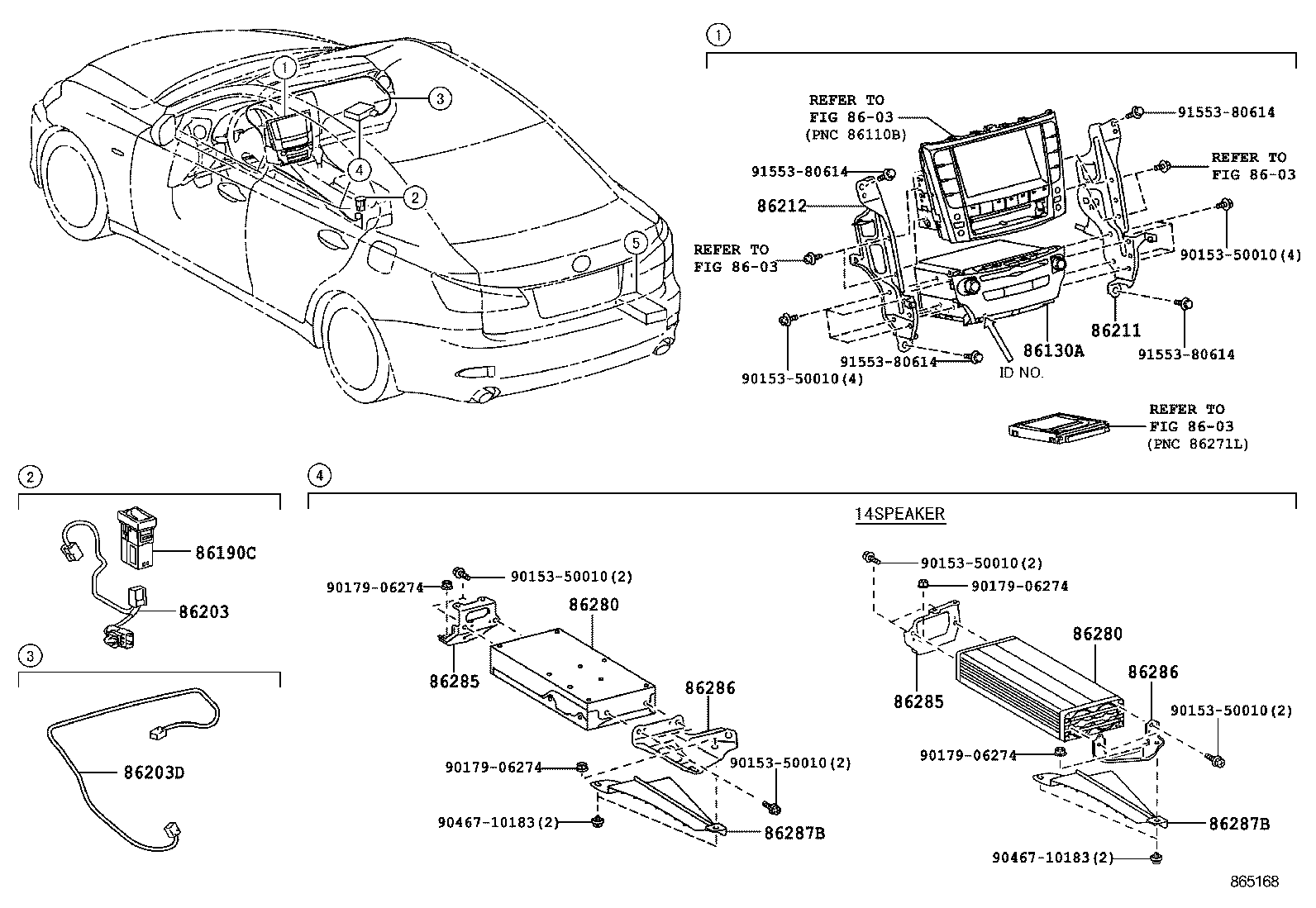

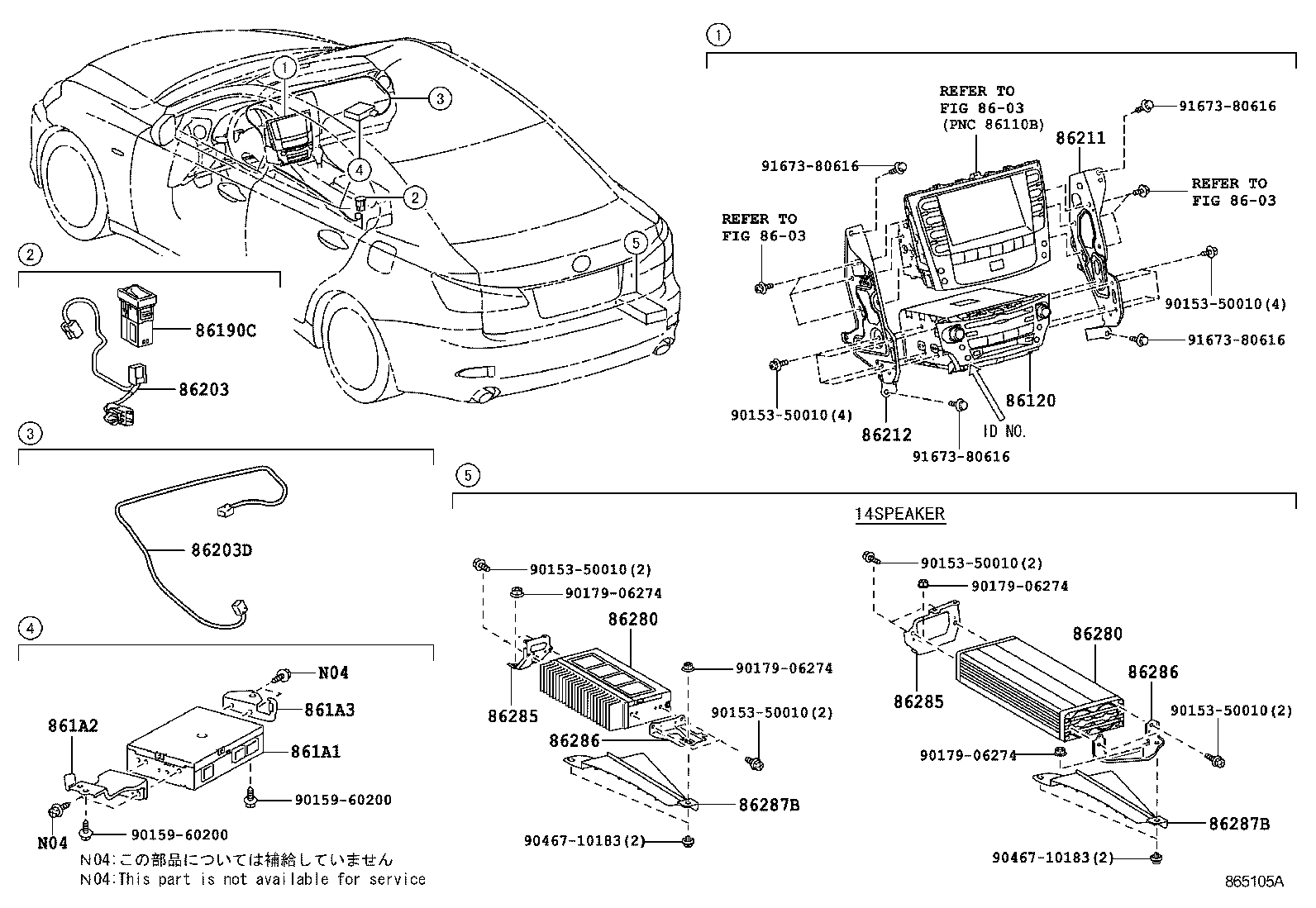

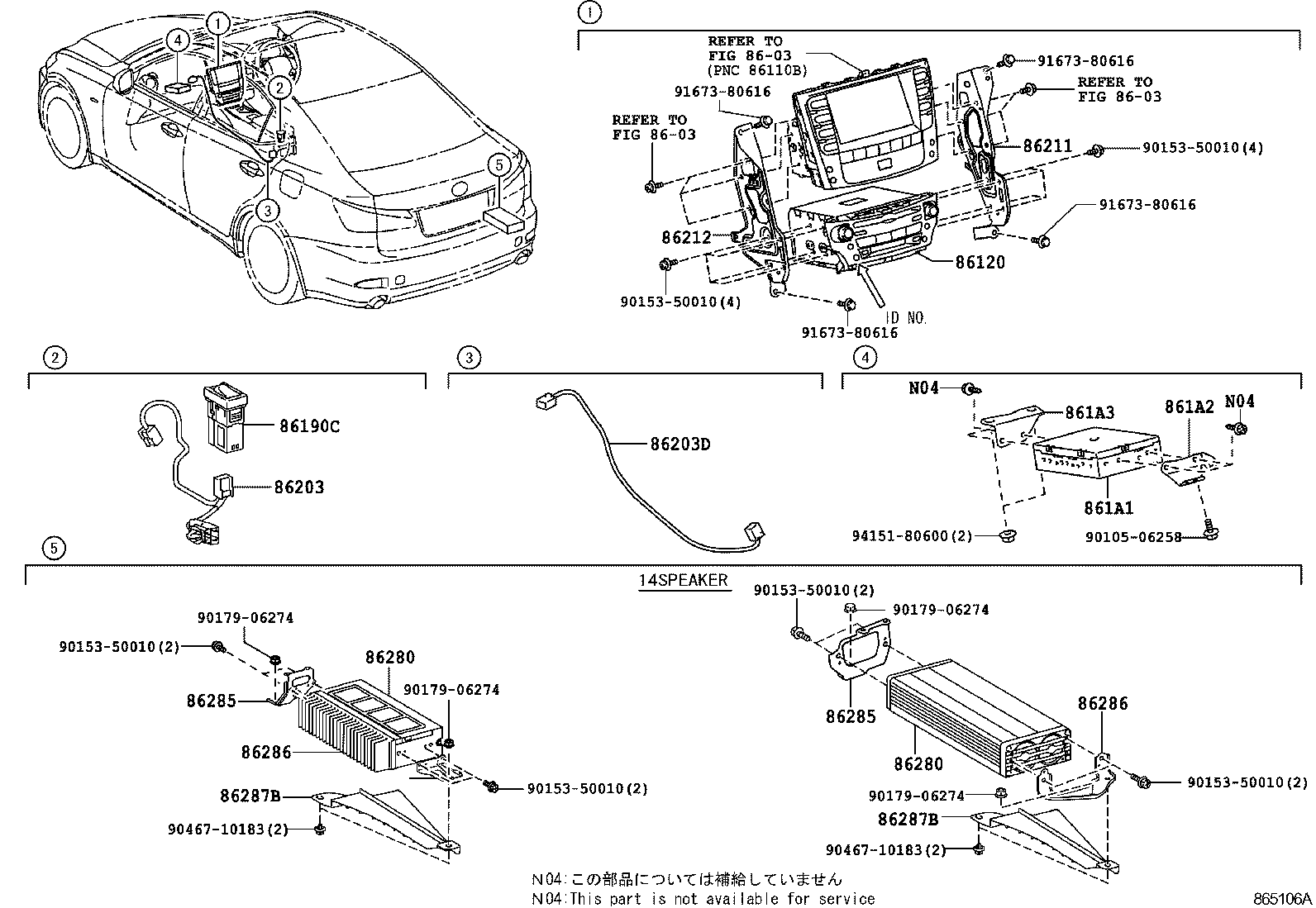

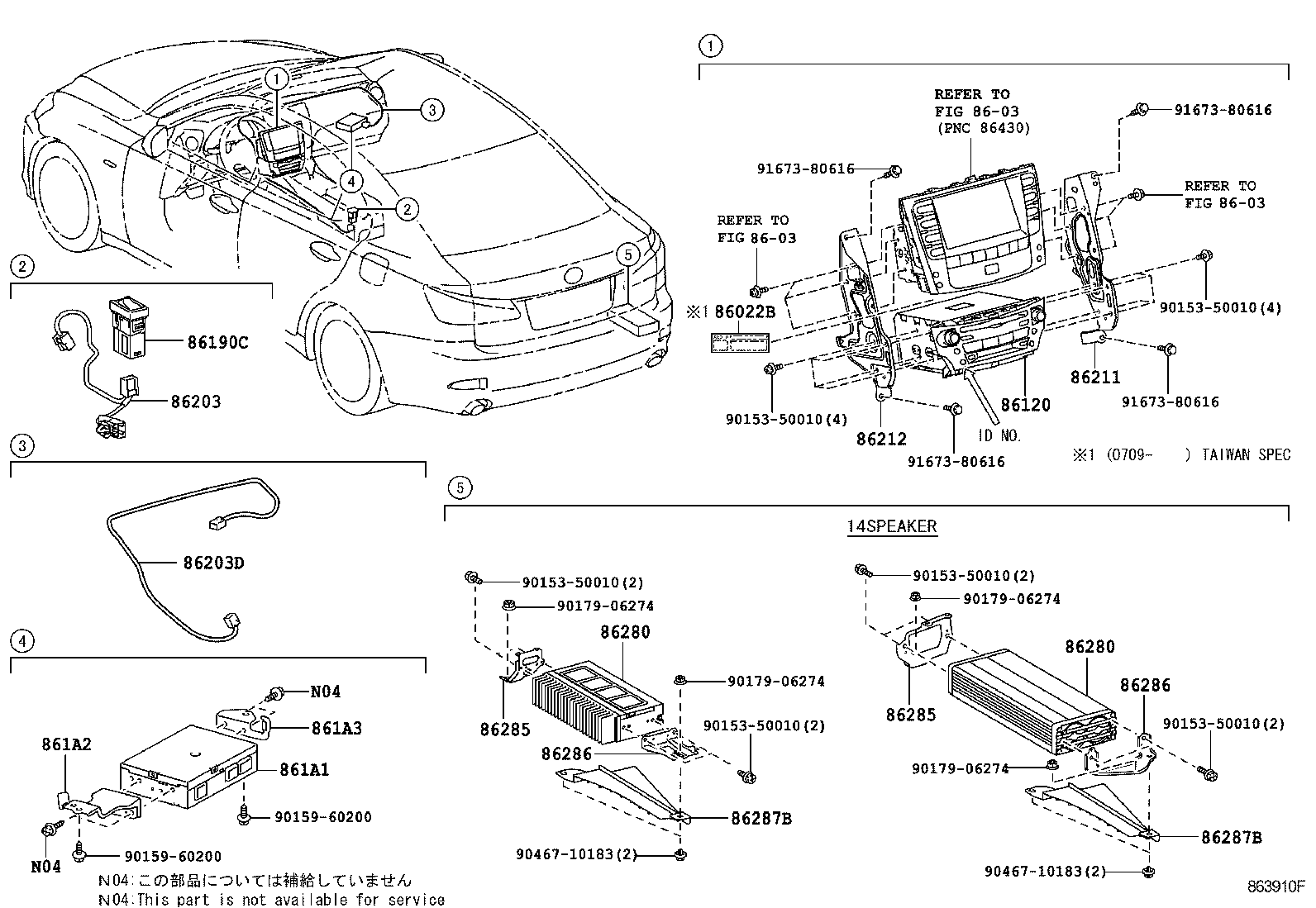

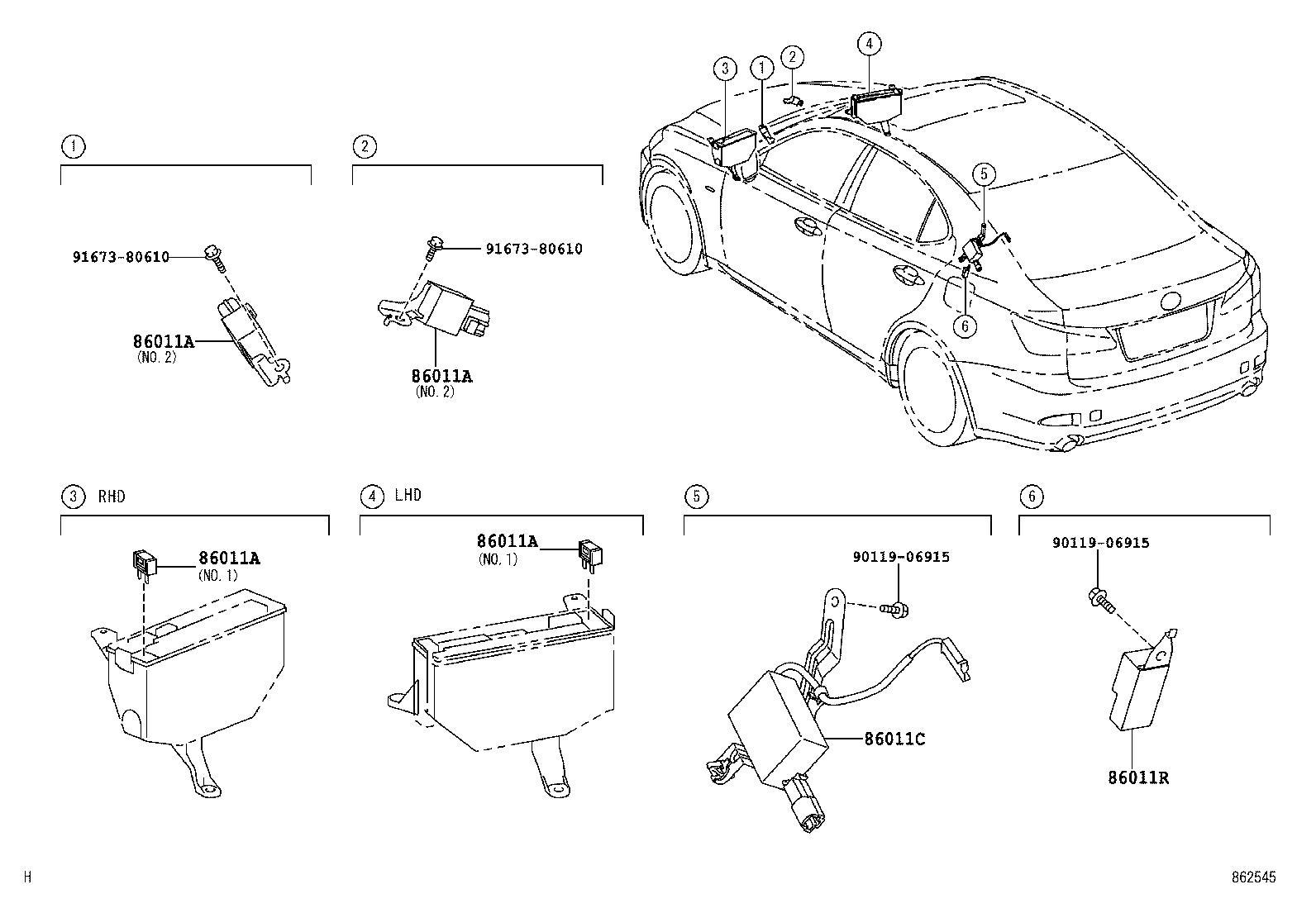

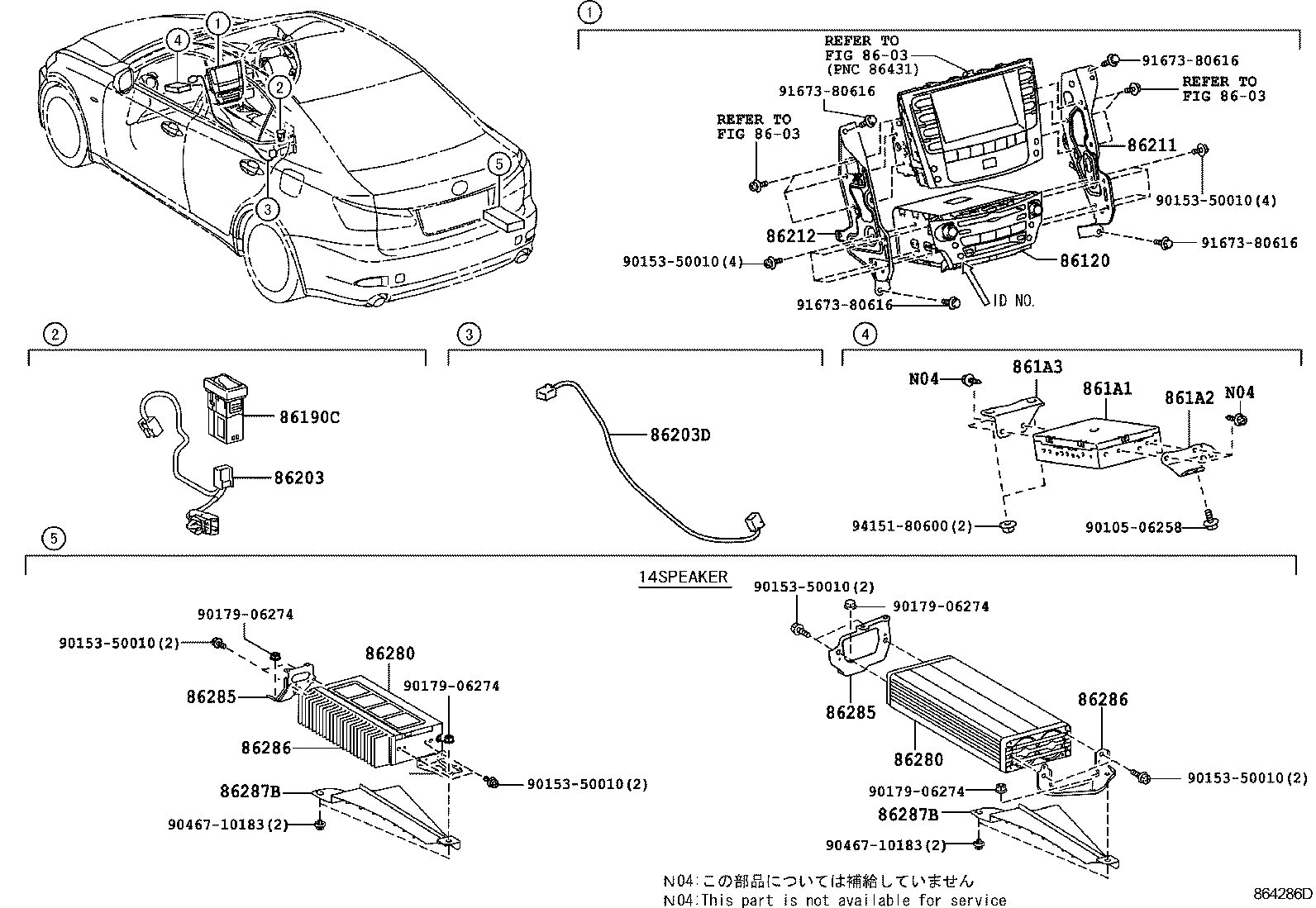

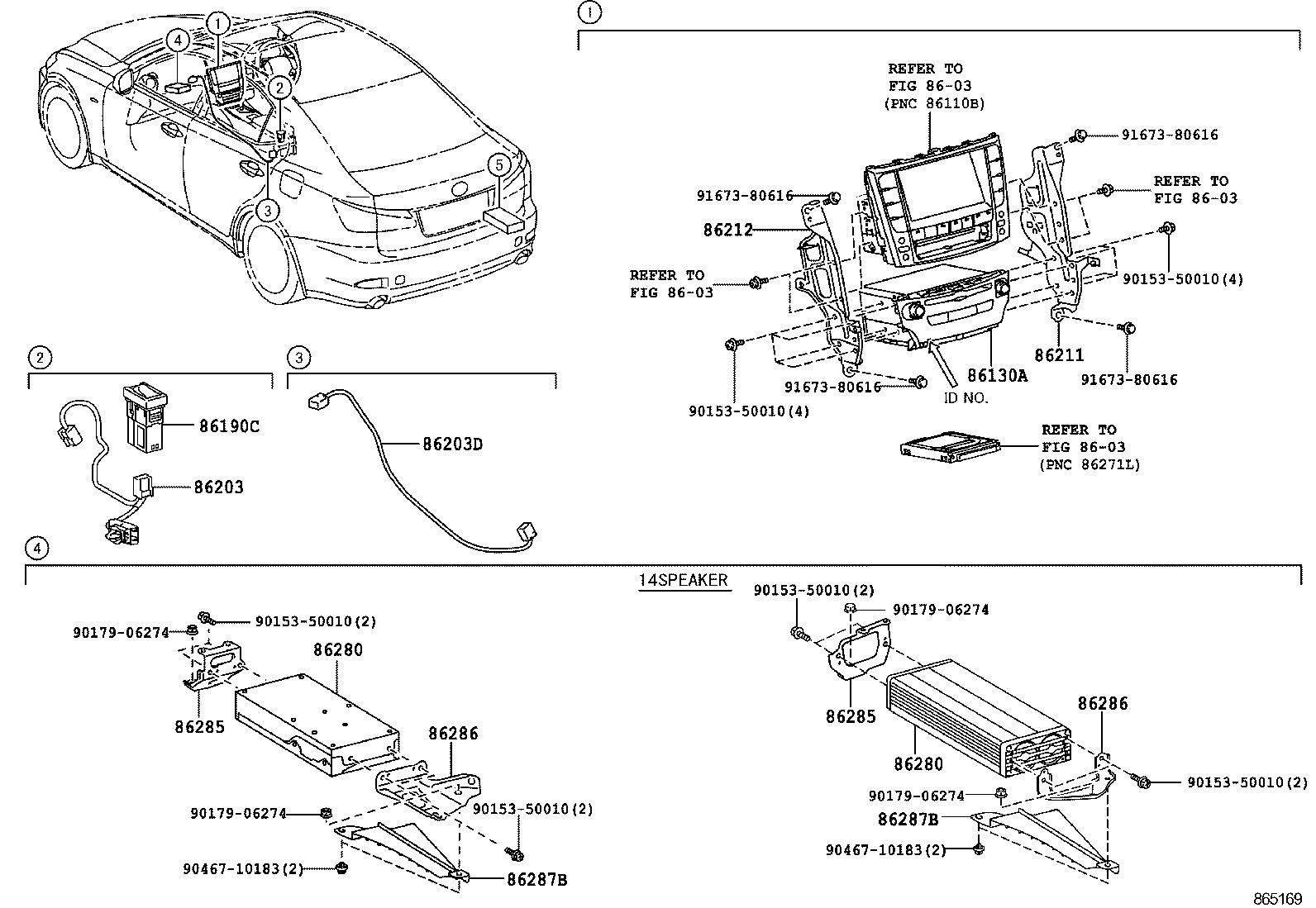

Figure 862567H 862567H 2005-08 → 2009-08 Figure 863910F 863910F 2009-08 → 2012-08 Figure 864286D 864286D 2009-08 → 2012-08 Figure 865105A 865105A 2012-08 → — Figure 865168 865168 2012-08 → — Figure 865106A 865106A 2012-08 → — Figure 865169 865169 2012-08 → — Figure 862545 862545 2005-08 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86011R Condenser, Radio Setting
86022B Plate, Caution
86120 Receiver Assy, Radio
86130A Receiver Assy, Multi-media Module
86190C Adapter Assy, Stereo Jack, NO.1
861A1 Computer, Multi-media Interface
861A2 Bracket, Multi-media Interface, NO.1
861A3 Bracket, Multi-media Interface, NO.2
86203 Wire, Radio
86203D Wire, Stereo Component, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
86287B Cover, Amplifier
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
