Toyota Lexus IS250/350/2##D

2005-08 → 2013-04 · chassis ALE20,GSE2# · catalogue 242520 · Europe

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

15 part groups · 4 illustrations

Illustrations

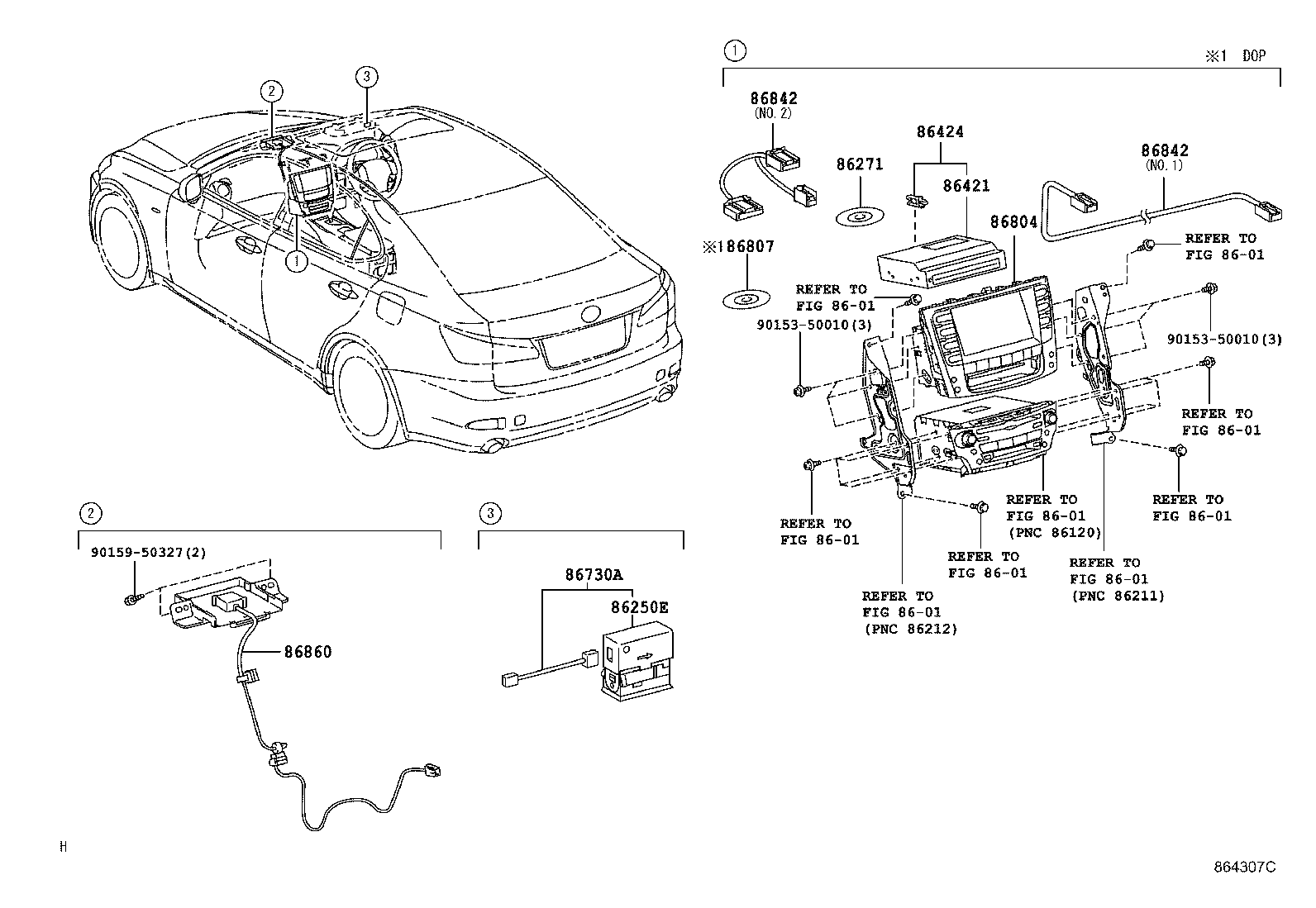

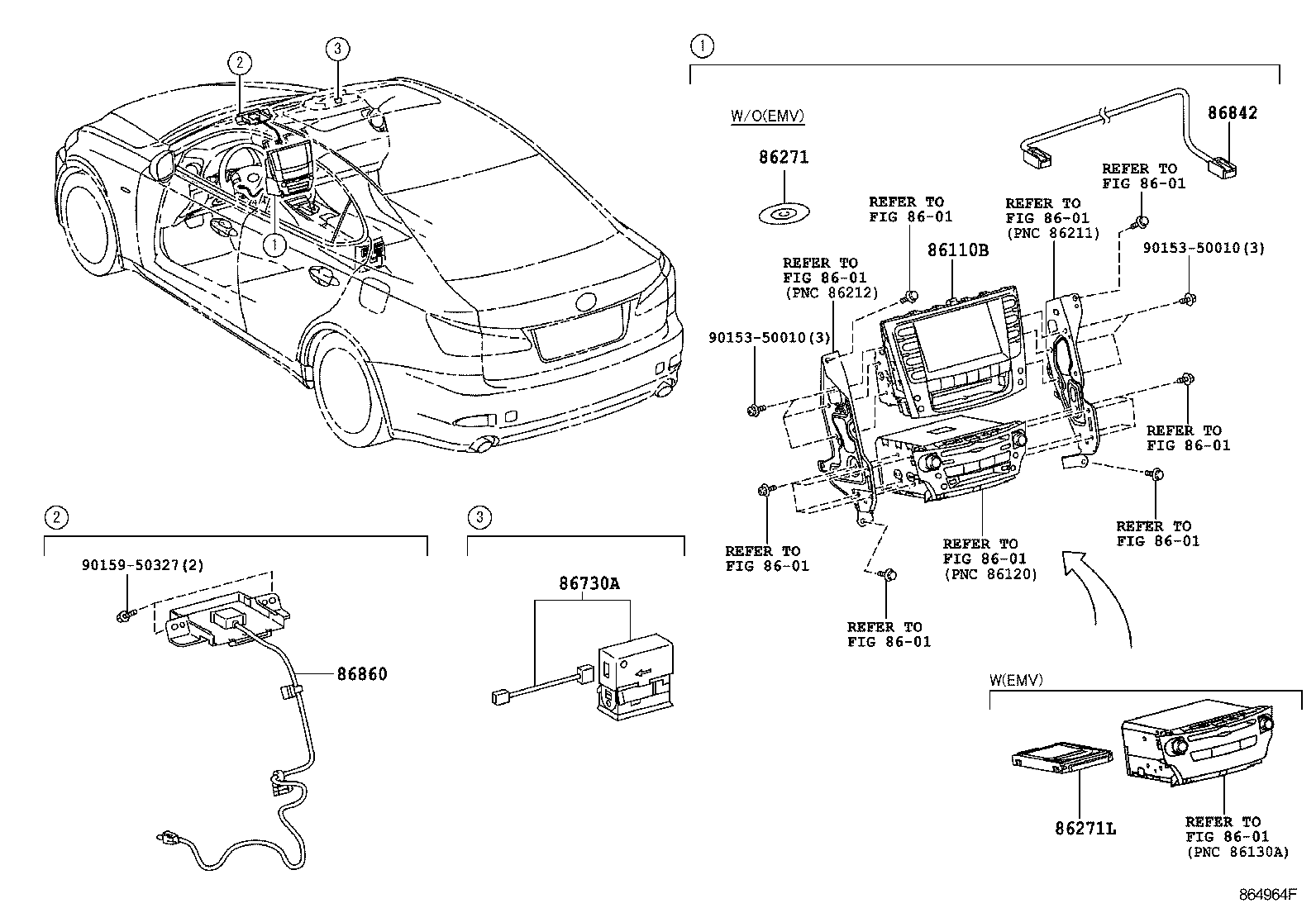

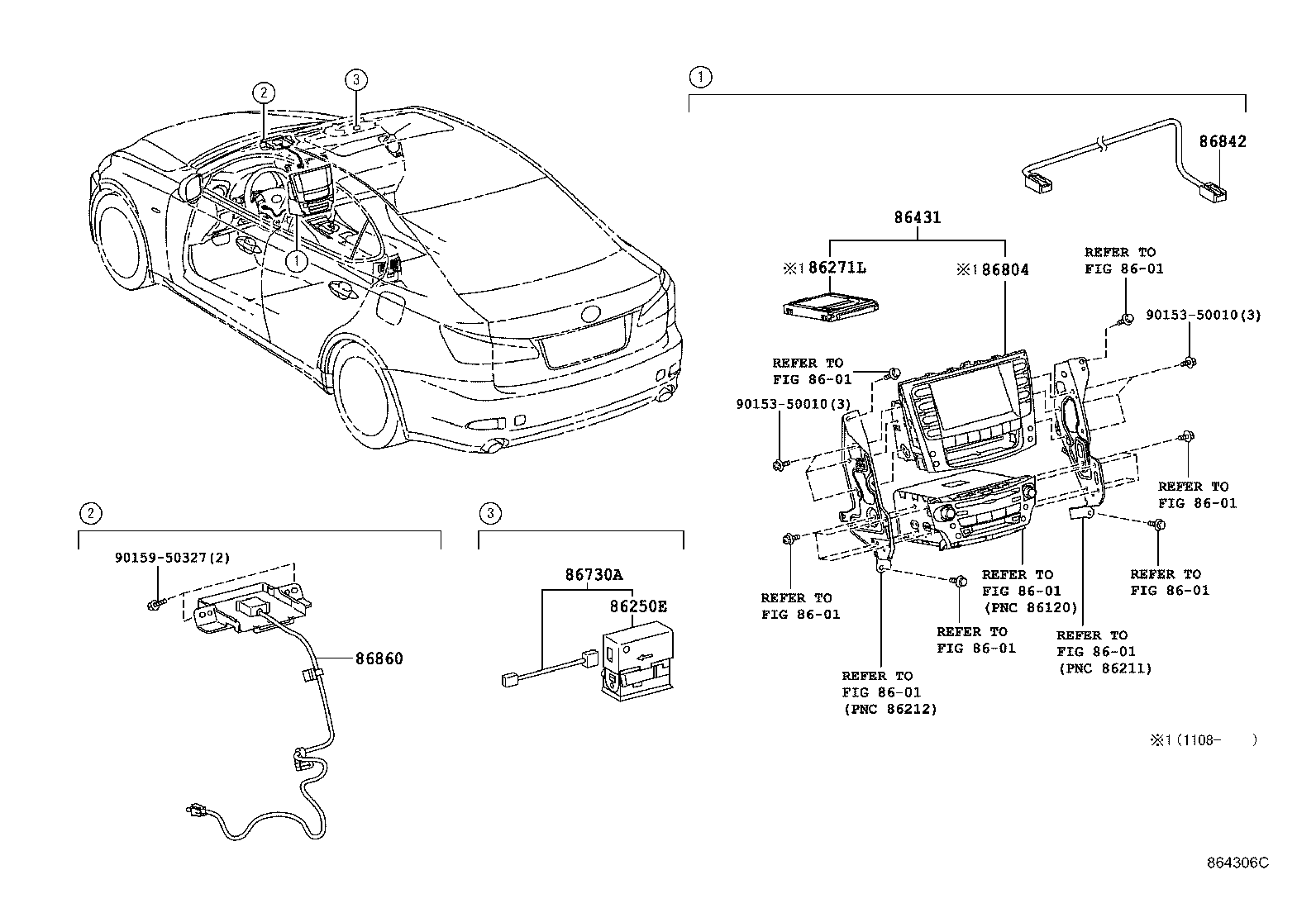

Figure 864308B 864308B 2005-08 → 2009-08 Figure 864307C 864307C 2009-08 → 2012-08 Figure 864306C 864306C 2009-08 → 2012-08 Figure 864964F 864964F 2012-08 → —

Part groups

PNCDescription
86110B Multi-display Assy
86111 Multi-display
86250E Microphone Assy, Amplifier
86271 Disc, Disc Player
86271L Hard Disc
86420 Navigation Assy, Multi-media Module
86421 Board, Navigation Module
86424 Deck, Dvd
86431 Display, Display & Navigation Module
86730A Microphone Assy, Telephone
86804 Cover Sub-assy, Navigation Computer
86807 Disc Kit, Cd-rom
86842 Wire, Navigation, NO.1
86842J Wire, Navigation, NO.2
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
