Toyota Lexus IS2###/3###

2013-04 → present · chassis ASE30,AVE30,GSE30 · catalogue 242530 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

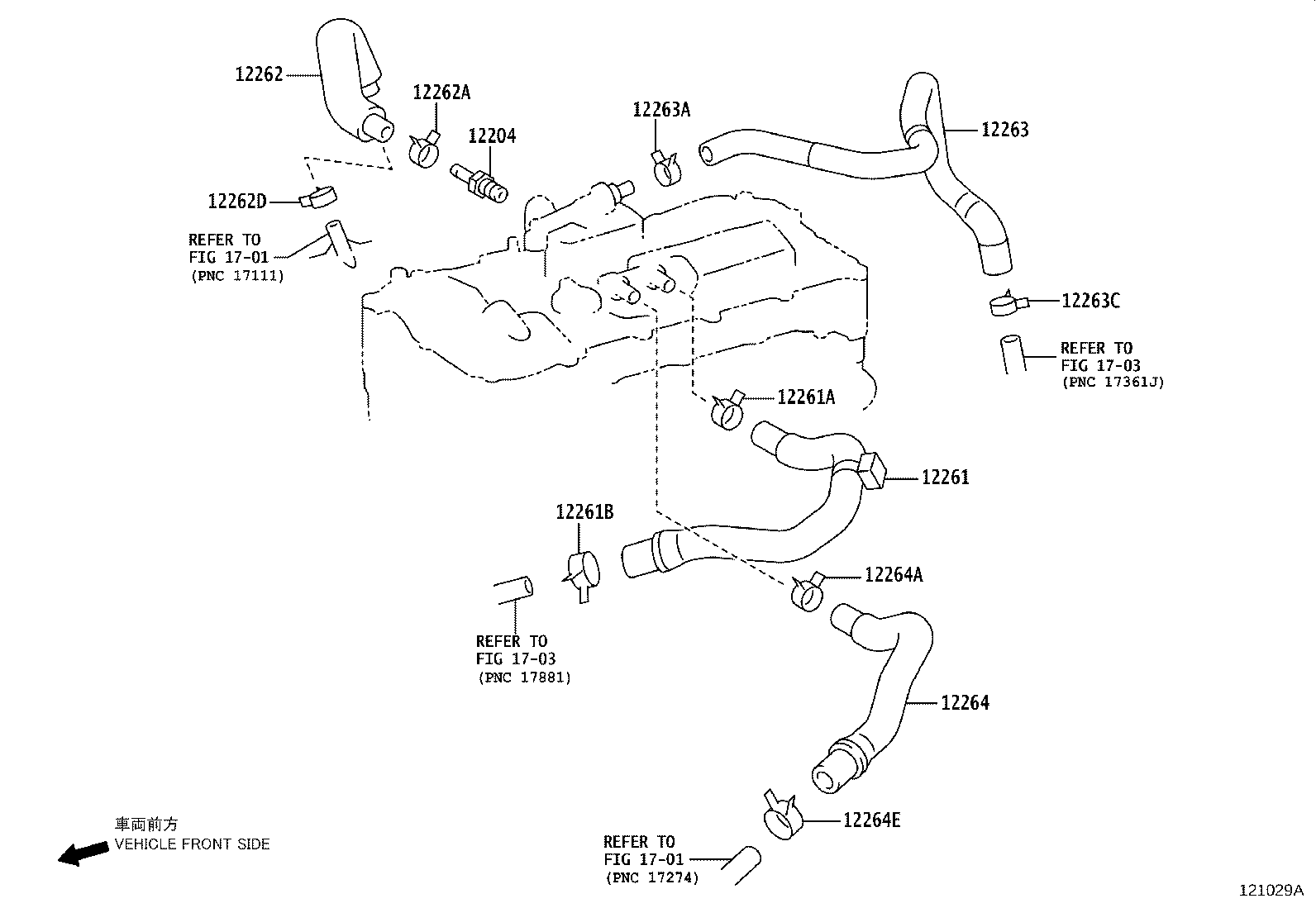

Exploded illustration 121029A 1703 — not listed in this catalogue 12261 — HOSE, VENTILATION (4 parts) 12261A — CLIP OR CLAMP(FOR VENTILATION HOSE) (7 parts) 12261B — CLIP OR CLAMP(FOR VENTILATION HOSE) (6 parts) 12264A — CLIP(FOR VENTILATION HOSE) (3 parts) 12264E — CLIP(FOR VENTILATION HOSE) (3 parts) 1701 — not listed in this catalogue 1701 — not listed in this catalogue 1703 — not listed in this catalogue 12204 — VALVE SUB-ASSY, VENTILATION (7 parts) 12262 — HOSE, VENTILATION, NO.2 (4 parts) 12262A — CLIP(FOR VENTILATION HOSE NO.2) (3 parts) 12262D — CLIP(FOR VENTILATION HOSE NO.2) (3 parts) 12263 — HOSE, VENTILATION, NO.3 (3 parts) 12263A — CLIP(FOR VENTILATION HOSE) (7 parts) 12263C — CLIP(FOR VENTILATION HOSE) (3 parts) 12264 — HOSE, VENTILATION, NO.4 (3 parts)
121029A · 13 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
56 parts on this figure
Part number Description Fitment Price
12204 — Valve Sub-assy, Ventilation
12204-31040 Valve Sub-assy, Ventilation
2013-04 → 2015-08 ended
4GRFSE GSE30 —
12204-36040 Valve Sub-assy, Ventilation
2013-04 → 2015-08 ended
2ARFSE AVE30 —
12204-36040 Valve Sub-assy, Ventilation
2015-08 → 2016-10 ended
2ARFSE AVE30 —
12204-36050 Valve Sub-assy, Ventilation
2015-08 → 2016-10 ended
8ARFTS ASE30 —
12204-36040 Valve Sub-assy, Ventilation
2016-10 → —
2ARFSE AVE30 —
12204-36050 Valve Sub-assy, Ventilation
2016-10 → 2018-04 ended
8ARFTS ASE30 RHD —
12204-36050 Valve Sub-assy, Ventilation
2016-10 → —
8ARFTS ASE30 LHD —
12261 — Hose, Ventilation
12261-31120 Hose, Ventilation
2013-04 → 2015-08 ended
4GRFSE GSE30 —
12261-36080 Hose, Ventilation
2015-08 → 2016-10 ended
8ARFTS ASE30 —
12261-36080 Hose, Ventilation
2016-10 → 2018-04 ended
8ARFTS ASE30 RHD —
12261-36080 Hose, Ventilation
2016-10 → —
8ARFTS ASE30 LHD —
12261A — Clip OR Clamp(FOR VENTILATION HOSE)
90466-22005 Clip OR Clamp(FOR VENTILATION HOSE)
2013-04 → 2015-08 ended
2ARFSE AVE30 —
90467-14017 Clip OR Clamp(FOR VENTILATION HOSE)
2013-04 → 2015-08 ended
4GRFSE GSE30 —
90466-22005 Clip OR Clamp(FOR VENTILATION HOSE)
2015-08 → 2016-10 ended
2ARFSE AVE30 —
96137-52501 Clip OR Clamp(FOR VENTILATION HOSE)
2015-08 → 2016-10 ended
8ARFTS ASE30 —
90466-22005 Clip OR Clamp(FOR VENTILATION HOSE)
2016-10 → —
2ARFSE AVE30 —
96137-52501 Clip OR Clamp(FOR VENTILATION HOSE)
2016-10 → 2018-04 ended
8ARFTS ASE30 RHD —
96137-52501 Clip OR Clamp(FOR VENTILATION HOSE)
2016-10 → —
8ARFTS ASE30 LHD —
12261B — Clip OR Clamp(FOR VENTILATION HOSE)
90467-15120 Clip OR Clamp(FOR VENTILATION HOSE)
2013-04 → 2015-08 ended
2ARFSE AVE30 —
90467-15120 Clip OR Clamp(FOR VENTILATION HOSE)
2015-08 → 2016-10 ended
2ARFSE AVE30 —
96136-43601 Clip OR Clamp(FOR VENTILATION HOSE)
2015-08 → 2016-10 ended
8ARFTS ASE30 —
90467-15120 Clip OR Clamp(FOR VENTILATION HOSE)
2016-10 → —
2ARFSE AVE30 —
96136-43601 Clip OR Clamp(FOR VENTILATION HOSE)
2016-10 → 2018-04 ended
8ARFTS ASE30 RHD —
96136-43601 Clip OR Clamp(FOR VENTILATION HOSE)
2016-10 → —
8ARFTS ASE30 LHD —
12262 — Hose, Ventilation, NO.2
12262-31150 Hose, Ventilation, NO.2
2013-04 → 2015-08 ended
4GRFSE GSE30 —
12262-36090 Hose, Ventilation, NO.2
2015-08 → 2016-10 ended
8ARFTS ASE30 —
12262-36090 Hose, Ventilation, NO.2
2016-10 → 2018-04 ended
8ARFTS ASE30 RHD —
12262-36090 Hose, Ventilation, NO.2
2016-10 → —
8ARFTS ASE30 LHD —
12262A — Clip(FOR VENTILATION HOSE NO.2)
90466-16004 Clip(FOR VENTILATION HOSE NO.2)
2015-08 → 2016-10 ended
8ARFTS ASE30 —
90466-16004 Clip(FOR VENTILATION HOSE NO.2)
2016-10 → —
8ARFTS ASE30 LHD —
90466-16004 Clip(FOR VENTILATION HOSE NO.2)
2016-10 → 2018-04 ended
8ARFTS ASE30 RHD —
12262D — Clip(FOR VENTILATION HOSE NO.2)
96137-41901 Clip(FOR VENTILATION HOSE NO.2)
2015-08 → 2016-10 ended
8ARFTS ASE30 —
96137-41901 Clip(FOR VENTILATION HOSE NO.2)
2016-10 → 2018-04 ended
8ARFTS ASE30 RHD —
96137-41901 Clip(FOR VENTILATION HOSE NO.2)
2016-10 → —
8ARFTS ASE30 LHD —
12263 — Hose, Ventilation, NO.3
12263-36020 Hose, Ventilation, NO.3
2015-08 → 2016-10 ended
8ARFTS ASE30 —
12263-36020 Hose, Ventilation, NO.3
2016-10 → 2018-04 ended
8ARFTS ASE30 RHD —
12263-36020 Hose, Ventilation, NO.3
2016-10 → —
8ARFTS ASE30 LHD —
12263A — Clip(FOR VENTILATION HOSE)
90467-21004 Clip(FOR VENTILATION HOSE)
2013-04 → 2015-08 ended
2ARFSE AVE30 —
90467-21004 Clip(FOR VENTILATION HOSE)
2013-04 → 2015-08 ended
4GRFSE GSE30 —
90467-21004 Clip(FOR VENTILATION HOSE)
2015-08 → 2016-10 ended
2ARFSE AVE30 —
96136-52101 Clip(FOR VENTILATION HOSE)
2015-08 → 2016-10 ended
8ARFTS ASE30 —
90467-21004 Clip(FOR VENTILATION HOSE)
2016-10 → —
2ARFSE AVE30 —
96136-52101 Clip(FOR VENTILATION HOSE)
2016-10 → 2018-04 ended
8ARFTS ASE30 RHD —
96136-52101 Clip(FOR VENTILATION HOSE)
2016-10 → —
8ARFTS ASE30 LHD —
12263C — Clip(FOR VENTILATION HOSE)
96136-42501 Clip(FOR VENTILATION HOSE)
2015-08 → 2016-10 ended
8ARFTS ASE30 —
96136-42501 Clip(FOR VENTILATION HOSE)
2016-10 → 2018-04 ended
8ARFTS ASE30 RHD —
96136-42501 Clip(FOR VENTILATION HOSE)
2016-10 → —
8ARFTS ASE30 LHD —
12264 — Hose, Ventilation, NO.4
12264-36010 Hose, Ventilation, NO.4
2015-08 → 2016-10 ended
8ARFTS ASE30 —
12264-36010 Hose, Ventilation, NO.4
2016-10 → 2018-04 ended
8ARFTS ASE30 RHD —
12264-36010 Hose, Ventilation, NO.4
2016-10 → —
8ARFTS ASE30 LHD —
12264A — Clip(FOR VENTILATION HOSE)
96137-52501 Clip(FOR VENTILATION HOSE)
2015-08 → 2016-10 ended
8ARFTS ASE30 —
96137-52501 Clip(FOR VENTILATION HOSE)
2016-10 → 2018-04 ended
8ARFTS ASE30 RHD —
96137-52501 Clip(FOR VENTILATION HOSE)
2016-10 → —
8ARFTS ASE30 LHD —
12264E — Clip(FOR VENTILATION HOSE)
96136-43601 Clip(FOR VENTILATION HOSE)
2015-08 → 2016-10 ended
8ARFTS ASE30 —
96136-43601 Clip(FOR VENTILATION HOSE)
2016-10 → 2018-04 ended
8ARFTS ASE30 RHD —
96136-43601 Clip(FOR VENTILATION HOSE)
2016-10 → —
8ARFTS ASE30 LHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
