Toyota Lexus IS2###/3###
2013-04 → present · chassis ASE30,AVE30,GSE30 · catalogue 242530 · Europe
Supported model
Data version 2018-09

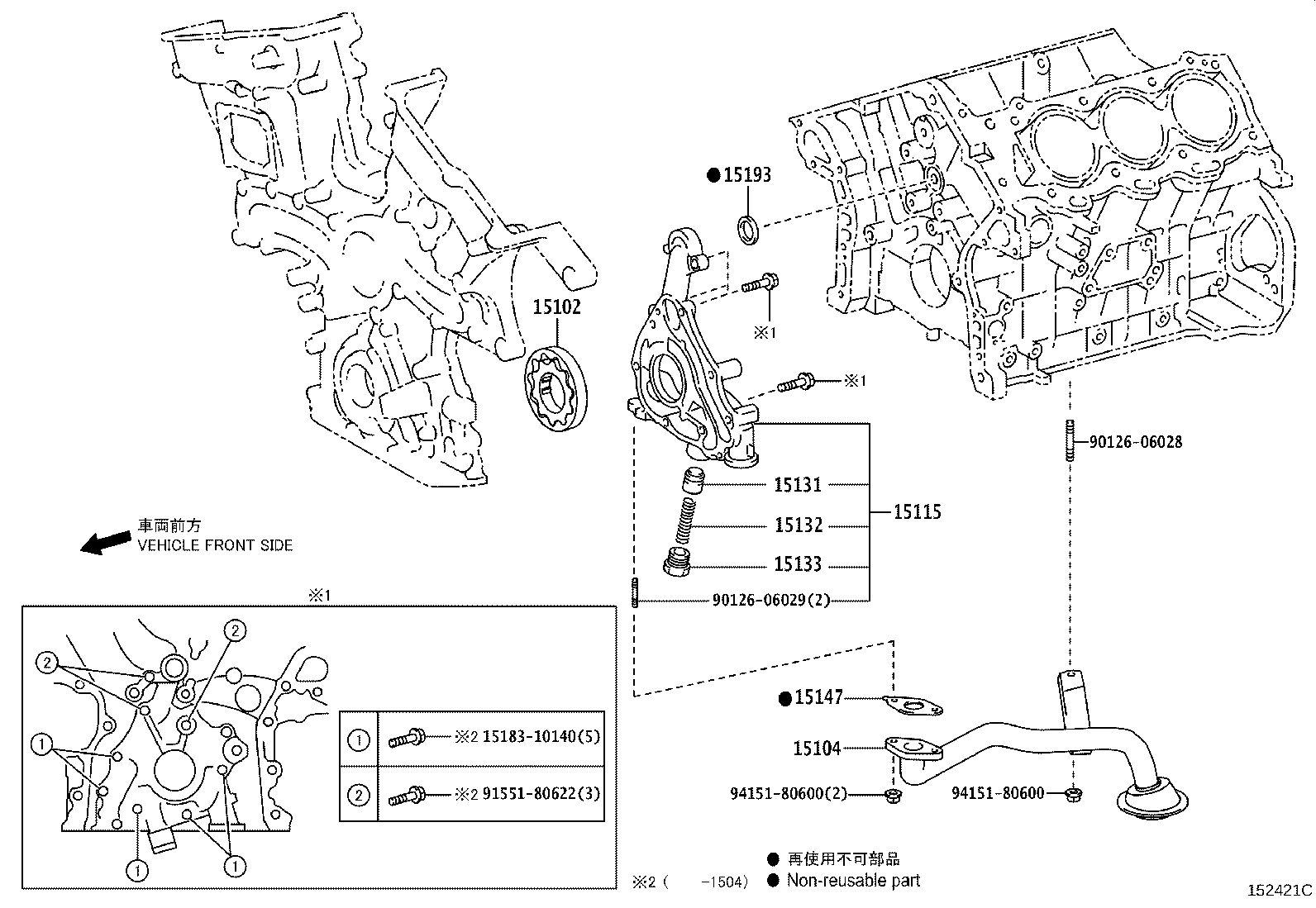

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15102 — Rotor Set, Oil Pump | ||||
| 15103-31050 |
Rotor Set, Oil Pump
2013-04 → 2015-08
ended
|
4GRFSE GSE30 | — | |
| 15104 — Strainer Sub-assy, Oil | ||||
| 15104-31080 |
Strainer Sub-assy, Oil
2013-04 → 2015-08
ended
|
4GRFSE GSE30 | — | |
| 15104-36040 |
Strainer Sub-assy, Oil
2013-04 → 2015-08
ended
|
2ARFSE AVE30 | — | |
| 15104-36040 |
Strainer Sub-assy, Oil
2015-08 → 2016-10
ended
|
2ARFSE,8ARFTS ASE30,AVE30 | — | |
| 15104-36040 |
Strainer Sub-assy, Oil
2016-10 → 2018-04
ended
|
8ARFTS ASE30 RHD | — | |
| 15104-36040 |
Strainer Sub-assy, Oil
2016-10 → —
|
2ARFSE AVE30;8ARFTS ASE30 LHD | — | |
| 15115 — Cover, Oil Pump | ||||
| 15115-31040 |
Cover, Oil Pump
2013-04 → 2015-08
ended
|
4GRFSE GSE30 | — | |
| 15131 — Valve, Oil Pump Relief | ||||
| 15131-17010 |
Valve, Oil Pump Relief
2013-04 → 2015-04
ended
|
4GRFSE GSE30 | — | |
| 15132 — Spring, Oil Pump Relief Valve | ||||
| 15132-46020 |
Spring, Oil Pump Relief Valve
2013-04 → 2015-04
ended
|
4GRFSE GSE30 | — | |
| 15133 — Plug, Oil Pump Relief Valve | ||||
| 15133-28020 |
Plug, Oil Pump Relief Valve
2013-04 → 2015-04
ended
|
4GRFSE GSE30 | — | |
| 15147 — Gasket, Oil Strainer | ||||
| 15147-31060 |
Gasket, Oil Strainer
2013-04 → 2015-08
ended
|
4GRFSE GSE30 | — | |
| 15147-36020 |
Gasket, Oil Strainer
2013-04 → 2015-08
ended
|
2ARFSE AVE30 | — | |
| 15147-36020 |
Gasket, Oil Strainer
2015-08 → 2016-10
ended
|
2ARFSE,8ARFTS ASE30,AVE30 | — | |
| 15147-36020 |
Gasket, Oil Strainer
2016-10 → 2018-04
ended
|
8ARFTS ASE30 RHD | — | |
| 15147-36020 |
Gasket, Oil Strainer
2016-10 → —
|
2ARFSE AVE30;8ARFTS ASE30 LHD | — | |
| 15193 — Gasket, Oil Pump | ||||
| 15193-31020 |
Gasket, Oil Pump
2013-04 → 2015-08
ended
|
4GRFSE GSE30 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
