Toyota Lexus IS2###/3###

2013-04 → present · chassis ASE30,AVE30,GSE30 · catalogue 242530 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

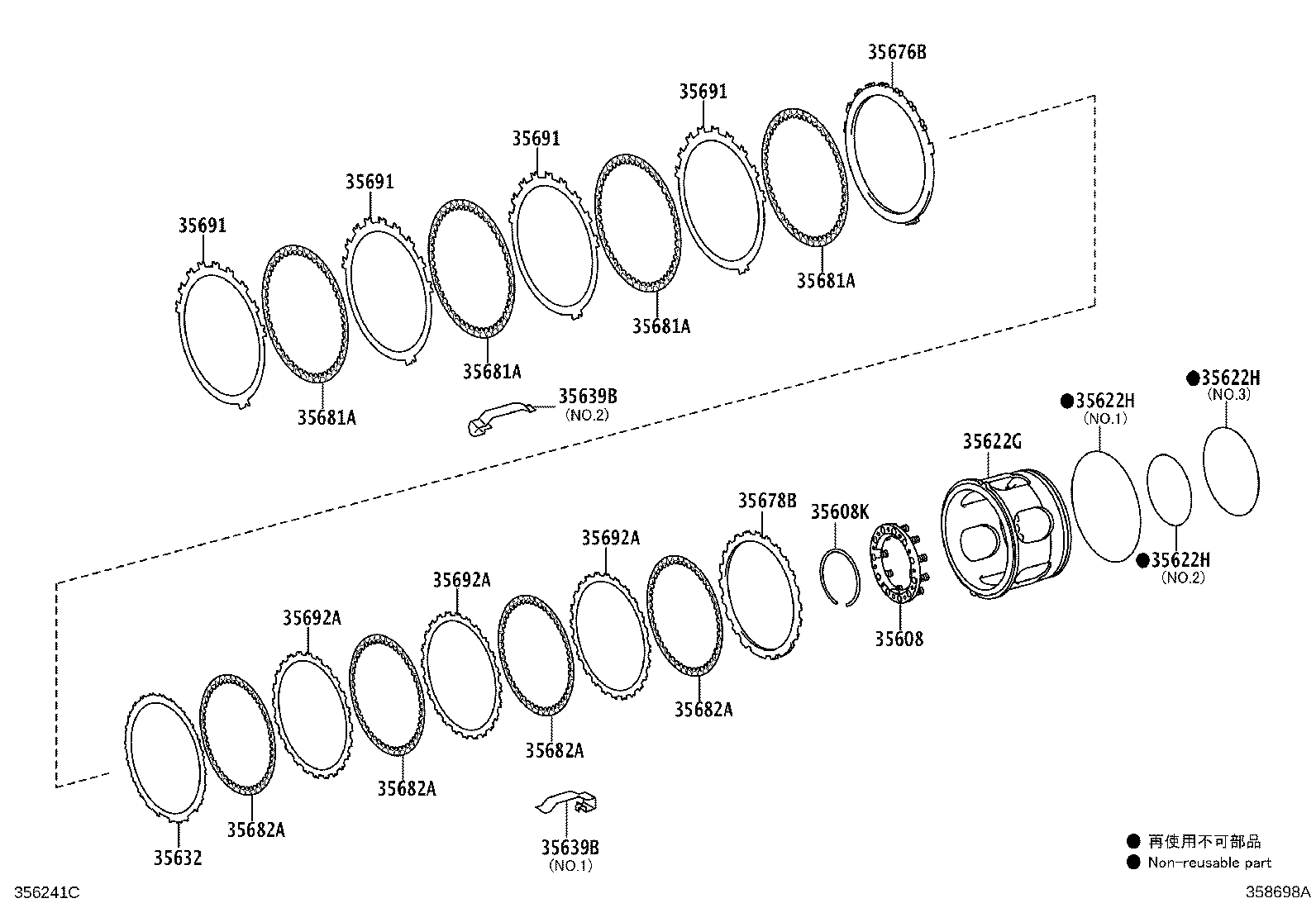

Exploded illustration 358698A 35676B — FLANGE, BRAKE, NO.1 (31 parts) 35691 — PLATE, BRAKE, NO.1 (4 parts) 35691 — PLATE, BRAKE, NO.1 (4 parts) 35691 — PLATE, BRAKE, NO.1 (4 parts) 35691 — PLATE, BRAKE, NO.1 (4 parts) 35639B — SPRING, BRAKE PLATE STOPPER (7 parts) 35681A — DISC, BRAKE, NO.1 (4 parts) 35681A — DISC, BRAKE, NO.1 (4 parts) 35681A — DISC, BRAKE, NO.1 (4 parts) 35681A — DISC, BRAKE, NO.1 (4 parts) 35678B — FLANGE, BRAKE, NO.2 (36 parts) 35682A — DISC, BRAKE, NO.2 (4 parts) 35682A — DISC, BRAKE, NO.2 (4 parts) 35682A — DISC, BRAKE, NO.2 (4 parts) 35682A — DISC, BRAKE, NO.2 (4 parts) 35692A — PLATE, BRAKE, NO.2 (4 parts) 35692A — PLATE, BRAKE, NO.2 (4 parts) 35692A — PLATE, BRAKE, NO.2 (4 parts) 35632 — PLATE, BRAKE (3 parts) 35639B — SPRING, BRAKE PLATE STOPPER (7 parts) 35608K — RING, SNAP (FOR BRAKE PISTON RETURN SPRING) (4 parts) 35608 — SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN (3 parts) 35622G — PISTON, BRAKE, NO.2 (4 parts) 35622H — RING, O (FOR BRAKE PISTON NO.2) (11 parts) 35622H — RING, O (FOR BRAKE PISTON NO.2) (11 parts) 35622H — RING, O (FOR BRAKE PISTON NO.2) (11 parts)
358698A · 26 callouts Full size ↗
115 parts on this figure
Part number Description Fitment Price
35608 — Spring Sub-assy, 2ND Brake Piston Return
35608-53010 Spring Sub-assy, 2ND Brake Piston Return
2015-08 → 2016-10 ended
ASE30 —
35608-53010 Spring Sub-assy, 2ND Brake Piston Return
2016-10 → 2018-04 ended
ASE30 RHD —
35608-53010 Spring Sub-assy, 2ND Brake Piston Return
2016-10 → —
ASE30 LHD —
35608K — Ring, Snap (FOR BRAKE PISTON RETURN SPRING)
90520-99098 Ring, Snap (FOR BRAKE PISTON RETURN SPRING)
2013-04 → 2015-08 ended
GSE30 —
90520-74002 Ring, Snap (FOR BRAKE PISTON RETURN SPRING)
2015-08 → 2016-10 ended
ASE30 —
90520-74002 Ring, Snap (FOR BRAKE PISTON RETURN SPRING)
2016-10 → 2018-04 ended
ASE30 RHD —
90520-74002 Ring, Snap (FOR BRAKE PISTON RETURN SPRING)
2016-10 → —
ASE30 LHD —
35622G — Piston, Brake, NO.2
35622-22030 Piston, Brake, NO.2
2013-04 → 2015-08 ended
GSE30 —
35622-50020 Piston, Brake, NO.2
2015-08 → 2016-10 ended
ASE30 —
35622-50020 Piston, Brake, NO.2
2016-10 → 2018-04 ended
ASE30 RHD —
35622-50020 Piston, Brake, NO.2
2016-10 → —
ASE30 LHD —
35622H — Ring, O (FOR BRAKE PISTON NO.2)
90301-99123 note Ring, O (FOR BRAKE PISTON NO.2)
2013-04 → 2015-08 ended
GSE30 —
90301-99155 note Ring, O (FOR BRAKE PISTON NO.2)
2013-04 → 2015-08 ended
GSE30 —
90301-82003 note Ring, O (FOR BRAKE PISTON NO.2)
2015-08 → 2016-10 ended
ASE30 —
90301-99123 note Ring, O (FOR BRAKE PISTON NO.2)
2015-08 → 2016-10 ended
ASE30 —
90301-99167 note Ring, O (FOR BRAKE PISTON NO.2)
2015-08 → 2016-10 ended
ASE30 —
90301-82003 note Ring, O (FOR BRAKE PISTON NO.2)
2016-10 → 2018-04 ended
ASE30 RHD —
90301-82003 note Ring, O (FOR BRAKE PISTON NO.2)
2016-10 → —
ASE30 LHD —
90301-99123 note Ring, O (FOR BRAKE PISTON NO.2)
2016-10 → 2018-04 ended
ASE30 RHD —
90301-99123 note Ring, O (FOR BRAKE PISTON NO.2)
2016-10 → —
ASE30 LHD —
90301-99167 note Ring, O (FOR BRAKE PISTON NO.2)
2016-10 → 2018-04 ended
ASE30 RHD —
90301-99167 note Ring, O (FOR BRAKE PISTON NO.2)
2016-10 → —
ASE30 LHD —
35632 — Plate, Brake
35632-50010 Plate, Brake
2015-08 → 2016-10 ended
ASE30 —
35632-50010 Plate, Brake
2016-10 → 2018-04 ended
ASE30 RHD —
35632-50010 Plate, Brake
2016-10 → —
ASE30 LHD —
35639B — Spring, Brake Plate Stopper
35639-60010 Spring, Brake Plate Stopper
2013-04 → 2015-08 ended
GSE30 —
35639-50010 note Spring, Brake Plate Stopper
2015-08 → 2016-10 ended
ASE30 —
35639-50020 note Spring, Brake Plate Stopper
2015-08 → 2016-10 ended
ASE30 —
35639-50010 note Spring, Brake Plate Stopper
2016-10 → 2018-04 ended
ASE30 RHD —
35639-50010 note Spring, Brake Plate Stopper
2016-10 → —
ASE30 LHD —
35639-50020 note Spring, Brake Plate Stopper
2016-10 → 2018-04 ended
ASE30 RHD —
35639-50020 note Spring, Brake Plate Stopper
2016-10 → —
ASE30 LHD —
35676B — Flange, Brake, NO.1
35676-22040 note Flange, Brake, NO.1
2013-04 → 2015-08 ended
GSE30 —
35676-22050 note Flange, Brake, NO.1
2013-04 → 2015-08 ended
GSE30 —
35676-22060 note Flange, Brake, NO.1
2013-04 → 2015-08 ended
GSE30 —
35676-22070 note Flange, Brake, NO.1
2013-04 → 2015-08 ended
GSE30 —
35676-50070 note Flange, Brake, NO.1
2015-08 → 2016-10 ended
ASE30 —
35676-50080 note Flange, Brake, NO.1
2015-08 → 2016-10 ended
ASE30 —
35676-50090 note Flange, Brake, NO.1
2015-08 → 2016-10 ended
ASE30 —
35676-50100 note Flange, Brake, NO.1
2015-08 → 2016-10 ended
ASE30 —
35676-50110 note Flange, Brake, NO.1
2015-08 → 2016-10 ended
ASE30 —
35676-50120 note Flange, Brake, NO.1
2015-08 → 2016-10 ended
ASE30 —
35676-50130 note Flange, Brake, NO.1
2015-08 → 2016-10 ended
ASE30 —
35676-50140 note Flange, Brake, NO.1
2015-08 → 2016-10 ended
ASE30 —
35676-50150 note Flange, Brake, NO.1
2015-08 → 2016-10 ended
ASE30 —
35676-50070 note Flange, Brake, NO.1
2016-10 → 2018-04 ended
ASE30 RHD —
35676-50070 note Flange, Brake, NO.1
2016-10 → —
ASE30 LHD —
35676-50080 note Flange, Brake, NO.1
2016-10 → 2018-04 ended
ASE30 RHD —
35676-50080 note Flange, Brake, NO.1
2016-10 → —
ASE30 LHD —
35676-50090 note Flange, Brake, NO.1
2016-10 → 2018-04 ended
ASE30 RHD —
35676-50090 note Flange, Brake, NO.1
2016-10 → —
ASE30 LHD —
35676-50100 note Flange, Brake, NO.1
2016-10 → —
ASE30 LHD —
35676-50100 note Flange, Brake, NO.1
2016-10 → 2018-04 ended
ASE30 RHD —
35676-50110 note Flange, Brake, NO.1
2016-10 → 2018-04 ended
ASE30 RHD —
35676-50110 note Flange, Brake, NO.1
2016-10 → —
ASE30 LHD —
35676-50120 note Flange, Brake, NO.1
2016-10 → 2018-04 ended
ASE30 RHD —
35676-50120 note Flange, Brake, NO.1
2016-10 → —
ASE30 LHD —
35676-50130 note Flange, Brake, NO.1
2016-10 → 2018-04 ended
ASE30 RHD —
35676-50130 note Flange, Brake, NO.1
2016-10 → —
ASE30 LHD —
35676-50140 note Flange, Brake, NO.1
2016-10 → —
ASE30 LHD —
35676-50140 note Flange, Brake, NO.1
2016-10 → 2018-04 ended
ASE30 RHD —
35676-50150 note Flange, Brake, NO.1
2016-10 → —
ASE30 LHD —
35676-50150 note Flange, Brake, NO.1
2016-10 → 2018-04 ended
ASE30 RHD —
35678B — Flange, Brake, NO.2
35678-22010 note Flange, Brake, NO.2
2013-04 → 2015-08 ended
GSE30 —
35678-22020 note Flange, Brake, NO.2
2013-04 → 2015-08 ended
GSE30 —
35678-22030 note Flange, Brake, NO.2
2013-04 → 2015-08 ended
GSE30 —
35678-22040 note Flange, Brake, NO.2
2013-04 → 2015-08 ended
GSE30 —
35678-22050 note Flange, Brake, NO.2
2013-04 → 2015-08 ended
GSE30 —
35678-22060 note Flange, Brake, NO.2
2013-04 → 2015-08 ended
GSE30 —
35678-22070 note Flange, Brake, NO.2
2013-04 → 2015-08 ended
GSE30 —
35678-22080 note Flange, Brake, NO.2
2013-04 → 2015-08 ended
GSE30 —
35678-22090 note Flange, Brake, NO.2
2013-04 → 2015-08 ended
GSE30 —
35678-50010 note Flange, Brake, NO.2
2015-08 → 2016-10 ended
ASE30 —
35678-50020 note Flange, Brake, NO.2
2015-08 → 2016-10 ended
ASE30 —
35678-50030 note Flange, Brake, NO.2
2015-08 → 2016-10 ended
ASE30 —
35678-50040 note Flange, Brake, NO.2
2015-08 → 2016-10 ended
ASE30 —
35678-50050 note Flange, Brake, NO.2
2015-08 → 2016-10 ended
ASE30 —
35678-50060 note Flange, Brake, NO.2
2015-08 → 2016-10 ended
ASE30 —
35678-50070 note Flange, Brake, NO.2
2015-08 → 2016-10 ended
ASE30 —
35678-50080 note Flange, Brake, NO.2
2015-08 → 2016-10 ended
ASE30 —
35678-50090 note Flange, Brake, NO.2
2015-08 → 2016-10 ended
ASE30 —
35678-50010 note Flange, Brake, NO.2
2016-10 → 2018-04 ended
ASE30 RHD —
35678-50010 note Flange, Brake, NO.2
2016-10 → —
ASE30 LHD —
35678-50020 note Flange, Brake, NO.2
2016-10 → 2018-04 ended
ASE30 RHD —
35678-50020 note Flange, Brake, NO.2
2016-10 → —
ASE30 LHD —
35678-50030 note Flange, Brake, NO.2
2016-10 → 2018-04 ended
ASE30 RHD —
35678-50030 note Flange, Brake, NO.2
2016-10 → —
ASE30 LHD —
35678-50040 note Flange, Brake, NO.2
2016-10 → 2018-04 ended
ASE30 RHD —
35678-50040 note Flange, Brake, NO.2
2016-10 → —
ASE30 LHD —
35678-50050 note Flange, Brake, NO.2
2016-10 → 2018-04 ended
ASE30 RHD —
35678-50050 note Flange, Brake, NO.2
2016-10 → —
ASE30 LHD —
35678-50060 note Flange, Brake, NO.2
2016-10 → 2018-04 ended
ASE30 RHD —
35678-50060 note Flange, Brake, NO.2
2016-10 → —
ASE30 LHD —
35678-50070 note Flange, Brake, NO.2
2016-10 → —
ASE30 LHD —
35678-50070 note Flange, Brake, NO.2
2016-10 → 2018-04 ended
ASE30 RHD —
35678-50080 note Flange, Brake, NO.2
2016-10 → 2018-04 ended
ASE30 RHD —
35678-50080 note Flange, Brake, NO.2
2016-10 → —
ASE30 LHD —
35678-50090 note Flange, Brake, NO.2
2016-10 → 2018-04 ended
ASE30 RHD —
35678-50090 note Flange, Brake, NO.2
2016-10 → —
ASE30 LHD —
35681A — Disc, Brake, NO.1
35681-30050 Disc, Brake, NO.1
2013-04 → 2015-08 ended
GSE30 —
35681-30040 Disc, Brake, NO.1
2015-08 → 2016-10 ended
ASE30 —
35681-30040 Disc, Brake, NO.1
2016-10 → 2018-04 ended
ASE30 RHD —
35681-30040 Disc, Brake, NO.1
2016-10 → —
ASE30 LHD —
35682A — Disc, Brake, NO.2
35682-22010 Disc, Brake, NO.2
2013-04 → 2015-08 ended
GSE30 —
35682-30030 Disc, Brake, NO.2
2015-08 → 2016-10 ended
ASE30 —
35682-30030 Disc, Brake, NO.2
2016-10 → 2018-04 ended
ASE30 RHD —
35682-30030 Disc, Brake, NO.2
2016-10 → —
ASE30 LHD —
35691 — Plate, Brake, NO.1
35691-22020 Plate, Brake, NO.1
2013-04 → 2015-08 ended
GSE30 —
35691-50020 Plate, Brake, NO.1
2015-08 → 2016-10 ended
ASE30 —
35691-50020 Plate, Brake, NO.1
2016-10 → 2018-04 ended
ASE30 RHD —
35691-50020 Plate, Brake, NO.1
2016-10 → —
ASE30 LHD —
35692A — Plate, Brake, NO.2
35692-22010 Plate, Brake, NO.2
2013-04 → 2015-08 ended
GSE30 —
35692-50020 Plate, Brake, NO.2
2015-08 → 2016-10 ended
ASE30 —
35692-50020 Plate, Brake, NO.2
2016-10 → 2018-04 ended
ASE30 RHD —
35692-50020 Plate, Brake, NO.2
2016-10 → —
ASE30 LHD —
