Toyota Lexus IS2###/3###

2013-04 → present · chassis ASE30,AVE30,GSE30 · catalogue 242530 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

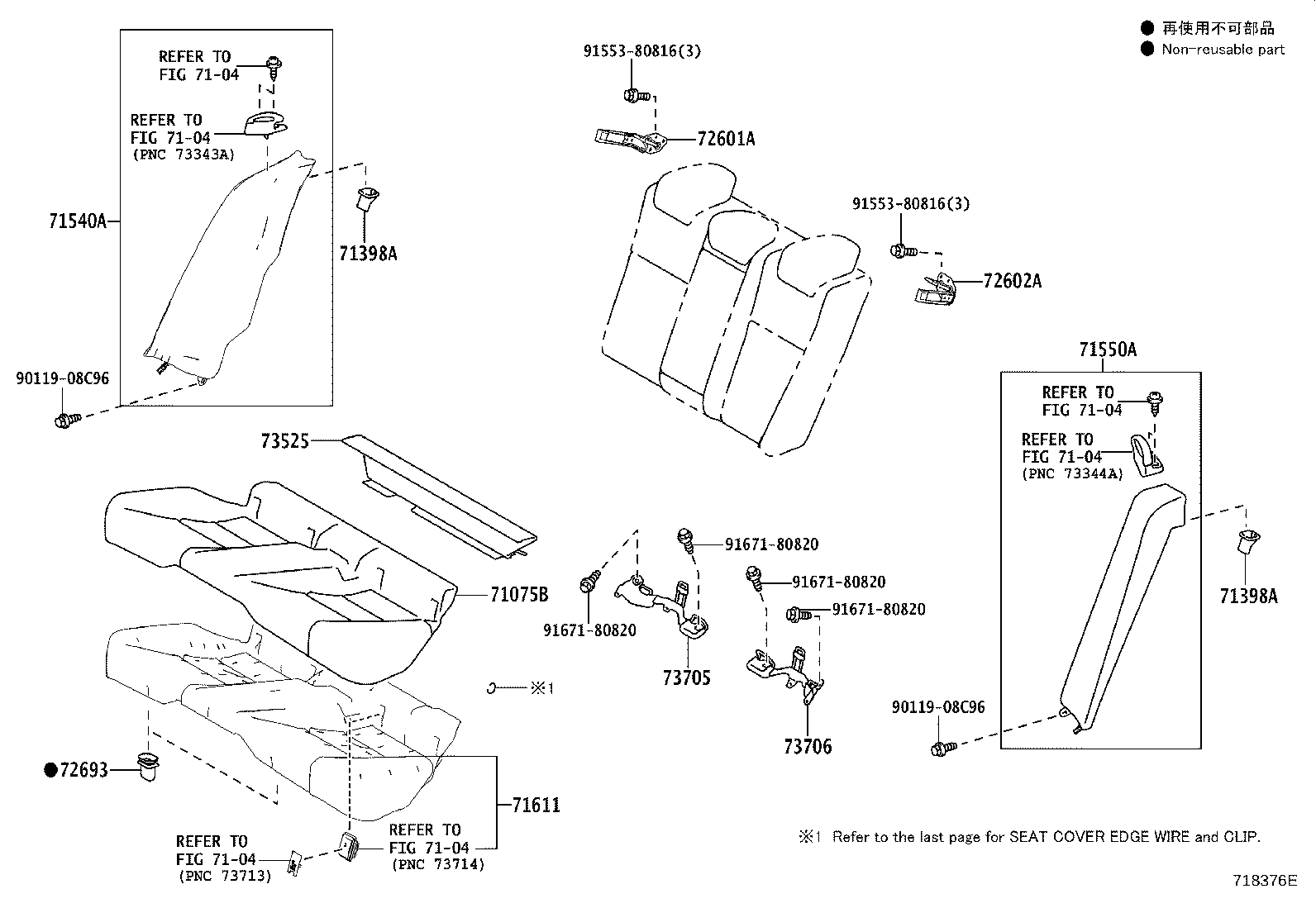

Exploded illustration 718376E 73705 — BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH (3 parts) 73706 — BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH (3 parts) 9167180820 — not listed in this catalogue 9167180820 — not listed in this catalogue 9167180820 — not listed in this catalogue 9167180820 — not listed in this catalogue 73525 — PANEL, REAR SEAT SUB FLOOR (45 parts) 71075B — COVER, REAR SEAT CUSHION (FOR BENCH TYPE) (142 parts) 72693 — HOOK, REAR SEAT CUSHION LOCK (3 parts) 71398A — HOLDER, REAR SEATBACK (16 parts) 71611 — PAD, REAR SEAT CUSHION (3 parts) 7104 — not listed in this catalogue 7104 — not listed in this catalogue 71550A — BACK ASSY, REAR SIDE SEAT, LH (123 parts) 71398A — HOLDER, REAR SEATBACK (16 parts) 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 71540A — BACK ASSY, REAR SIDE SEAT, RH (123 parts) 9155380816 — not listed in this catalogue 9155380816 — not listed in this catalogue 9011908C96 — not listed in this catalogue 9011908C96 — not listed in this catalogue 72602A — STRIKER SUB-ASSY, REAR SEATBACK LOCK, LH (12 parts) 72601A — STRIKER SUB-ASSY, REAR SEATBACK LOOK, RH (12 parts)
718376E · 12 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
485 parts on this figure
Part number Description Fitment Price
71075B — Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075-53720-B4 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-04 → 2014-07 ended
AVE30 ECO —
71075-53720-B4 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-04 → 2014-07 ended
AVE30 ECO —
71075-53720-B4 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-04 → 2014-07 ended
AVE30,GSE30 LUX —
71075-53720-B6 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-07 → 2015-02 ended
AVE30 ECO —
71075-53720-B6 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-07 → 2015-02 ended
AVE30 ECO —
71075-53720-B6 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-07 → 2015-02 ended
AVE30,GSE30 LUX —
71075-53720-C5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-04 → 2014-07 ended
AVE30,GSE30 —
71075-53720-C7 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-07 → 2015-02 ended
AVE30,GSE30 —
71075-53721-B6 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-03 → 2015-08 ended
AVE30 ECO —
71075-53721-B6 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-03 → 2015-08 ended
AVE30 ECO —
71075-53721-B6 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-03 → 2015-08 ended
AVE30,GSE30 LUX —
71075-53721-C7 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-03 → 2015-08 ended
AVE30,GSE30 —
71075-53760-A2 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-04 → 2014-07 ended
AVE30,GSE30 LHD LUX —
71075-53760-A2 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-04 → 2014-07 ended
AVE30 LHD ECO —
71075-53760-A2 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-04 → 2014-07 ended
AVE30 RHD ECO —
71075-53760-A2 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-04 → 2014-07 ended
AVE30,GSE30 RHD LUX —
71075-53760-A2 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-04 → 2014-07 ended
AVE30,GSE30 RHD LUX —
71075-53760-A2 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-04 → 2014-07 ended
AVE30,GSE30 LUX —
71075-53760-A3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-07 → 2015-02 ended
AVE30,GSE30 LUX —
71075-53760-A3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-07 → 2015-02 ended
AVE30,GSE30 RHD LUX —
71075-53760-A3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-07 → 2015-02 ended
AVE30,GSE30 LHD LUX —
71075-53760-A3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-07 → 2015-02 ended
AVE30,GSE30 RHD LUX —
71075-53760-A3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-07 → 2015-02 ended
AVE30 RHD ECO —
71075-53760-A3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-07 → 2015-02 ended
AVE30 LHD ECO —
71075-53760-B3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-04 → 2014-07 ended
AVE30,GSE30 LHD LUX —
71075-53760-B3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-04 → 2014-07 ended
AVE30,GSE30 RHD LUX —
71075-53760-B3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-04 → 2014-07 ended
AVE30 LHD ECO —
71075-53760-B3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-04 → 2014-07 ended
AVE30 RHD ECO —
71075-53760-B3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-04 → 2014-07 ended
AVE30,GSE30 RHD LUX —
71075-53760-B3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-04 → 2014-07 ended
AVE30,GSE30 LUX —
71075-53760-B5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-07 → 2015-02 ended
AVE30,GSE30 RHD LUX —
71075-53760-B5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-07 → 2015-02 ended
AVE30,GSE30 LUX —
71075-53760-B5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-07 → 2015-02 ended
AVE30,GSE30 LHD LUX —
71075-53760-B5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-07 → 2015-02 ended
AVE30,GSE30 RHD LUX —
71075-53760-B5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-07 → 2015-02 ended
AVE30 RHD ECO —
71075-53760-B5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-07 → 2015-02 ended
AVE30 LHD ECO —
71075-53760-C3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-04 → 2014-07 ended
AVE30,GSE30 LHD LUX —
71075-53760-C3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-04 → 2014-07 ended
AVE30 LHD ECO —
71075-53760-C3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-04 → 2014-07 ended
AVE30 RHD ECO —
71075-53760-C3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-04 → 2014-07 ended
AVE30,GSE30 RHD LUX —
71075-53760-C3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-04 → 2014-07 ended
AVE30,GSE30 LUX —
71075-53760-C3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-04 → 2014-07 ended
AVE30,GSE30 RHD LUX —
71075-53760-C5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-07 → 2015-02 ended
AVE30 LHD ECO —
71075-53760-C5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-07 → 2015-02 ended
AVE30 RHD ECO —
71075-53760-C5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-07 → 2015-02 ended
AVE30,GSE30 RHD LUX —
71075-53760-C5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-07 → 2015-02 ended
AVE30,GSE30 LHD LUX —
71075-53760-C5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-07 → 2015-02 ended
AVE30,GSE30 RHD LUX —
71075-53760-C5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-07 → 2015-02 ended
AVE30,GSE30 LUX —
71075-53761-A3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-03 → 2015-08 ended
AVE30,GSE30 LUX —
71075-53761-A3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-03 → 2015-08 ended
AVE30,GSE30 LHD LUX —
71075-53761-A3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-03 → 2015-08 ended
AVE30,GSE30 RHD LUX —
71075-53761-A3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-03 → 2015-08 ended
AVE30 RHD ECO —
71075-53761-A3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-03 → 2015-08 ended
AVE30 LHD ECO —
71075-53761-A3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-03 → 2015-08 ended
AVE30,GSE30 RHD LUX —
71075-53761-B5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-03 → 2015-08 ended
AVE30 LHD ECO —
71075-53761-B5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-03 → 2015-08 ended
AVE30 RHD ECO —
71075-53761-B5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-03 → 2015-08 ended
AVE30,GSE30 RHD LUX —
71075-53761-B5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-03 → 2015-08 ended
AVE30,GSE30 LHD LUX —
71075-53761-B5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-03 → 2015-08 ended
AVE30,GSE30 RHD LUX —
71075-53761-B5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-03 → 2015-08 ended
AVE30,GSE30 LUX —
71075-53761-C5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-03 → 2015-08 ended
AVE30,GSE30 LUX —
71075-53761-C5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-03 → 2015-08 ended
AVE30,GSE30 RHD LUX —
71075-53761-C5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-03 → 2015-08 ended
AVE30,GSE30 LHD LUX —
71075-53761-C5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-03 → 2015-08 ended
AVE30 LHD ECO —
71075-53761-C5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-03 → 2015-08 ended
AVE30 RHD ECO —
71075-53761-C5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-03 → 2015-08 ended
AVE30,GSE30 RHD LUX —
71075-53800-C3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-04 → 2014-07 ended
AVE30,GSE30 LUX —
71075-53800-C4 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-07 → 2015-02 ended
AVE30,GSE30 LUX —
71075-53801-C4 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-03 → 2015-08 ended
AVE30,GSE30 LUX —
71075-53820-C6 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-10 → 2015-02 ended
GSE30 LHD —
71075-53821-C6 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-03 → 2015-08 ended
GSE30 LHD —
71075-53830-C4 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-04 → 2014-07 ended
AVE30,GSE30 LUX —
71075-53830-C5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-07 → 2015-02 ended
AVE30,GSE30 LUX —
71075-53830-D3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2013-04 → 2014-07 ended
AVE30,GSE30 LUX —
71075-53830-D4 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2014-07 → 2015-02 ended
AVE30,GSE30 LUX —
71075-53831-C5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-03 → 2015-08 ended
AVE30,GSE30 LUX —
71075-53831-D4 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-03 → 2015-08 ended
AVE30,GSE30 LUX —
71075-53721-B7 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-08 → 2016-10 ended
ASE30,AVE30 —
71075-53721-C7 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-08 → 2016-10 ended
AVE30 ECO —
71075-53721-C7 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
71075-53721-C9 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
71075-53761-A3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-08 → 2016-10 ended
AVE30 LHD ECO —
71075-53761-A3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-08 → 2016-10 ended
AVE30 RHD ECO —
71075-53761-A3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-08 → 2016-10 ended
ASE30,AVE30 RHD LUX —
71075-53761-A3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-08 → 2016-10 ended
ASE30,AVE30 LHD LUX —
71075-53761-A3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-08 → 2016-10 ended
ASE30,AVE30 RHD LUX —
71075-53761-A3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
71075-53761-B6 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-08 → 2016-10 ended
AVE30 LHD ECO —
71075-53761-B6 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
71075-53761-B6 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-08 → 2016-10 ended
ASE30,AVE30 RHD LUX —
71075-53761-B6 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-08 → 2016-10 ended
ASE30,AVE30 LHD LUX —
71075-53761-B6 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-08 → 2016-10 ended
ASE30,AVE30 RHD LUX —
71075-53761-B6 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-08 → 2016-10 ended
AVE30 RHD ECO —
71075-53761-C5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-08 → 2016-10 ended
ASE30,AVE30 RHD LUX —
71075-53761-C5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-08 → 2016-10 ended
ASE30,AVE30 LHD LUX —
71075-53761-C5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-08 → 2016-10 ended
ASE30,AVE30 RHD LUX —
71075-53761-C5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
71075-53801-C4 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
71075-53801-D4 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
71075-53831-C5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
71075-53831-D4 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
71075-53722-41 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-10 → 2020-09 ended
ASE30,AVE30 —
71075-53722-42 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-10 → 2018-09 ended
ASE30,AVE30 LUX —
71075-53722-44 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2018-09 → 2019-09 ended
ASE30,AVE30 LUX —
71075-53722-45 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2019-09 → 2020-09 ended
ASE30,AVE30 LUX —
71075-53722-P5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2019-09 → 2020-09 ended
ASE30,AVE30 LUX —
71075-53722-P5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-10 → 2020-09 ended
ASE30 RHD —
71075-53722-P5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-10 → 2018-09 ended
ASE30 LHD;AVE30 LUX —
71075-53722-P5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2018-09 → 2019-09 ended
ASE30,AVE30 LUX —
71075-53742-23 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-10 → 2020-09 ended
AVE30 RHD LUX —
71075-53742-23 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-10 → 2020-09 ended
AVE30 LHD LUX —
71075-53761-B9 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-10 → 2019-08 ended
ASE30,AVE30 RHD LUX —
71075-53761-B9 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-10 → 2019-08 ended
ASE30,AVE30 LUX —
71075-53761-B9 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-10 → 2019-08 ended
AVE30 RHD LUX —
71075-53761-B9 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-10 → 2019-08 ended
ASE30,AVE30 LHD LUX —
71075-53761-C9 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-10 → 2019-08 ended
AVE30 RHD LUX —
71075-53761-C9 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-10 → 2019-08 ended
ASE30,AVE30 LHD LUX —
71075-53761-C9 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-10 → 2019-08 ended
ASE30,AVE30 RHD LUX —
71075-53761-C9 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-10 → 2019-08 ended
ASE30,AVE30 LUX —
71075-53761-E3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-10 → 2019-08 ended
ASE30,AVE30 LUX —
71075-53761-E3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-10 → 2019-08 ended
ASE30,AVE30 LHD LUX —
71075-53761-E3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-10 → 2019-08 ended
ASE30,AVE30 RHD LUX —
71075-53761-E3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2017-10 → 2019-08 ended
AVE30 RHD LUX —
71075-53762-22 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2019-09 → 2020-09 ended
AVE30 RHD LUX —
71075-53762-22 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2019-09 → 2020-09 ended
ASE30,AVE30 LHD LUX —
71075-53762-22 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2019-09 → 2020-09 ended
AVE30 RHD LUX —
71075-53762-22 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2019-09 → 2020-09 ended
ASE30,AVE30 LUX —
71075-53762-E4 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2019-09 → 2020-09 ended
ASE30,AVE30 LUX —
71075-53762-E4 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2019-09 → 2020-09 ended
AVE30 RHD LUX —
71075-53762-E4 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2019-09 → 2020-09 ended
ASE30,AVE30 LHD LUX —
71075-53762-E4 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2019-09 → 2020-09 ended
AVE30 RHD LUX —
71075-53762-P0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2019-09 → 2020-09 ended
AVE30 RHD LUX —
71075-53762-P0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2019-09 → 2020-09 ended
ASE30,AVE30 LHD LUX —
71075-53762-P0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2019-09 → 2020-09 ended
AVE30 RHD LUX —
71075-53762-P0 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2019-09 → 2020-09 ended
ASE30,AVE30 LUX —
71075-53802-C7 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-10 → 2020-09 ended
ASE30,AVE30 LUX —
71075-53802-D7 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-10 → 2020-09 ended
ASE30,AVE30 LUX —
71075-53831-C5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-10 → 2019-08 ended
ASE30,AVE30 LUX —
71075-53831-D4 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2016-10 → 2019-08 ended
ASE30,AVE30 LUX —
71075-53832-20 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2019-09 → 2020-09 ended
ASE30,AVE30 LUX —
71075-53832-D5 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2019-09 → 2020-09 ended
ASE30,AVE30 LUX —
71075-53A60-C3 note Cover, Rear Seat Cushion (FOR BENCH TYPE)
2019-09 → 2020-09 ended
AVE30 LUX —
71398A — Holder, Rear Seatback
71398-30010 note Holder, Rear Seatback
2013-04 → 2015-08 ended
AVE30,GSE30 LUX —
71398-30010 Holder, Rear Seatback
2013-04 → 2015-08 ended
AVE30 ECO —
71398-30010 note Holder, Rear Seatback
2013-04 → 2015-08 ended
AVE30 ECO —
71398-30010 note Holder, Rear Seatback
2013-04 → 2015-08 ended
AVE30 LHD ECO —
71398-30010 Holder, Rear Seatback
2013-04 → 2015-08 ended
AVE30,GSE30 LUX —
71398-30010 Holder, Rear Seatback
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
71398-30010 note Holder, Rear Seatback
2015-08 → 2016-10 ended
AVE30 LHD ECO —
71398-30010 note Holder, Rear Seatback
2015-08 → 2016-10 ended
AVE30 ECO —
71398-30010 Holder, Rear Seatback
2015-08 → 2016-10 ended
AVE30 ECO —
71398-30010 note Holder, Rear Seatback
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
71398-30010 note Holder, Rear Seatback
2016-10 → 2017-10 ended
ASE30,AVE30 LUX —
71398-30010 note Holder, Rear Seatback
2017-10 → —
ASE30,AVE30 LUX —
71398-30010 note Holder, Rear Seatback
2017-10 → —
AVE30 ECO —
71398-30010 Holder, Rear Seatback
2016-10 → —
ASE30,AVE30 LUX —
71398-30010 Holder, Rear Seatback
2016-10 → —
AVE30 ECO —
71398-30010 note Holder, Rear Seatback
2016-10 → 2017-10 ended
AVE30 ECO —
71540A — Back Assy, Rear Side Seat, RH
71540-53040-B4 note Back Assy, Rear Side Seat, RH
2013-04 → 2014-07 ended
AVE30,GSE30 LUX —
71540-53040-B4 note Back Assy, Rear Side Seat, RH
2013-04 → 2014-07 ended
AVE30 ECO —
71540-53040-B4 note Back Assy, Rear Side Seat, RH
2013-04 → 2014-07 ended
AVE30 ECO —
71540-53040-B7 note Back Assy, Rear Side Seat, RH
2014-07 → 2015-08 ended
AVE30,GSE30 LUX —
71540-53040-B7 note Back Assy, Rear Side Seat, RH
2014-07 → 2015-08 ended
AVE30 ECO —
71540-53040-B7 note Back Assy, Rear Side Seat, RH
2014-07 → 2015-08 ended
AVE30 ECO —
71540-53040-C5 note Back Assy, Rear Side Seat, RH
2013-04 → 2014-07 ended
AVE30,GSE30 LUX —
71540-53040-C5 note Back Assy, Rear Side Seat, RH
2013-04 → 2014-07 ended
AVE30 ECO —
71540-53040-C5 note Back Assy, Rear Side Seat, RH
2013-04 → 2014-07 ended
AVE30 ECO —
71540-53040-C8 note Back Assy, Rear Side Seat, RH
2014-07 → 2015-08 ended
AVE30,GSE30 LUX —
71540-53040-C8 note Back Assy, Rear Side Seat, RH
2014-07 → 2015-08 ended
AVE30 ECO —
71540-53040-C8 note Back Assy, Rear Side Seat, RH
2014-07 → 2015-08 ended
AVE30 ECO —
71540-53070-A2 note Back Assy, Rear Side Seat, RH
2013-04 → 2014-07 ended
AVE30,GSE30 RHD LUX —
71540-53070-A2 note Back Assy, Rear Side Seat, RH
2013-04 → 2014-07 ended
AVE30,GSE30 LUX —
71540-53070-A2 note Back Assy, Rear Side Seat, RH
2013-04 → 2014-07 ended
AVE30,GSE30 LHD LUX —
71540-53070-A2 note Back Assy, Rear Side Seat, RH
2013-04 → 2014-07 ended
AVE30,GSE30 RHD LUX —
71540-53070-A2 note Back Assy, Rear Side Seat, RH
2013-04 → 2014-07 ended
AVE30 RHD ECO —
71540-53070-A2 note Back Assy, Rear Side Seat, RH
2013-04 → 2014-07 ended
AVE30 LHD ECO —
71540-53070-A3 note Back Assy, Rear Side Seat, RH
2014-07 → 2015-08 ended
AVE30 RHD ECO —
71540-53070-A3 note Back Assy, Rear Side Seat, RH
2014-07 → 2015-08 ended
AVE30 LHD ECO —
71540-53070-A3 note Back Assy, Rear Side Seat, RH
2014-07 → 2015-08 ended
AVE30,GSE30 RHD LUX —
71540-53070-A3 note Back Assy, Rear Side Seat, RH
2014-07 → 2015-08 ended
AVE30,GSE30 LHD LUX —
71540-53070-A3 note Back Assy, Rear Side Seat, RH
2014-07 → 2015-08 ended
AVE30,GSE30 RHD LUX —
71540-53070-A3 note Back Assy, Rear Side Seat, RH
2014-07 → 2015-08 ended
AVE30,GSE30 LUX —
71540-53070-B4 note Back Assy, Rear Side Seat, RH
2013-04 → 2014-07 ended
AVE30,GSE30 LUX —
71540-53070-B4 note Back Assy, Rear Side Seat, RH
2013-04 → 2014-07 ended
AVE30,GSE30 RHD LUX —
71540-53070-B4 note Back Assy, Rear Side Seat, RH
2013-04 → 2014-07 ended
AVE30,GSE30 LHD LUX —
71540-53070-B4 note Back Assy, Rear Side Seat, RH
2013-04 → 2014-07 ended
AVE30,GSE30 RHD LUX —
71540-53070-B4 note Back Assy, Rear Side Seat, RH
2013-04 → 2014-07 ended
AVE30 RHD ECO —
71540-53070-B4 note Back Assy, Rear Side Seat, RH
2013-04 → 2014-07 ended
AVE30 LHD ECO —
71540-53070-B6 note Back Assy, Rear Side Seat, RH
2014-07 → 2015-08 ended
AVE30 LHD ECO —
71540-53070-B6 note Back Assy, Rear Side Seat, RH
2014-07 → 2015-08 ended
AVE30 RHD ECO —
71540-53070-B6 note Back Assy, Rear Side Seat, RH
2014-07 → 2015-08 ended
AVE30,GSE30 RHD LUX —
71540-53070-B6 note Back Assy, Rear Side Seat, RH
2014-07 → 2015-08 ended
AVE30,GSE30 LHD LUX —
71540-53070-B6 note Back Assy, Rear Side Seat, RH
2014-07 → 2015-08 ended
AVE30,GSE30 RHD LUX —
71540-53070-B6 note Back Assy, Rear Side Seat, RH
2014-07 → 2015-08 ended
AVE30,GSE30 LUX —
71540-53070-C3 note Back Assy, Rear Side Seat, RH
2013-04 → 2014-07 ended
AVE30,GSE30 RHD LUX —
71540-53070-C3 note Back Assy, Rear Side Seat, RH
2013-04 → 2014-07 ended
AVE30,GSE30 LUX —
71540-53070-C3 note Back Assy, Rear Side Seat, RH
2013-04 → 2014-07 ended
AVE30,GSE30 LHD LUX —
71540-53070-C3 note Back Assy, Rear Side Seat, RH
2013-04 → 2014-07 ended
AVE30,GSE30 RHD LUX —
71540-53070-C3 note Back Assy, Rear Side Seat, RH
2013-04 → 2014-07 ended
AVE30 RHD ECO —
71540-53070-C3 note Back Assy, Rear Side Seat, RH
2013-04 → 2014-07 ended
AVE30 LHD ECO —
71540-53070-C5 note Back Assy, Rear Side Seat, RH
2014-07 → 2015-08 ended
AVE30 LHD ECO —
71540-53070-C5 note Back Assy, Rear Side Seat, RH
2014-07 → 2015-08 ended
AVE30 RHD ECO —
71540-53070-C5 note Back Assy, Rear Side Seat, RH
2014-07 → 2015-08 ended
AVE30,GSE30 RHD LUX —
71540-53070-C5 note Back Assy, Rear Side Seat, RH
2014-07 → 2015-08 ended
AVE30,GSE30 LHD LUX —
71540-53070-C5 note Back Assy, Rear Side Seat, RH
2014-07 → 2015-08 ended
AVE30,GSE30 RHD LUX —
71540-53070-C5 note Back Assy, Rear Side Seat, RH
2014-07 → 2015-08 ended
AVE30,GSE30 LUX —
71540-53120-C0 note Back Assy, Rear Side Seat, RH
2013-04 → 2014-07 ended
AVE30,GSE30 LUX —
71540-53120-C1 note Back Assy, Rear Side Seat, RH
2014-07 → 2015-08 ended
AVE30,GSE30 LUX —
71540-53120-D1 note Back Assy, Rear Side Seat, RH
2013-04 → 2014-07 ended
AVE30,GSE30 LUX —
71540-53120-D2 note Back Assy, Rear Side Seat, RH
2014-07 → 2015-08 ended
AVE30,GSE30 LUX —
71540-53140-C0 note Back Assy, Rear Side Seat, RH
2013-04 → 2014-07 ended
AVE30,GSE30 LUX —
71540-53140-C1 note Back Assy, Rear Side Seat, RH
2014-07 → 2015-08 ended
AVE30,GSE30 LUX —
71540-53140-D3 note Back Assy, Rear Side Seat, RH
2014-10 → 2015-08 ended
GSE30 LHD —
71540-53040-20 note Back Assy, Rear Side Seat, RH
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
71540-53040-B9 note Back Assy, Rear Side Seat, RH
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
71540-53040-B9 note Back Assy, Rear Side Seat, RH
2015-08 → 2016-10 ended
AVE30 ECO —
71540-53040-B9 note Back Assy, Rear Side Seat, RH
2015-08 → 2016-10 ended
AVE30 ECO —
71540-53040-C9 note Back Assy, Rear Side Seat, RH
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
71540-53040-C9 note Back Assy, Rear Side Seat, RH
2015-08 → 2016-10 ended
AVE30 ECO —
71540-53040-C9 note Back Assy, Rear Side Seat, RH
2015-08 → 2016-10 ended
AVE30 ECO —
71540-53070-A4 note Back Assy, Rear Side Seat, RH
2015-08 → 2016-10 ended
ASE30,AVE30 RHD LUX —
71540-53070-A4 note Back Assy, Rear Side Seat, RH
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
71540-53070-A4 note Back Assy, Rear Side Seat, RH
2015-08 → 2016-10 ended
ASE30,AVE30 RHD LUX —
71540-53070-A4 note Back Assy, Rear Side Seat, RH
2015-08 → 2016-10 ended
AVE30 RHD ECO —
71540-53070-A4 note Back Assy, Rear Side Seat, RH
2015-08 → 2016-10 ended
AVE30 LHD ECO —
71540-53070-A4 note Back Assy, Rear Side Seat, RH
2015-08 → 2016-10 ended
ASE30,AVE30 LHD LUX —
71540-53070-B8 note Back Assy, Rear Side Seat, RH
2015-08 → 2016-10 ended
AVE30 LHD ECO —
71540-53070-B8 note Back Assy, Rear Side Seat, RH
2015-08 → 2016-10 ended
AVE30 RHD ECO —
71540-53070-B8 note Back Assy, Rear Side Seat, RH
2015-08 → 2016-10 ended
ASE30,AVE30 RHD LUX —
71540-53070-B8 note Back Assy, Rear Side Seat, RH
2015-08 → 2016-10 ended
ASE30,AVE30 LHD LUX —
71540-53070-B8 note Back Assy, Rear Side Seat, RH
2015-08 → 2016-10 ended
ASE30,AVE30 RHD LUX —
71540-53070-B8 note Back Assy, Rear Side Seat, RH
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
71540-53070-C7 note Back Assy, Rear Side Seat, RH
2015-08 → 2016-10 ended
ASE30,AVE30 RHD LUX —
71540-53070-C7 note Back Assy, Rear Side Seat, RH
2015-08 → 2016-10 ended
ASE30,AVE30 LHD LUX —
71540-53070-C7 note Back Assy, Rear Side Seat, RH
2015-08 → 2016-10 ended
ASE30,AVE30 RHD LUX —
71540-53070-C7 note Back Assy, Rear Side Seat, RH
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
71540-53120-C2 note Back Assy, Rear Side Seat, RH
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
71540-53120-D3 note Back Assy, Rear Side Seat, RH
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
71540-53140-C2 note Back Assy, Rear Side Seat, RH
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
71540-53140-D4 note Back Assy, Rear Side Seat, RH
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
71540-53040-C9 note Back Assy, Rear Side Seat, RH
2016-10 → 2017-10 ended
AVE30 ECO —
71540-53040-C9 note Back Assy, Rear Side Seat, RH
2016-10 → 2020-09 ended
AVE30 ECO —
71540-53040-C9 note Back Assy, Rear Side Seat, RH
2016-10 → 2020-09 ended
ASE30,AVE30 LUX —
71540-53040-E5 note Back Assy, Rear Side Seat, RH
2019-09 → 2020-09 ended
ASE30,AVE30 LUX —
71540-53040-K1 note Back Assy, Rear Side Seat, RH
2016-10 → 2018-09 ended
ASE30,AVE30 LUX —
71540-53040-P3 note Back Assy, Rear Side Seat, RH
2016-10 → 2018-09 ended
ASE30 LHD;AVE30 LUX —
71540-53040-P3 note Back Assy, Rear Side Seat, RH
2019-09 → 2020-09 ended
ASE30,AVE30 LUX —
71540-53040-P3 note Back Assy, Rear Side Seat, RH
2016-10 → 2020-09 ended
ASE30 RHD —
71540-53040-P3 note Back Assy, Rear Side Seat, RH
2018-09 → 2019-09 ended
ASE30,AVE30 LUX —
71540-53040-P5 note Back Assy, Rear Side Seat, RH
2018-09 → 2019-09 ended
ASE30,AVE30 LUX —
71540-53070-20 note Back Assy, Rear Side Seat, RH
2019-09 → 2020-09 ended
ASE30,AVE30 LHD LUX —
71540-53070-20 note Back Assy, Rear Side Seat, RH
2019-09 → 2020-09 ended
AVE30 RHD LUX —
71540-53070-20 note Back Assy, Rear Side Seat, RH
2019-09 → 2020-09 ended
AVE30 RHD LUX —
71540-53070-20 note Back Assy, Rear Side Seat, RH
2019-09 → 2020-09 ended
ASE30,AVE30 LUX —
71540-53070-C9 note Back Assy, Rear Side Seat, RH
2017-10 → 2019-09 ended
AVE30 RHD LUX —
71540-53070-C9 note Back Assy, Rear Side Seat, RH
2016-10 → 2019-09 ended
ASE30,AVE30 LUX —
71540-53070-C9 note Back Assy, Rear Side Seat, RH
2016-10 → 2019-09 ended
ASE30,AVE30 RHD LUX —
71540-53070-C9 note Back Assy, Rear Side Seat, RH
2016-10 → 2019-09 ended
ASE30,AVE30 LHD LUX —
71540-53070-E4 note Back Assy, Rear Side Seat, RH
2017-10 → 2019-09 ended
AVE30 RHD LUX —
71540-53070-E4 note Back Assy, Rear Side Seat, RH
2016-10 → 2019-09 ended
ASE30,AVE30 LUX —
71540-53070-E4 note Back Assy, Rear Side Seat, RH
2016-10 → 2019-09 ended
ASE30,AVE30 RHD LUX —
71540-53070-E4 note Back Assy, Rear Side Seat, RH
2016-10 → 2019-09 ended
ASE30,AVE30 LHD LUX —
71540-53070-E5 note Back Assy, Rear Side Seat, RH
2019-09 → 2020-09 ended
AVE30 RHD LUX —
71540-53070-E5 note Back Assy, Rear Side Seat, RH
2019-09 → 2020-09 ended
ASE30,AVE30 LHD LUX —
71540-53070-E5 note Back Assy, Rear Side Seat, RH
2019-09 → 2020-09 ended
AVE30 RHD LUX —
71540-53070-E5 note Back Assy, Rear Side Seat, RH
2019-09 → 2020-09 ended
ASE30,AVE30 LUX —
71540-53070-P2 note Back Assy, Rear Side Seat, RH
2016-10 → 2019-09 ended
ASE30,AVE30 LHD LUX —
71540-53070-P2 note Back Assy, Rear Side Seat, RH
2016-10 → 2019-09 ended
ASE30,AVE30 RHD LUX —
71540-53070-P2 note Back Assy, Rear Side Seat, RH
2017-10 → 2019-09 ended
AVE30 RHD LUX —
71540-53070-P2 note Back Assy, Rear Side Seat, RH
2016-10 → 2019-09 ended
ASE30,AVE30 LUX —
71540-53070-P3 note Back Assy, Rear Side Seat, RH
2019-09 → 2020-09 ended
AVE30 RHD LUX —
71540-53070-P3 note Back Assy, Rear Side Seat, RH
2019-09 → 2020-09 ended
ASE30,AVE30 LHD LUX —
71540-53070-P3 note Back Assy, Rear Side Seat, RH
2019-09 → 2020-09 ended
AVE30 RHD LUX —
71540-53070-P3 note Back Assy, Rear Side Seat, RH
2019-09 → 2020-09 ended
ASE30,AVE30 LUX —
71540-53120-C2 note Back Assy, Rear Side Seat, RH
2016-10 → 2019-09 ended
ASE30,AVE30 LUX —
71540-53120-D3 note Back Assy, Rear Side Seat, RH
2016-10 → 2019-09 ended
ASE30,AVE30 LUX —
71540-53140-C2 note Back Assy, Rear Side Seat, RH
2016-10 → 2020-09 ended
ASE30,AVE30 LUX —
71540-53140-C2 note Back Assy, Rear Side Seat, RH
2019-09 → 2020-09 ended
ASE30,AVE30 LUX —
71540-53140-D4 note Back Assy, Rear Side Seat, RH
2019-09 → 2020-09 ended
ASE30,AVE30 LUX —
71540-53140-D4 note Back Assy, Rear Side Seat, RH
2016-10 → 2020-09 ended
ASE30,AVE30 LUX —
71540-53140-J1 note Back Assy, Rear Side Seat, RH
2019-09 → 2020-09 ended
AVE30 LUX —
71550A — Back Assy, Rear Side Seat, LH
71550-53040-B4 note Back Assy, Rear Side Seat, LH
2013-04 → 2014-07 ended
AVE30,GSE30 LUX —
71550-53040-B4 note Back Assy, Rear Side Seat, LH
2013-04 → 2014-07 ended
AVE30 ECO —
71550-53040-B4 note Back Assy, Rear Side Seat, LH
2013-04 → 2014-07 ended
AVE30 ECO —
71550-53040-B7 note Back Assy, Rear Side Seat, LH
2014-07 → 2015-08 ended
AVE30 ECO —
71550-53040-B7 note Back Assy, Rear Side Seat, LH
2014-07 → 2015-08 ended
AVE30 ECO —
71550-53040-B7 note Back Assy, Rear Side Seat, LH
2014-07 → 2015-08 ended
AVE30,GSE30 LUX —
71550-53040-C5 note Back Assy, Rear Side Seat, LH
2013-04 → 2014-07 ended
AVE30,GSE30 LUX —
71550-53040-C5 note Back Assy, Rear Side Seat, LH
2013-04 → 2014-07 ended
AVE30 ECO —
71550-53040-C5 note Back Assy, Rear Side Seat, LH
2013-04 → 2014-07 ended
AVE30 ECO —
71550-53040-C8 note Back Assy, Rear Side Seat, LH
2014-07 → 2015-08 ended
AVE30 ECO —
71550-53040-C8 note Back Assy, Rear Side Seat, LH
2014-07 → 2015-08 ended
AVE30 ECO —
71550-53040-C8 note Back Assy, Rear Side Seat, LH
2014-07 → 2015-08 ended
AVE30,GSE30 LUX —
71550-53070-A2 note Back Assy, Rear Side Seat, LH
2013-04 → 2014-07 ended
AVE30 LHD ECO —
71550-53070-A2 note Back Assy, Rear Side Seat, LH
2013-04 → 2014-07 ended
AVE30 RHD ECO —
71550-53070-A2 note Back Assy, Rear Side Seat, LH
2013-04 → 2014-07 ended
AVE30,GSE30 RHD LUX —
71550-53070-A2 note Back Assy, Rear Side Seat, LH
2013-04 → 2014-07 ended
AVE30,GSE30 LHD LUX —
71550-53070-A2 note Back Assy, Rear Side Seat, LH
2013-04 → 2014-07 ended
AVE30,GSE30 RHD LUX —
71550-53070-A2 note Back Assy, Rear Side Seat, LH
2013-04 → 2014-07 ended
AVE30,GSE30 LUX —
71550-53070-A3 note Back Assy, Rear Side Seat, LH
2014-07 → 2015-08 ended
AVE30,GSE30 LUX —
71550-53070-A3 note Back Assy, Rear Side Seat, LH
2014-07 → 2015-08 ended
AVE30,GSE30 RHD LUX —
71550-53070-A3 note Back Assy, Rear Side Seat, LH
2014-07 → 2015-08 ended
AVE30,GSE30 LHD LUX —
71550-53070-A3 note Back Assy, Rear Side Seat, LH
2014-07 → 2015-08 ended
AVE30,GSE30 RHD LUX —
71550-53070-A3 note Back Assy, Rear Side Seat, LH
2014-07 → 2015-08 ended
AVE30 RHD ECO —
71550-53070-A3 note Back Assy, Rear Side Seat, LH
2014-07 → 2015-08 ended
AVE30 LHD ECO —
71550-53070-B4 note Back Assy, Rear Side Seat, LH
2013-04 → 2014-07 ended
AVE30 LHD ECO —
71550-53070-B4 note Back Assy, Rear Side Seat, LH
2013-04 → 2014-07 ended
AVE30 RHD ECO —
71550-53070-B4 note Back Assy, Rear Side Seat, LH
2013-04 → 2014-07 ended
AVE30,GSE30 RHD LUX —
71550-53070-B4 note Back Assy, Rear Side Seat, LH
2013-04 → 2014-07 ended
AVE30,GSE30 LHD LUX —
71550-53070-B4 note Back Assy, Rear Side Seat, LH
2013-04 → 2014-07 ended
AVE30,GSE30 RHD LUX —
71550-53070-B4 note Back Assy, Rear Side Seat, LH
2013-04 → 2014-07 ended
AVE30,GSE30 LUX —
71550-53070-B6 note Back Assy, Rear Side Seat, LH
2014-07 → 2015-08 ended
AVE30,GSE30 RHD LUX —
71550-53070-B6 note Back Assy, Rear Side Seat, LH
2014-07 → 2015-08 ended
AVE30,GSE30 LHD LUX —
71550-53070-B6 note Back Assy, Rear Side Seat, LH
2014-07 → 2015-08 ended
AVE30,GSE30 RHD LUX —
71550-53070-B6 note Back Assy, Rear Side Seat, LH
2014-07 → 2015-08 ended
AVE30 RHD ECO —
71550-53070-B6 note Back Assy, Rear Side Seat, LH
2014-07 → 2015-08 ended
AVE30 LHD ECO —
71550-53070-B6 note Back Assy, Rear Side Seat, LH
2014-07 → 2015-08 ended
AVE30,GSE30 LUX —
71550-53070-C3 note Back Assy, Rear Side Seat, LH
2013-04 → 2014-07 ended
AVE30 LHD ECO —
71550-53070-C3 note Back Assy, Rear Side Seat, LH
2013-04 → 2014-07 ended
AVE30 RHD ECO —
71550-53070-C3 note Back Assy, Rear Side Seat, LH
2013-04 → 2014-07 ended
AVE30,GSE30 RHD LUX —
71550-53070-C3 note Back Assy, Rear Side Seat, LH
2013-04 → 2014-07 ended
AVE30,GSE30 LHD LUX —
71550-53070-C3 note Back Assy, Rear Side Seat, LH
2013-04 → 2014-07 ended
AVE30,GSE30 RHD LUX —
71550-53070-C3 note Back Assy, Rear Side Seat, LH
2013-04 → 2014-07 ended
AVE30,GSE30 LUX —
71550-53070-C5 note Back Assy, Rear Side Seat, LH
2014-07 → 2015-08 ended
AVE30,GSE30 LUX —
71550-53070-C5 note Back Assy, Rear Side Seat, LH
2014-07 → 2015-08 ended
AVE30,GSE30 RHD LUX —
71550-53070-C5 note Back Assy, Rear Side Seat, LH
2014-07 → 2015-08 ended
AVE30,GSE30 LHD LUX —
71550-53070-C5 note Back Assy, Rear Side Seat, LH
2014-07 → 2015-08 ended
AVE30,GSE30 RHD LUX —
71550-53070-C5 note Back Assy, Rear Side Seat, LH
2014-07 → 2015-08 ended
AVE30 RHD ECO —
71550-53070-C5 note Back Assy, Rear Side Seat, LH
2014-07 → 2015-08 ended
AVE30 LHD ECO —
71550-53120-C0 note Back Assy, Rear Side Seat, LH
2013-04 → 2014-07 ended
AVE30,GSE30 LUX —
71550-53120-C1 note Back Assy, Rear Side Seat, LH
2014-07 → 2015-08 ended
AVE30,GSE30 LUX —
71550-53120-D1 note Back Assy, Rear Side Seat, LH
2013-04 → 2014-07 ended
AVE30,GSE30 LUX —
71550-53120-D2 note Back Assy, Rear Side Seat, LH
2014-07 → 2015-08 ended
AVE30,GSE30 LUX —
71550-53140-C0 note Back Assy, Rear Side Seat, LH
2013-04 → 2014-07 ended
AVE30,GSE30 LUX —
71550-53140-C1 note Back Assy, Rear Side Seat, LH
2014-07 → 2015-08 ended
AVE30,GSE30 LUX —
71550-53140-D3 note Back Assy, Rear Side Seat, LH
2014-10 → 2015-08 ended
GSE30 LHD —
71550-53040-20 note Back Assy, Rear Side Seat, LH
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
71550-53040-B9 note Back Assy, Rear Side Seat, LH
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
71550-53040-B9 note Back Assy, Rear Side Seat, LH
2015-08 → 2016-10 ended
AVE30 ECO —
71550-53040-B9 note Back Assy, Rear Side Seat, LH
2015-08 → 2016-10 ended
AVE30 ECO —
71550-53040-C9 note Back Assy, Rear Side Seat, LH
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
71550-53040-C9 note Back Assy, Rear Side Seat, LH
2015-08 → 2016-10 ended
AVE30 ECO —
71550-53040-C9 note Back Assy, Rear Side Seat, LH
2015-08 → 2016-10 ended
AVE30 ECO —
71550-53070-A4 note Back Assy, Rear Side Seat, LH
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
71550-53070-A4 note Back Assy, Rear Side Seat, LH
2015-08 → 2016-10 ended
ASE30,AVE30 RHD LUX —
71550-53070-A4 note Back Assy, Rear Side Seat, LH
2015-08 → 2016-10 ended
ASE30,AVE30 LHD LUX —
71550-53070-A4 note Back Assy, Rear Side Seat, LH
2015-08 → 2016-10 ended
ASE30,AVE30 RHD LUX —
71550-53070-A4 note Back Assy, Rear Side Seat, LH
2015-08 → 2016-10 ended
AVE30 RHD ECO —
71550-53070-A4 note Back Assy, Rear Side Seat, LH
2015-08 → 2016-10 ended
AVE30 LHD ECO —
71550-53070-B8 note Back Assy, Rear Side Seat, LH
2015-08 → 2016-10 ended
AVE30 LHD ECO —
71550-53070-B8 note Back Assy, Rear Side Seat, LH
2015-08 → 2016-10 ended
AVE30 RHD ECO —
71550-53070-B8 note Back Assy, Rear Side Seat, LH
2015-08 → 2016-10 ended
ASE30,AVE30 RHD LUX —
71550-53070-B8 note Back Assy, Rear Side Seat, LH
2015-08 → 2016-10 ended
ASE30,AVE30 LHD LUX —
71550-53070-B8 note Back Assy, Rear Side Seat, LH
2015-08 → 2016-10 ended
ASE30,AVE30 RHD LUX —
71550-53070-B8 note Back Assy, Rear Side Seat, LH
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
71550-53070-C7 note Back Assy, Rear Side Seat, LH
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
71550-53070-C7 note Back Assy, Rear Side Seat, LH
2015-08 → 2016-10 ended
ASE30,AVE30 RHD LUX —
71550-53070-C7 note Back Assy, Rear Side Seat, LH
2015-08 → 2016-10 ended
ASE30,AVE30 RHD LUX —
71550-53070-C7 note Back Assy, Rear Side Seat, LH
2015-08 → 2016-10 ended
ASE30,AVE30 LHD LUX —
71550-53120-C2 note Back Assy, Rear Side Seat, LH
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
71550-53120-D3 note Back Assy, Rear Side Seat, LH
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
71550-53140-C2 note Back Assy, Rear Side Seat, LH
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
71550-53140-D4 note Back Assy, Rear Side Seat, LH
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
71550-53040-C9 note Back Assy, Rear Side Seat, LH
2016-10 → 2017-10 ended
AVE30 ECO —
71550-53040-C9 note Back Assy, Rear Side Seat, LH
2016-10 → 2020-09 ended
ASE30,AVE30 LUX —
71550-53040-C9 note Back Assy, Rear Side Seat, LH
2016-10 → 2020-09 ended
AVE30 ECO —
71550-53040-E5 note Back Assy, Rear Side Seat, LH
2019-09 → 2020-09 ended
ASE30,AVE30 LUX —
71550-53040-K1 note Back Assy, Rear Side Seat, LH
2016-10 → 2018-09 ended
ASE30,AVE30 LUX —
71550-53040-P3 note Back Assy, Rear Side Seat, LH
2018-09 → 2019-09 ended
ASE30,AVE30 LUX —
71550-53040-P3 note Back Assy, Rear Side Seat, LH
2016-10 → 2020-09 ended
ASE30 RHD —
71550-53040-P3 note Back Assy, Rear Side Seat, LH
2019-09 → 2020-09 ended
ASE30,AVE30 LUX —
71550-53040-P3 note Back Assy, Rear Side Seat, LH
2016-10 → 2018-09 ended
ASE30 LHD;AVE30 LUX —
71550-53040-P5 note Back Assy, Rear Side Seat, LH
2018-09 → 2019-09 ended
ASE30,AVE30 LUX —
71550-53070-20 note Back Assy, Rear Side Seat, LH
2019-09 → 2020-09 ended
AVE30 RHD LUX —
71550-53070-20 note Back Assy, Rear Side Seat, LH
2019-09 → 2020-09 ended
ASE30,AVE30 LHD LUX —
71550-53070-20 note Back Assy, Rear Side Seat, LH
2019-09 → 2020-09 ended
AVE30 RHD LUX —
71550-53070-20 note Back Assy, Rear Side Seat, LH
2019-09 → 2020-09 ended
ASE30,AVE30 LUX —
71550-53070-C9 note Back Assy, Rear Side Seat, LH
2016-10 → 2019-09 ended
ASE30,AVE30 RHD LUX —
71550-53070-C9 note Back Assy, Rear Side Seat, LH
2017-10 → 2019-09 ended
AVE30 RHD LUX —
71550-53070-C9 note Back Assy, Rear Side Seat, LH
2016-10 → 2019-09 ended
ASE30,AVE30 LHD LUX —
71550-53070-C9 note Back Assy, Rear Side Seat, LH
2016-10 → 2019-09 ended
ASE30,AVE30 LUX —
71550-53070-E4 note Back Assy, Rear Side Seat, LH
2017-10 → 2019-09 ended
AVE30 RHD LUX —
71550-53070-E4 note Back Assy, Rear Side Seat, LH
2016-10 → 2019-09 ended
ASE30,AVE30 LHD LUX —
71550-53070-E4 note Back Assy, Rear Side Seat, LH
2016-10 → 2019-09 ended
ASE30,AVE30 LUX —
71550-53070-E4 note Back Assy, Rear Side Seat, LH
2016-10 → 2019-09 ended
ASE30,AVE30 RHD LUX —
71550-53070-E5 note Back Assy, Rear Side Seat, LH
2019-09 → 2020-09 ended
ASE30,AVE30 LUX —
71550-53070-E5 note Back Assy, Rear Side Seat, LH
2019-09 → 2020-09 ended
AVE30 RHD LUX —
71550-53070-E5 note Back Assy, Rear Side Seat, LH
2019-09 → 2020-09 ended
ASE30,AVE30 LHD LUX —
71550-53070-E5 note Back Assy, Rear Side Seat, LH
2019-09 → 2020-09 ended
AVE30 RHD LUX —
71550-53070-P2 note Back Assy, Rear Side Seat, LH
2017-10 → 2019-09 ended
AVE30 RHD LUX —
71550-53070-P2 note Back Assy, Rear Side Seat, LH
2016-10 → 2019-09 ended
ASE30,AVE30 LHD LUX —
71550-53070-P2 note Back Assy, Rear Side Seat, LH
2016-10 → 2019-09 ended
ASE30,AVE30 RHD LUX —
71550-53070-P2 note Back Assy, Rear Side Seat, LH
2016-10 → 2019-09 ended
ASE30,AVE30 LUX —
71550-53070-P3 note Back Assy, Rear Side Seat, LH
2019-09 → 2020-09 ended
ASE30,AVE30 LUX —
71550-53070-P3 note Back Assy, Rear Side Seat, LH
2019-09 → 2020-09 ended
AVE30 RHD LUX —
71550-53070-P3 note Back Assy, Rear Side Seat, LH
2019-09 → 2020-09 ended
ASE30,AVE30 LHD LUX —
71550-53070-P3 note Back Assy, Rear Side Seat, LH
2019-09 → 2020-09 ended
AVE30 RHD LUX —
71550-53120-C2 note Back Assy, Rear Side Seat, LH
2016-10 → 2019-09 ended
ASE30,AVE30 LUX —
71550-53120-D3 note Back Assy, Rear Side Seat, LH
2016-10 → 2019-09 ended
ASE30,AVE30 LUX —
71550-53140-C2 note Back Assy, Rear Side Seat, LH
2019-09 → 2020-09 ended
ASE30,AVE30 LUX —
71550-53140-C2 note Back Assy, Rear Side Seat, LH
2016-10 → 2020-09 ended
ASE30,AVE30 LUX —
71550-53140-D4 note Back Assy, Rear Side Seat, LH
2019-09 → 2020-09 ended
ASE30,AVE30 LUX —
71550-53140-D4 note Back Assy, Rear Side Seat, LH
2016-10 → 2020-09 ended
ASE30,AVE30 LUX —
71550-53140-J1 note Back Assy, Rear Side Seat, LH
2019-09 → 2020-09 ended
AVE30 LUX —
71611 — Pad, Rear Seat Cushion
71503-53060 Pad, Rear Seat Cushion
2013-04 → 2015-08 ended
AVE30,GSE30 —
71503-53060 Pad, Rear Seat Cushion
2015-08 → 2016-10 ended
ASE30,AVE30 —
71503-53060 Pad, Rear Seat Cushion
2016-10 → 2020-09 ended
ASE30,AVE30 —
72601A — Striker Sub-assy, Rear Seatback Look, RH
72601-53020 Striker Sub-assy, Rear Seatback Look, RH
2013-04 → 2014-03 ended
AVE30,GSE30 LUX —
72601-53020 note Striker Sub-assy, Rear Seatback Look, RH
2013-04 → 2014-03 ended
AVE30 LHD ECO —
72601-53020 note Striker Sub-assy, Rear Seatback Look, RH
2013-04 → 2014-03 ended
AVE30 ECO —
72601-53021 note Striker Sub-assy, Rear Seatback Look, RH
2014-04 → 2015-08 ended
AVE30 LHD ECO —
72601-53021 note Striker Sub-assy, Rear Seatback Look, RH
2014-04 → 2015-08 ended
AVE30 ECO —
72601-53021 Striker Sub-assy, Rear Seatback Look, RH
2014-04 → 2015-08 ended
AVE30,GSE30 LUX —
72601-53021 Striker Sub-assy, Rear Seatback Look, RH
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
72601-53021 note Striker Sub-assy, Rear Seatback Look, RH
2015-08 → 2016-10 ended
AVE30 LHD ECO —
72601-53021 note Striker Sub-assy, Rear Seatback Look, RH
2015-08 → 2016-10 ended
AVE30 ECO —
72601-53021 note Striker Sub-assy, Rear Seatback Look, RH
2016-10 → 2017-10 ended
AVE30 ECO —
72601-53021 Striker Sub-assy, Rear Seatback Look, RH
2016-10 → —
ASE30,AVE30 LUX —
72601-53021 note Striker Sub-assy, Rear Seatback Look, RH
2017-10 → —
AVE30 ECO —
72602A — Striker Sub-assy, Rear Seatback Lock, LH
72602-53020 Striker Sub-assy, Rear Seatback Lock, LH
2013-04 → 2014-03 ended
AVE30,GSE30 LUX —
72602-53020 note Striker Sub-assy, Rear Seatback Lock, LH
2013-04 → 2014-03 ended
AVE30 LHD ECO —
72602-53020 note Striker Sub-assy, Rear Seatback Lock, LH
2013-04 → 2014-03 ended
AVE30 ECO —
72602-53021 Striker Sub-assy, Rear Seatback Lock, LH
2014-04 → 2015-08 ended
AVE30,GSE30 LUX —
72602-53021 note Striker Sub-assy, Rear Seatback Lock, LH
2014-04 → 2015-08 ended
AVE30 ECO —
72602-53021 note Striker Sub-assy, Rear Seatback Lock, LH
2014-04 → 2015-08 ended
AVE30 LHD ECO —
72602-53021 Striker Sub-assy, Rear Seatback Lock, LH
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
72602-53021 note Striker Sub-assy, Rear Seatback Lock, LH
2015-08 → 2016-10 ended
AVE30 LHD ECO —
72602-53021 note Striker Sub-assy, Rear Seatback Lock, LH
2015-08 → 2016-10 ended
AVE30 ECO —
72602-53021 note Striker Sub-assy, Rear Seatback Lock, LH
2016-10 → 2017-10 ended
AVE30 ECO —
72602-53021 Striker Sub-assy, Rear Seatback Lock, LH
2016-10 → —
ASE30,AVE30 LUX —
72602-53021 note Striker Sub-assy, Rear Seatback Lock, LH
2017-10 → —
AVE30 ECO —
72693 — Hook, Rear Seat Cushion Lock
72693-12080 Hook, Rear Seat Cushion Lock
2013-04 → 2015-08 ended
AVE30,GSE30 —
72693-12080 Hook, Rear Seat Cushion Lock
2015-08 → 2016-10 ended
ASE30,AVE30 —
72693-12080 Hook, Rear Seat Cushion Lock
2016-10 → —
ASE30,AVE30 —
73525 — Panel, Rear Seat Sub Floor
73525-53010-C0 note Panel, Rear Seat Sub Floor
2013-04 → 2014-05 ended
GSE30 LHD —
73525-53010-C0 note Panel, Rear Seat Sub Floor
2013-04 → 2014-05 ended
AVE30 LUX;GSE30 RHD —
73525-53010-C0 note Panel, Rear Seat Sub Floor
2013-04 → 2014-05 ended
AVE30 LHD ECO —
73525-53010-C0 note Panel, Rear Seat Sub Floor
2013-04 → 2014-05 ended
AVE30 ECO —
73525-53010-C1 note Panel, Rear Seat Sub Floor
2014-05 → 2015-08 ended
AVE30 LHD ECO —
73525-53010-C1 note Panel, Rear Seat Sub Floor
2014-10 → 2015-08 ended
GSE30 LHD —
73525-53010-C1 note Panel, Rear Seat Sub Floor
2014-05 → 2015-08 ended
AVE30 LHD ECO —
73525-53010-C1 note Panel, Rear Seat Sub Floor
2014-05 → 2015-08 ended
AVE30 RHD ECO —
73525-53010-C1 note Panel, Rear Seat Sub Floor
2014-05 → 2015-08 ended
GSE30 LHD —
73525-53010-C1 note Panel, Rear Seat Sub Floor
2014-05 → 2015-08 ended
GSE30 LHD —
73525-53010-C1 note Panel, Rear Seat Sub Floor
2014-05 → 2015-08 ended
GSE30 LHD —
73525-53010-C1 note Panel, Rear Seat Sub Floor
2014-05 → 2015-08 ended
AVE30,GSE30 RHD LUX —
73525-53010-C1 note Panel, Rear Seat Sub Floor
2014-05 → 2015-08 ended
AVE30,GSE30 LHD LUX —
73525-53010-C1 note Panel, Rear Seat Sub Floor
2015-08 → 2015-11 ended
AVE30 RHD ECO —
73525-53010-C1 note Panel, Rear Seat Sub Floor
2015-08 → 2015-11 ended
AVE30 LHD ECO —
73525-53010-C1 note Panel, Rear Seat Sub Floor
2015-08 → 2015-11 ended
AVE30 LHD ECO —
73525-53010-C1 note Panel, Rear Seat Sub Floor
2015-08 → 2015-11 ended
ASE30,AVE30 RHD LUX —
73525-53010-C1 note Panel, Rear Seat Sub Floor
2015-08 → 2015-11 ended
ASE30,AVE30 LHD LUX —
73525-53020-C0 note Panel, Rear Seat Sub Floor
2015-12 → 2016-10 ended
ASE30,AVE30 LHD LUX —
73525-53020-C0 note Panel, Rear Seat Sub Floor
2015-12 → 2016-10 ended
ASE30,AVE30 RHD LUX —
73525-53020-C0 note Panel, Rear Seat Sub Floor
2015-12 → 2016-10 ended
AVE30 LHD ECO —
73525-53020-C0 note Panel, Rear Seat Sub Floor
2015-12 → 2016-10 ended
AVE30 RHD ECO —
73525-53020-C0 note Panel, Rear Seat Sub Floor
2015-12 → 2016-10 ended
AVE30 LHD ECO —
73525-53020-C0 note Panel, Rear Seat Sub Floor
2016-10 → —
ASE30 —
73525-53020-C0 note Panel, Rear Seat Sub Floor
2017-10 → —
AVE30 RHD LUX —
73525-53020-C0 note Panel, Rear Seat Sub Floor
2017-10 → —
AVE30 RHD ECO —
73525-53020-C0 note Panel, Rear Seat Sub Floor
2017-10 → —
AVE30 LHD ECO —
73525-53020-C0 note Panel, Rear Seat Sub Floor
2017-10 → —
AVE30 LHD LUX —
73525-53020-C0 note Panel, Rear Seat Sub Floor
2017-10 → —
AVE30 RHD LUX —
73525-53020-C0 note Panel, Rear Seat Sub Floor
2017-10 → —
AVE30 LHD LUX —
73525-53020-C0 note Panel, Rear Seat Sub Floor
2017-10 → —
ASE30 —
73525-53020-C0 note Panel, Rear Seat Sub Floor
2017-10 → —
AVE30 RHD LUX —
73525-53020-C0 note Panel, Rear Seat Sub Floor
2017-10 → —
AVE30 RHD LUX —
73525-53020-C0 note Panel, Rear Seat Sub Floor
2016-10 → 2017-10 ended
ASE30 RHD —
73525-53020-C0 note Panel, Rear Seat Sub Floor
2016-10 → —
ASE30 LHD —
73525-53020-C0 note Panel, Rear Seat Sub Floor
2016-10 → 2017-10 ended
AVE30 RHD LUX —
73525-53020-C0 note Panel, Rear Seat Sub Floor
2016-10 → 2017-10 ended
AVE30 LUX —
73525-53020-C0 note Panel, Rear Seat Sub Floor
2016-10 → 2017-10 ended
ASE30 —
73525-53020-C0 note Panel, Rear Seat Sub Floor
2016-10 → 2017-10 ended
AVE30 RHD LUX —
73525-53020-C0 note Panel, Rear Seat Sub Floor
2016-10 → 2017-10 ended
AVE30 RHD ECO —
73525-53020-C0 note Panel, Rear Seat Sub Floor
2016-10 → 2017-10 ended
AVE30 LHD ECO —
73525-53020-C0 note Panel, Rear Seat Sub Floor
2017-10 → 2018-04 ended
ASE30 RHD —
73525-53020-C0 note Panel, Rear Seat Sub Floor
2016-10 → —
ASE30,AVE30 LUX —
73525-53020-C0 note Panel, Rear Seat Sub Floor
2016-10 → —
AVE30 LHD LUX —
73525-53020-C0 note Panel, Rear Seat Sub Floor
2016-10 → —
AVE30 LHD LUX —
73705 — Bracket Sub-assy, Child Restraint Seat Anchor, RH
73705-53050 Bracket Sub-assy, Child Restraint Seat Anchor, RH
2013-04 → 2015-08 ended
AVE30,GSE30 —
73705-53050 Bracket Sub-assy, Child Restraint Seat Anchor, RH
2015-08 → 2016-10 ended
ASE30,AVE30 —
73705-53051 Bracket Sub-assy, Child Restraint Seat Anchor, RH
2016-10 → —
ASE30,AVE30 —
73706 — Bracket Sub-assy, Child Restraint Seat Anchor, LH
73706-53050 Bracket Sub-assy, Child Restraint Seat Anchor, LH
2013-04 → 2015-08 ended
AVE30,GSE30 —
73706-53050 Bracket Sub-assy, Child Restraint Seat Anchor, LH
2015-08 → 2016-10 ended
ASE30,AVE30 —
73706-53051 Bracket Sub-assy, Child Restraint Seat Anchor, LH
2016-10 → —
ASE30,AVE30 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
