Toyota Lexus IS2###/3###

2013-04 → present · chassis ASE30,AVE30,GSE30 · catalogue 242530 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

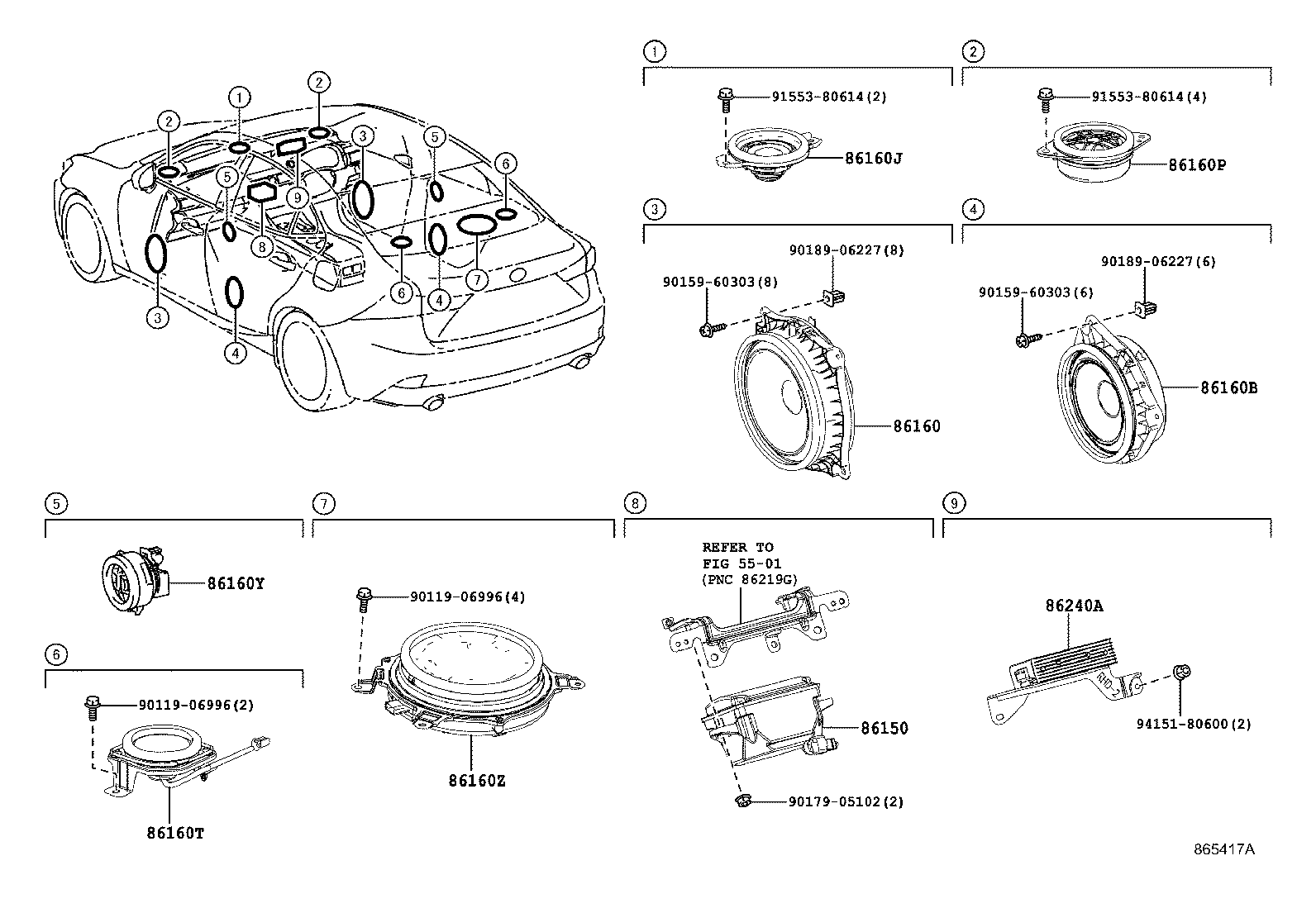

Exploded illustration 865417A 86160J — SPEAKER ASSY, FRONT NO.3 (13 parts) 86160 — SPEAKER ASSY, FRONT NO.1 (8 parts) 86150 — SPEAKER ASSY, W/BOX, NO.1 (6 parts) 86160Z — SPEAKER ASSY, REAR NO.3 (13 parts) 86160T — SPEAKER ASSY, REAR HEADER (4 parts) 86160Y — SPEAKER ASSY, REAR NO.2 (4 parts) 86160B — SPEAKER ASSY, REAR (8 parts) 86240A — EQUALIZER ASSY,STEREO COMPONENT (12 parts) 9015960303 — not listed in this catalogue 9018906227 — not listed in this catalogue 9015960303 — not listed in this catalogue 9018906227 — not listed in this catalogue 9155380614 — not listed in this catalogue 9017905102 — not listed in this catalogue 9415180600 — not listed in this catalogue 9011906996 — not listed in this catalogue 9011906996 — not listed in this catalogue 86160P — SPEAKER ASSY, FRONT NO.2 (36 parts) 9155380614 — not listed in this catalogue 5501 — not listed in this catalogue
865417A · 9 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
104 parts on this figure
Part number Description Fitment Price
86150 — Speaker Assy, W/Box, NO.1
86150-53020 note Speaker Assy, W/Box, NO.1
2013-04 → 2015-08 ended
AVE30 —
86150-53020 Speaker Assy, W/Box, NO.1
2013-04 → 2015-08 ended
AVE30 —
86150-53020 Speaker Assy, W/Box, NO.1
2015-08 → 2016-10 ended
AVE30 —
86150-53020 note Speaker Assy, W/Box, NO.1
2015-08 → 2016-10 ended
AVE30 —
86150-53020 Speaker Assy, W/Box, NO.1
2016-10 → 2020-09 ended
AVE30 —
86150-53020 note Speaker Assy, W/Box, NO.1
2016-10 → 2020-09 ended
AVE30 —
86160 — Speaker Assy, Front NO.1
86160-0WX70 note Speaker Assy, Front NO.1
2013-04 → 2015-08 ended
AVE30,GSE30 LUX —
86160-53370 Speaker Assy, Front NO.1
2013-04 → 2015-08 ended
AVE30,GSE30 —
86160-0WX70 note Speaker Assy, Front NO.1
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
86160-53370 Speaker Assy, Front NO.1
2015-08 → 2016-10 ended
ASE30,AVE30 —
86160-0WX70 note Speaker Assy, Front NO.1
2016-10 → 2018-04 ended
ASE30 RHD —
86160-0WX70 note Speaker Assy, Front NO.1
2016-10 → —
ASE30 LHD;AVE30 LUX —
86160-53370 Speaker Assy, Front NO.1
2016-10 → 2018-04 ended
ASE30 RHD —
86160-53370 Speaker Assy, Front NO.1
2016-10 → —
AVE30;ASE30 LHD —
86160B — Speaker Assy, Rear
86160-0WW30 note Speaker Assy, Rear
2013-04 → 2015-08 ended
AVE30,GSE30 LUX —
86160-33820 Speaker Assy, Rear
2013-04 → 2015-08 ended
AVE30,GSE30 —
86160-0WW30 note Speaker Assy, Rear
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
86160-33820 Speaker Assy, Rear
2015-08 → 2016-10 ended
ASE30,AVE30 —
86160-0WW30 note Speaker Assy, Rear
2016-10 → 2018-04 ended
ASE30 RHD —
86160-0WW30 note Speaker Assy, Rear
2016-10 → —
ASE30 LHD;AVE30 LUX —
86160-33820 Speaker Assy, Rear
2016-10 → 2018-04 ended
ASE30 RHD —
86160-33820 Speaker Assy, Rear
2016-10 → —
AVE30;ASE30 LHD —
86160J — Speaker Assy, Front NO.3
86160-0WV80 note Speaker Assy, Front NO.3
2013-04 → 2015-08 ended
AVE30,GSE30 LUX —
86160-33790 note Speaker Assy, Front NO.3
2013-04 → 2015-08 ended
AVE30,GSE30 LUX —
86160-33790 note Speaker Assy, Front NO.3
2013-04 → 2015-08 ended
AVE30 ECO —
86160-0WV80 note Speaker Assy, Front NO.3
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
86160-33790 note Speaker Assy, Front NO.3
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
86160-33790 note Speaker Assy, Front NO.3
2015-08 → 2016-10 ended
AVE30 ECO —
86160-0WV80 note Speaker Assy, Front NO.3
2016-10 → 2020-09 ended
ASE30,AVE30 LUX —
86160-33790 note Speaker Assy, Front NO.3
2016-10 → 2018-04 ended
ASE30 RHD —
86160-33790 note Speaker Assy, Front NO.3
2018-05 → 2020-09 ended
ASE30 —
86160-33790 Speaker Assy, Front NO.3
2018-05 → 2020-09 ended
ASE30 —
86160-33790 Speaker Assy, Front NO.3
2016-10 → 2020-09 ended
ASE30 RHD —
86160-33790 note Speaker Assy, Front NO.3
2016-10 → 2018-05 ended
ASE30 LHD —
86160-33790 note Speaker Assy, Front NO.3
2016-10 → 2020-09 ended
AVE30 LUX —
86160P — Speaker Assy, Front NO.2
86160-0WV80 note Speaker Assy, Front NO.2
2013-04 → 2015-08 ended
AVE30,GSE30 LUX —
86160-33800 Speaker Assy, Front NO.2
2013-04 → 2015-08 ended
AVE30,GSE30 —
86160-33800 note Speaker Assy, Front NO.2
2013-04 → 2015-08 ended
AVE30 ECO —
86160-33800 note Speaker Assy, Front NO.2
2013-04 → 2015-08 ended
AVE30 —
86160-33800 note Speaker Assy, Front NO.2
2013-04 → 2015-08 ended
AVE30 ECO —
86160-0WV80 note Speaker Assy, Front NO.2
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
86160-33800 Speaker Assy, Front NO.2
2015-08 → 2016-10 ended
ASE30,AVE30 —
86160-33800 note Speaker Assy, Front NO.2
2015-08 → 2016-10 ended
AVE30 ECO —
86160-33800 note Speaker Assy, Front NO.2
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
86150-53050 note Speaker Assy, Front NO.2
2019-09 → 2020-09 ended
ASE30 —
86150-53050 note Speaker Assy, Front NO.2
2019-09 → 2020-09 ended
AVE30 LHD LUX —
86160-0WV80 note Speaker Assy, Front NO.2
2019-09 → 2020-09 ended
ASE30 —
86160-0WV80 note Speaker Assy, Front NO.2
2019-09 → 2020-09 ended
AVE30 LHD LUX —
86160-0WV80 note Speaker Assy, Front NO.2
2016-10 → 2019-09 ended
AVE30 LHD LUX —
86160-0WV80 note Speaker Assy, Front NO.2
2019-09 → 2020-09 ended
AVE30 LHD LUX —
86160-0WV80 note Speaker Assy, Front NO.2
2019-09 → 2020-09 ended
AVE30 LHD LUX —
86160-0WV80 note Speaker Assy, Front NO.2
2016-10 → 2020-09 ended
ASE30;AVE30 RHD LUX —
86160-0WV80 note Speaker Assy, Front NO.2
2019-09 → 2020-09 ended
AVE30 LHD LUX —
86160-33800 Speaker Assy, Front NO.2
2016-10 → 2020-09 ended
AVE30 —
86160-33800 note Speaker Assy, Front NO.2
2019-09 → 2020-09 ended
ASE30 —
86160-33800 note Speaker Assy, Front NO.2
2019-09 → 2020-09 ended
ASE30 —
86160-33800 Speaker Assy, Front NO.2
2016-10 → 2018-05 ended
ASE30 LHD —
86160-33800 note Speaker Assy, Front NO.2
2016-10 → 2018-05 ended
ASE30 LHD —
86160-33800 note Speaker Assy, Front NO.2
2016-10 → 2020-09 ended
AVE30 LHD LUX —
86160-33800 note Speaker Assy, Front NO.2
2016-10 → 2020-09 ended
AVE30 RHD LUX —
86160-33800 note Speaker Assy, Front NO.2
2016-10 → 2020-09 ended
AVE30 ECO —
86160-33800 note Speaker Assy, Front NO.2
2018-05 → 2019-09 ended
ASE30 —
86160-33800 note Speaker Assy, Front NO.2
2016-10 → 2019-04 ended
AVE30 LHD LUX —
86160-48380 Speaker Assy, Front NO.2
2016-10 → 2020-09 ended
ASE30 RHD —
86160-48380 note Speaker Assy, Front NO.2
2019-09 → 2020-09 ended
AVE30 LHD LUX —
86160-48380 note Speaker Assy, Front NO.2
2016-10 → 2018-05 ended
ASE30 LHD —
86160-48380 note Speaker Assy, Front NO.2
2016-10 → 2019-09 ended
AVE30 LHD LUX —
86160-48380 note Speaker Assy, Front NO.2
2018-05 → 2020-09 ended
ASE30 —
86160-48380 Speaker Assy, Front NO.2
2018-05 → 2020-09 ended
ASE30 —
86160-48380 note Speaker Assy, Front NO.2
2016-10 → 2020-09 ended
ASE30 RHD —
86160-48380 note Speaker Assy, Front NO.2
2016-10 → 2020-09 ended
AVE30 RHD LUX —
86160T — Speaker Assy, Rear Header
86150-0W210 note Speaker Assy, Rear Header
2013-04 → 2015-08 ended
AVE30,GSE30 LUX —
86150-0W210 note Speaker Assy, Rear Header
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
86150-0W210 note Speaker Assy, Rear Header
2016-10 → 2018-04 ended
ASE30 RHD —
86150-0W210 note Speaker Assy, Rear Header
2016-10 → —
ASE30 LHD;AVE30 LUX —
86160Y — Speaker Assy, Rear NO.2
86160-0WX20 note Speaker Assy, Rear NO.2
2013-04 → 2015-08 ended
AVE30,GSE30 LUX —
86160-0WX20 note Speaker Assy, Rear NO.2
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
86160-0WX20 note Speaker Assy, Rear NO.2
2016-10 → 2018-04 ended
ASE30 RHD —
86160-0WX20 note Speaker Assy, Rear NO.2
2016-10 → —
ASE30 LHD;AVE30 LUX —
86160Z — Speaker Assy, Rear NO.3
86160-0WX30 note Speaker Assy, Rear NO.3
2013-04 → 2015-08 ended
AVE30,GSE30 LUX —
86160-33810 note Speaker Assy, Rear NO.3
2013-04 → 2015-08 ended
AVE30,GSE30 LUX —
86160-33810 note Speaker Assy, Rear NO.3
2013-04 → 2015-08 ended
AVE30 ECO —
86160-0WX30 note Speaker Assy, Rear NO.3
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
86160-33810 note Speaker Assy, Rear NO.3
2015-08 → 2016-10 ended
ASE30,AVE30 LUX —
86160-33810 note Speaker Assy, Rear NO.3
2015-08 → 2016-10 ended
AVE30 ECO —
86160-0WX30 note Speaker Assy, Rear NO.3
2016-10 → 2020-09 ended
ASE30,AVE30 LUX —
86160-33810 note Speaker Assy, Rear NO.3
2016-10 → 2018-04 ended
ASE30 RHD —
86160-33810 note Speaker Assy, Rear NO.3
2016-10 → 2018-05 ended
ASE30 LHD —
86160-33810 Speaker Assy, Rear NO.3
2016-10 → 2020-09 ended
ASE30 RHD —
86160-33810 note Speaker Assy, Rear NO.3
2016-10 → 2020-09 ended
AVE30 LUX —
86160-33810 Speaker Assy, Rear NO.3
2018-05 → 2020-09 ended
ASE30 —
86160-33810 note Speaker Assy, Rear NO.3
2018-05 → 2020-09 ended
ASE30 —
86240A — Equalizer Assy,Stereo Component
86240-53010 Equalizer Assy,Stereo Component
2013-04 → 2015-08 ended
AVE30 RHD —
86240-53010 note Equalizer Assy,Stereo Component
2013-04 → 2015-08 ended
AVE30 RHD —
86240-53020 Equalizer Assy,Stereo Component
2013-04 → 2015-08 ended
AVE30 LHD —
86240-53020 note Equalizer Assy,Stereo Component
2013-04 → 2015-08 ended
AVE30 LHD —
86240-53010 Equalizer Assy,Stereo Component
2015-08 → 2016-10 ended
AVE30 RHD —
86240-53010 note Equalizer Assy,Stereo Component
2015-08 → 2016-10 ended
AVE30 RHD —
86240-53020 Equalizer Assy,Stereo Component
2015-08 → 2016-10 ended
AVE30 LHD —
86240-53020 note Equalizer Assy,Stereo Component
2015-08 → 2016-10 ended
AVE30 LHD —
86240-53030 Equalizer Assy,Stereo Component
2016-10 → 2020-09 ended
AVE30 RHD —
86240-53030 note Equalizer Assy,Stereo Component
2016-10 → 2020-09 ended
AVE30 RHD —
86240-53040 Equalizer Assy,Stereo Component
2016-10 → 2020-09 ended
AVE30 LHD —
86240-53040 note Equalizer Assy,Stereo Component
2016-10 → 2020-09 ended
AVE30 LHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
