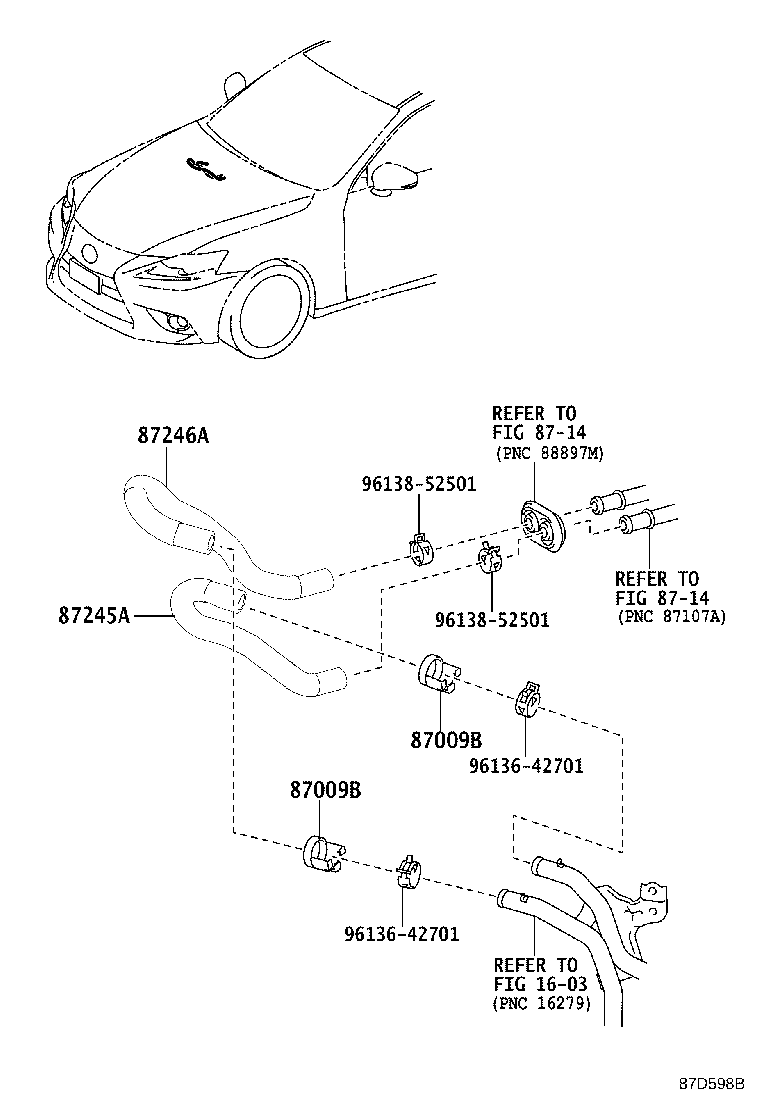

Exploded illustration 87D598B 9613852501 — not listed in this catalogue 9613642701 — not listed in this catalogue 9613642701 — not listed in this catalogue 9613852501 — not listed in this catalogue 87245A — HOSE, HEATER WATER, INLET A (14 parts) 87246A — HOSE, HEATER WATER, OUTLET A (15 parts) 8714 — not listed in this catalogue 1603 — not listed in this catalogue 8714 — not listed in this catalogue 87009B — HOSE SET, WATER (8 parts) 87009B — HOSE SET, WATER (8 parts)
87D598B · 4 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
37 parts on this figure
Part number Description Fitment Price
87009B — Hose Set, Water
87009-30040 Hose Set, Water
2013-04 → 2015-08 ended
GSE30 —
87009-30040 Hose Set, Water
2013-04 → 2015-08 ended
AVE30 —
87009-30040 Hose Set, Water
2015-08 → 2016-10 ended
AVE30 —
87009-50020 Hose Set, Water
2015-08 → 2016-10 ended
ASE30 —
87009-11010 Hose Set, Water
2017-09 → 2018-04 ended
ASE30 RHD —
87009-11010 Hose Set, Water
2017-09 → —
ASE30 LHD —
87009-30040 Hose Set, Water
2016-10 → —
AVE30 —
87009-50020 Hose Set, Water
2016-10 → 2017-09 ended
ASE30 —
87245A — Hose, Heater Water, Inlet A
87245-30C30 Hose, Heater Water, Inlet A
2013-04 → 2015-08 ended
AVE30 —
87245-53180 Hose, Heater Water, Inlet A
2013-04 → 2015-08 ended
GSE30 —
87245-30C30 Hose, Heater Water, Inlet A
2015-08 → 2016-10 ended
AVE30 —
87245-53200 Hose, Heater Water, Inlet A
2015-08 → 2016-10 ended
ASE30 —
87245-53200 note Hose, Heater Water, Inlet A
2015-08 → 2016-10 ended
ASE30 LHD —
87245-53200 note Hose, Heater Water, Inlet A
2015-08 → 2016-10 ended
ASE30 LHD —
87245-53200 note Hose, Heater Water, Inlet A
2015-08 → 2016-10 ended
ASE30 LHD —
87245-53200 note Hose, Heater Water, Inlet A
2015-08 → 2016-10 ended
ASE30 LHD —
87245-53200 note Hose, Heater Water, Inlet A
2015-08 → 2016-10 ended
ASE30 LHD —
87245-53200 note Hose, Heater Water, Inlet A
2015-08 → 2016-10 ended
ASE30 LHD —
87245-30C30 Hose, Heater Water, Inlet A
2016-10 → —
AVE30 —
87245-53200 Hose, Heater Water, Inlet A
2016-10 → 2018-04 ended
ASE30 RHD —
87245-53200 Hose, Heater Water, Inlet A
2016-10 → —
ASE30 LHD —
87245-53200 note Hose, Heater Water, Inlet A
2016-10 → 2018-05 ended
ASE30 LHD —
87246A — Hose, Heater Water, Outlet A
87245-30A41 Hose, Heater Water, Outlet A
2013-04 → 2015-08 ended
GSE30 RHD —
87245-30C40 Hose, Heater Water, Outlet A
2013-04 → 2015-08 ended
AVE30 —
87245-53130 Hose, Heater Water, Outlet A
2013-04 → 2015-08 ended
GSE30 LHD —
87245-30C40 Hose, Heater Water, Outlet A
2015-08 → 2016-10 ended
AVE30 —
87245-53210 Hose, Heater Water, Outlet A
2015-08 → 2016-10 ended
ASE30 —
87245-53210 note Hose, Heater Water, Outlet A
2015-08 → 2016-10 ended
ASE30 LHD —
87245-53210 note Hose, Heater Water, Outlet A
2015-08 → 2016-10 ended
ASE30 LHD —
87245-53210 note Hose, Heater Water, Outlet A
2015-08 → 2016-10 ended
ASE30 LHD —
87245-53210 note Hose, Heater Water, Outlet A
2015-08 → 2016-10 ended
ASE30 LHD —
87245-53210 note Hose, Heater Water, Outlet A
2015-08 → 2016-10 ended
ASE30 LHD —
87245-53210 note Hose, Heater Water, Outlet A
2015-08 → 2016-10 ended
ASE30 LHD —
87245-30C40 Hose, Heater Water, Outlet A
2016-10 → —
AVE30 —
87245-53210 Hose, Heater Water, Outlet A
2016-10 → 2018-04 ended
ASE30 RHD —
87245-53210 note Hose, Heater Water, Outlet A
2016-10 → 2018-05 ended
ASE30 LHD —
87245-53210 Hose, Heater Water, Outlet A
2016-10 → —
ASE30 LHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
