Timing Gear Cover & Rear End Plate

18 part groups · 3 illustrations

Illustrations

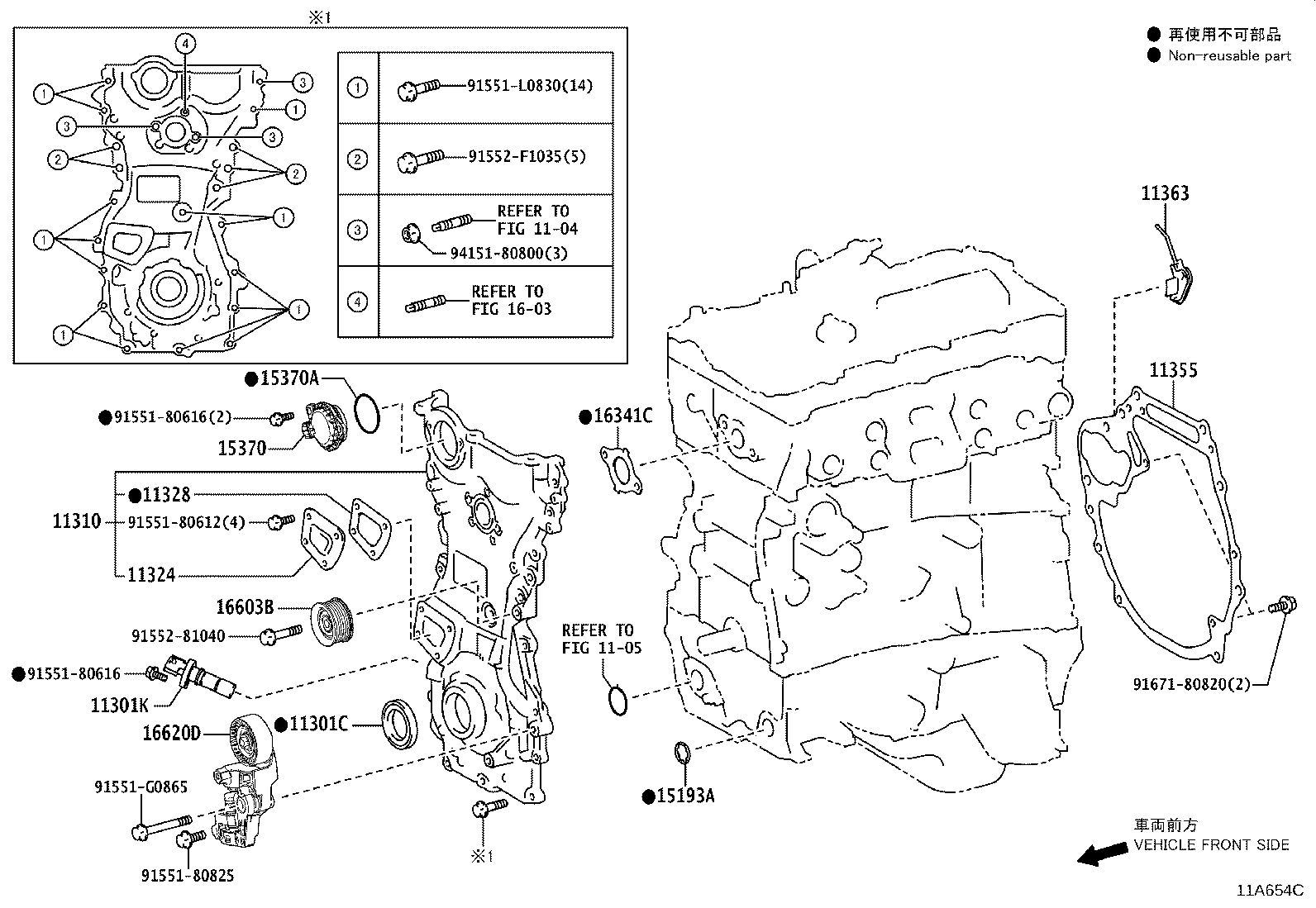

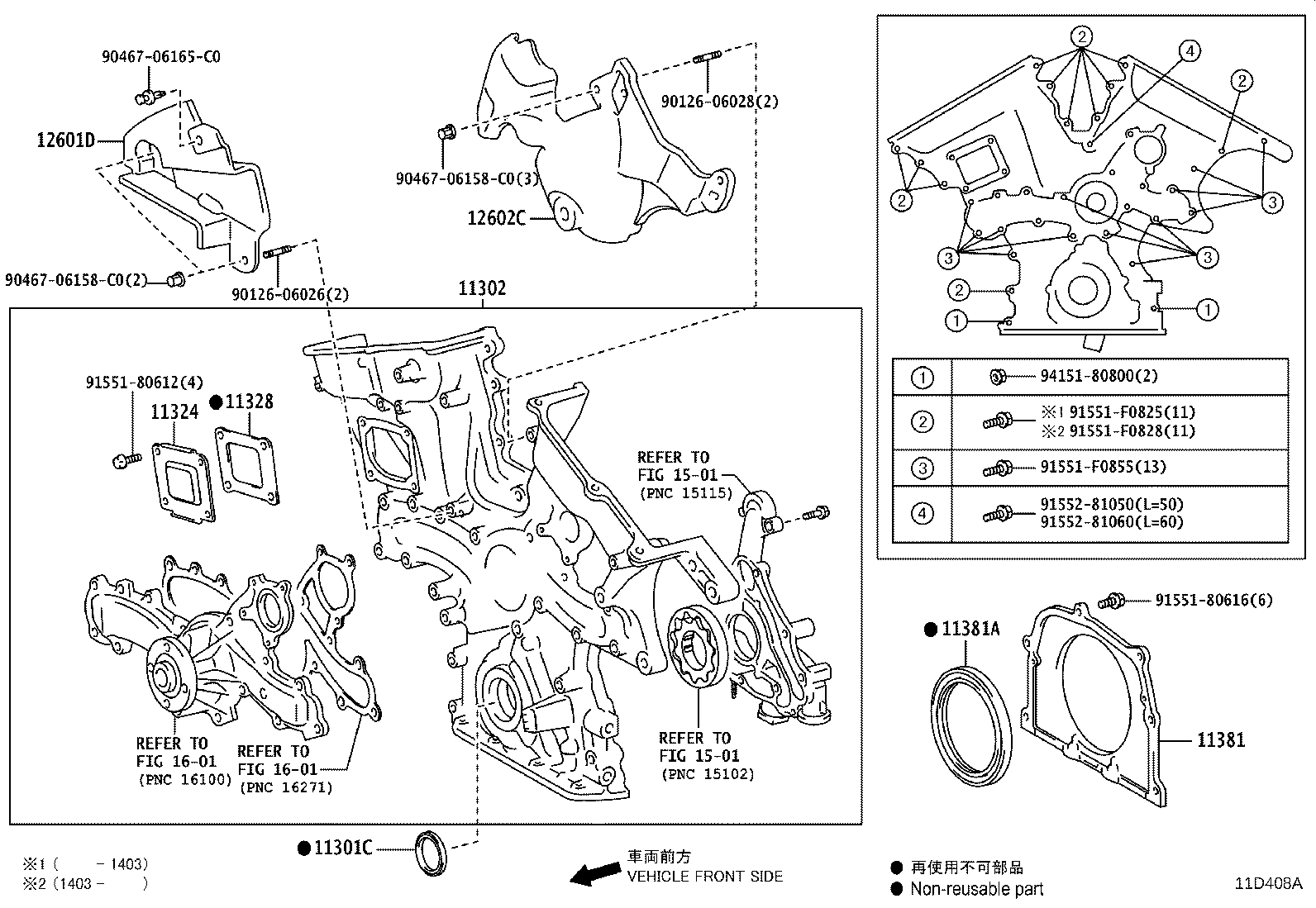

Figure 118345E 118345E 2013-04 → — Figure 11A654C 11A654C 2015-08 → — Figure 11D408A 11D408A 2013-04 → —

Part groups

PNCDescription
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11310 Cover Assy, Timing Chain
11324 Plate, Timing Chain Cover
11328 Gasket, Timing Gear OR Chain Cover
11355 Plate, Rear End
11363 Cover, Flywheel Side
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
12601D Cover, Engine, NO.1
12602C Cover, Engine, NO.2
15193A Gasket, Oil Pump
15370 Solenoid Assy, Cam Timing Oil Control
15370A Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID)
16341C Gasket, Water Outlet
16603B Pulley Sub-assy, Idler
16620D Tensioner Assy, V-ribbed Belt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
