Toyota Lexus IS2###/3###

2013-04 → present · chassis ASE30,AVE30,GSE30 · catalogue 242530 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

8 part groups · 3 illustrations

Illustrations

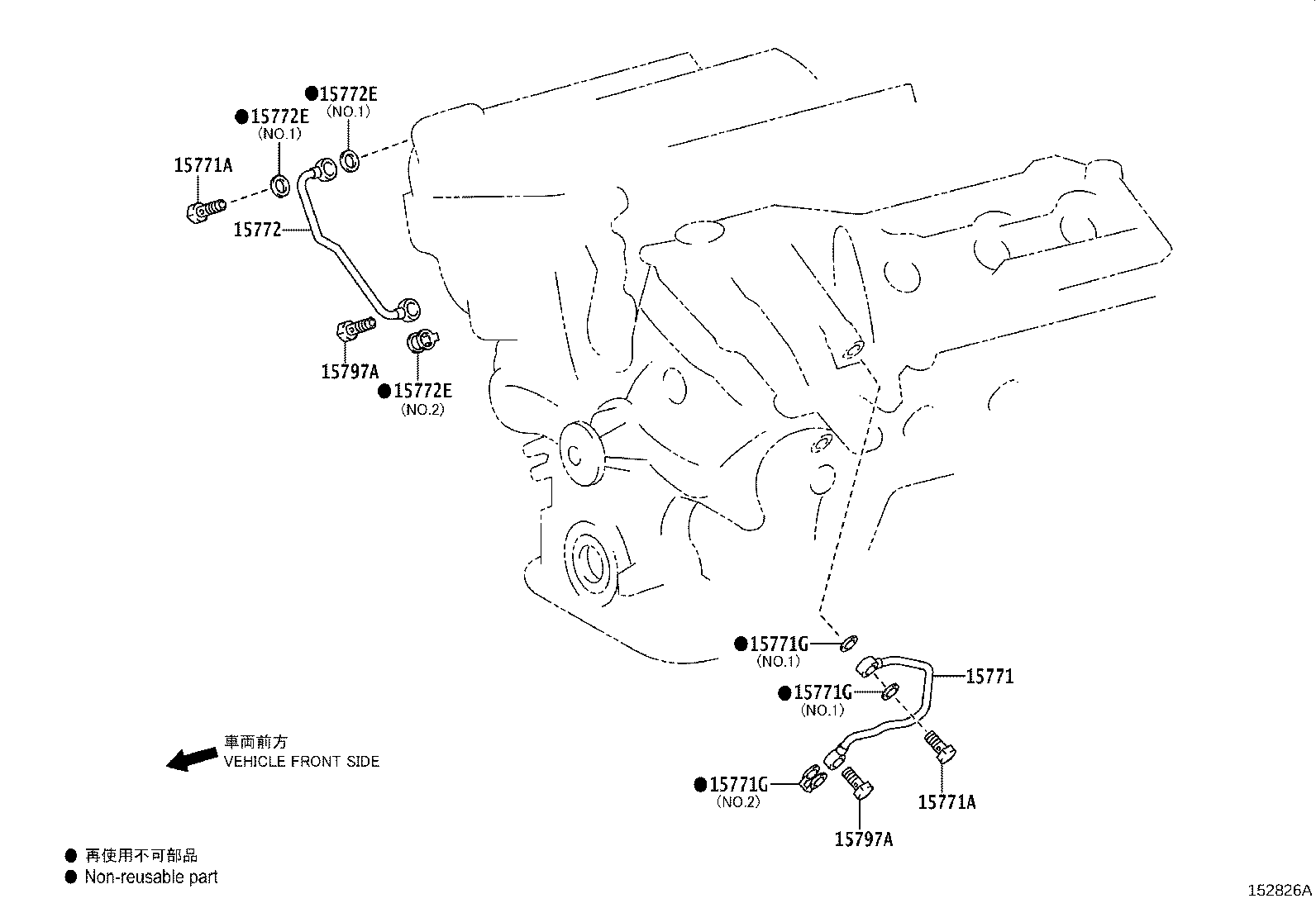

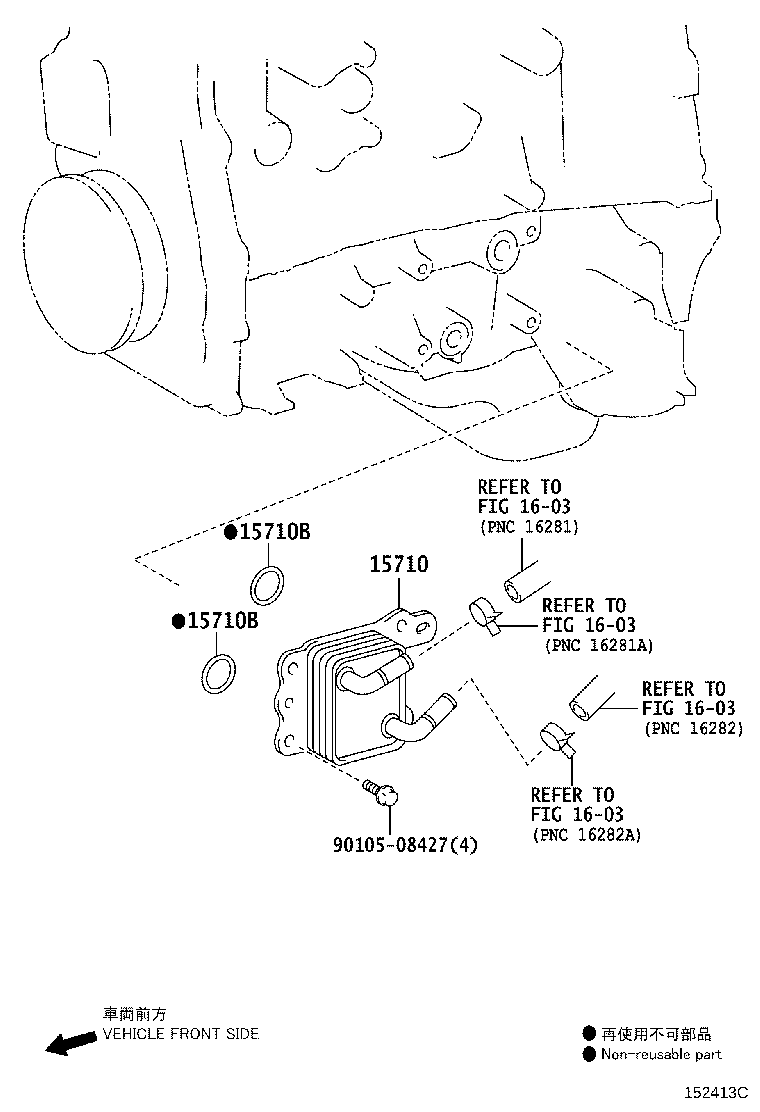

Figure 152064C 152064C 2013-04 → — Figure 152413C 152413C 2015-08 → — Figure 152826A 152826A 2013-04 → —

Part groups

PNCDescription
15710 Cooler Assy, Oil
15710B Ring, O(FOR OIL COOLER)
15771 Pipe, Oil, NO.1
15771A Union(FOR OIL PIPE)
15771G Gasket
15772 Pipe, Oil, NO.2
15772E Gasket(FOR OIL PIPE)
15797A Bolt, Oil Check Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
