Toyota Lexus IS2###/3###

2013-04 → present · chassis ASE30,AVE30,GSE30 · catalogue 242530 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

19 part groups · 3 illustrations

Illustrations

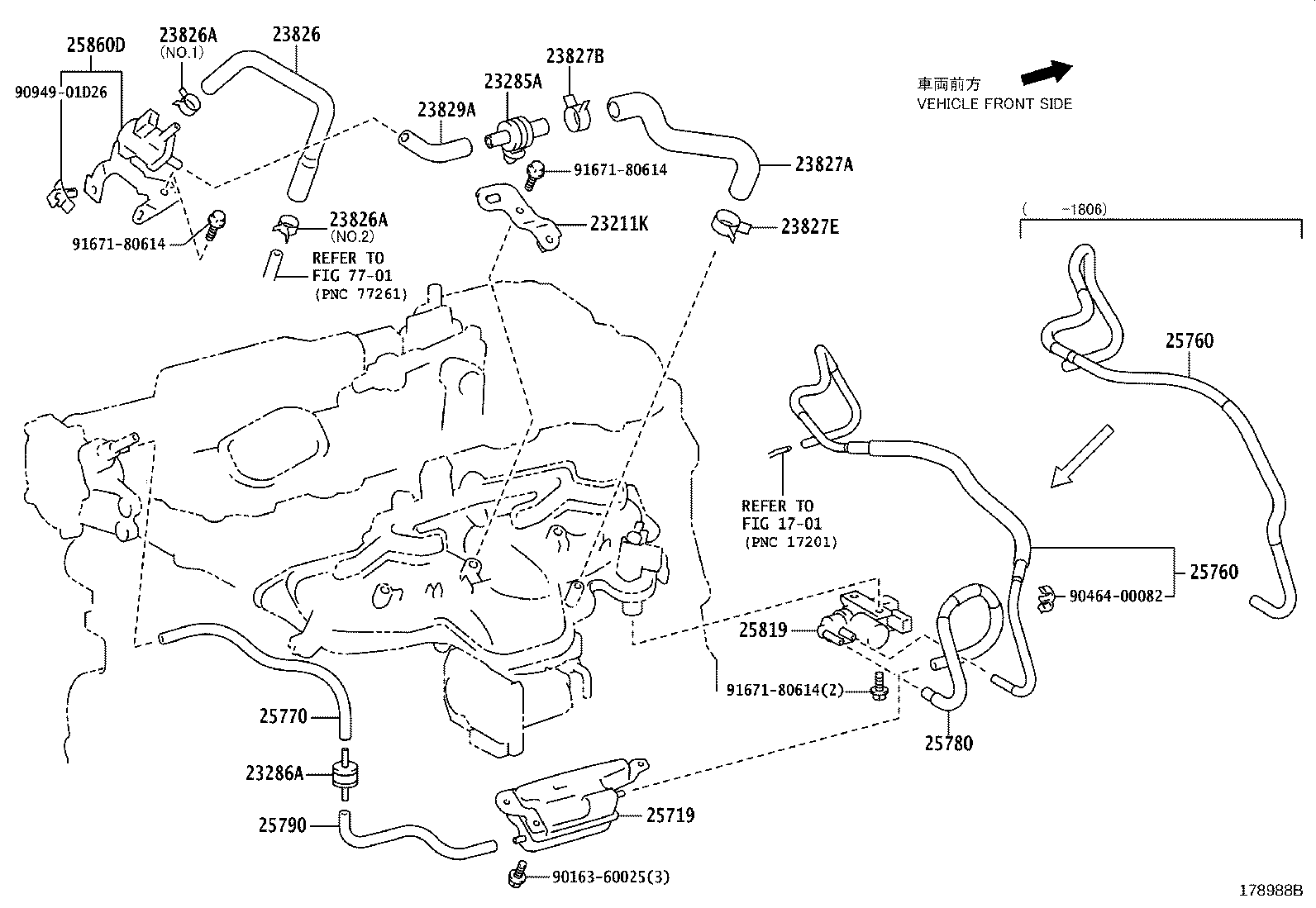

Figure 178022A 178022A 2013-04 → — Figure 178988B 178988B 2015-08 → — Figure 17A110 17A110 2013-04 → —

Part groups

PNCDescription
23211K Bracket
23285A Valve, Check, NO.1
23286A Valve, Check, NO.2
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23827D Hose, Fuel Vapor Feed, NO.2
23827E Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23829A Hose, Fuel Vapor Feed
23841G Clamp, Fuel Hose
25719 Tank, Vacuum Surge
25760 Hose Assy, Vacuum Transmitting
25770 Hose Assy, Vacuum Transmitting, NO.2
25780 Hose Assy, Vacuum Transmitting, NO.3
25790 Hose Assy, Vacuum Transmitting, NO.4
25819 Valve Assy, Vacuum Regulating
25860 Valve Assy, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
