Toyota Lexus IS2###/3###

2013-04 → present · chassis ASE30,AVE30,GSE30 · catalogue 242530 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

13 part groups · 3 illustrations

Illustrations

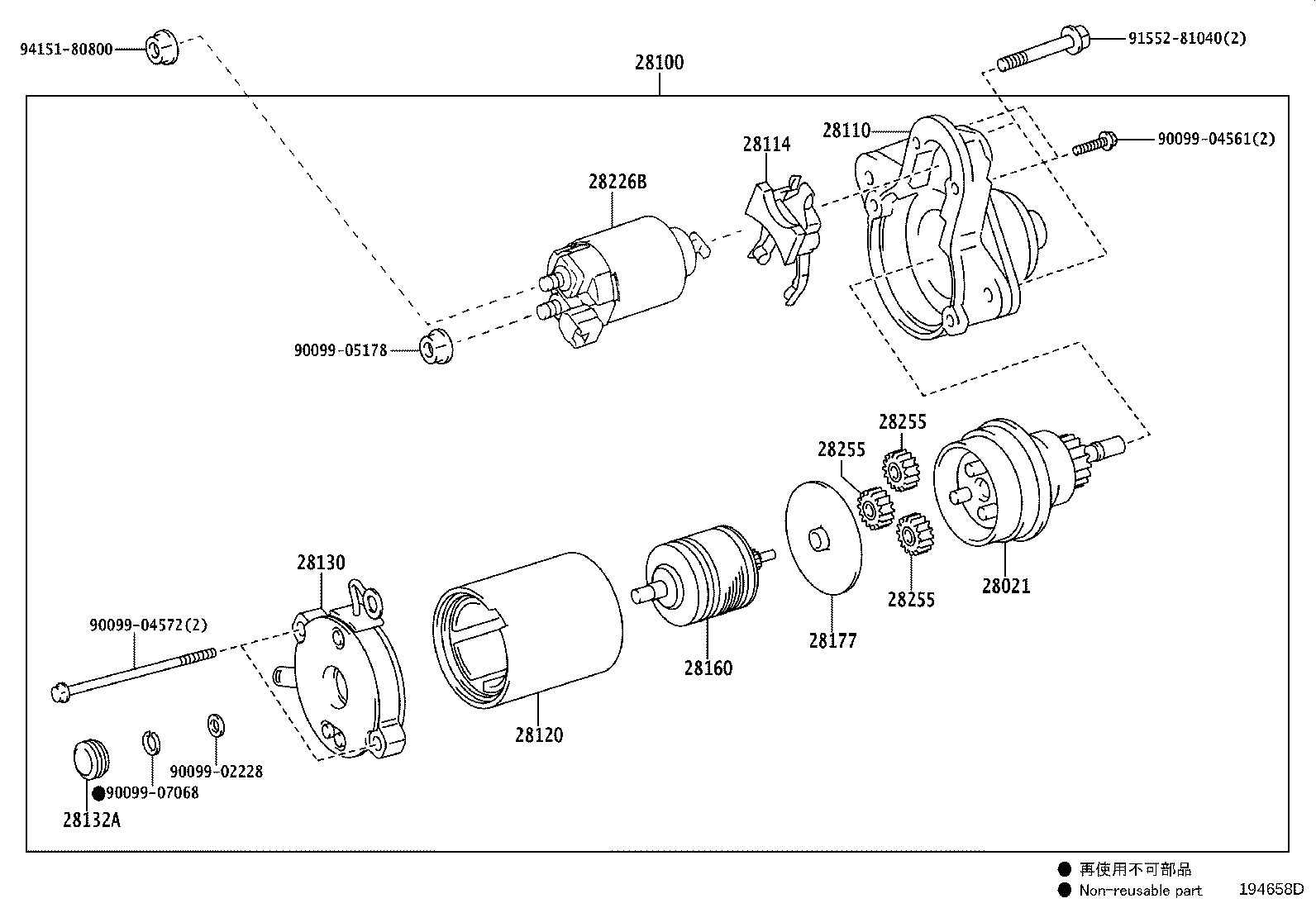

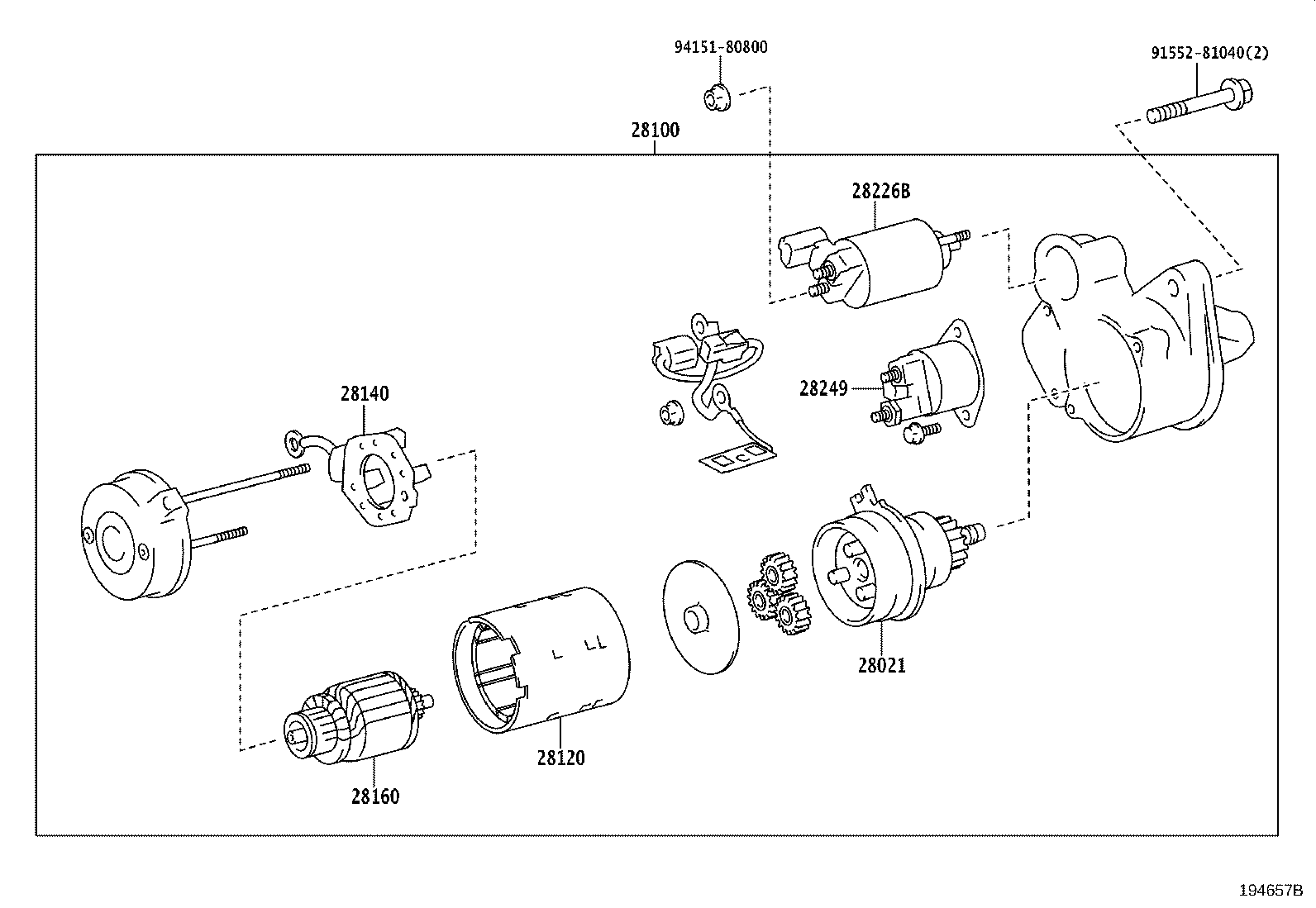

Figure 194151E 194151E 2013-04 → 2015-08 Figure 194657B 194657B 2015-08 → — Figure 194658D 194658D 2015-08 → —

Part groups

PNCDescription
28021 Clutch Sub-assy, Starter Center Bearing
28100 Starter Assy
28110 Housing Assy, Starter Drive
28114 Pin, Starter Drive Lever Set
28120 Yoke Assy, Starter
28130 Frame Assy, Starter Commutator End
28132A Cover, Starter Commutator End Frame
28140 Holder Assy, Starter Brush
28160 Armature Assy, Starter
28177 Plate(FOR STARTER ARMATURE)
28226B Starter Kit, Repair Service
28249 Relay, Starter Inrush Current Reduction
28255 Gear, Planet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
