Toyota Lexus IS2###/3###
2013-04 → present · chassis ASE30,AVE30,GSE30 · catalogue 242530 · Europe
Supported model
Data version 2018-09

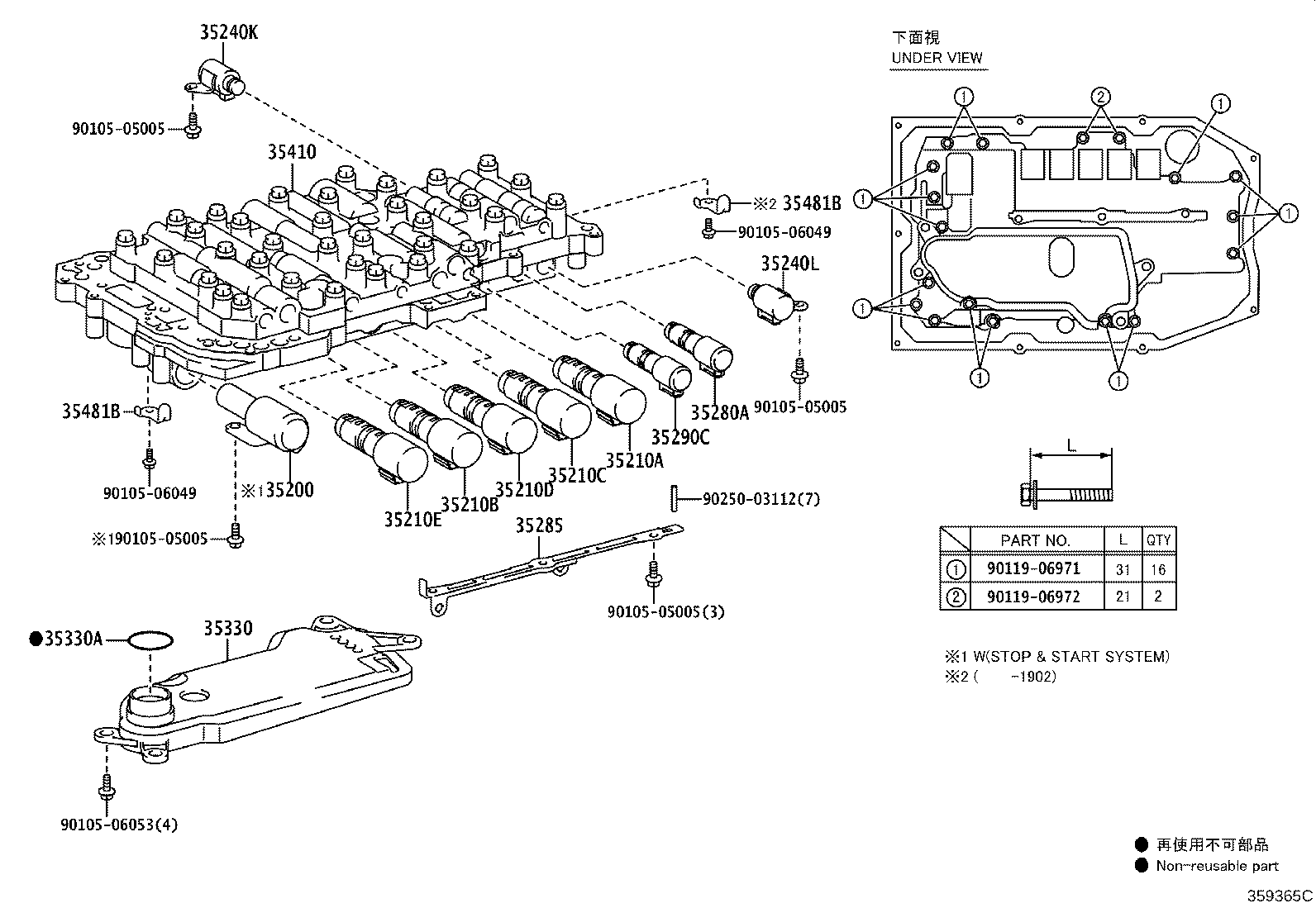

Valve Body & Oil Strainer (ATM)
44 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 35200 | Pump Assy, Oil, W/Solenoid |
| 35205A | Spring Sub-assy, B-3 Accumulator |
| 35205B | Ring, Hole Snap (FOR B-3 ACCUMULATOR SPRING) |
| 35207B | Spring Sub-assy, C-2 Accumulator |
| 35207C | Ring, Hole Snap (FOR C-2 ACCUMULATOR SPRING) |
| 35208B | Spring Sub-assy, C-3 Accumulator |
| 35208C | Ring, Hole Snap (FOR C-3 ACCUMULATOR SPRING) |
| 35210A | Valve, Solenoid(SL1) |
| 35210B | Valve, Solenoid(SL3) |
| 35210C | Valve, Solenoid(SL2) |
| 35210D | Valve, Solenoid(SL4) |
| 35210E | Valve, Solenoid(SL5) |
| 35240E | Valve, Solenoid(S1) |
| 35240F | Valve, Solenoid(S2) |
| 35240G | Valve, Solenoid(S3) |
| 35240H | Valve, Solenoid(S4) |
| 35240J | Valve, Solenoid(SR) |
| 35240K | Solenoid Assy, Transmission 3Way(SC1) |
| 35240L | Solenoid Assy, Transmission 3Way(SC2) |
| 35251 | Body, Check Ball |
| 35251A | Spring, Compression (FOR CHECK BALL BODY) |
| 35280A | Valve, Solenoid(SLU) |
| 35285 | Plate, Solenoid Lock |
| 35290B | Pin, Straight (FOR LINE PRESSURE CONTOROL SOLENOID) |
| 35290C | Valve, Solenoid(SLT) |
| 35330 | Strainer Assy, Valve Body Oil |
| 35330A | Ring, O (FOR OIL STRAINER) |
| 35410 | Body Assy, Transmission Valve |
| 35424F | Valve, C-1 Accumulator |
| 35424G | Spring, Compression (FOR C-1 ACCUMULATOR VALVE) |
| 35425A | Piston, C-2 Accumulator |
| 35425B | Spring, Compression (FOR C-2 ACCUMULATOR PISTON) |
| 35425C | Ring, O (FOR C-2 ACCUMULATOR PISTON) |
| 35426D | Piston, C-3 Accumulator |
| 35426E | Spring, Compression (FOR C-3 ACCUMULATOR PISTON) |
| 35426F | Ring, O (FOR C-3 ACCUMULATOR PISTON) |
| 35427K | Piston, B-3 Accumulator |
| 35427L | Spring, Compression (FOR B-3 ACCUMULATOR PISTON) |
| 35427M | Ring, O (FOR B-3 ACCUMULATOR PISTON) |
| 35481B | Clamp, Valve Body Wire Harness |
| 35482B | Clamp, Temperature Sensor |
| 82125J | Wire, Transmission |
| 82125L | Ring, O(FOR TRANSMISSION WIRE) |
| 89429K | Ring, O(FOR OIL TEMPERATURE SENSOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
