Transaxle Assy(HEV OR BEV OR FCEV)

27 part groups · 3 illustrations

Illustrations

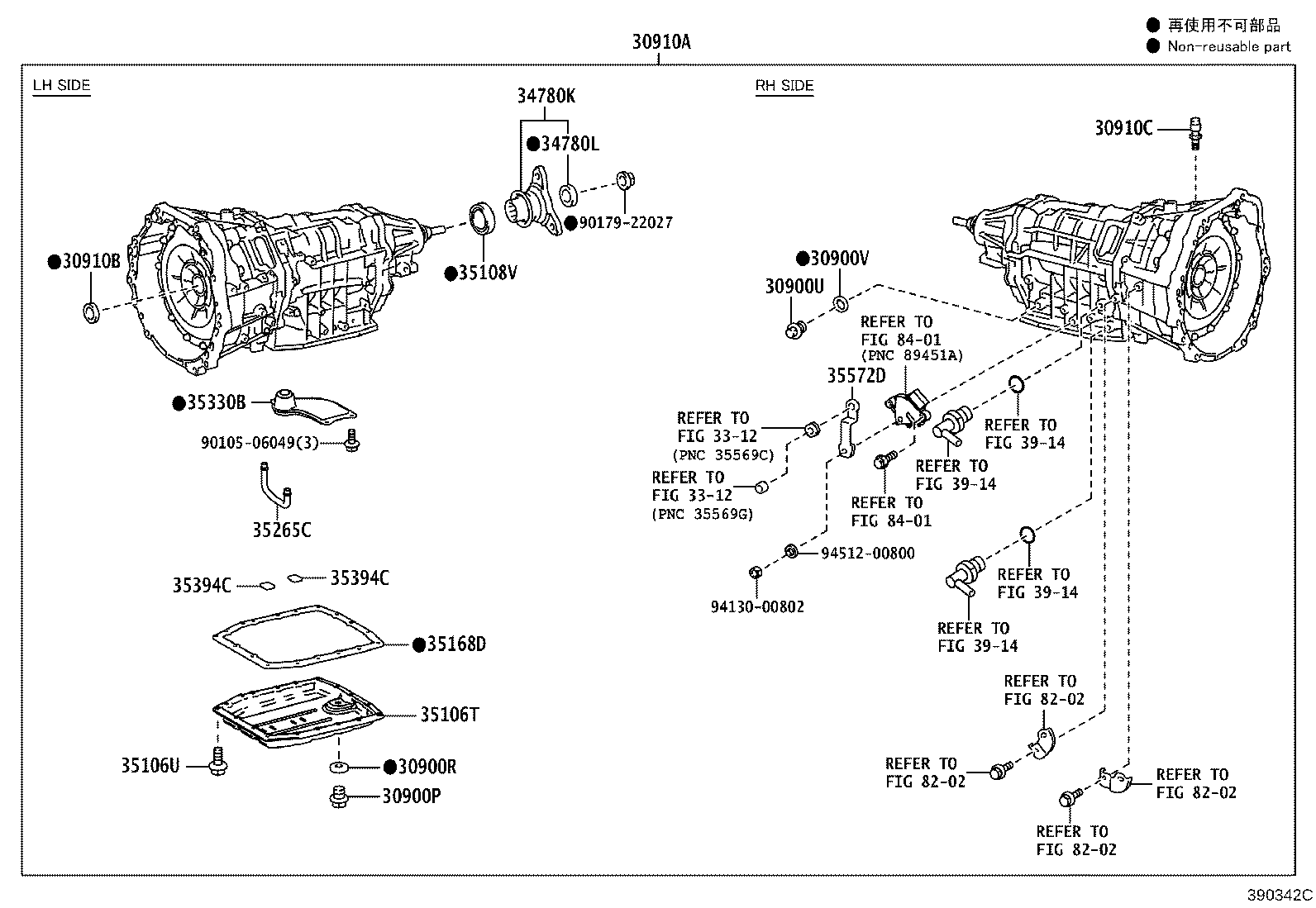

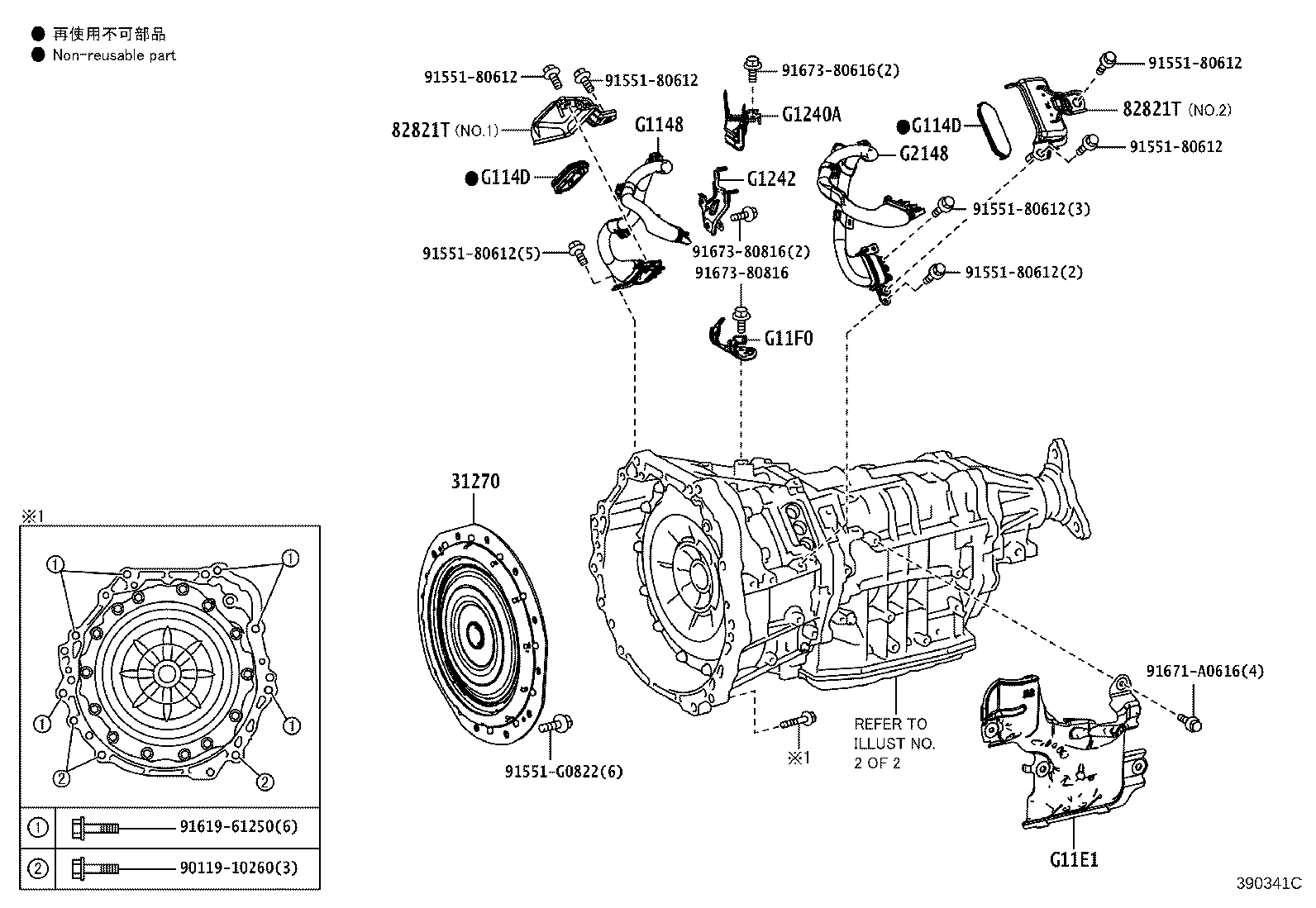

Figure 390340C 390340C 2013-04 → — Figure 390341C 390341C 2013-04 → — Figure 390342C 390342C 2013-04 → —

Part groups

PNCDescription
30900P Plug, Drain(HEV)
30900R Gasket, Drain Plug(HEV)
30900U Plug, Refill(HEV)
30900V Gasket, Refill Plug(HEV)
30910A Transmission Assy, Hybrid Vehicle
30910B Seal, Type T Oil(FOR HYBRID VEHICLE TRANSMISSION ASSY)
30910C Plug Sub-assy, Breather(FOR TRANSMISSION)
31270 Damper Assy, Transmission Input
34780K Yoke Assy, Flange
34780L Seal, Type V Oil (FOR FRANGE YOKE)
35106T Pan Sub-assy, Transmission Oil
35106U Bolt (FOR TRANSMISSION OIL PAN)
35108V Seal, Type T Oil (FOR EXTENSION HOUSING)
35168D Gasket, Transmission Oil Pan
35265C Tube, Oil Cooler Return
35330B Strainer Assy, Oil
35394C Magnet, Oil Cleaner
35572D Lever, Transmission Control Shaft
82821T Cover, Connector
G1148 Cable, Motor
G114D Cap, Motor Cable Terminal
G11E1 Insulator, Motor Heat
G11F0 Cover Assy, Transaxle Upper
G1240A Bracket Assy, Inverter Motor Cable
G1242 Bracket, Engine Motor Cable Clamp
G1242A Bracket, Engine Motor Cable Clamp
G2148 Cable, Generator
