Brake Master Cylinder

15 part groups · 4 illustrations

Illustrations

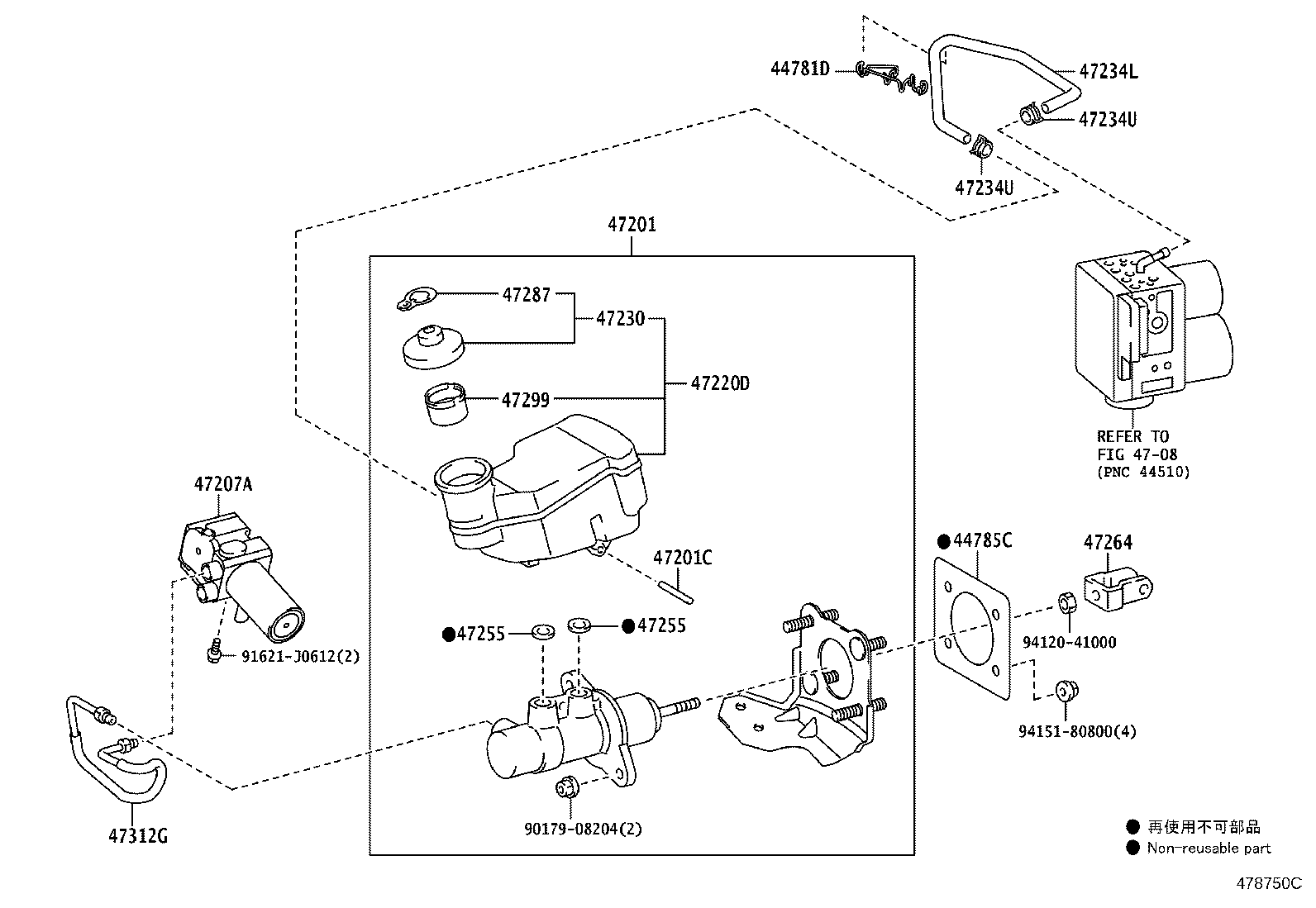

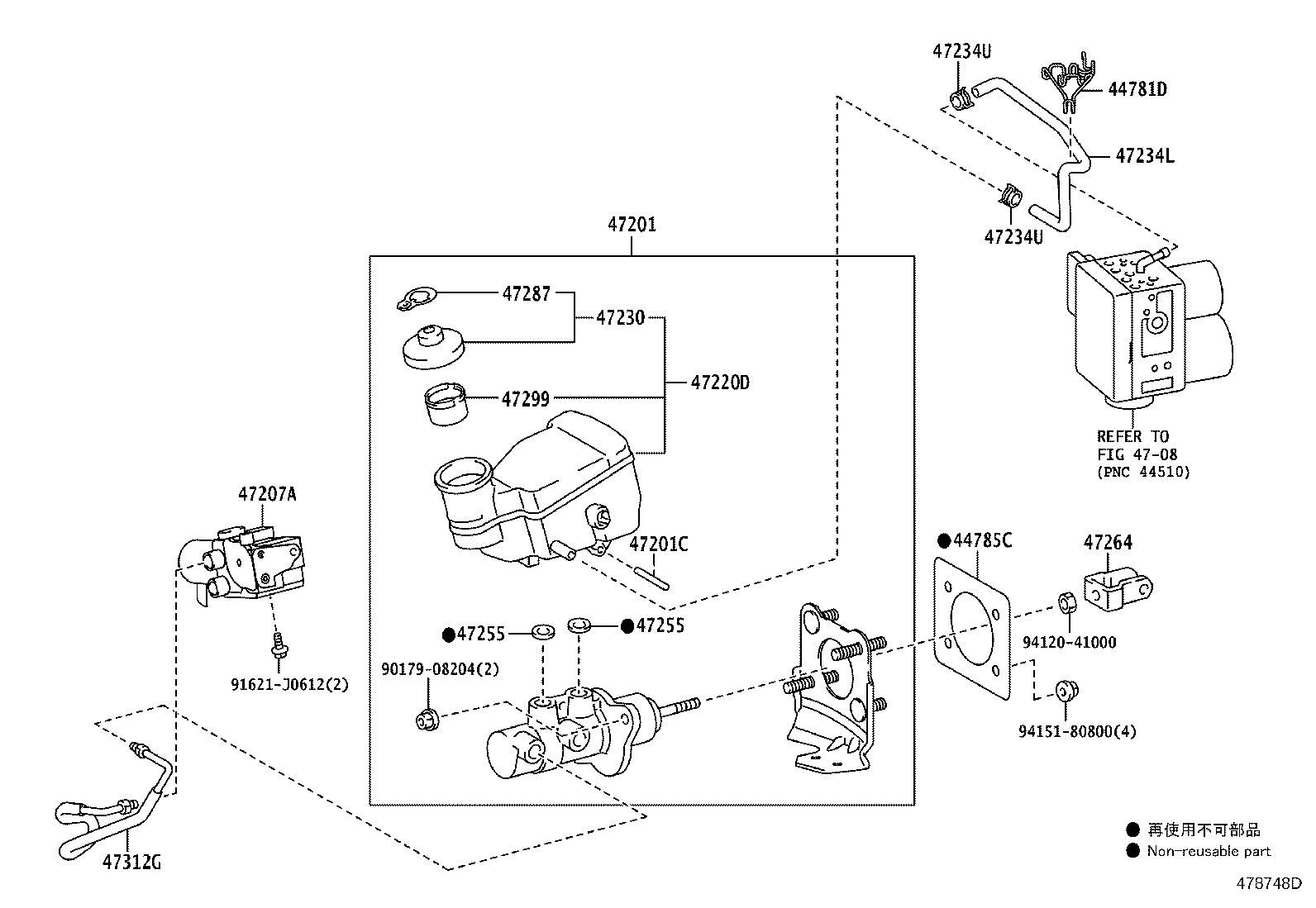

Figure 478751B 478751B 2013-04 → — Figure 478749B 478749B 2013-04 → — Figure 478750C 478750C 2013-04 → — Figure 478748D 478748D 2013-04 → —

Part groups

PNCDescription
44781D Bracket, Reservoir Hose
44785C Gasket, Brake Booster
47201 Cylinder Sub-assy, Brake Master
47201B Ring, O(FOR BRAKE MASTER CYLINDER)
47201C Ring Pin, Brake Master Cylinder
47207A Cylinder Sub-assy, Brake Stroke Simulator
47220D Reservoir Assy, Brake Master Cylinder
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47234L Hose, Reservoir, NO.1
47234U Clip(FOR RESERVOIR HOSE NO.1)
47255 Grommet, Master Cylinder Reservoir
47264 Clevis, Master Cylinder Push Rod
47287 Label, Brake Fluid Information
47299 Strainer, Brake Master Cylinder Reservoir
47312G Tube, Brake Stroke Simulator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
