Brake Booster & Vacuum Tube

16 part groups · 4 illustrations

Illustrations

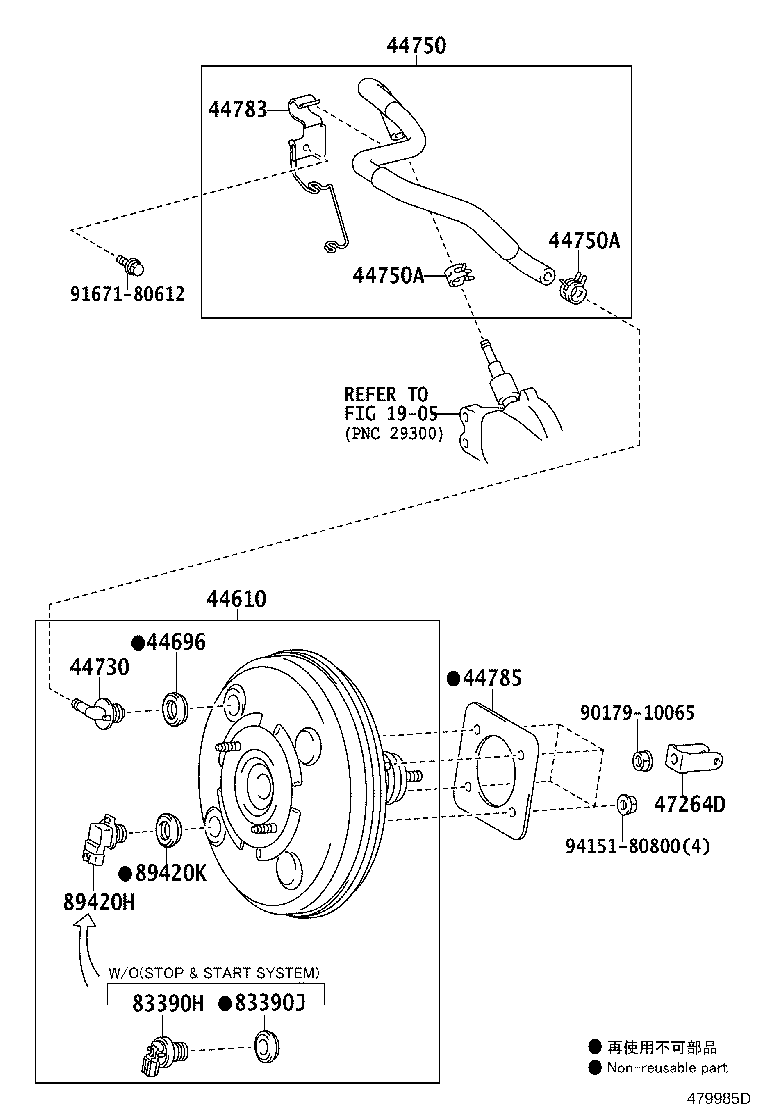

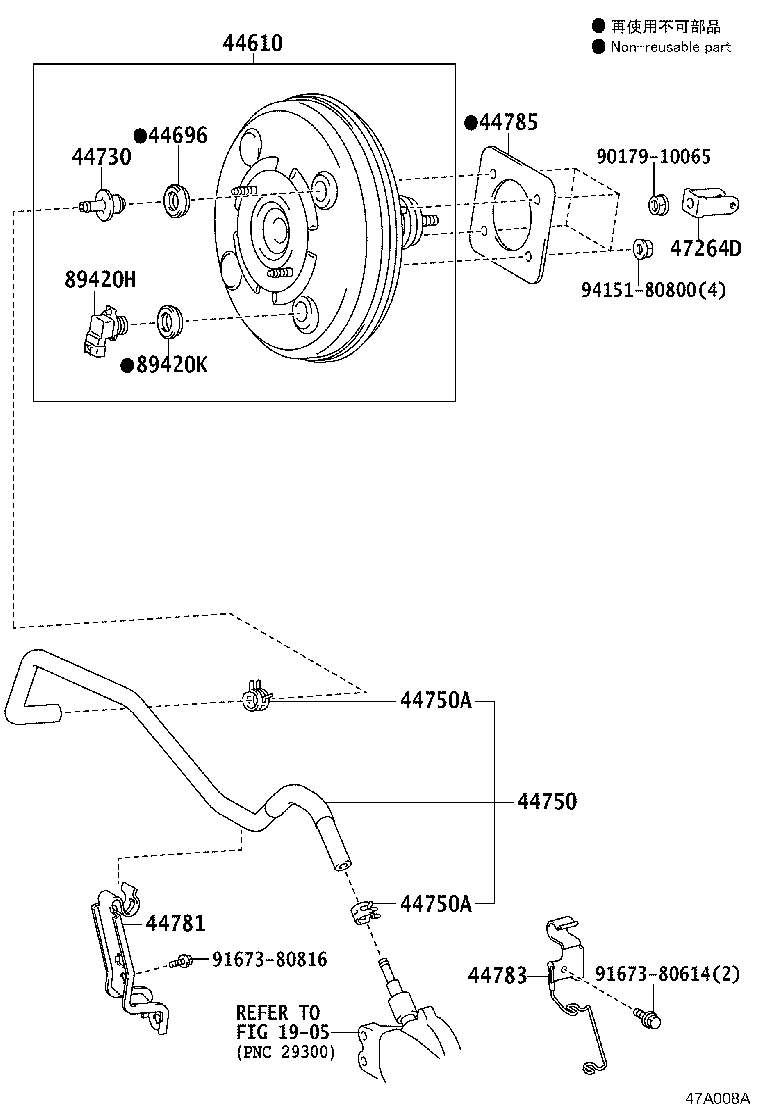

Figure 478744D 478744D 2013-04 → — Figure 478743B 478743B 2013-04 → — Figure 479985D 479985D 2015-08 → — Figure 47A008A 47A008A 2015-08 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44750 Hose Assy, Vacuum
44750A Clip(FOR VACUUM HOSE ASSY)
44753 Clamp, Vacuum Reservoir, NO.2
44773F Hose, Union TO Check Valve
44773G Clip(FOR UNION TO CHECK VALVE HOSE)
44781 Bracket, Hose
44783 Clamp, Vacuum Hose
44785 Gasket, Brake Booster
47264D Clevis, Brake Master Cylinder Push Rod
83390H Switch Assy, Vacuum Warning
83390J Grommet, Vacuum Warning Switch
89420H Sensor Assy, Vacuum
89420K Grommet, Vacuum Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
