Toyota Lexus IS2###/3###

2013-04 → present · chassis ASE30,AVE30,GSE30 · catalogue 242530 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

52 part groups · 8 illustrations

Illustrations

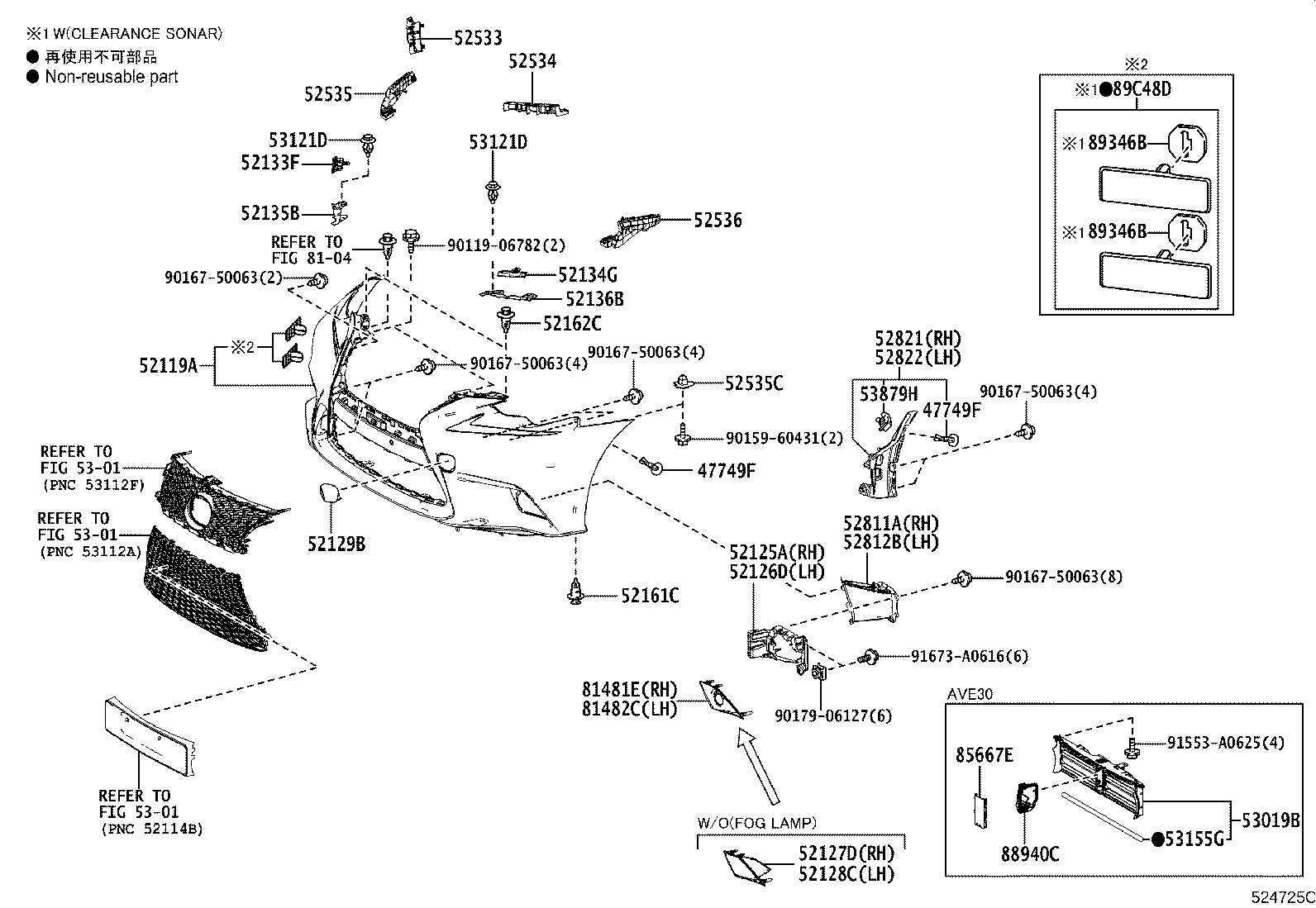

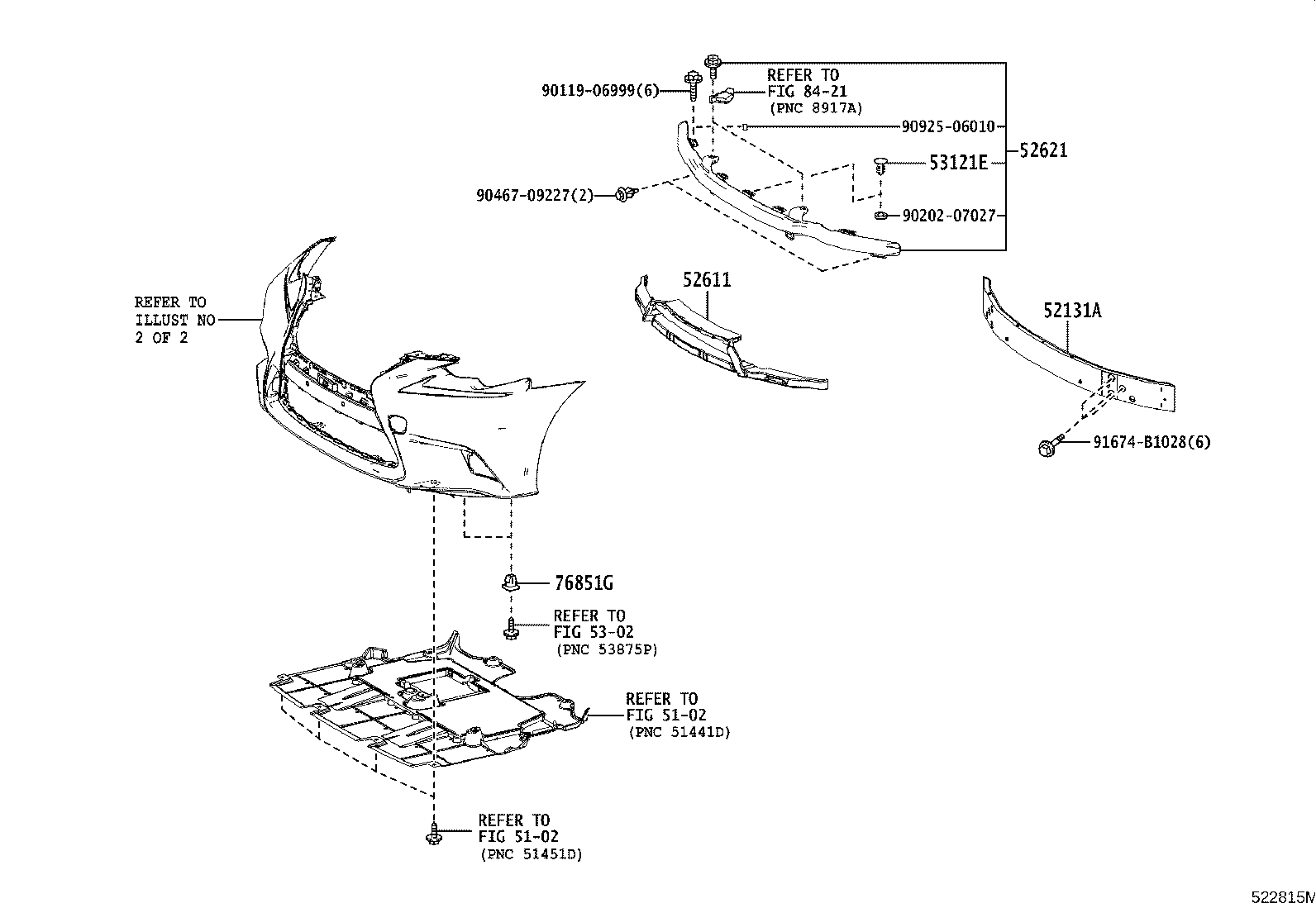

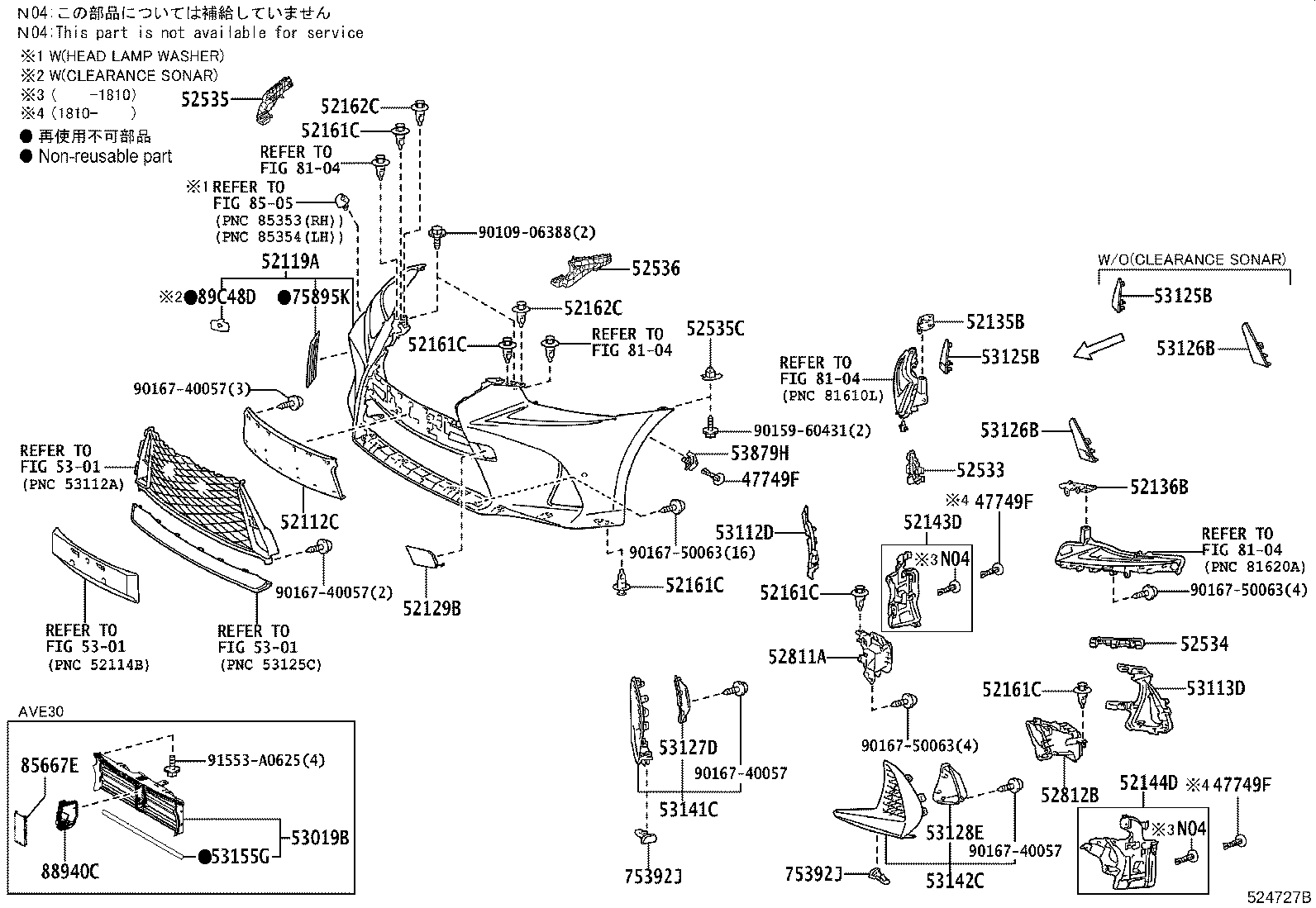

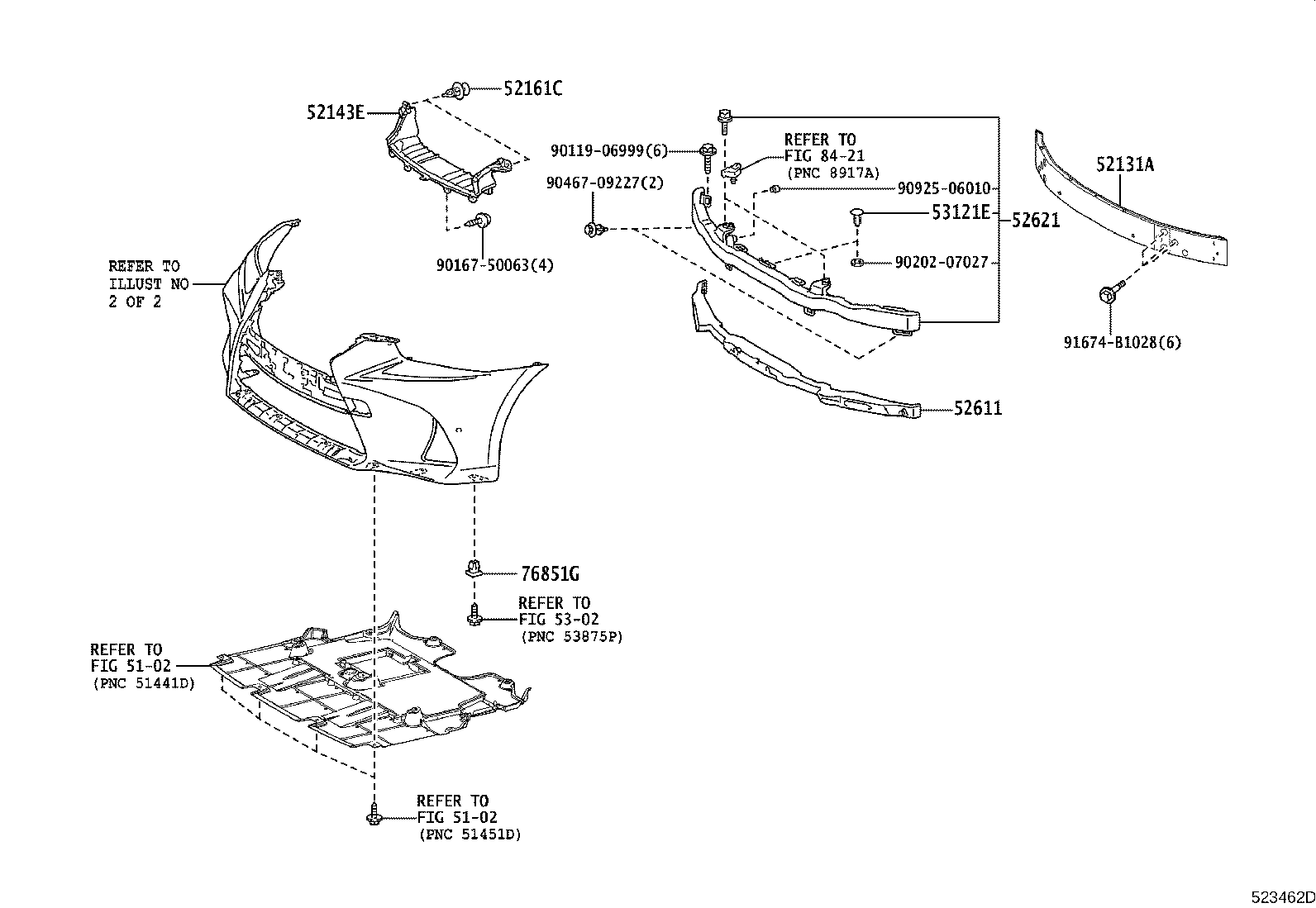

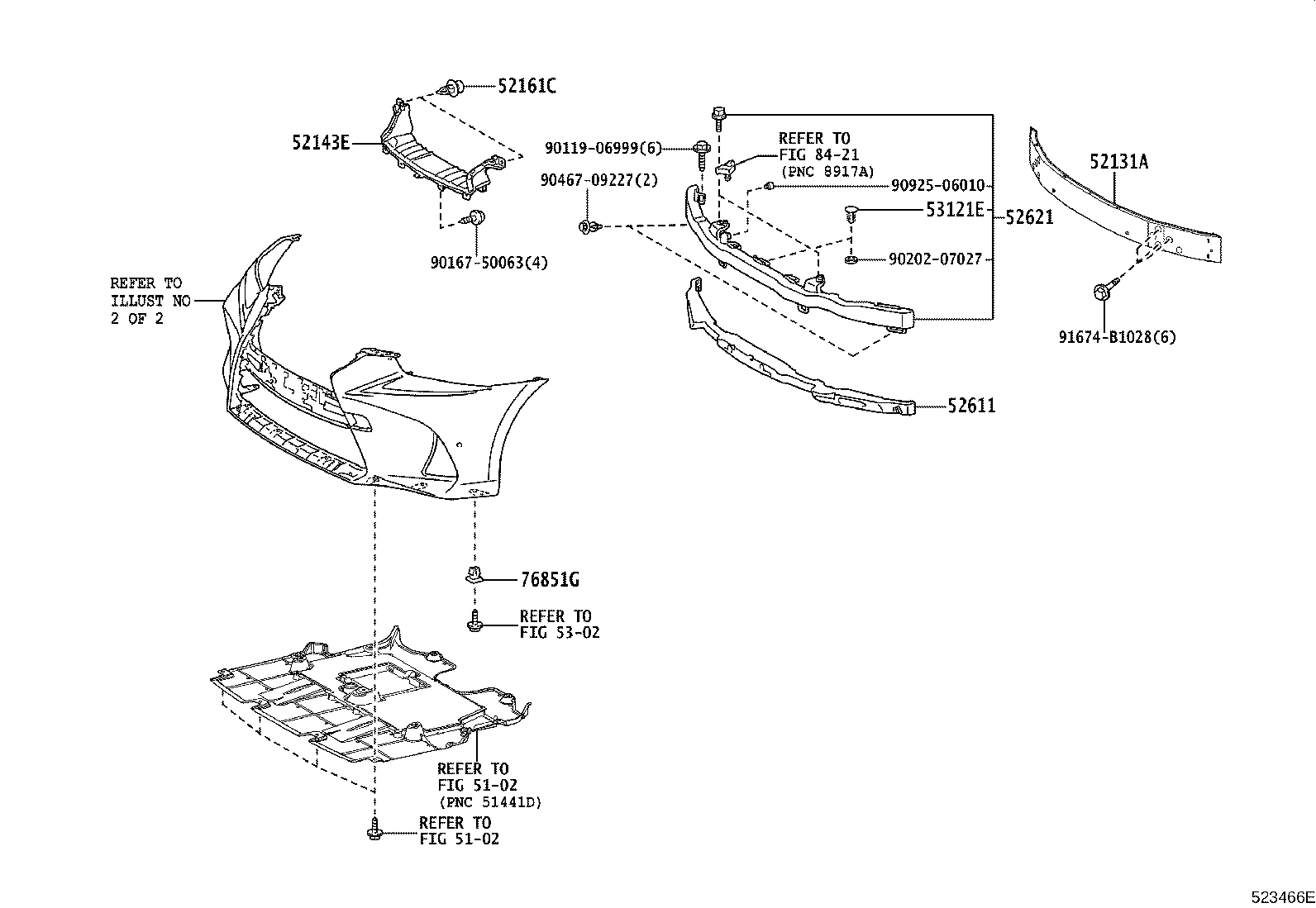

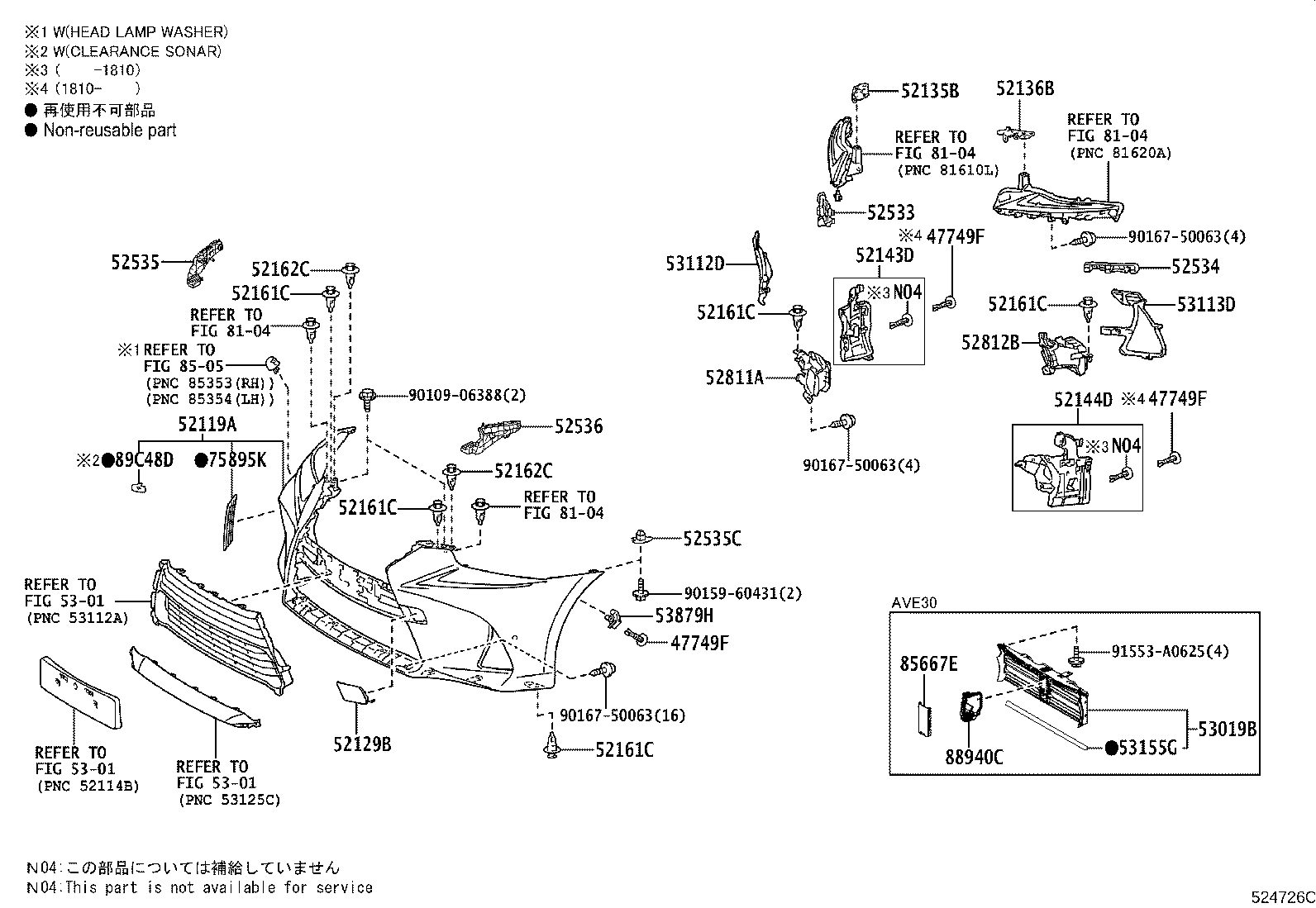

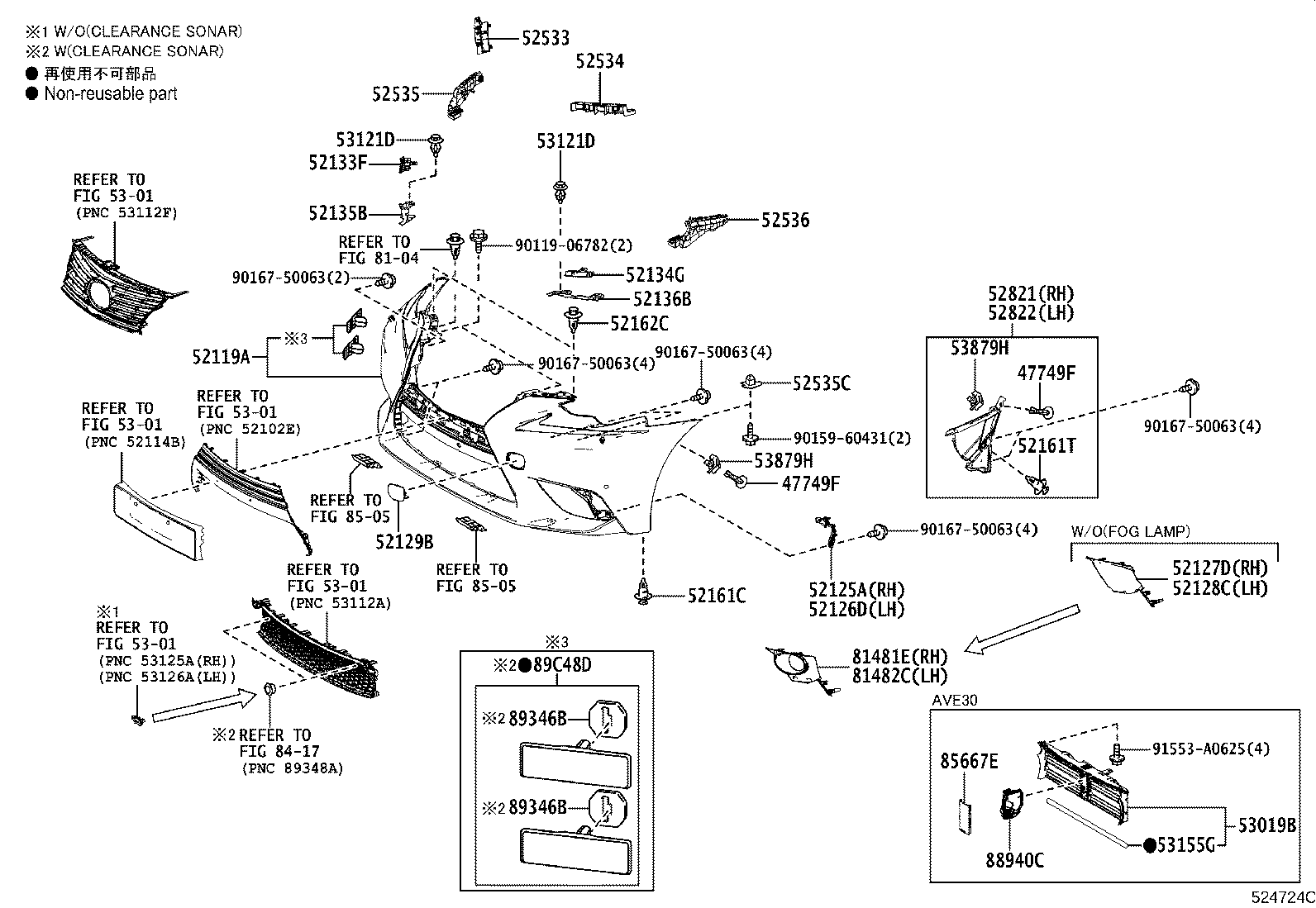

Figure 522814P 522814P 2013-04 → 2016-10 Figure 524724C 524724C 2013-04 → 2016-10 Figure 522815M 522815M 2013-04 → 2016-10 Figure 524725C 524725C 2013-04 → 2016-10 Figure 523462D 523462D 2016-10 → — Figure 524726C 524726C 2016-10 → — Figure 523466E 523466E 2016-10 → — Figure 524727B 524727B 2016-10 → —

Part groups

PNCDescription
47749F Clip, Pin Hold
52112C Extension, Front Bumper
52119A Cover, Front Bumper
52125A Bracket, Fog Lamp Mounting, RH
52126D Bracket, Fog Lamp Mounting, LH
52127D Cover, Front Bumper Hole, RH
52128C Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52131A Reinforcement, Front Bumper
52133F Bracket, Front Bumper, RH
52134G Bracket, Front Bumper, LH
52135B Bracket, Front Bumper, NO.1 RH
52136B Bracket, Front Bumper, NO.1 LH
52143D Bracket, Front Bumper Side, RH
52143E Plate, Front Energy Absorber Mounting
52144D Bracket, Front Bumper Side, LH
52161C Piece, Front Bumper
52161T Piece, Front Bumper
52162C Piece, Front Bumper
52533 Bracket, Front Bumper Retainer, NO.1
52534 Bracket, Front Bumper Retainer, NO.2
52535 Retainer, Front Bumper Side, RH
52535C Retainer, Front Bumper Side
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52621 Chamber, Pop UP Hood
52811A Duct, Cool Air Intake, NO.1
52812B Duct, Cool Air Intake, NO.2
52821 Duct, Air Intake, RH
52822 Duct, Air Intake, LH
53019B Shutter Sub-assy, Radiator
53112D Grille, Radiator, Lower RH
53113D Grille, Radiator, Lower LH
53121D Clip(FOR FRONT BUMPER), NO.2
53121E Clip(FOR FRONT BUMPER), NO.1
53125B Moulding, Radiator Grille, Center RH
53126B Moulding, Radiator Grille, Center LH
53127D Grille, Radiator, Lower Side RH
53128E Grille, Radiator, Lower Side LH
53141C Garnish, Radiator Grille
53142C Garnish, Radiator Grille, NO.2
53155G Seal, Radiator Grille
53879H Retainer, Front Fender Liner
75392J Retainer, Outside Moulding
75895K Tape, Moulding, NO.1
76851G Grommet, Screw, NO.1
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
85667E Cover, Motor
88940C Actuator Assy, Swing Grille
89346B Adjuster, Ultrasonic Sensor
89C48D Retainer, Ultrasonic Sensor, Front Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
