Toyota Lexus IS2###/3###

2013-04 → present · chassis ASE30,AVE30,GSE30 · catalogue 242530 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

21 part groups · 4 illustrations

Illustrations

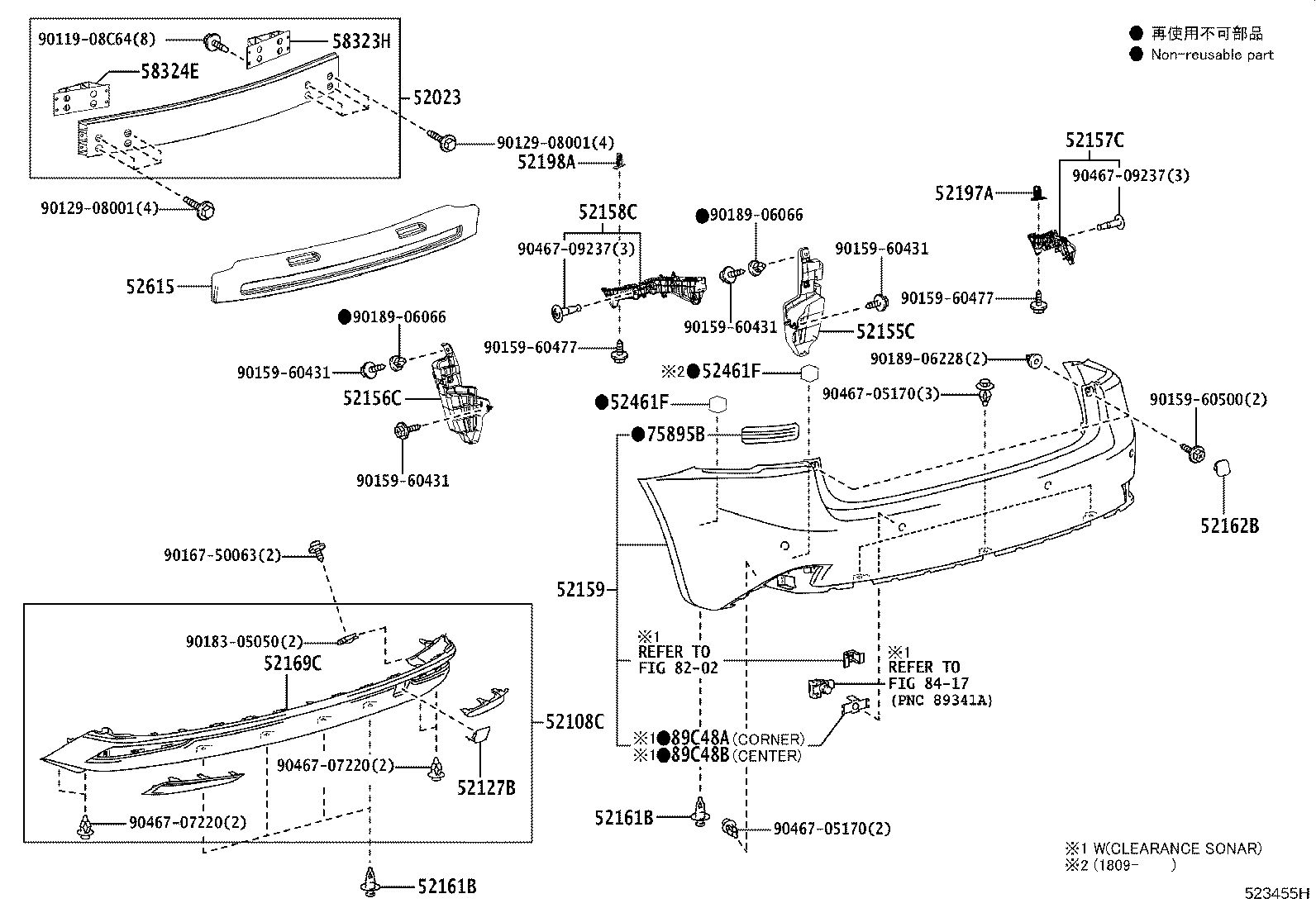

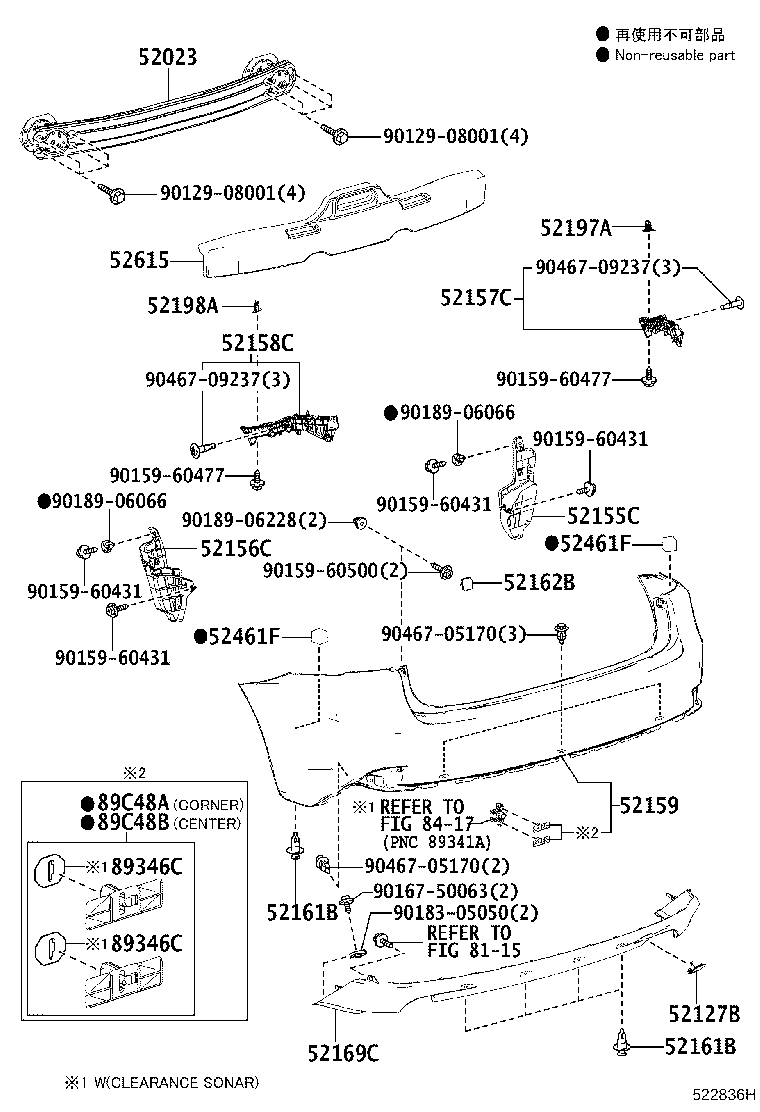

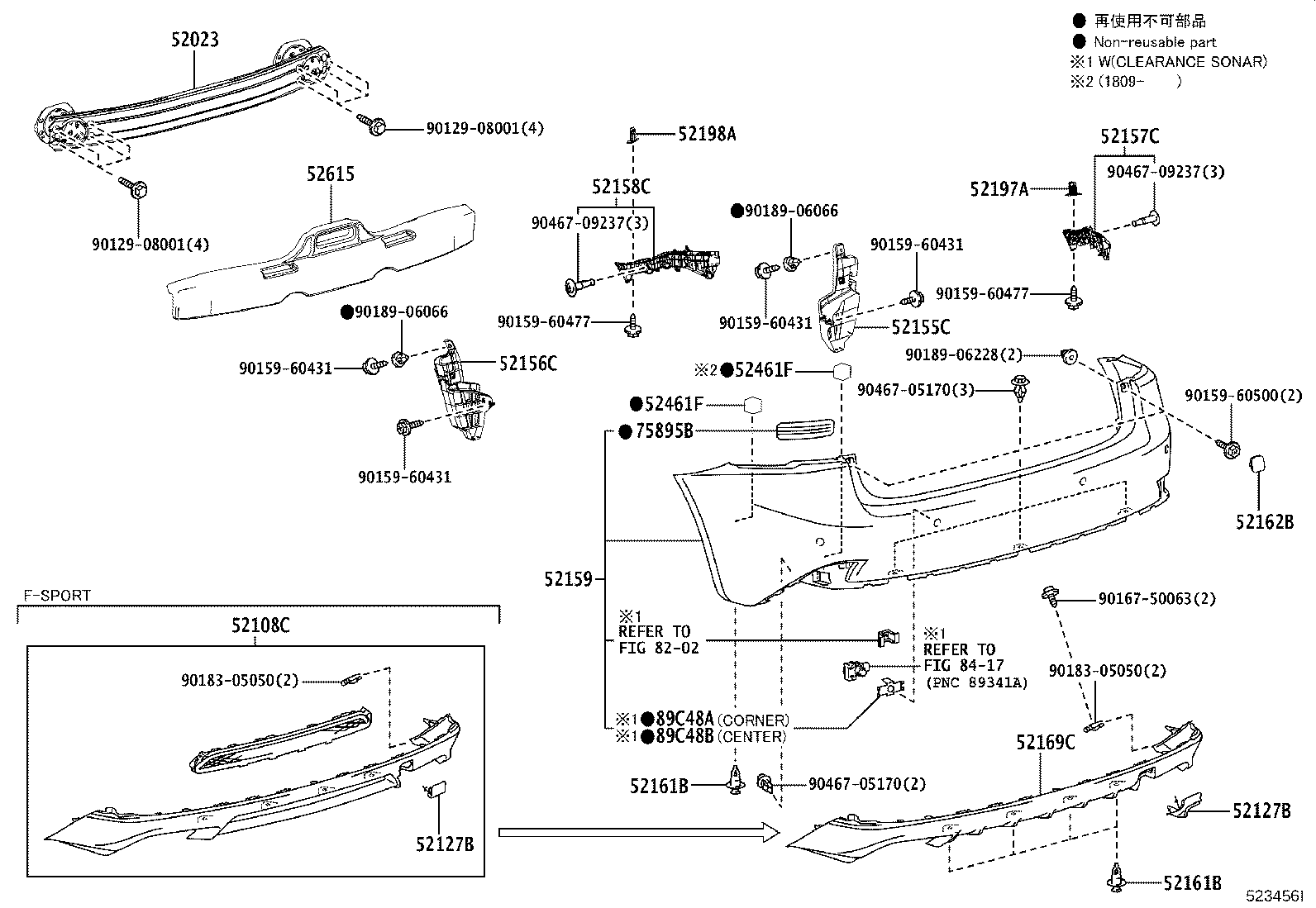

Figure 522835H 522835H 2013-04 → 2016-10 Figure 522836H 522836H 2013-04 → 2016-10 Figure 523455H 523455H 2016-10 → — Figure 523456I 523456I 2016-10 → —

Part groups

PNCDescription
52023 Reinforcement Sub-assy, Rear Bumper
52108C Extension Sub-assy, Rear Bumper, Center
52127B Cover, Rear Bumper Hole, RH
52155C Support, Rear Bumper Side, NO.1 RH
52156C Support, Rear Bumper Side, NO.1 LH
52157C Support, Rear Bumper Side, NO.2 RH
52158C Support, Rear Bumper Side, NO.2 LH
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52162B Plate, Rear Bumper, NO.1
52169C Cover, Rear Bumper, Lower
52197A Bracket, Rear Bumper Seal, RH
52198A Bracket, Rear Bumper Seal, LH
52461F Pad, Rear Bumper
52615 Absorber, Rear Bumper Energy
58323H Reinforcement, Rear Bumper Arm Support, RH
58324E Reinforcement, Rear Bumper Arm Support, LH
75895B Tape, Moulding, NO.2
89346C Adjuster, Ultrasonic Sensor
89C48A Retainer, Ultrasonic Sensor, Rear Corner
89C48B Retainer, Ultrasonic Sensor, Rear Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
