Toyota Lexus IS2###/3###
2013-04 → present · chassis ASE30,AVE30,GSE30 · catalogue 242530 · Europe
Supported model
Data version 2018-09

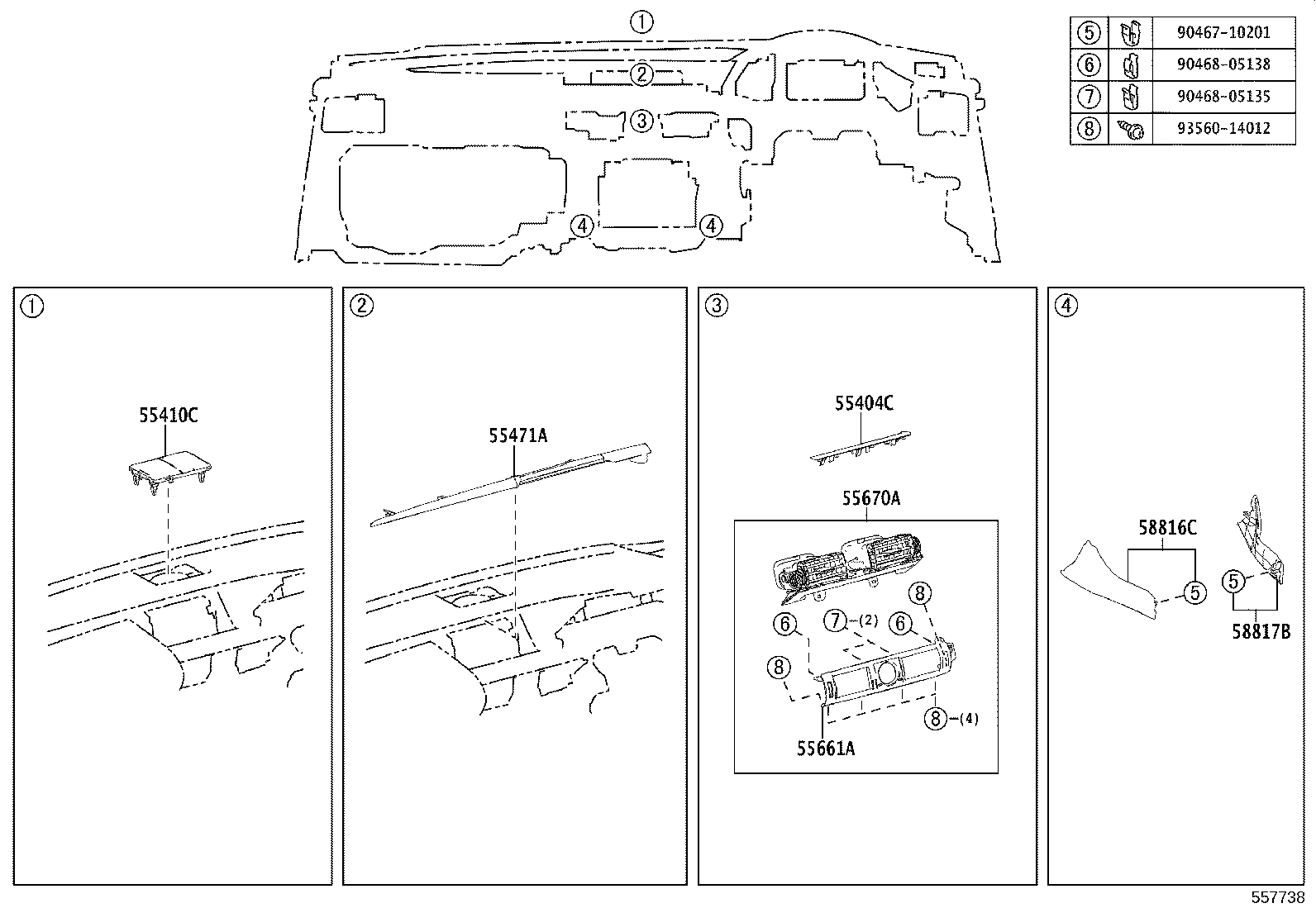

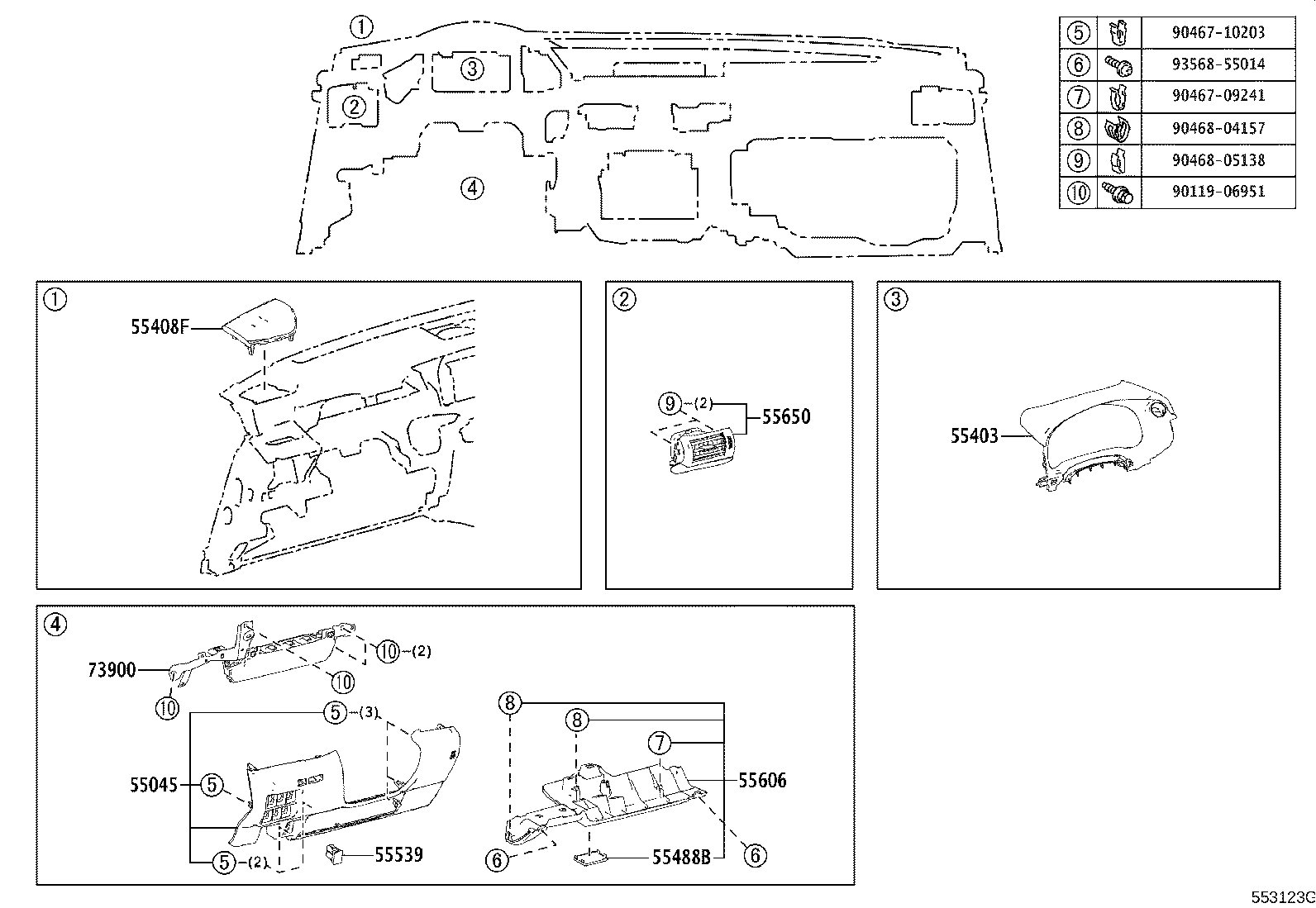

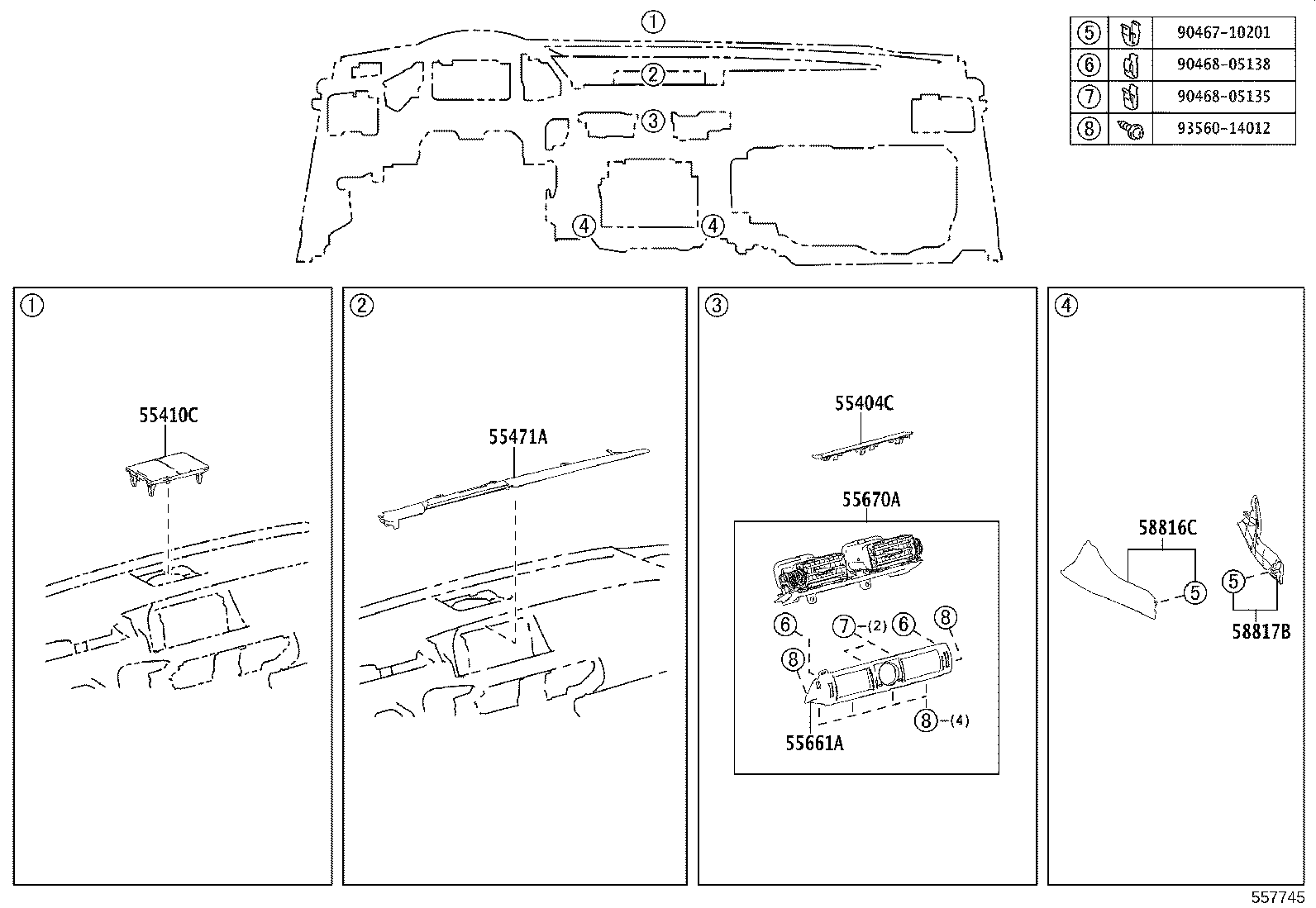

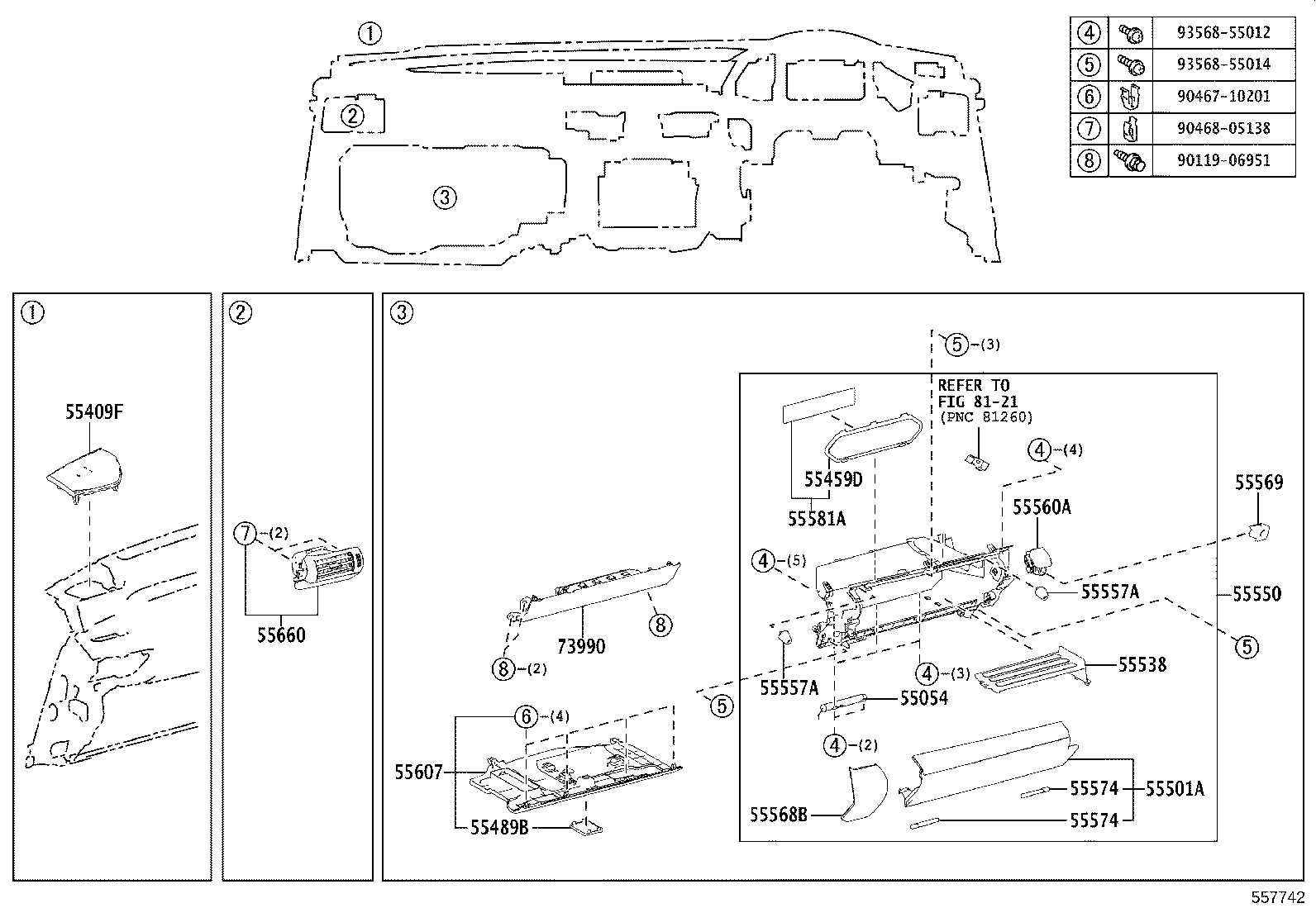

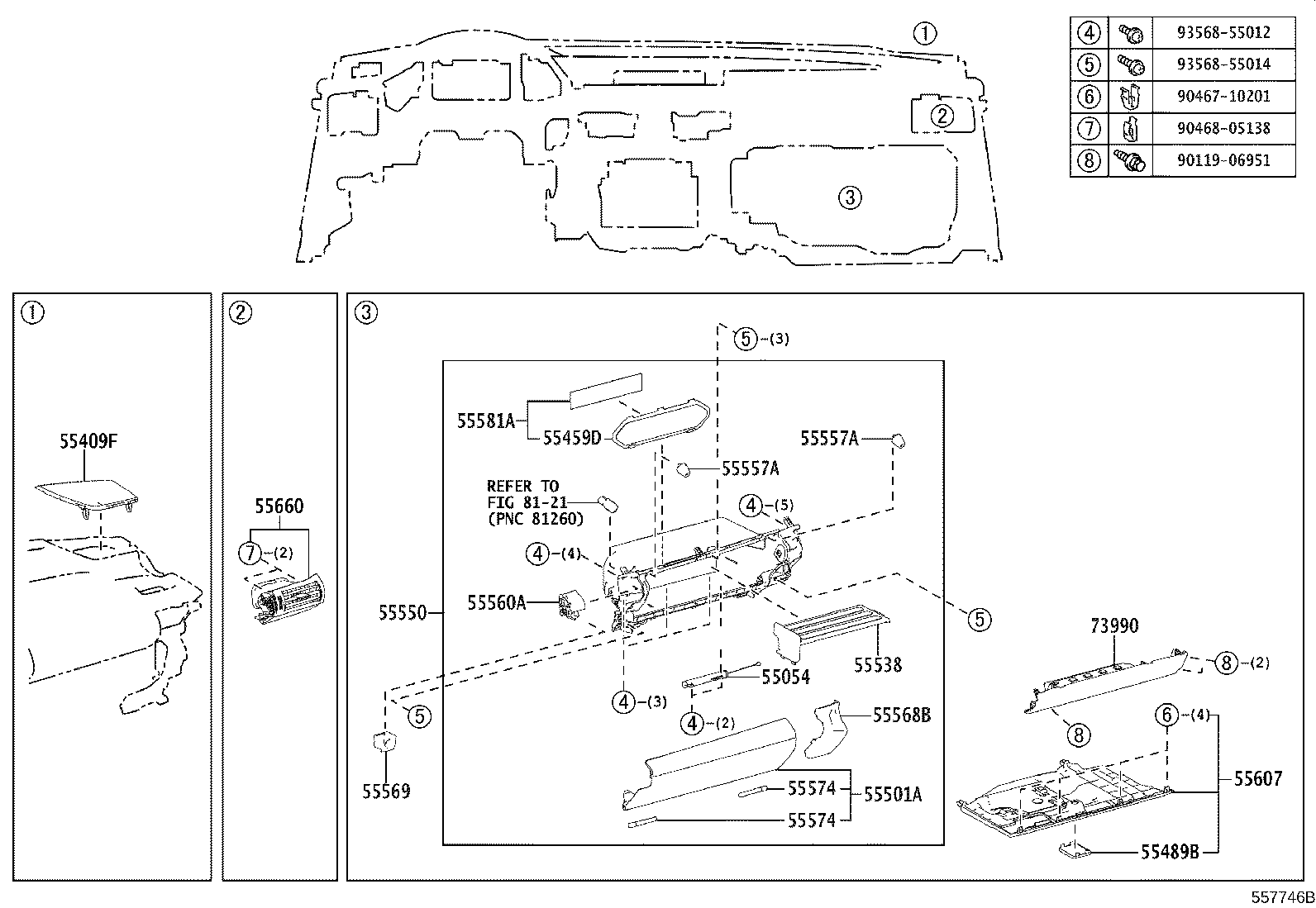

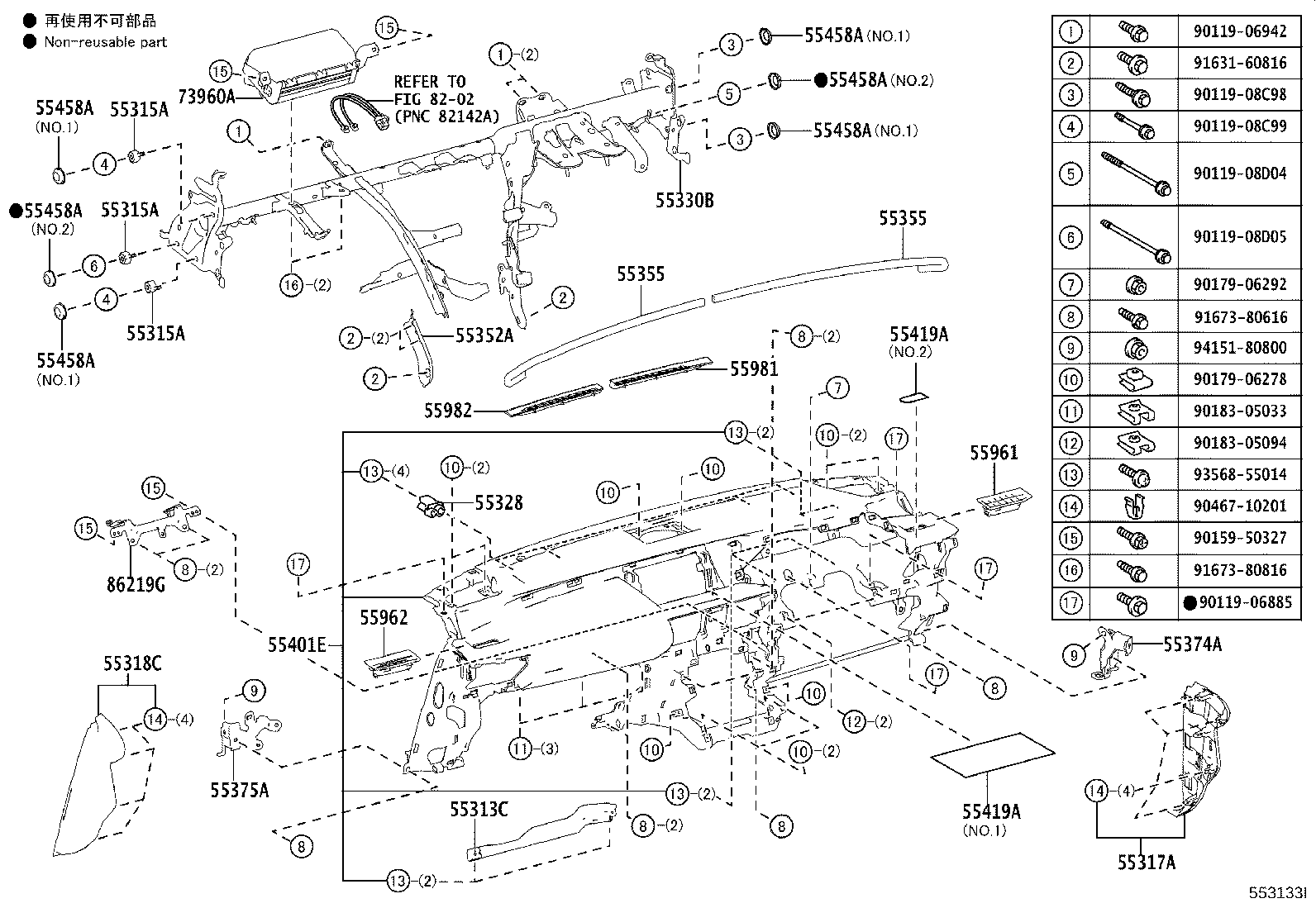

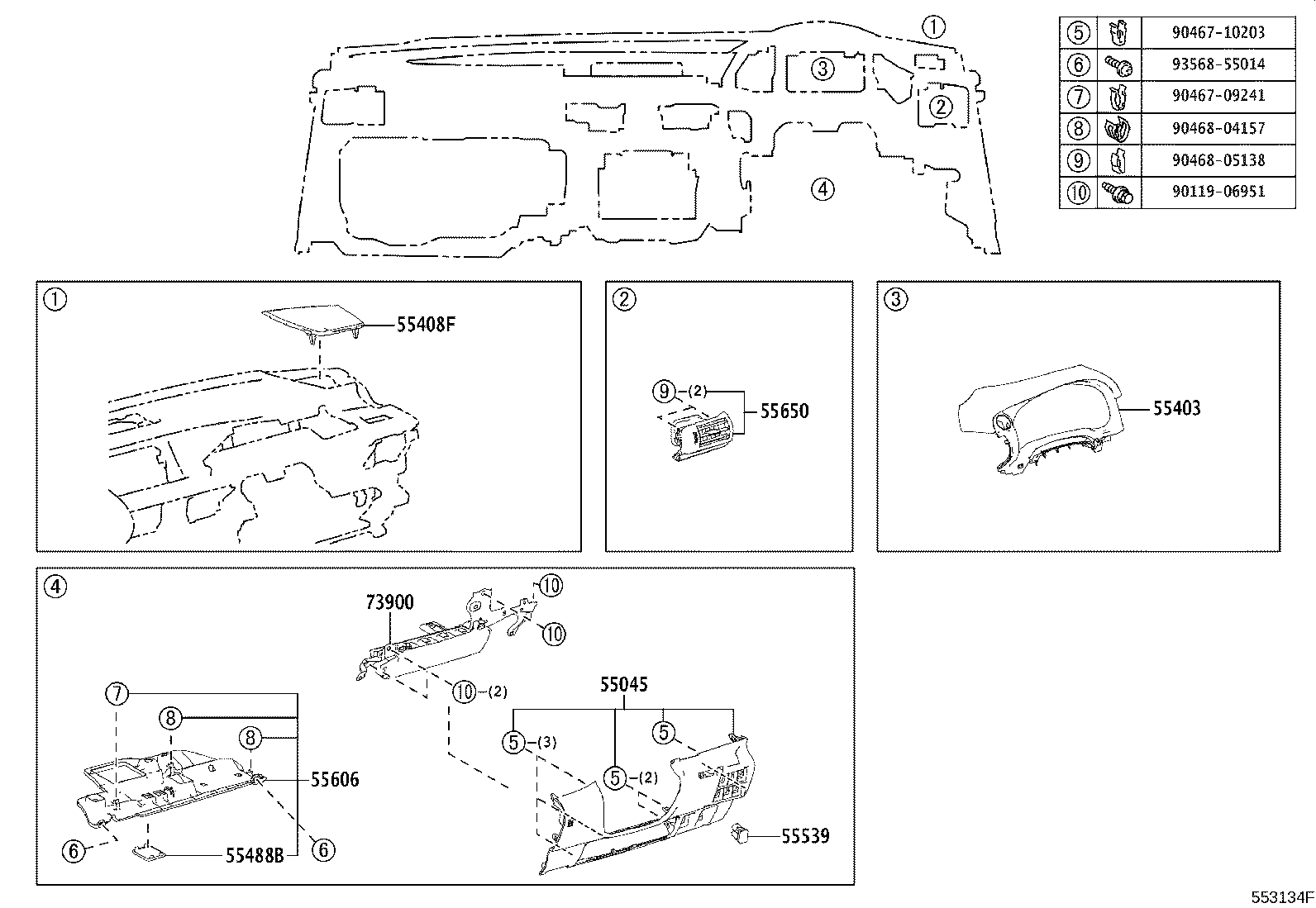

Instrument Panel & Glove Compartment
50 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 55045 | Panel Sub-assy, Instrument Panel Finish, Lower |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55313C | Bracket, Glove Compartment |
| 55315A | Spacer, Instrument Panel, NO.1 |
| 55317A | Panel, Instrument Side, RH |
| 55318C | Panel, Instrument Side, LH |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55352A | Brace, Instrument Panel TO Floor, NO.2 |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55374A | Bracket, Instrument Panel Lower Mounting, RH |
| 55375A | Bracket, Instrument Panel Lower Mounting, LH |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55403 | Hood Sub-assy, Meter |
| 55404C | Panel Sub-assy, Instrument Cluster Finish, NO.2 |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55409F | Panel Sub-assy, Instrument Panel Speaker, NO.2 |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55419A | Cushion, Instrument Cluster Finish Panel |
| 55458A | Cap, Instrument Panel Safety Pad |
| 55459D | Cover, Instrument, Lower LH |
| 55471A | Ornament, Instrument Cluster Finish Panel |
| 55488B | Lens, Front Foot Lamp, NO.1 |
| 55489B | Lens, Front Foot Lamp, NO.2 |
| 55501A | Door Sub-assy, Glove Compartment |
| 55538 | Retainer,Glove Compartment |
| 55539 | Cover, Spare Switch Hole |
| 55550 | Door Assy, Glove Compartment |
| 55557A | Cushion, Glove Compartment Door Check |
| 55560A | Lock Assy, Glove Compartment Door |
| 55568B | Plate, Glove Compartment Door Finish |
| 55569 | Cover, Glove Compartment Door Lock |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55581A | Compartment, Glove |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55661A | Bezel, Instrument Panel Register |
| 55670A | Register Assy, Instrument Panel, Center |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 55981 | Garnish, Defroster Nozzle, NO.1 |
| 55982 | Garnish, Defroster Nozzle, NO.2 |
| 58816C | Insert, Console Box, Front NO.1 |
| 58817B | Insert, Console Box, Front NO.2 |
| 73900 | Airbag Assy, Instrument Panel, Lower NO.1 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
| 73990 | Airbag Assy, Instrument Panel, Lower NO.2 |
| 86219G | Bracket, Speaker |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
