Toyota Lexus IS2###/3###

2013-04 → present · chassis ASE30,AVE30,GSE30 · catalogue 242530 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

14 part groups · 2 illustrations

Illustrations

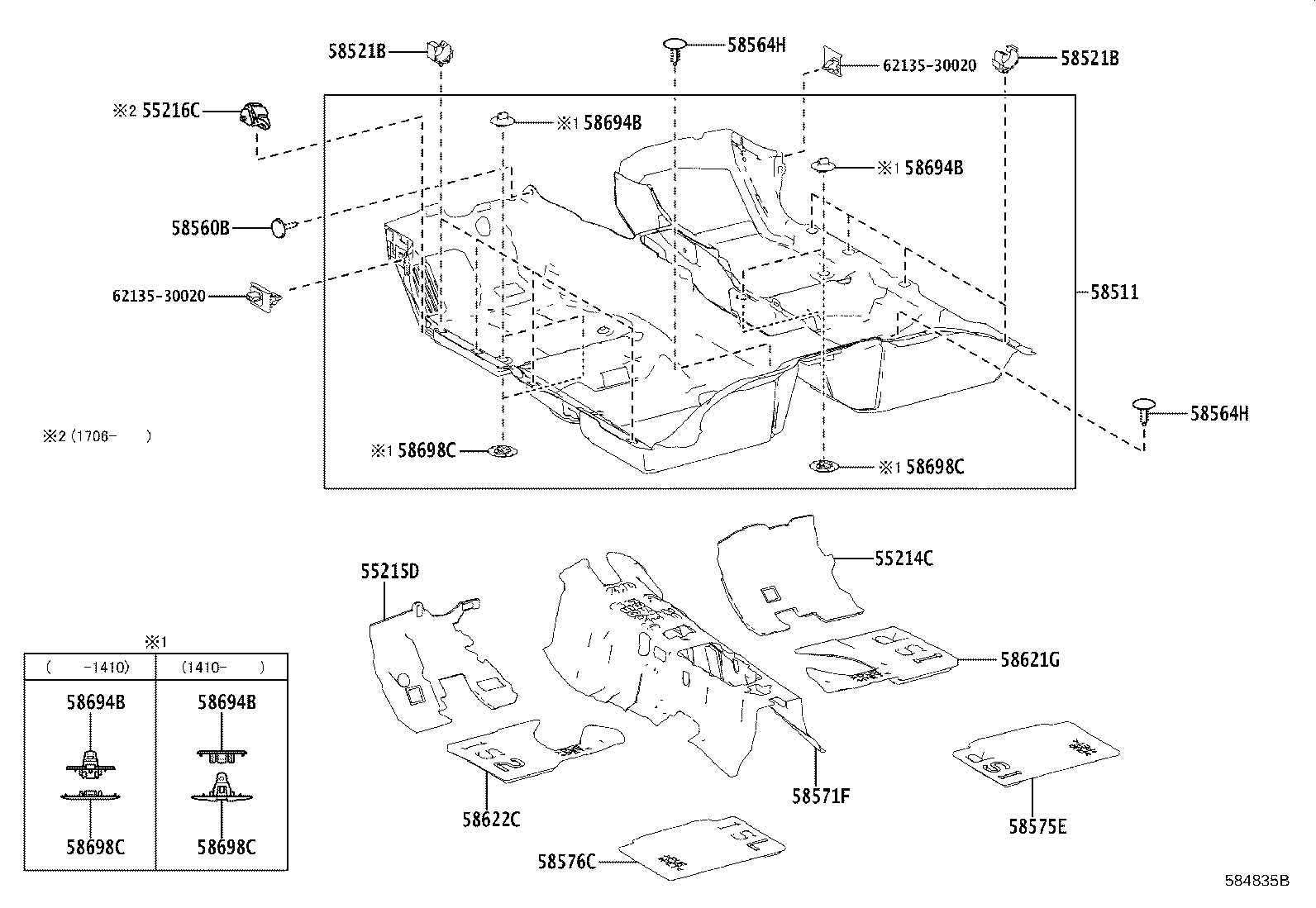

Figure 584833A 584833A 2013-04 → — Figure 584835B 584835B 2013-04 → —

Part groups

PNCDescription
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
55216C Pad, Dash Panel Insulator, NO.4
58511 Mat, Floor, Front
58521B Hook, Floor Carpet
58560B Clip(FOR FLOOR CARPET, REAR)
58564H Clip(FOR REAR FLOOR CARPET)
58571F Pad, Front Floor, Front
58575E Pad, Front Floor, Rear NO.1
58576C Pad, Front Floor, Rear NO.2
58621G Pad, Front Floor Silencer, RH
58622C Pad, Front Floor Silencer, LH
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
