Toyota Lexus IS2###/3###

2013-04 → present · chassis ASE30,AVE30,GSE30 · catalogue 242530 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

16 part groups · 4 illustrations

Illustrations

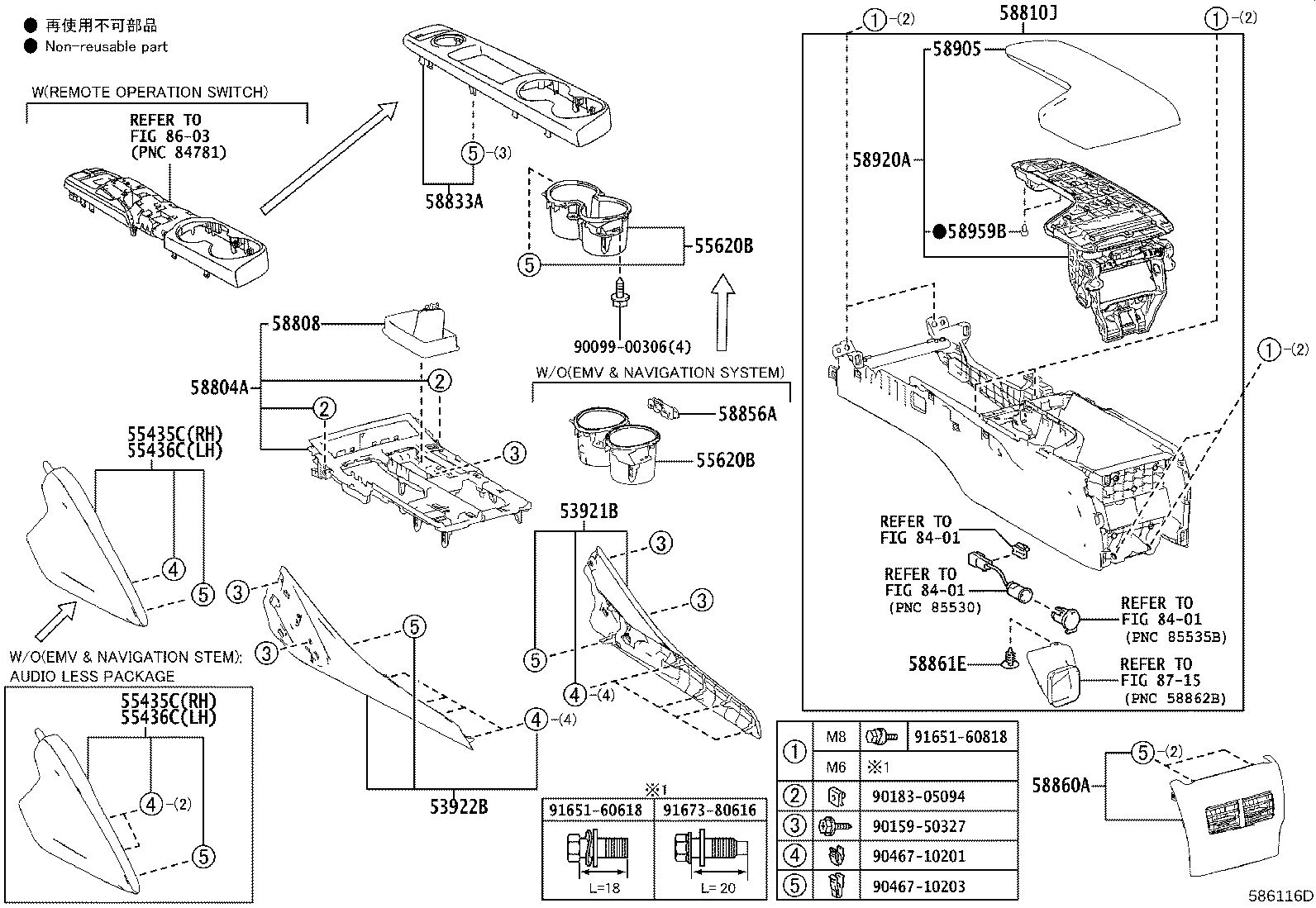

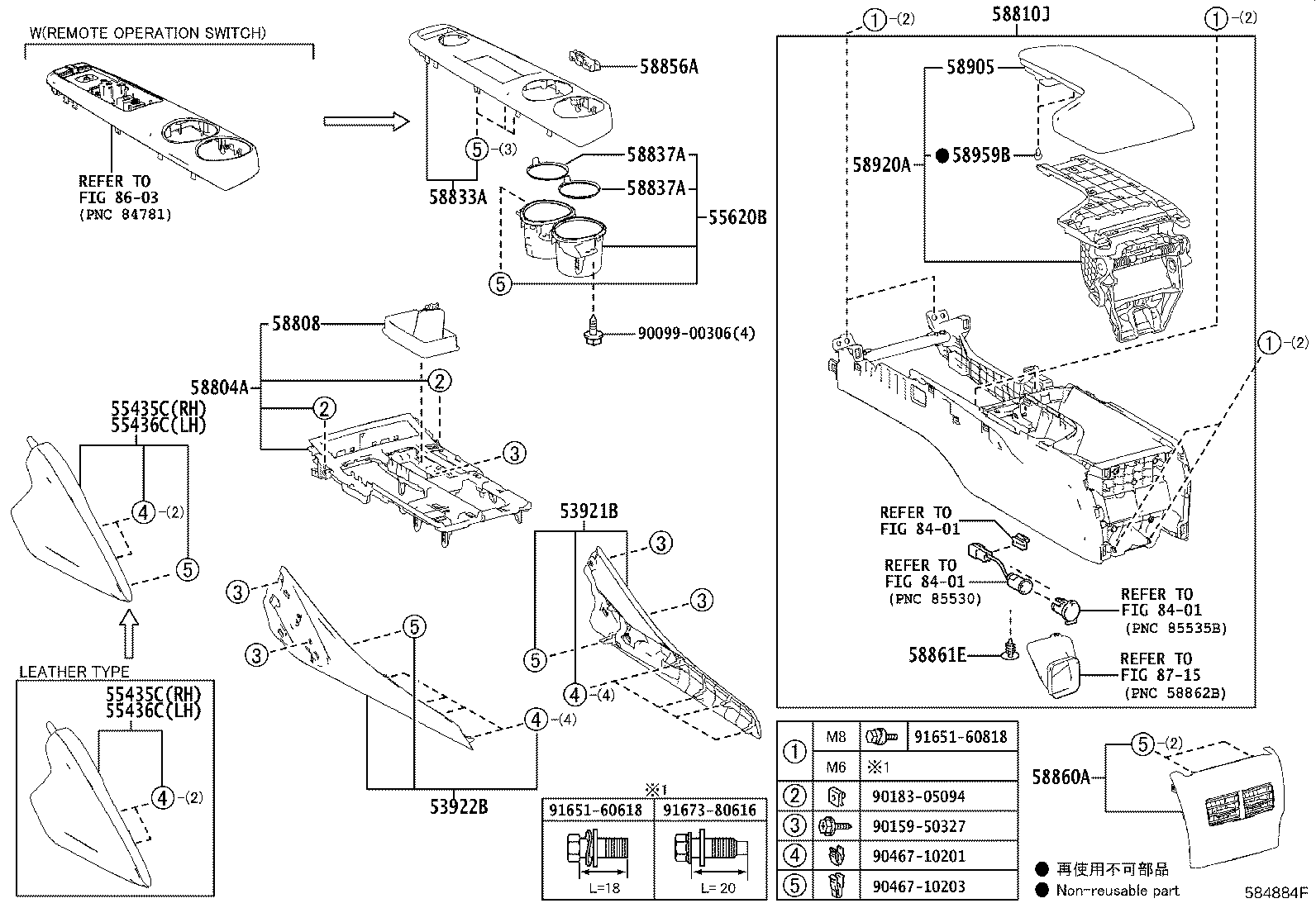

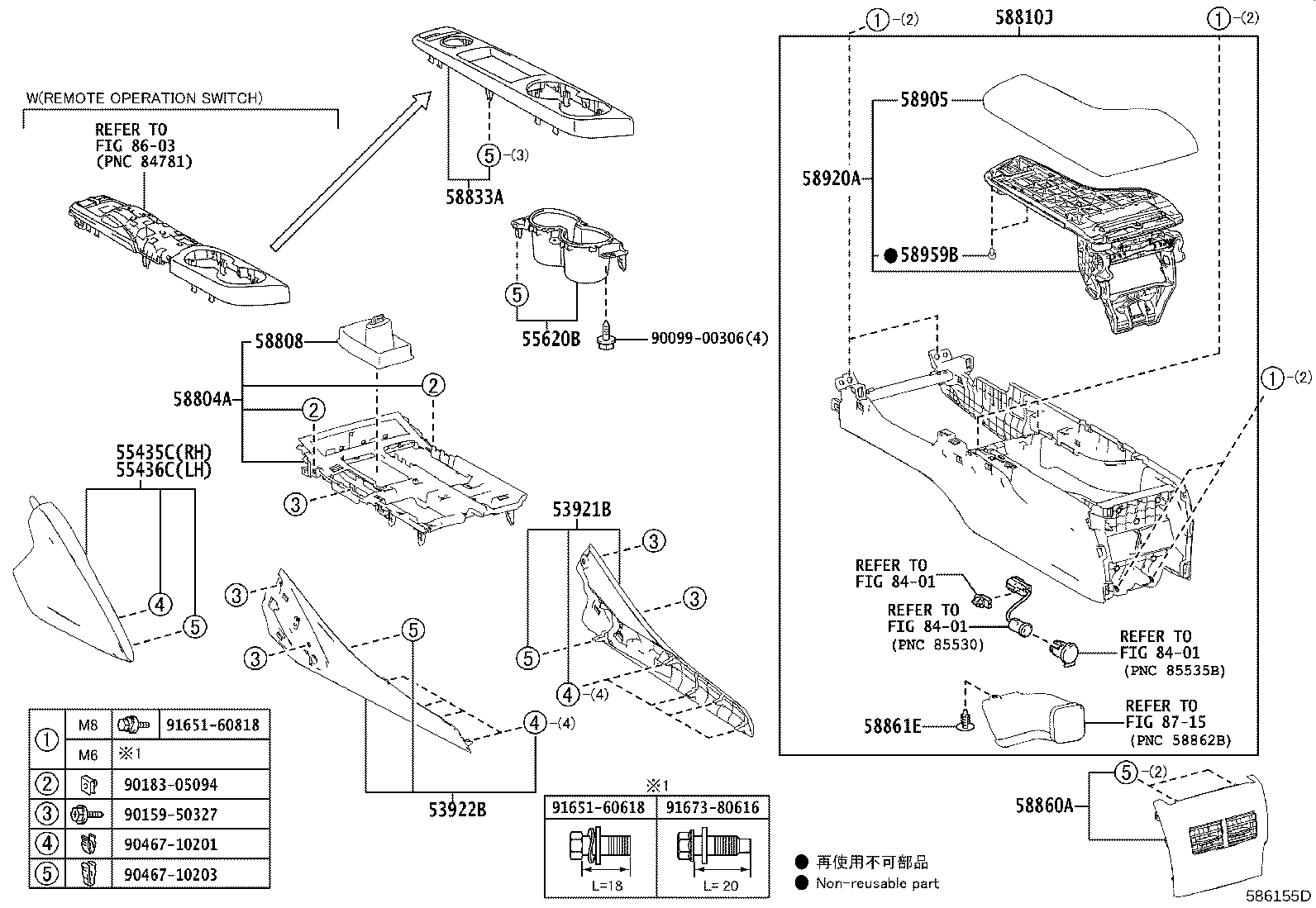

Figure 586154C 586154C 2013-04 → 2016-10 Figure 586155D 586155D 2016-10 → — Figure 584884F 584884F 2013-04 → 2016-10 Figure 586116D 586116D 2016-10 → —

Part groups

PNCDescription
53921B Garnish, Front Panel, RH
53922B Garnish, Front Panel, LH
55435C Panel, Instrument Panel Finish, End RH
55436C Panel, Instrument Panel Finish, End LH
55620B Holder, Instrument Panel Cup
58804A Panel Sub-assy, Console, Upper
58808 Cover Sub-assy, Shifting Hole
58810J Box Assy, Console
58833A Cover, Console, Upper
58837A Pad, Console Box Silencer, NO.2
58856A Holder, Console Box
58860A Register Assy, Console Box
58861E Clip, Console Box Duct
58905 Door Sub-assy, Console Compartment
58920A Armrest Assy, Rear Console
58959B Cushion, Console Compartment Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
