Toyota Lexus IS2###/3###
2013-04 → present · chassis ASE30,AVE30,GSE30 · catalogue 242530 · Europe
Supported model
Data version 2018-09

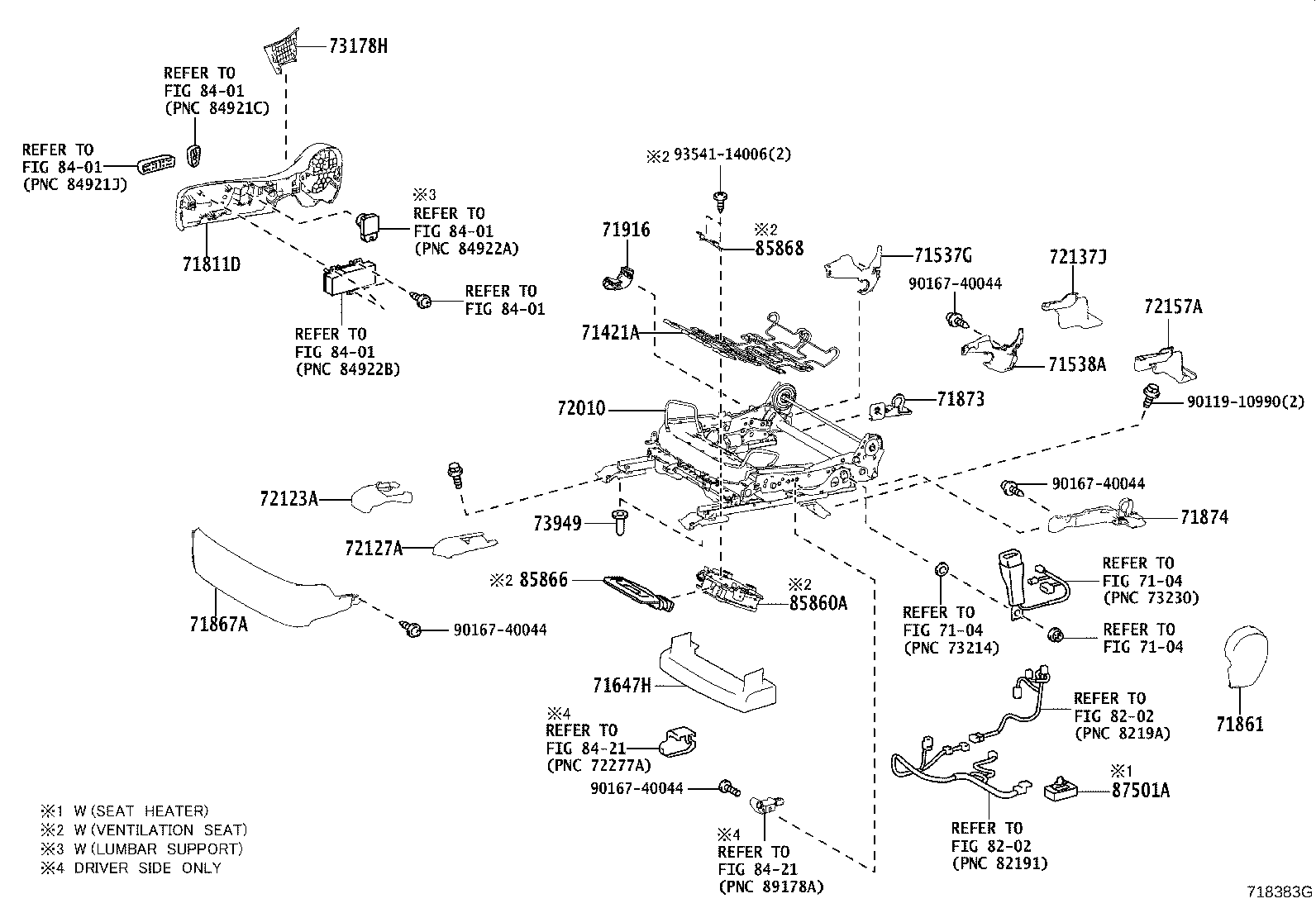

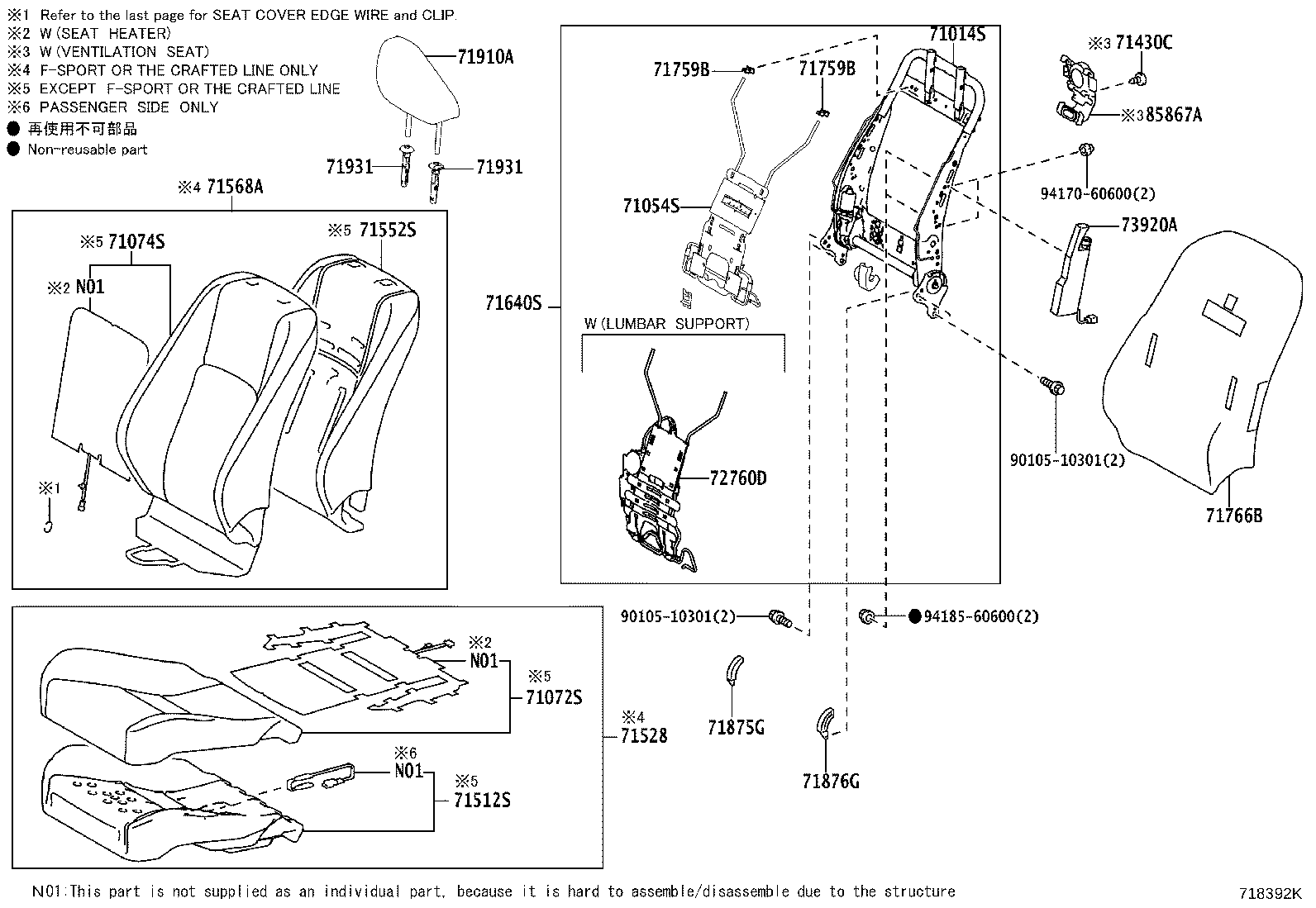

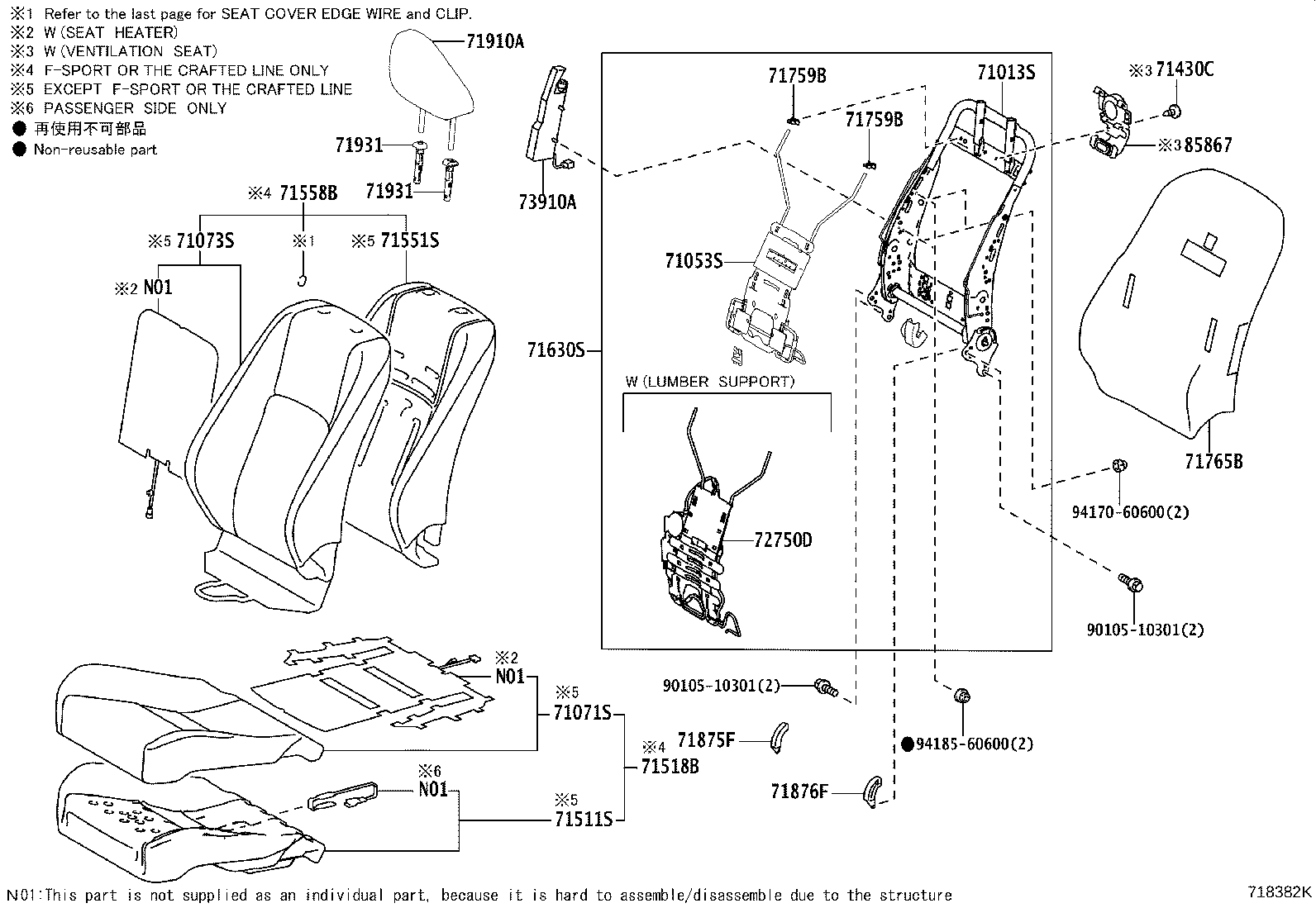

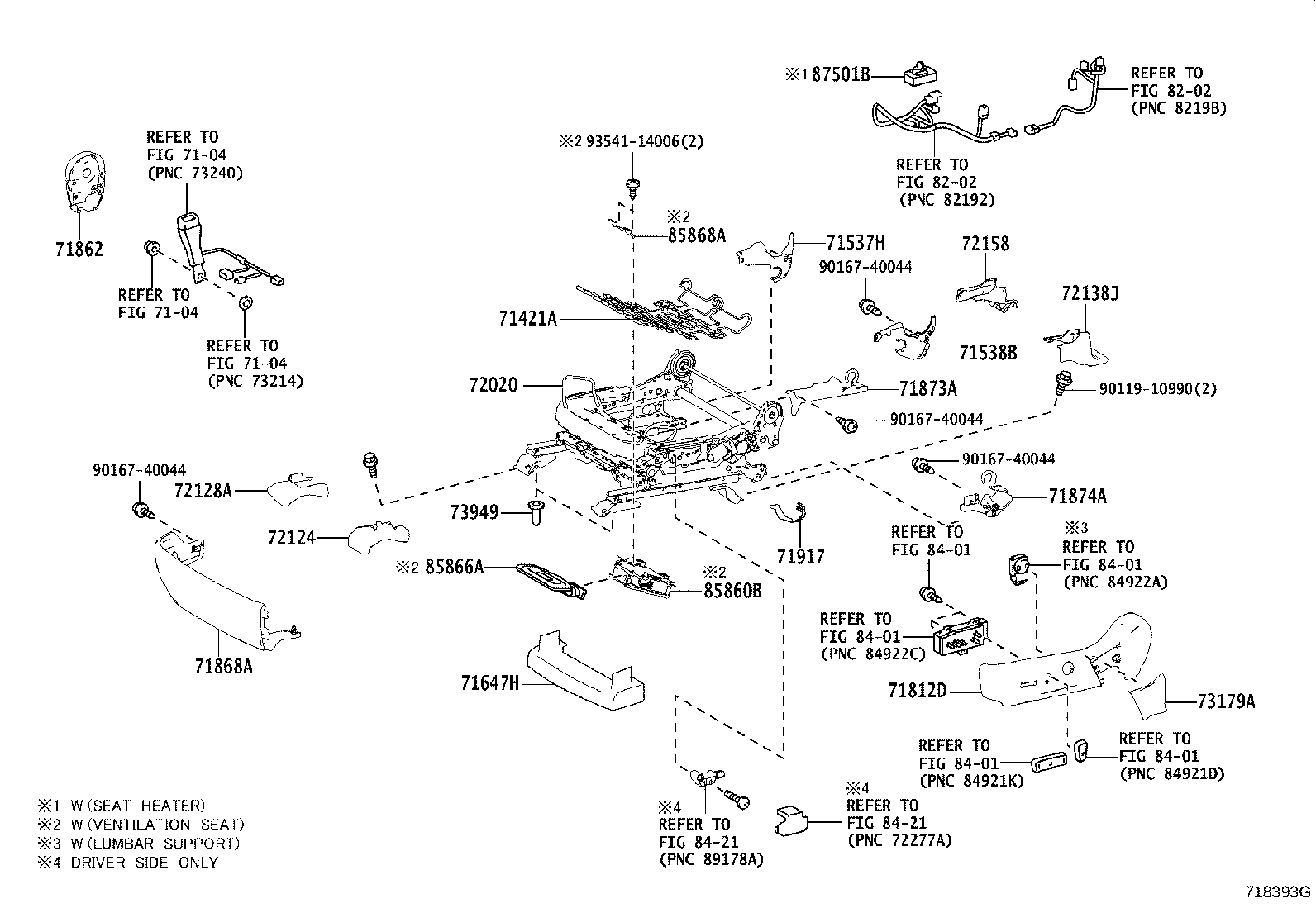

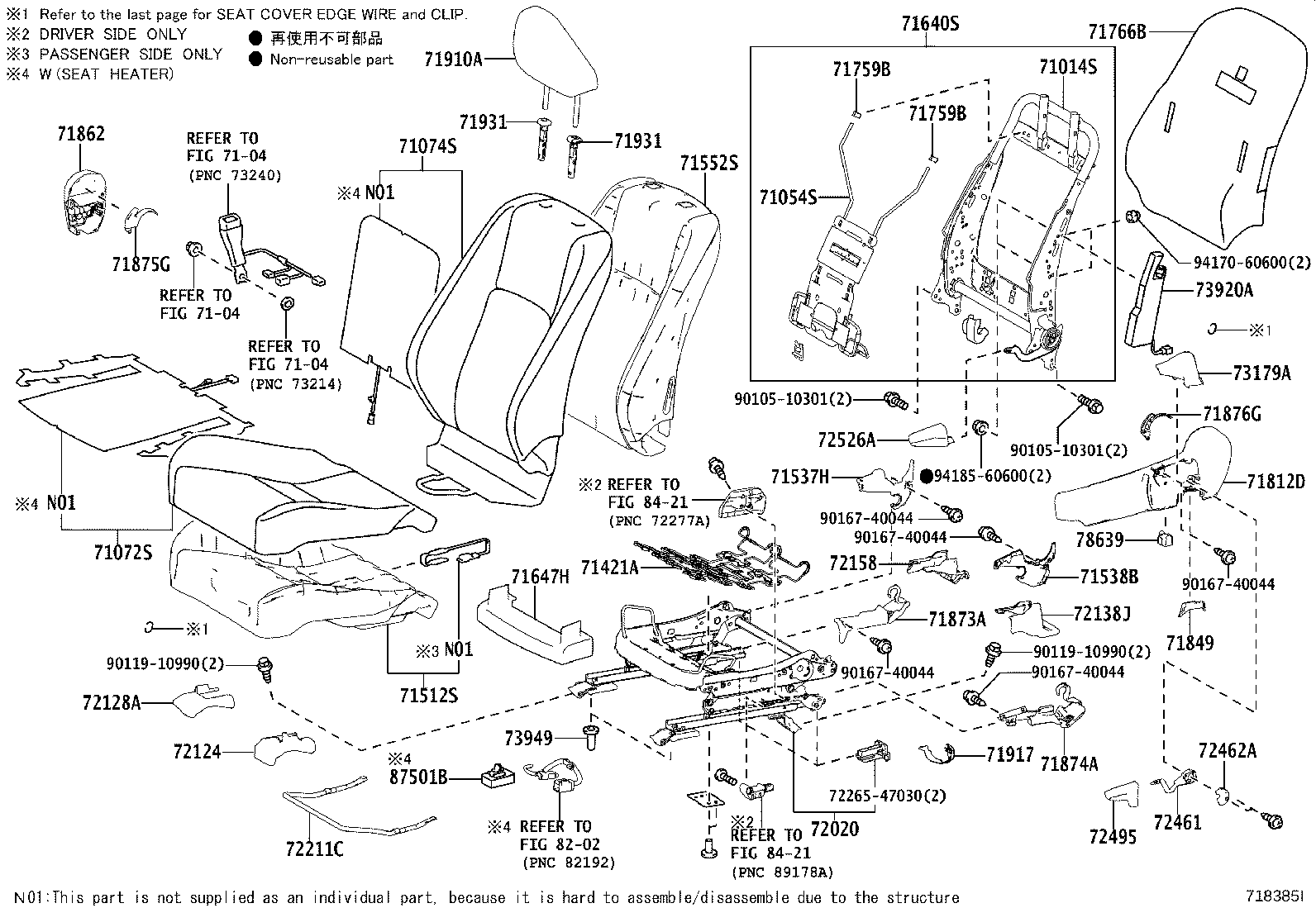

Front Seat & Seat Track
84 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 71013S | Frame Sub-assy, Front Seatback, RH |
| 71014S | Frame Sub-assy, Front Seatback, LH |
| 71053S | Spring Sub-assy, Front Seatback, RH |
| 71054S | Spring Sub-assy, Front Seatback, LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71421A | Spring, Front Seat Cushion |
| 71430C | Clip |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71518B | Pad, Front Seat Cushion W/Cover, RH |
| 71528 | Pad, Front Seat Cushion W/Cover, LH |
| 71537G | Protector, Front Seat Cushion Edge, RH(FOR RH SEAT) |
| 71537H | Protector, Front Seat Cushion Edge, RH(FOR LH SEAT) |
| 71538A | Protector, Front Seat Cushion Edge, LH(FOR RH SEAT) |
| 71538B | Protector, Front Seat Cushion Edge, LH(FOR LH SEAT) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71558B | Pad, Front Seatback W/Cover, RH |
| 71568A | Pad, Front Seatback W/Cover, LH |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71647H | Protector, Front Seat Cushion Edge |
| 71759B | Hook, Front Seatback |
| 71765B | Protector, Front Seatback, RH |
| 71766B | Protector, Front Seatback, LH |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71848A | Cap, Seat Adjuster Cover, RH |
| 71849 | Cap, Seat Adjuster Cover, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71867A | Shield, Front Seat Cushion, Inner NO.1 RH |
| 71868A | Shield, Front Seat Cushion, Inner NO.1 LH |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71873A | Shield, Front Seat Cushion, Lower |
| 71874 | Shield, Front Seat Cushion, Lower LH |
| 71874A | Shield, Front Seat Cushion, Lower LH |
| 71875F | Cover, Reclining Adjuster Inside, RH (FOR RH SEAT) |
| 71875G | Cover, Reclining Adjuster Inside, RH (FOR LH SEAT) |
| 71876F | Cover, Reclining Adjuster Inside, LH (FOR RH SEAT) |
| 71876G | Cover, Reclining Adjuster Inside, LH (FOR LH SEAT) |
| 71910A | Headrest Assy, Front Seat |
| 71916 | Cover, Seat Belt Hole, RH |
| 71917 | Cover, Seat Belt Hole, LH |
| 71931 | Support, Front Seat Headrest |
| 72010 | Adjuster Assy, Front Seat, RH |
| 72020 | Adjuster Assy, Front Seat, LH |
| 72123A | Cover, Seat Track Bracket, Outer Front RH |
| 72124 | Cover, Seat Track Bracket, Outer Front LH |
| 72127A | Cover, Seat Track Bracket, Inner Front RH |
| 72128A | Cover, Seat Track Bracket, Inner Front LH |
| 72137J | Cover, Front Seat Track, RH Rear Outer |
| 72138J | Cover, Front Seat Track, LH Rear Outer |
| 72157A | Cover, Seat Track Bracket, Inner RH |
| 72158 | Cover, Seat Track Bracket, Inner LH |
| 72211C | Handle, Seat Track Adjusting |
| 72461 | Arm, Vertical Seat Release |
| 72462 | Cover, Vertical Adjuster RH |
| 72462A | Cover, Vertical Adjuster LH |
| 72494 | Handle, Vertical Adjusting, RH |
| 72495 | Handle, Vertical Adjusting, LH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 72750D | Adjuster Assy, Lumbar Support, RH |
| 72760D | Adjuster Assy, Lumbar Support, LH |
| 73178H | Cap, Seat Belt Anchor Cover, RH |
| 73179A | Cap, Seat Belt Anchor Cover, LH |
| 73910A | Airbag Assy, Front Seat, RH |
| 73920A | Airbag Assy, Front Seat, LH |
| 73949 | Cap |
| 78639 | Clip, Front Seat Side Table |
| 85860A | Blower Assy, Seat Cushion Climate Control, RH |
| 85860B | Blower Assy, Seat Cushion Climate Control, LH |
| 85866 | Duct, Seat Cushion Climate Control, RH |
| 85866A | Duct, Seat Cushion Climate Control, LH |
| 85867 | Blower, Seatback Climate Control, RH |
| 85867A | Blower, Seatback Climate Control, LH |
| 85868 | Bracket, Seat Cushion Climate Control, RH |
| 85868A | Bracket, Seat Cushion Climate Control, LH |
| 87501A | Control Sub-assy, Seat Heater, RH |
| 87501B | Control Sub-assy, Seat Heater, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
