Toyota Lexus IS2###/3###

2013-04 → present · chassis ASE30,AVE30,GSE30 · catalogue 242530 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

15 part groups · 2 illustrations

Illustrations

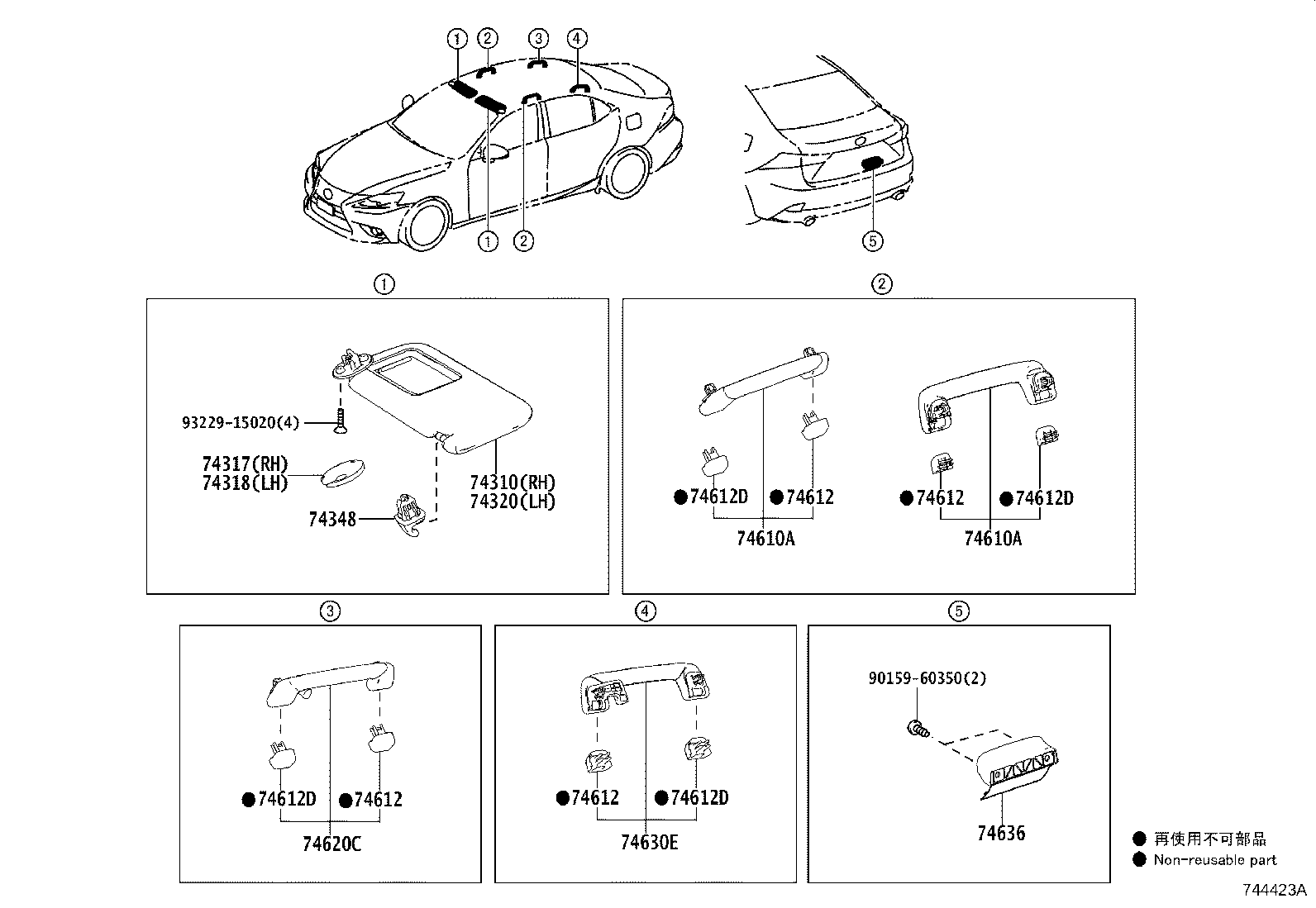

Figure 743653E 743653E 2013-04 → — Figure 744423A 744423A 2013-04 → —

Part groups

PNCDescription
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74310 Visor Assy, RH
74317 Cover, Visor Bracket, RH
74318 Cover, Visor Bracket, LH
74320 Visor Assy, LH
74348 Holder, Visor
74610A Grip Sub-assy, Assist
74612 Cover, Assist Grip
74612D Cover, Assist Grip
74620C Grip Assy, Assist, Rear RH
74630E Grip Assy, Assist, Rear LH
74636 Grip, Back Door Assist
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
