Toyota Lexus IS2###/3###
2013-04 → present · chassis ASE30,AVE30,GSE30 · catalogue 242530 · Europe
Supported model
Data version 2018-09

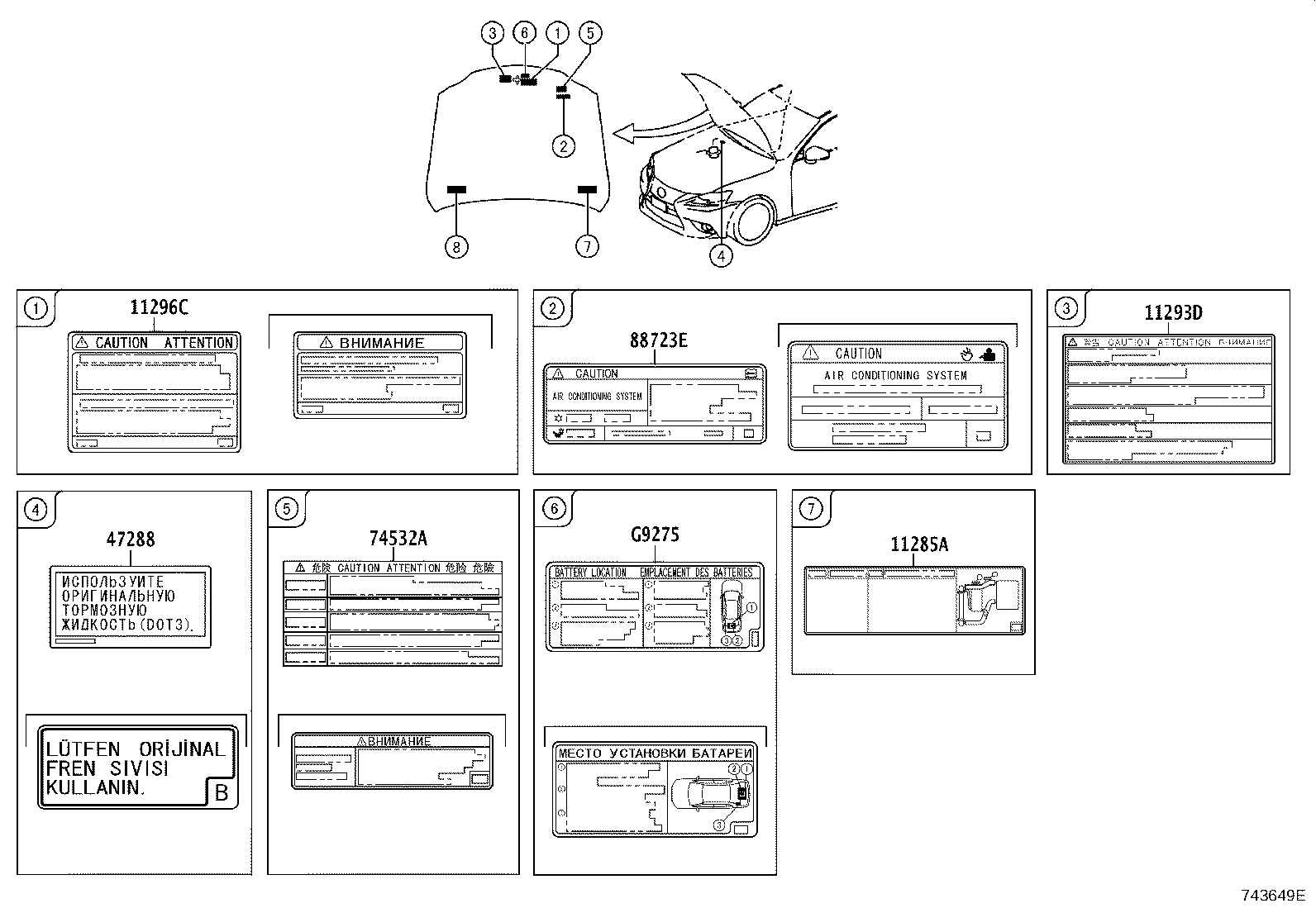

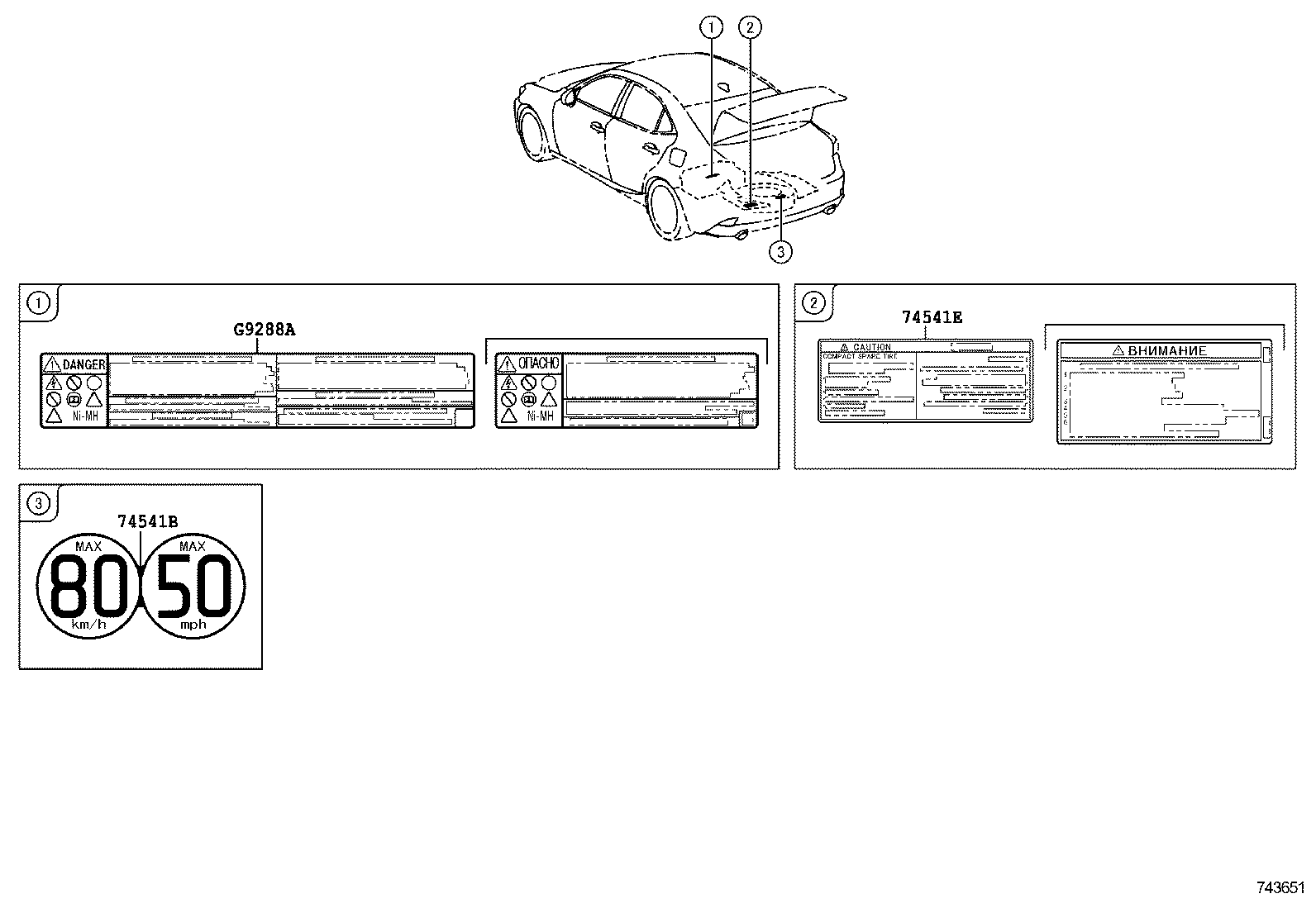

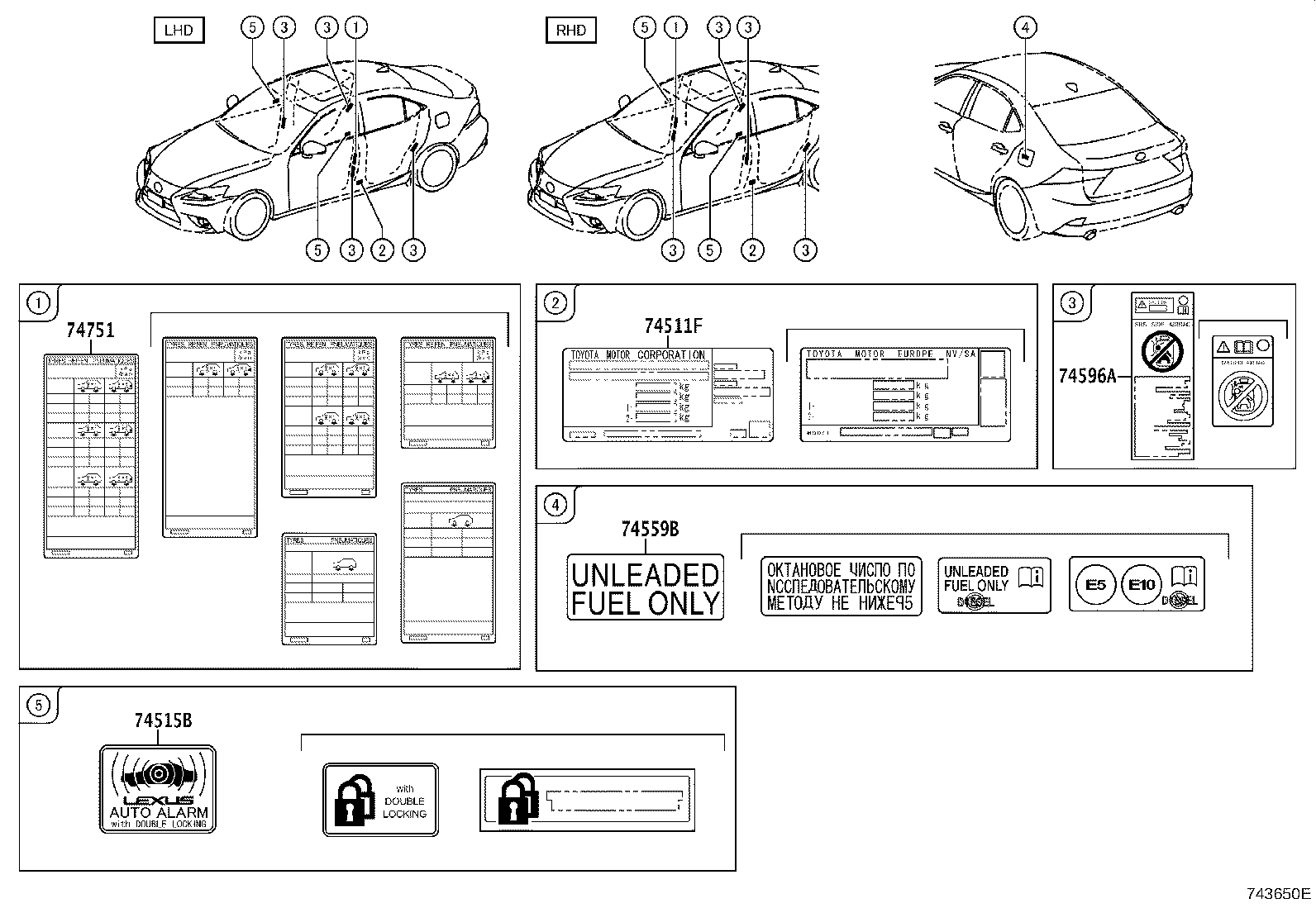

Caution Plate (EXTERIOR & INTERIOR)
20 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11286B | Plate, Engine Specification |
| 11293D | Label, Engine Caution |
| 11295B | Label, Engine Service Notice, NO.1 |
| 11295C | Label, Engine Service Notice, NO.2 |
| 11296C | Label, Engine Service Information |
| 16793E | Label, Cooling Fan Caution |
| 47288 | Label, Brake Fluid Notice |
| 74501B | Label Set, Caution |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74515B | Plate, Theft Warning |
| 74532A | Plate, Caution |
| 74541B | Plate, Compact Spare Tire Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74559B | Label, Fuel Information |
| 74596A | Label, Side Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 88723E | Label, Cooler Service Caution |
| G9275 | Label, Battery Caution, NO.1 |
| G9288A | Label, Battery Carging Notice |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
