Toyota Lexus IS2###/3###

2013-04 → present · chassis ASE30,AVE30,GSE30 · catalogue 242530 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

12 part groups · 3 illustrations

Illustrations

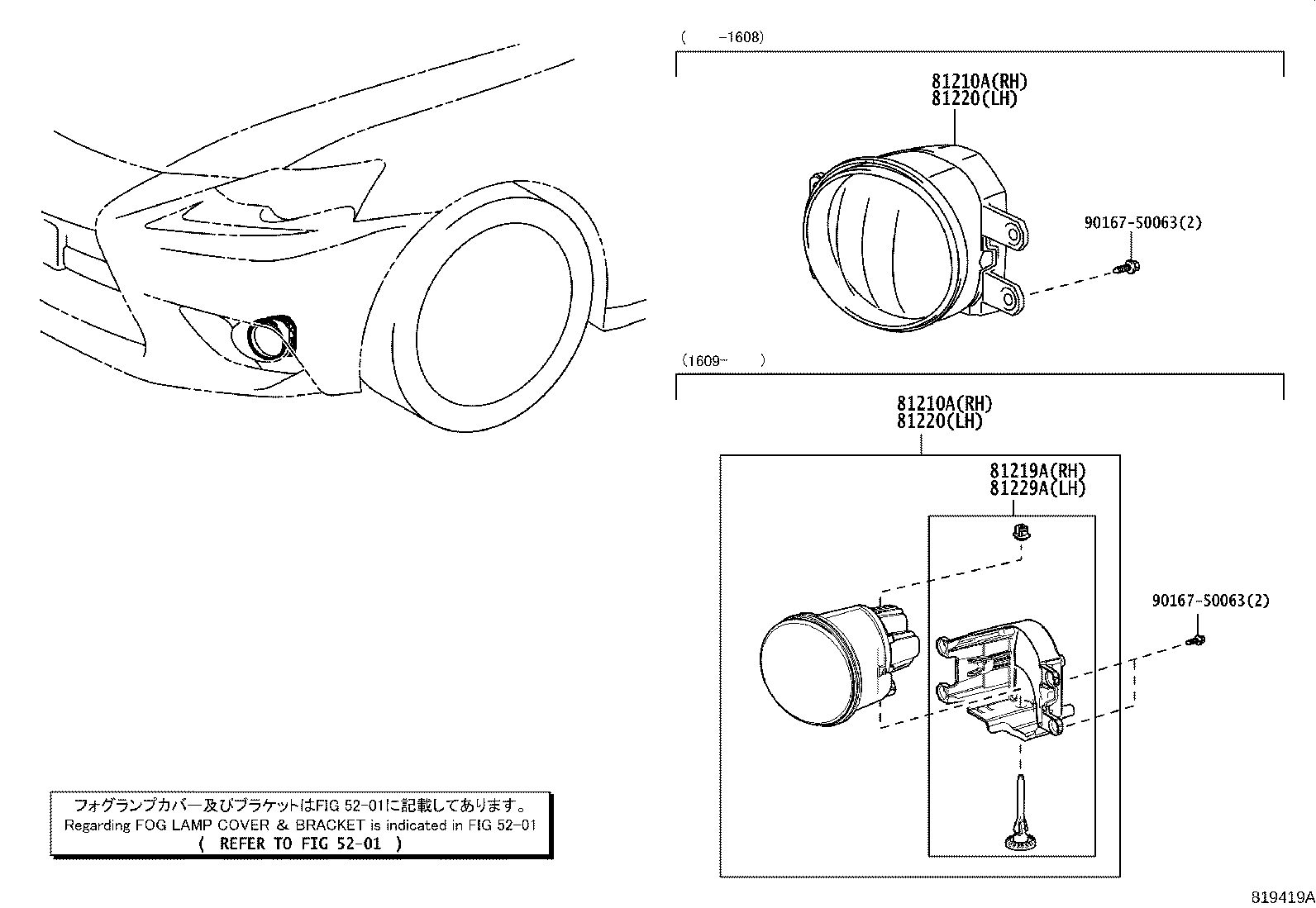

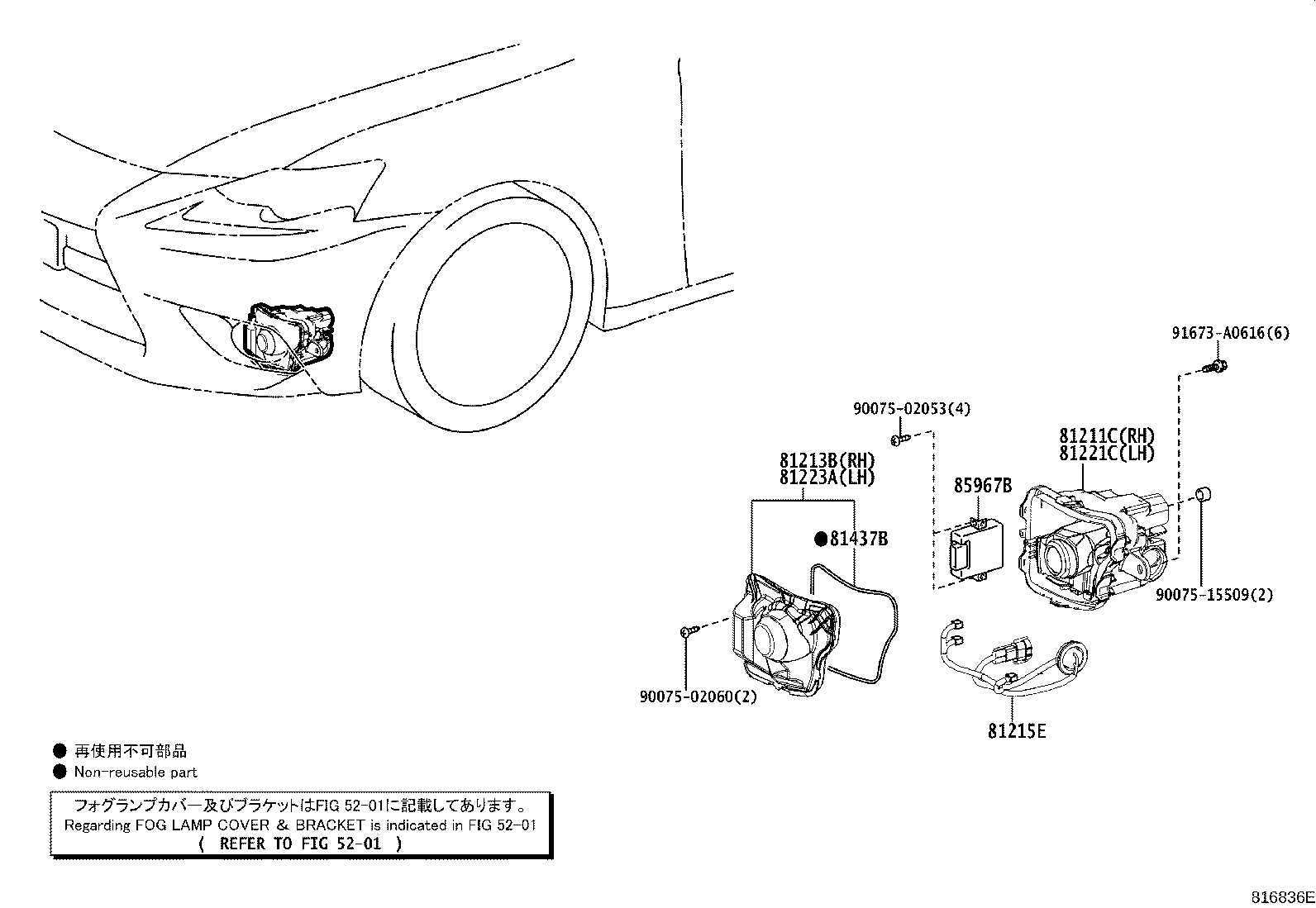

Figure 816563D 816563D 2013-04 → 2014-07 Figure 816836E 816836E 2014-07 → — Figure 819419A 819419A 2014-07 → —

Part groups

PNCDescription
81210A Lamp Assy, Fog, RH
81210B Bulb, Fog Lamp
81211C Lamp Unit, Fog Lamp, RH
81213B Lens, Fog Lamp, RH
81215E Cord, Fog Lamp
81219A Bracket, Fog Lamp, RH
81220 Lamp Assy, Fog, LH
81221C Lamp Unit, Fog Lamp, LH
81223A Lens, Fog Lamp, LH
81229A Bracket, Fog Lamp, LH
81437B Gasket, Fog Lamp
85967B Computer, Light Control Led
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
