Toyota Lexus IS2###/3###

2013-04 → present · chassis ASE30,AVE30,GSE30 · catalogue 242530 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

86 part groups · 27 illustrations

Illustrations

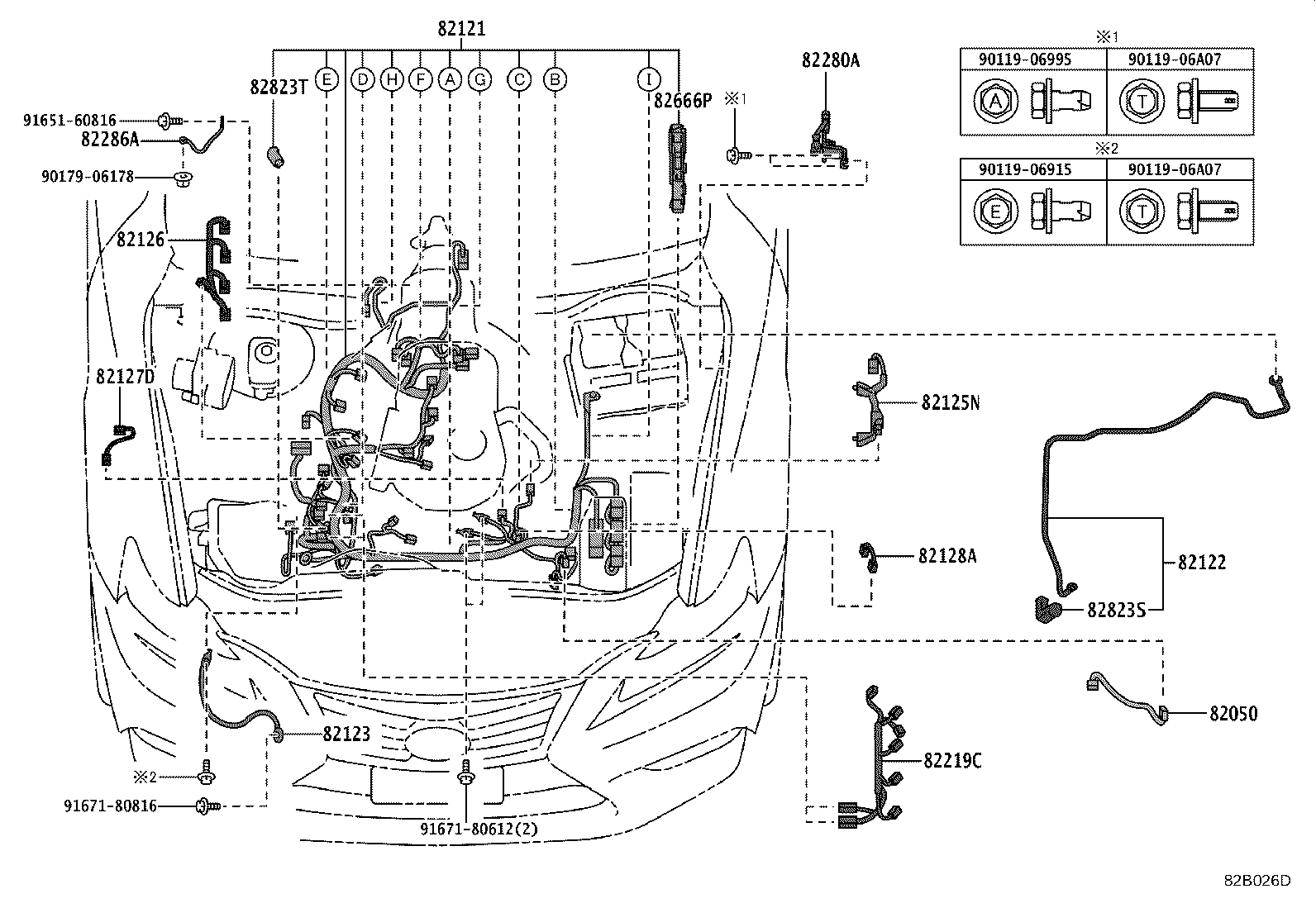

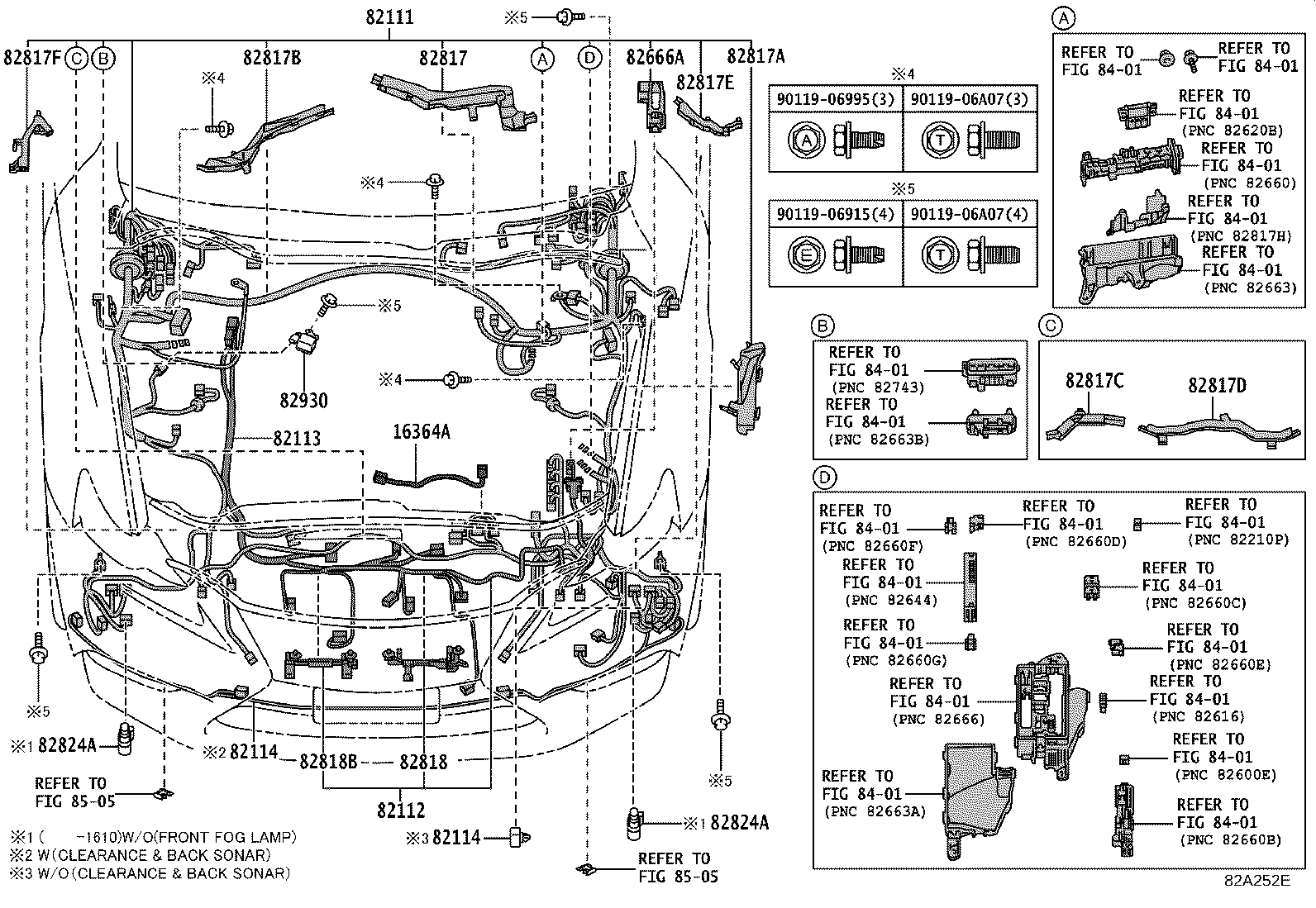

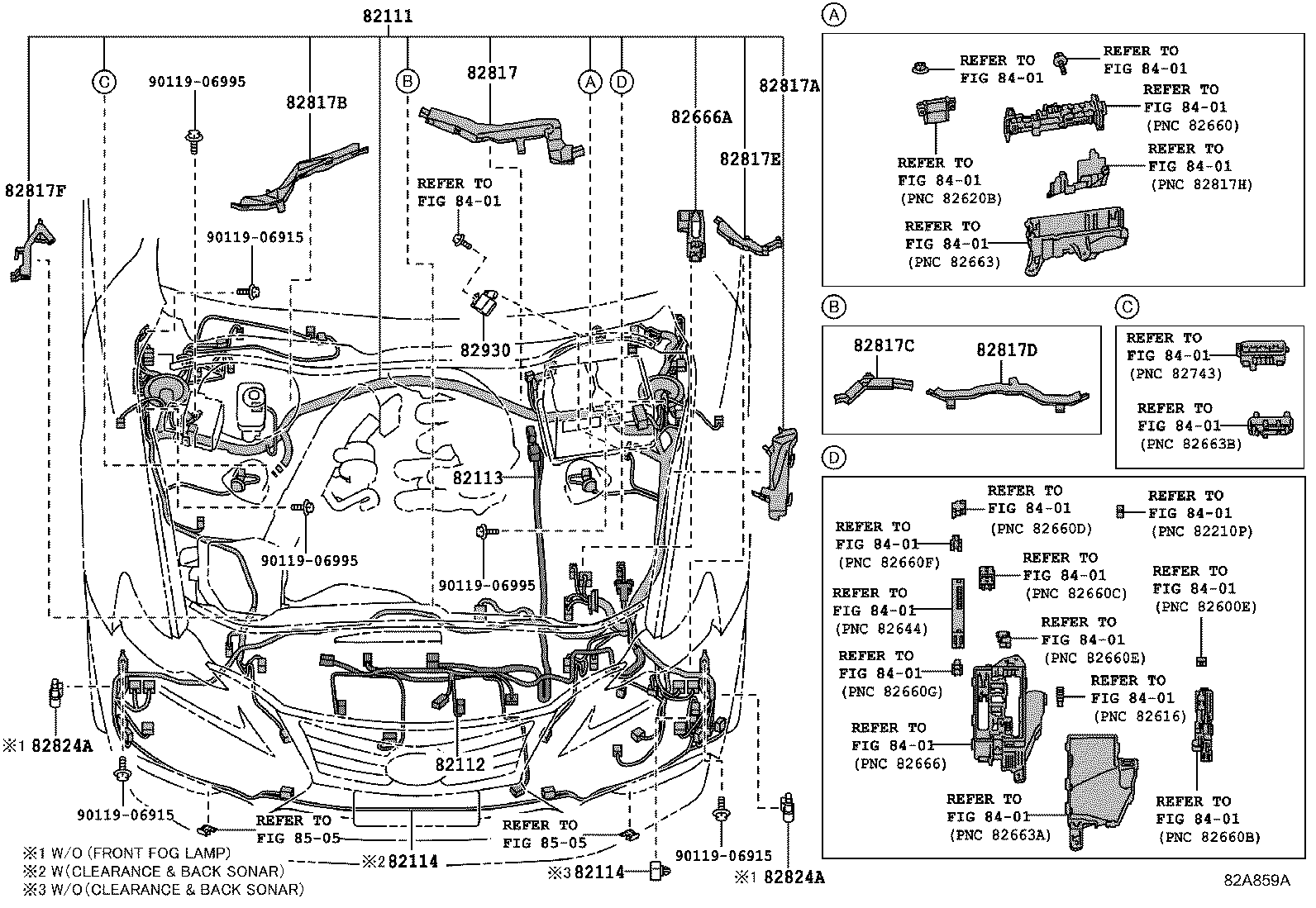

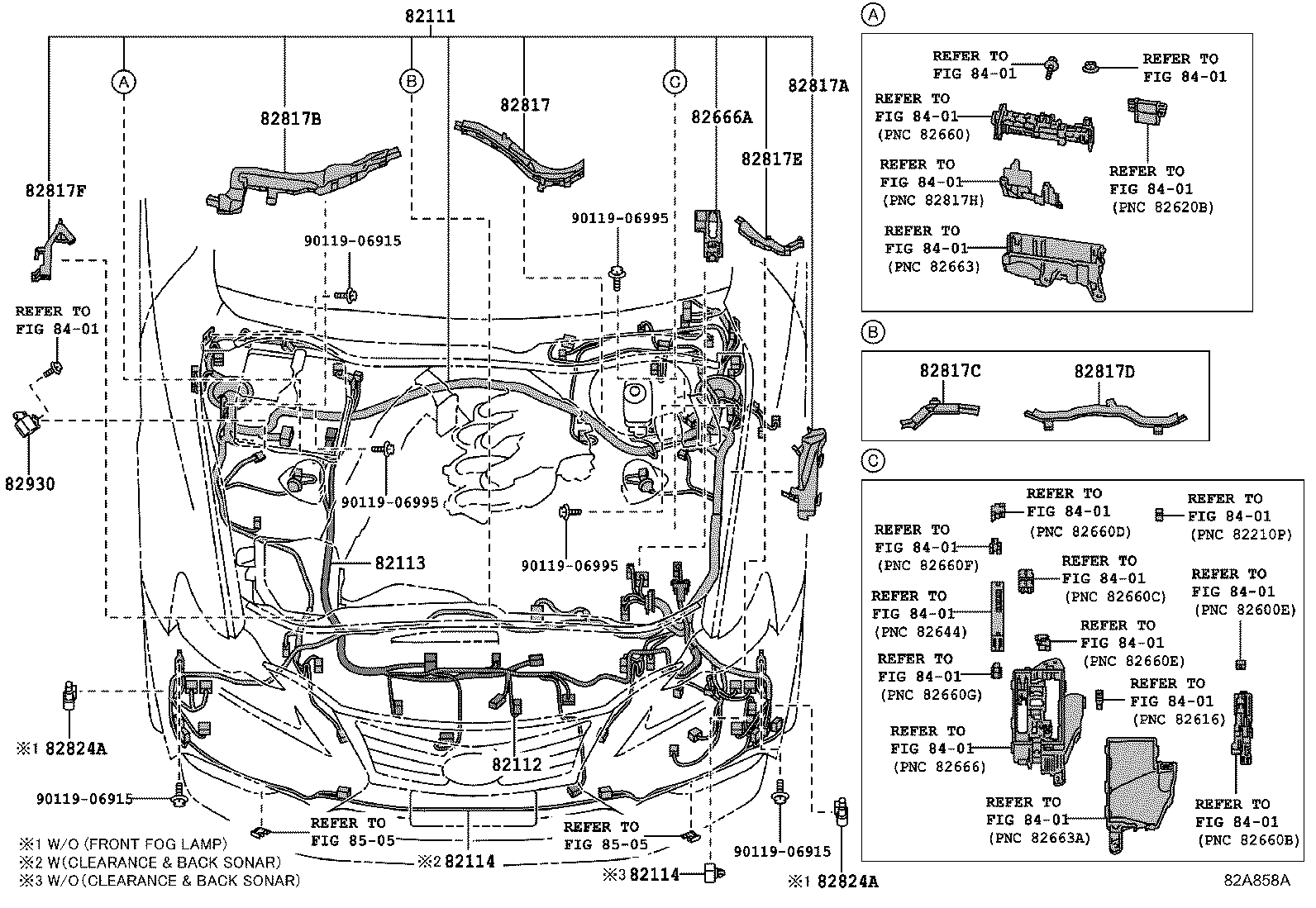

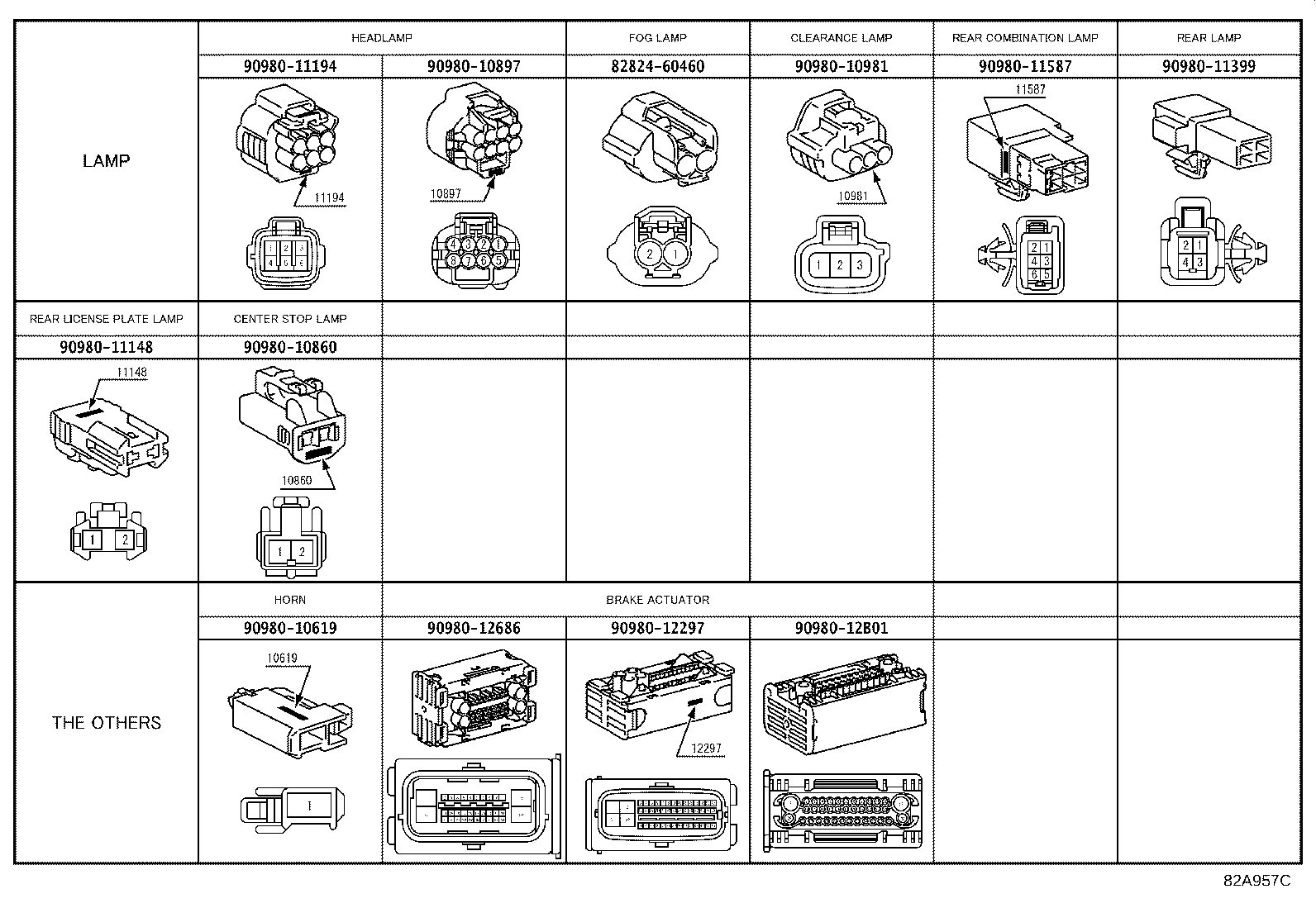

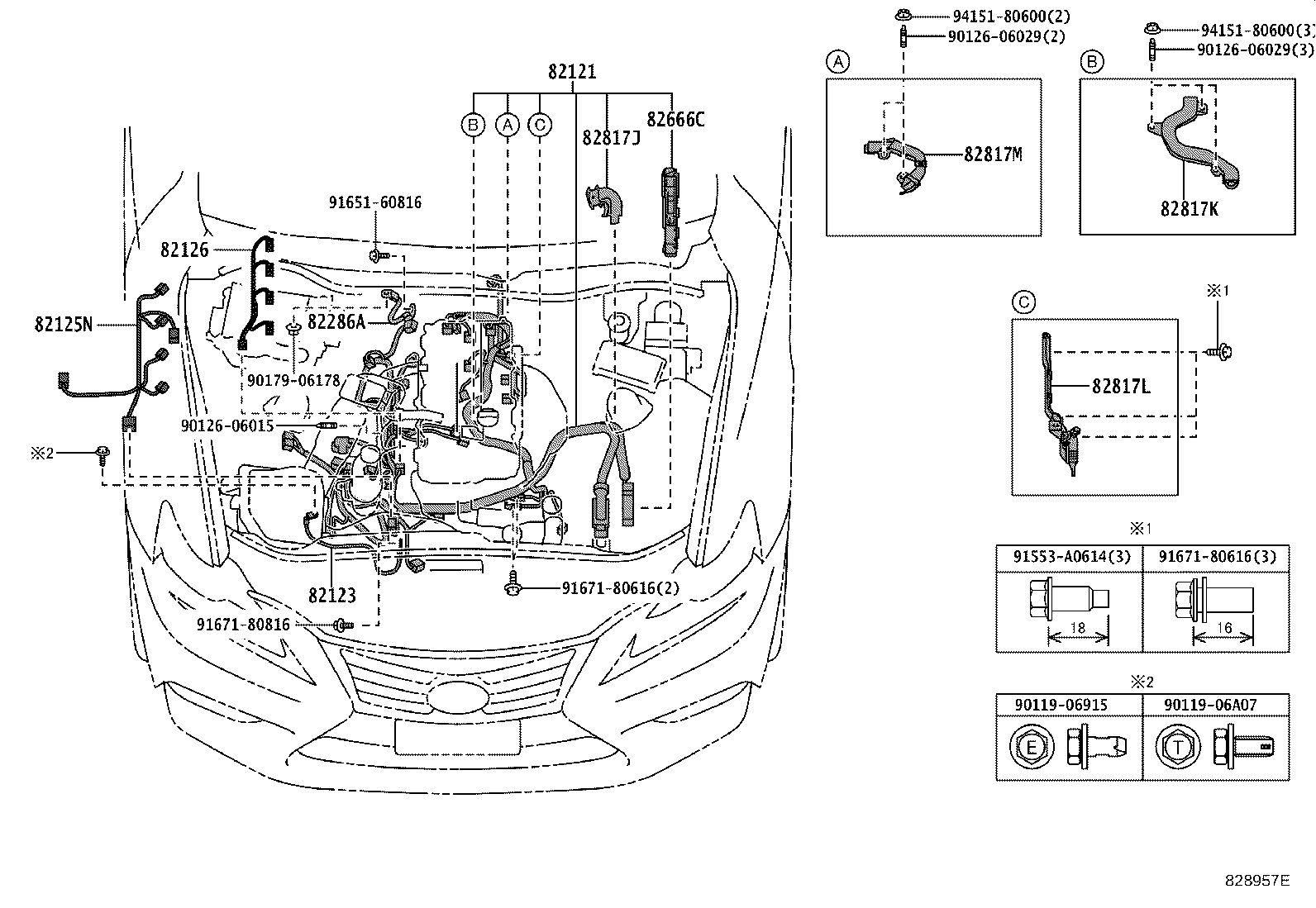

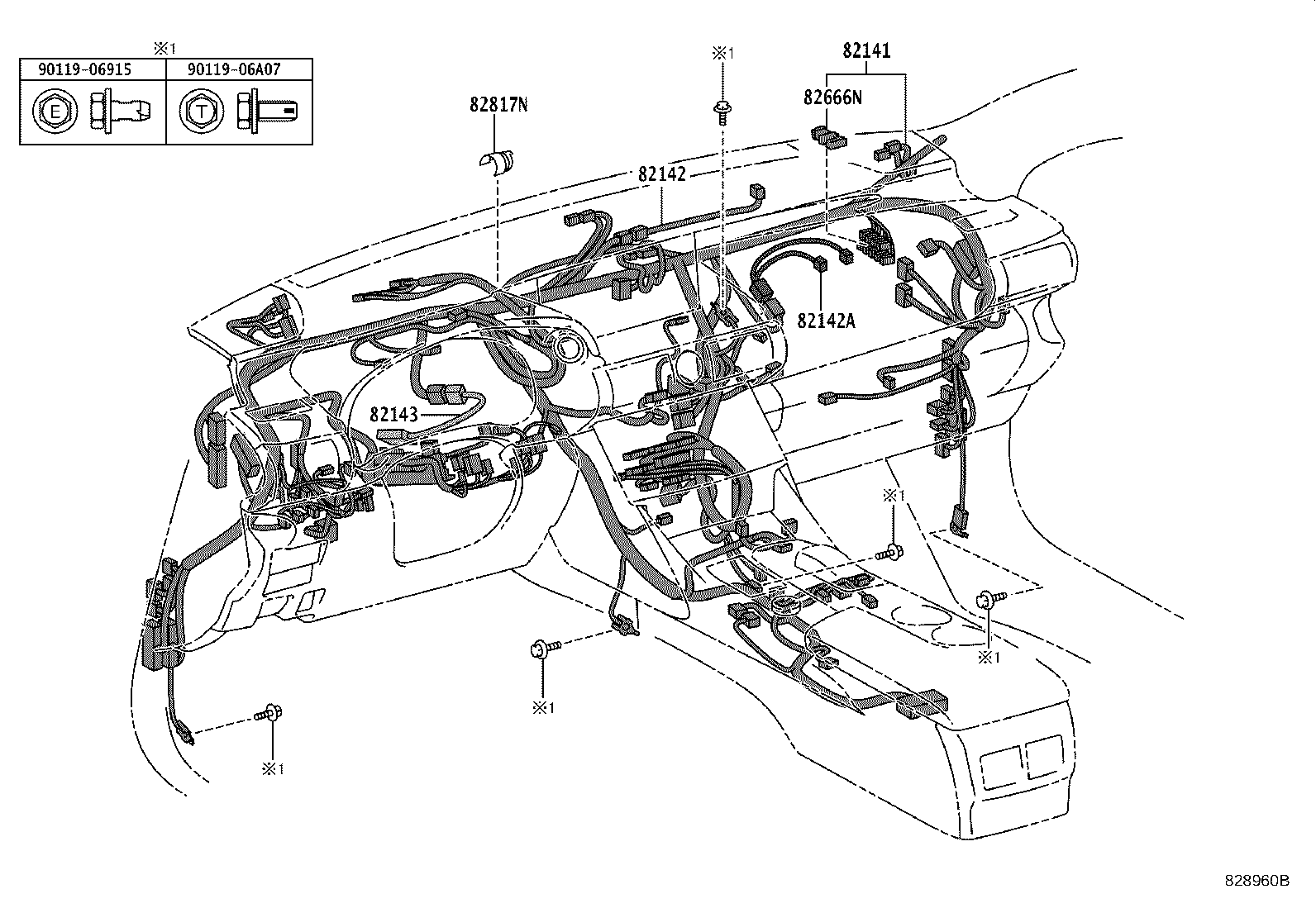

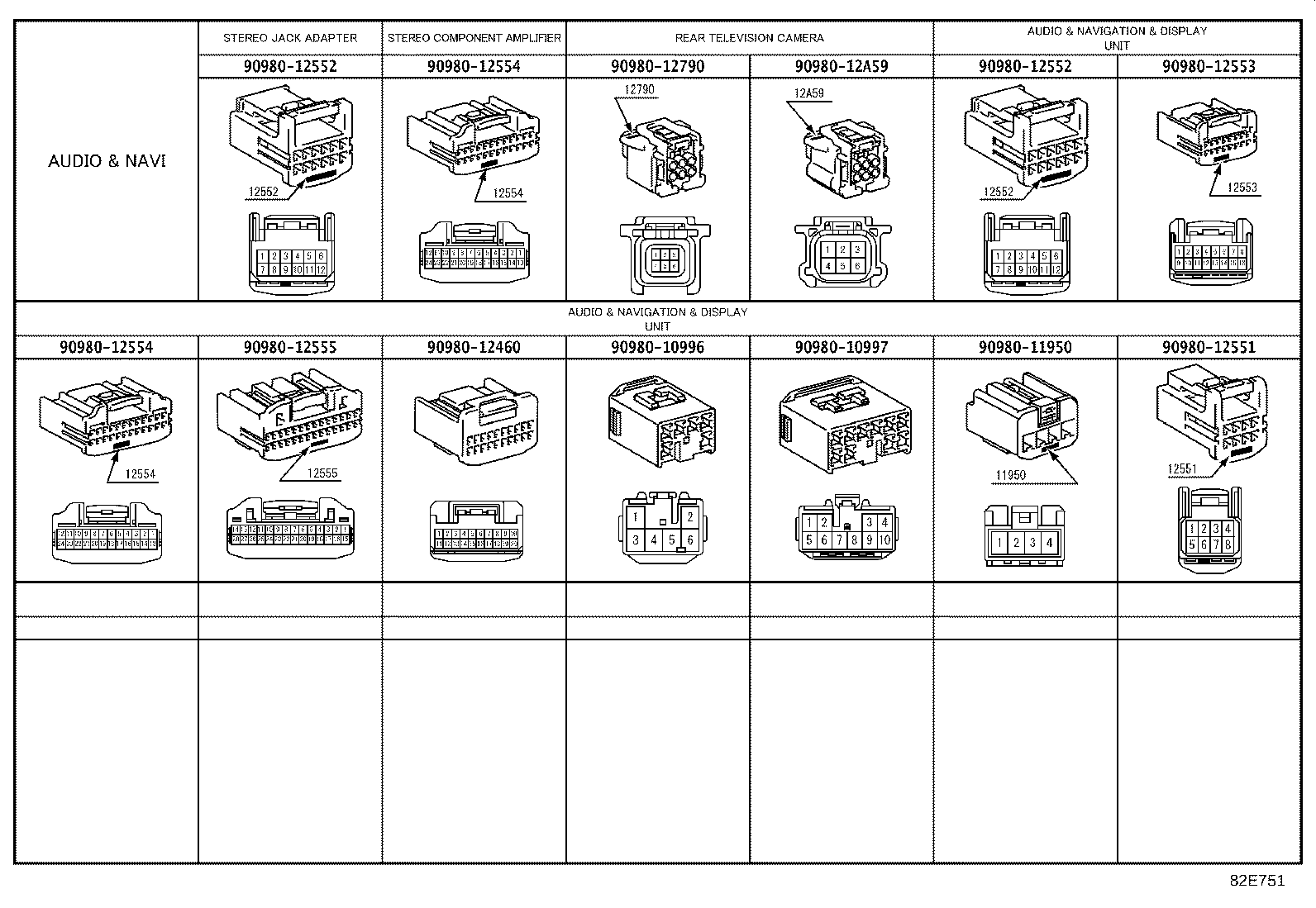

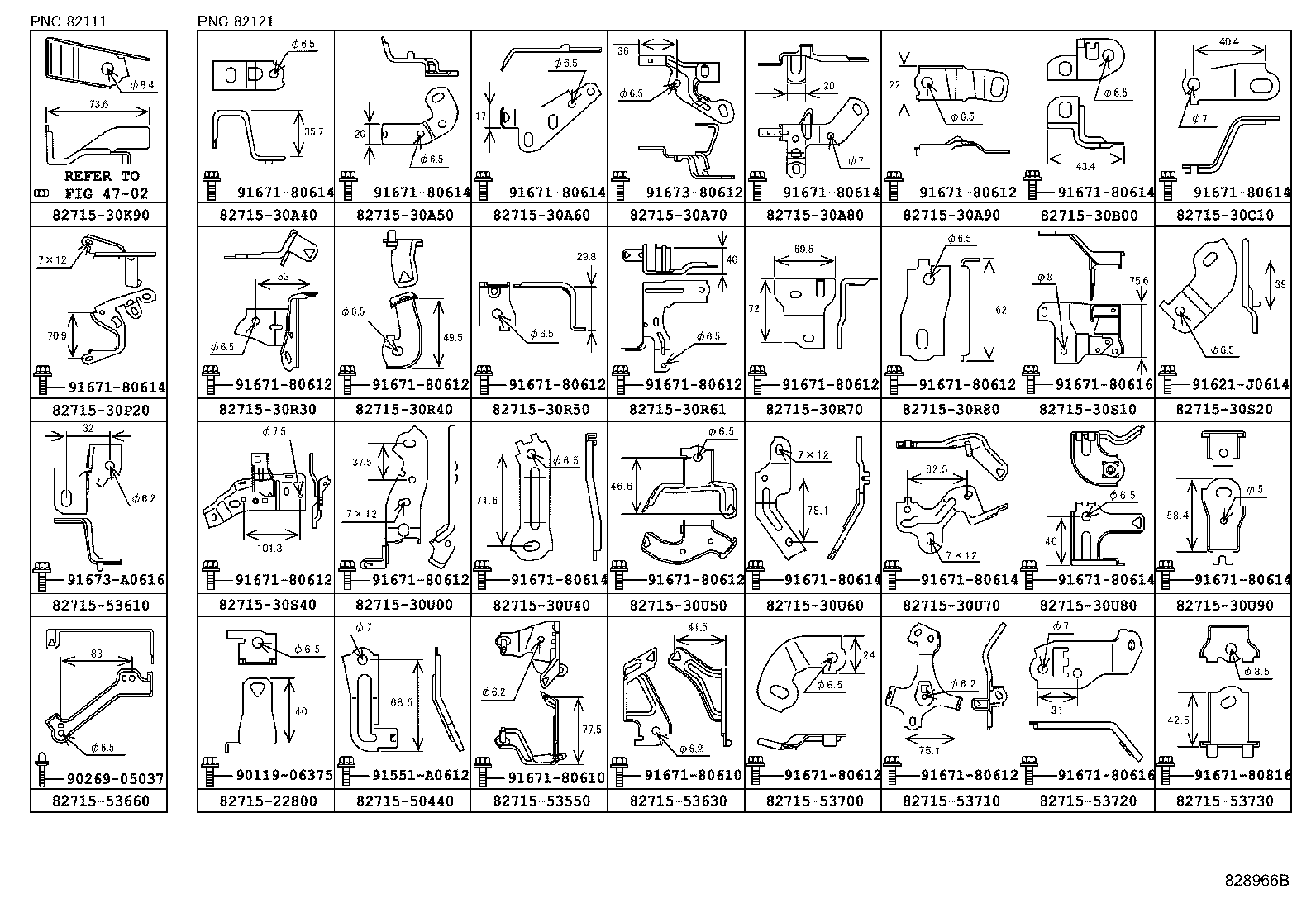

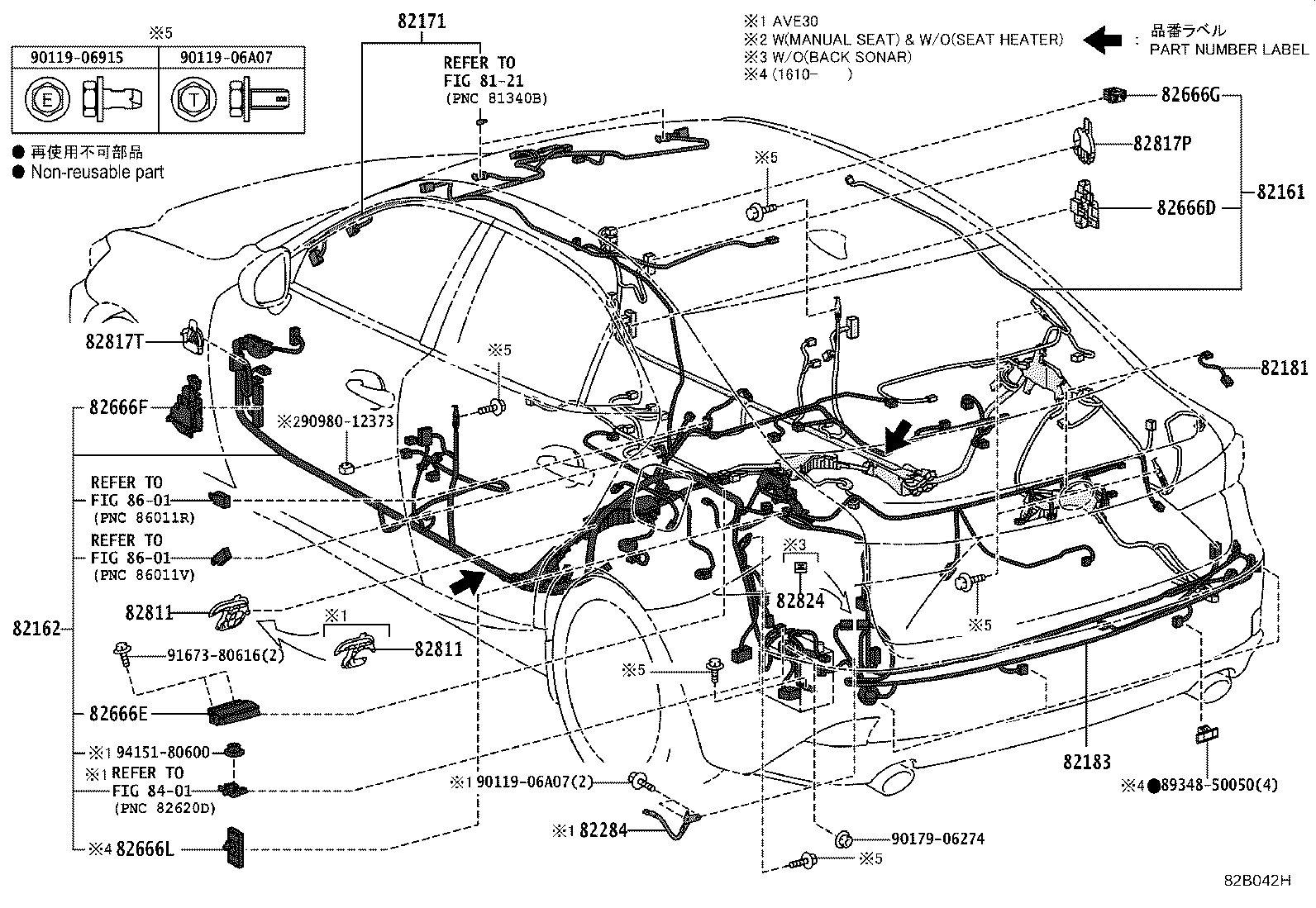

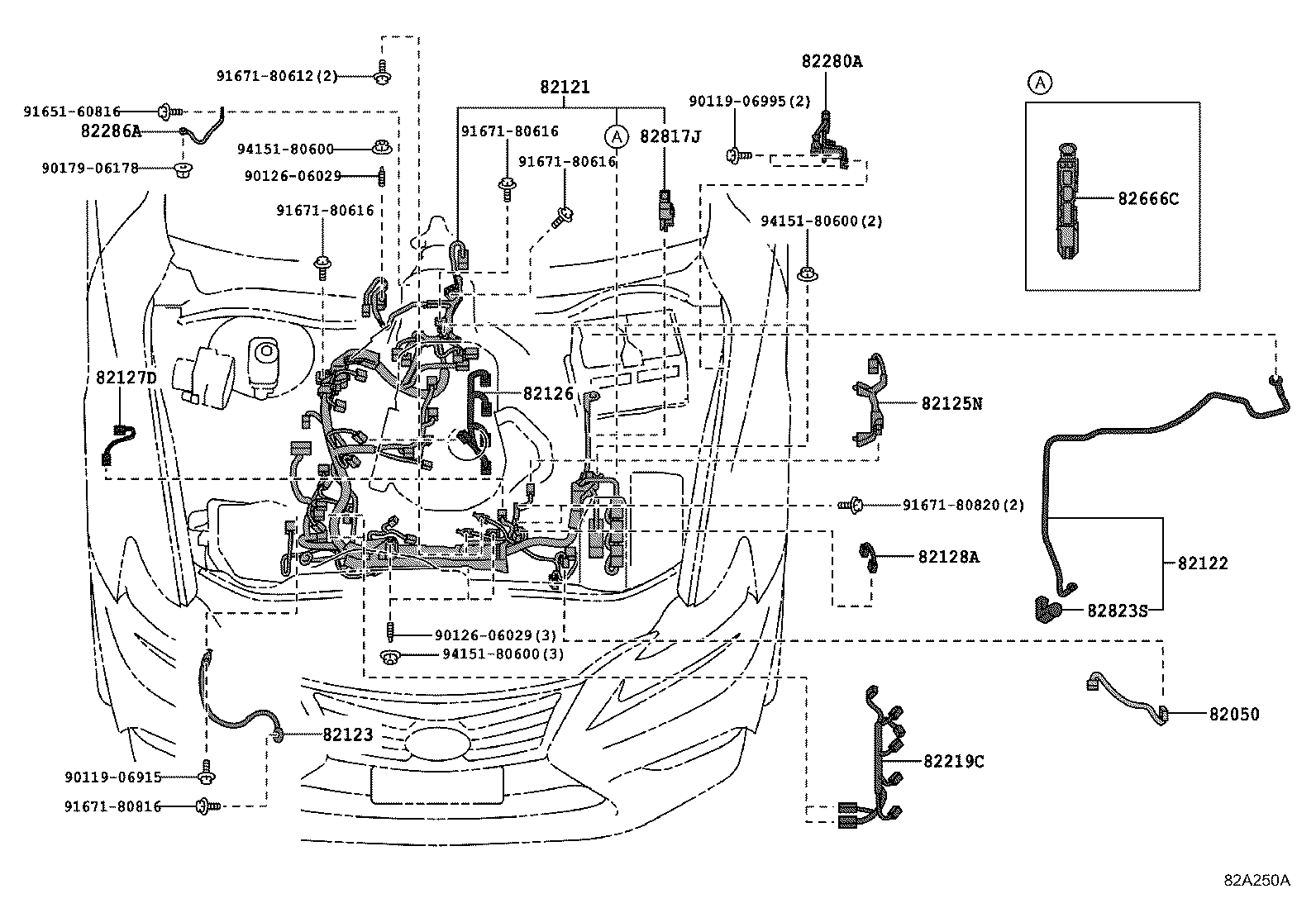

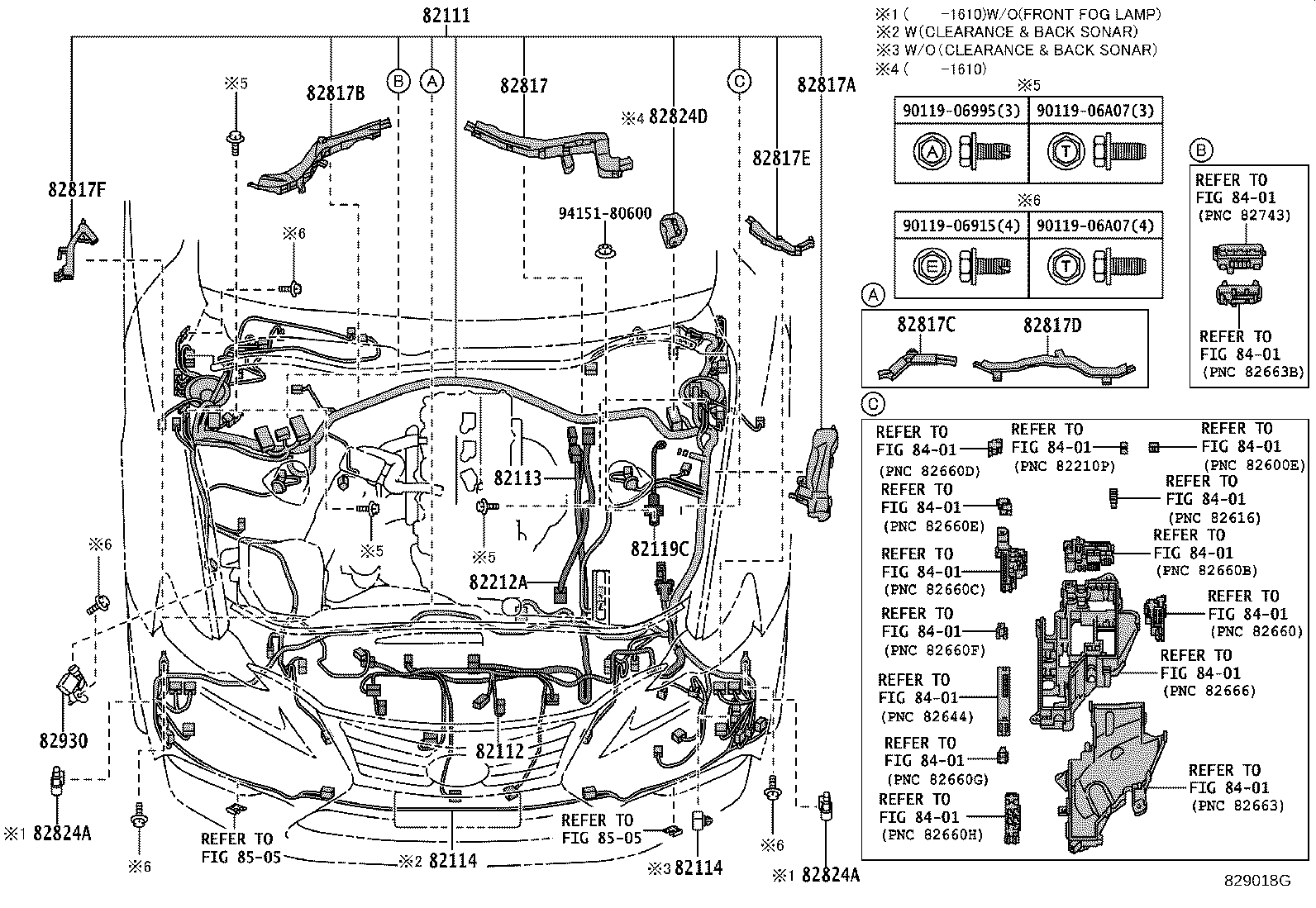

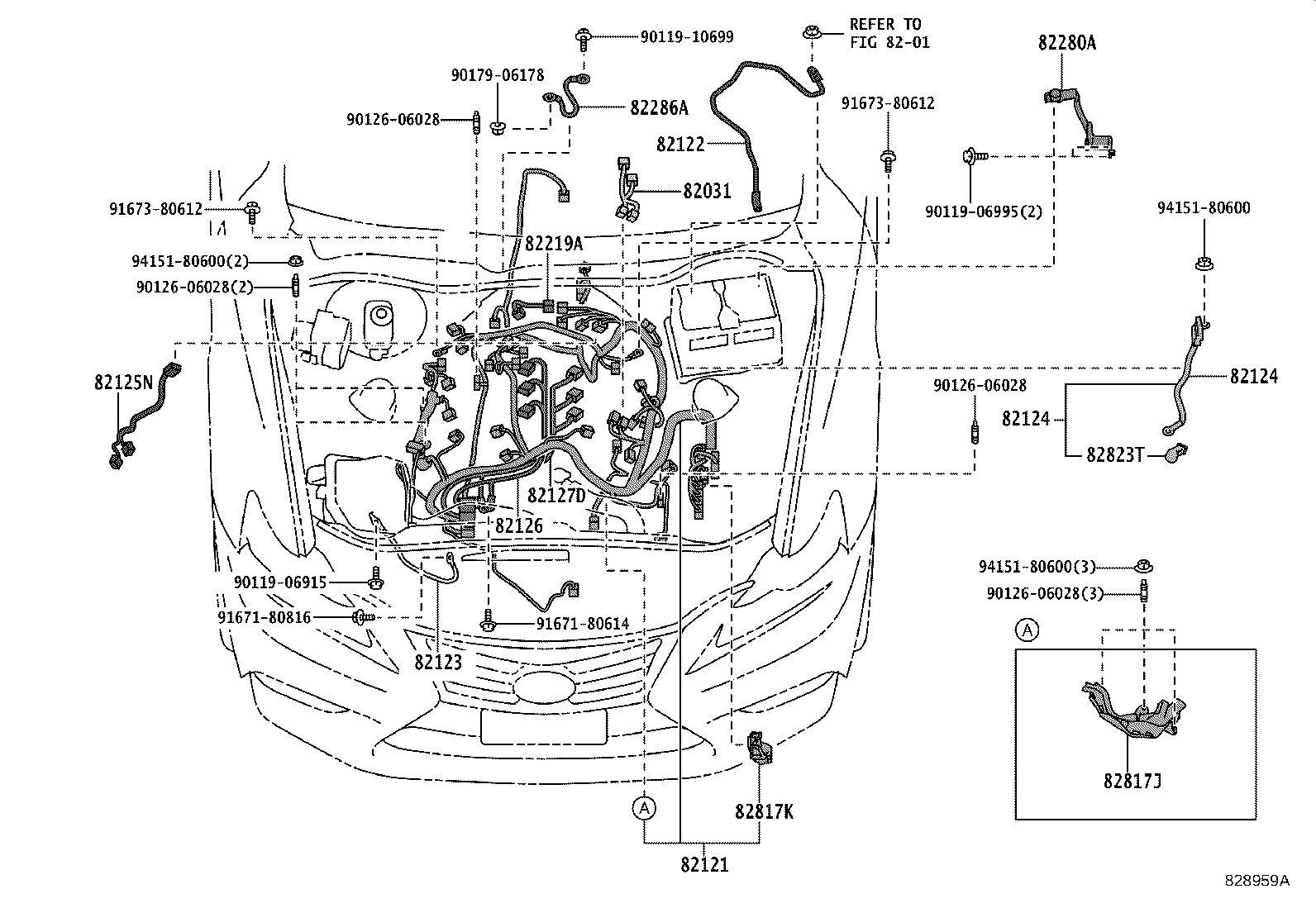

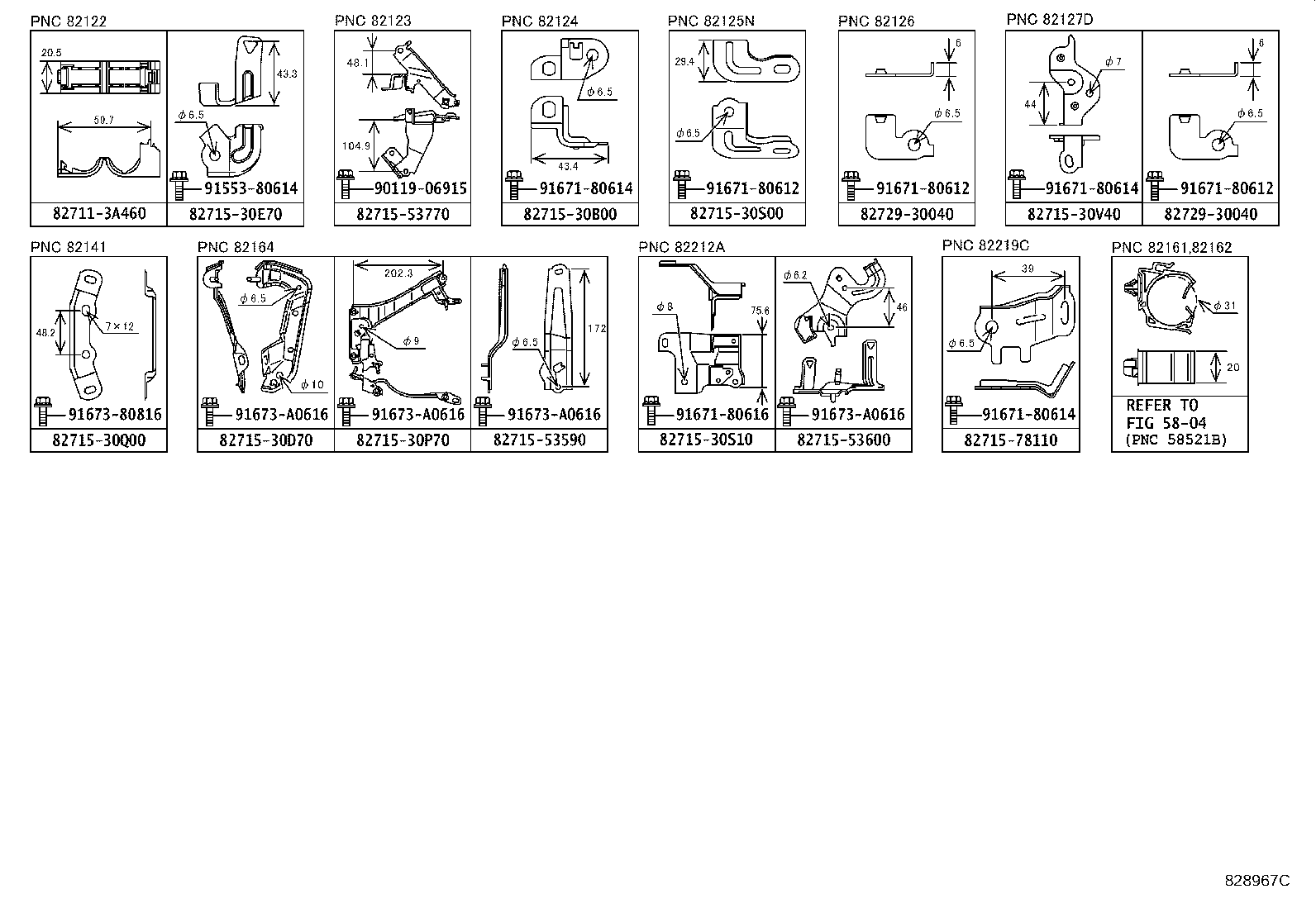

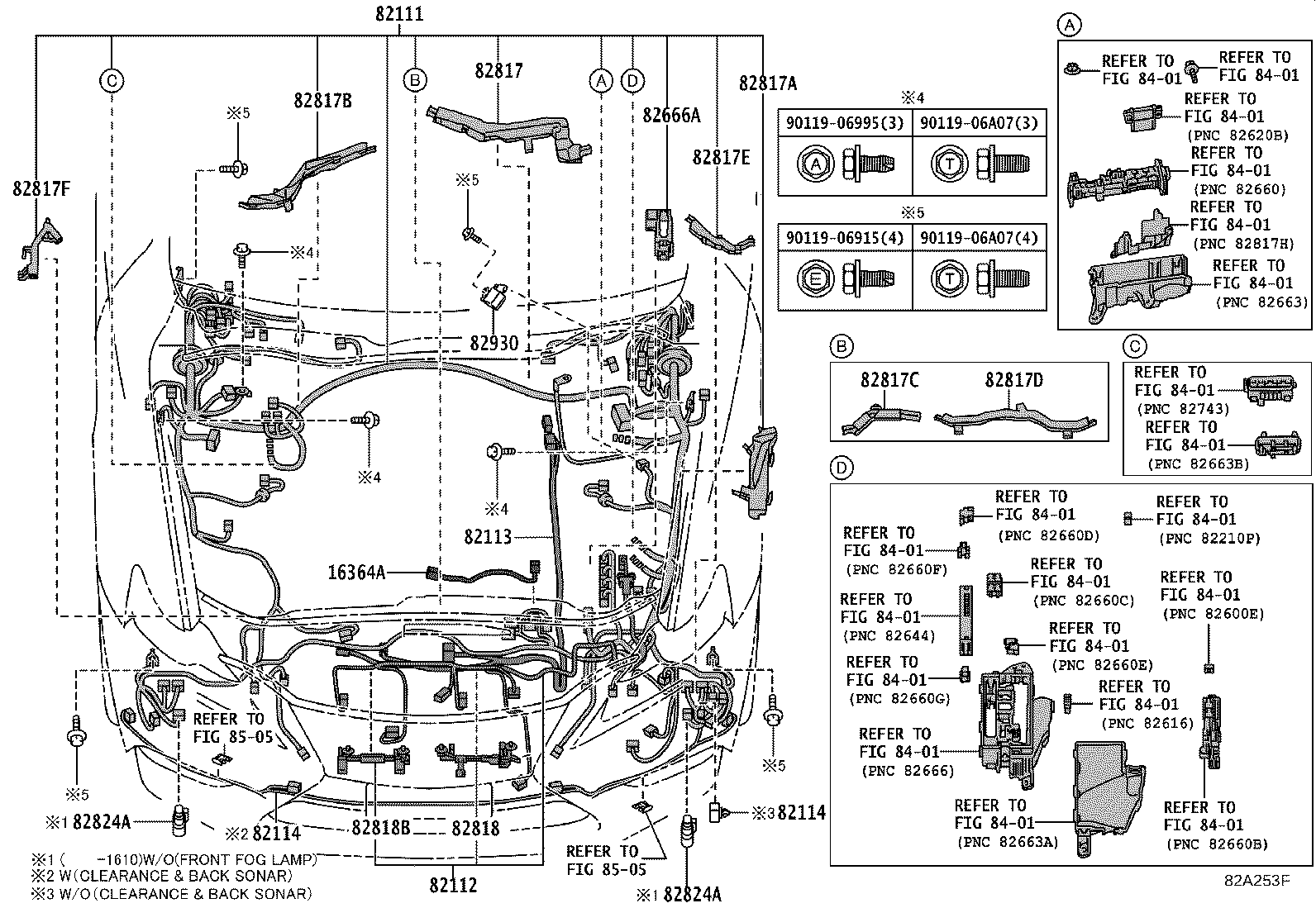

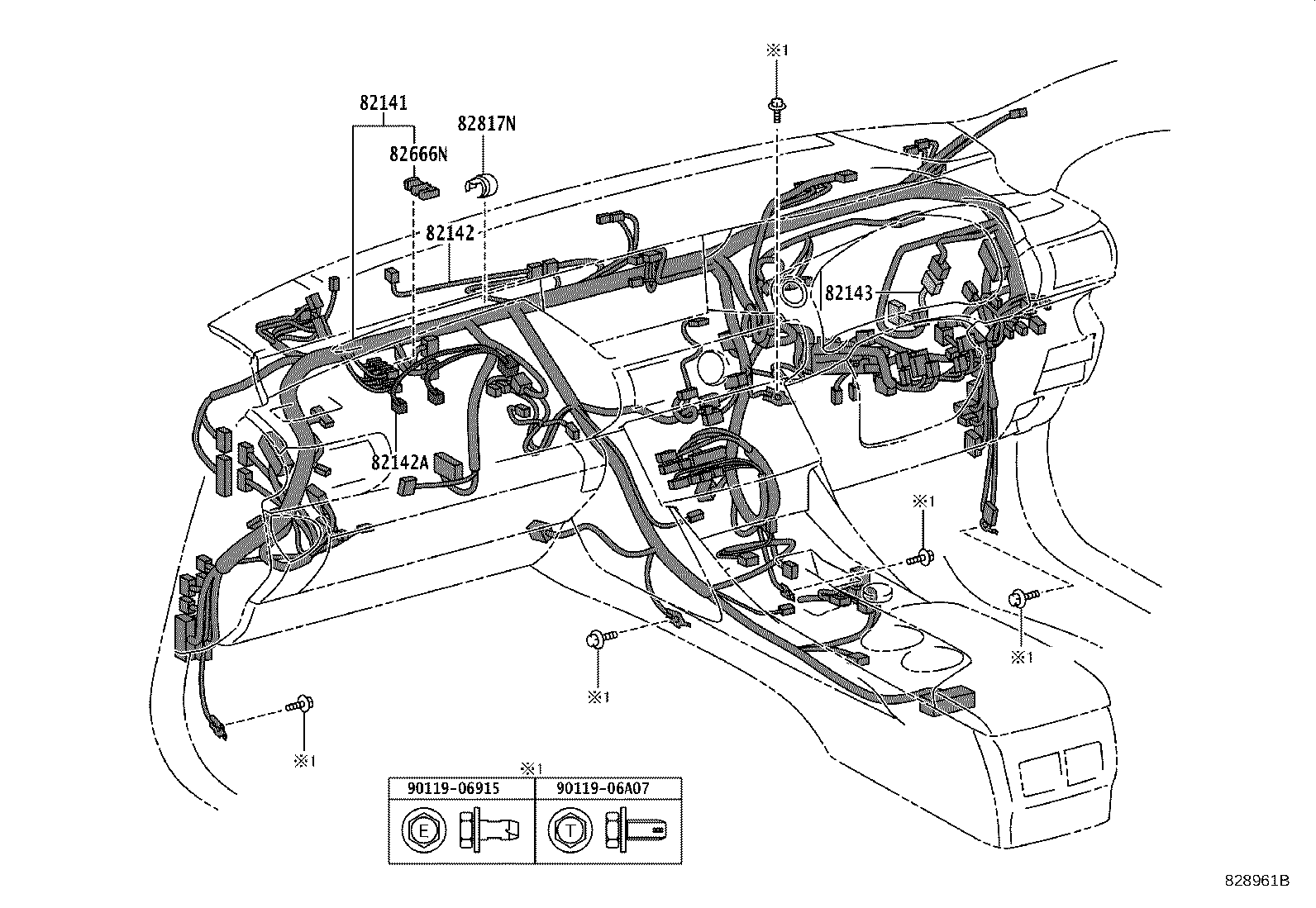

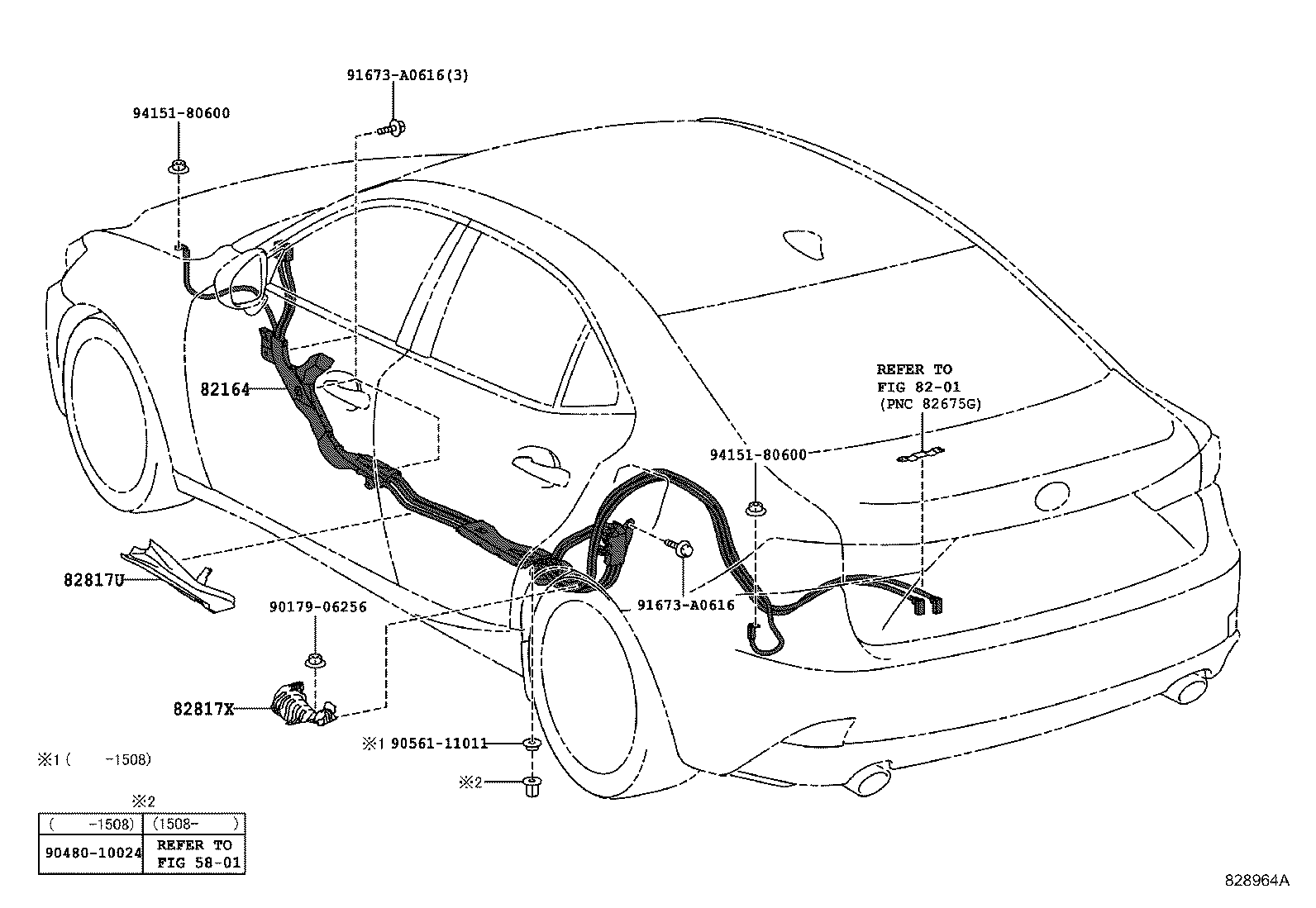

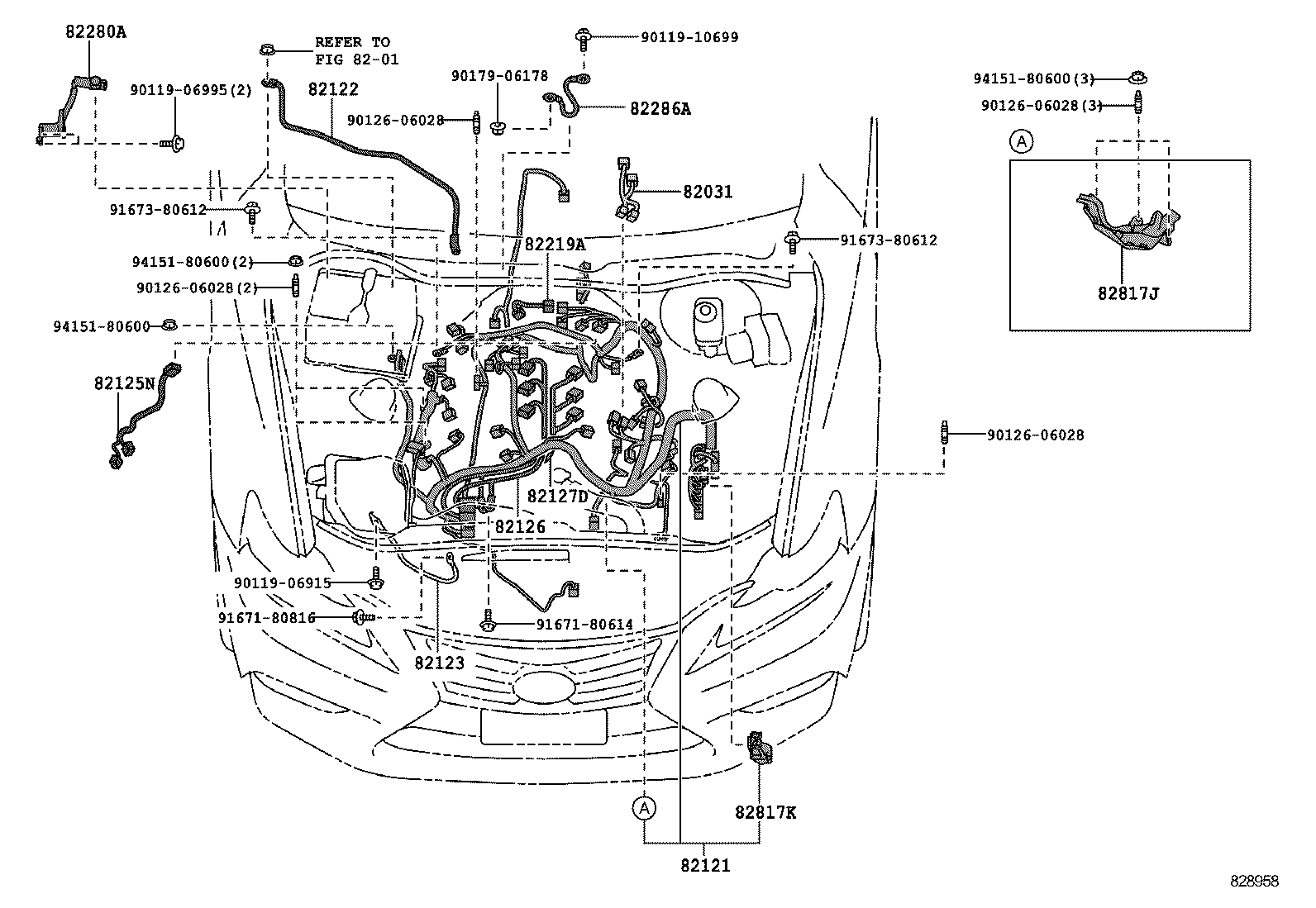

Figure 828953H 828953H 2013-04 → — Figure 829018G 829018G 2013-04 → — Figure 82A858A 82A858A 2013-04 → 2015-08 Figure 82A859A 82A859A 2013-04 → 2015-08 Figure 82A252E 82A252E 2015-08 → — Figure 82A253F 82A253F 2015-08 → — Figure 828957E 828957E 2013-04 → — Figure 828958 828958 2013-04 → 2015-08 Figure 828959A 828959A 2013-04 → 2015-08 Figure 82A254A 82A254A 2015-08 → 2016-10 Figure 82B040C 82B040C 2016-10 → — Figure 82B041B 82B041B 2016-10 → — Figure 82A250A 82A250A 2015-08 → 2016-10 Figure 82B026D 82B026D 2016-10 → — Figure 82B027 82B027 2016-10 → — Figure 828960B 828960B 2013-04 → — Figure 828961B 828961B 2013-04 → — Figure 828993 828993 2013-04 → — Figure 82B042H 82B042H 2013-04 → — Figure 828963A 828963A 2013-04 → — Figure 828964A 828964A 2013-04 → — Figure 828965 828965 2013-04 → — Figure 828966B 828966B 2013-04 → — Figure 828967C 828967C 2013-04 → — Figure 82A957C 82A957C 2013-04 → — Figure 828986F 828986F 2013-04 → — Figure 82E751 82E751 2013-04 → —

Part groups

PNCDescription
16364A Wire, Cooling Fan
82031 Wire Sub-assy, Ignition Coil

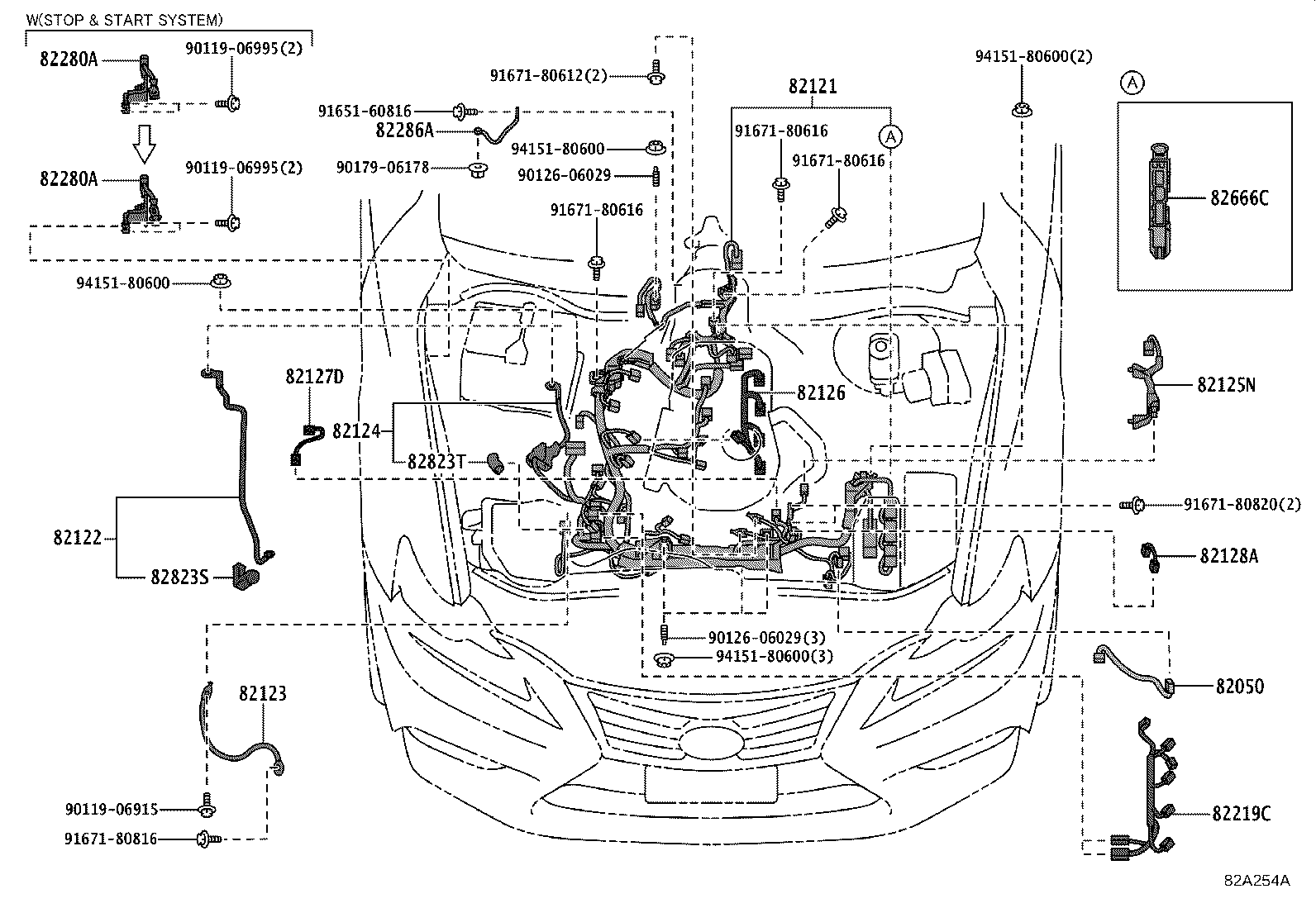

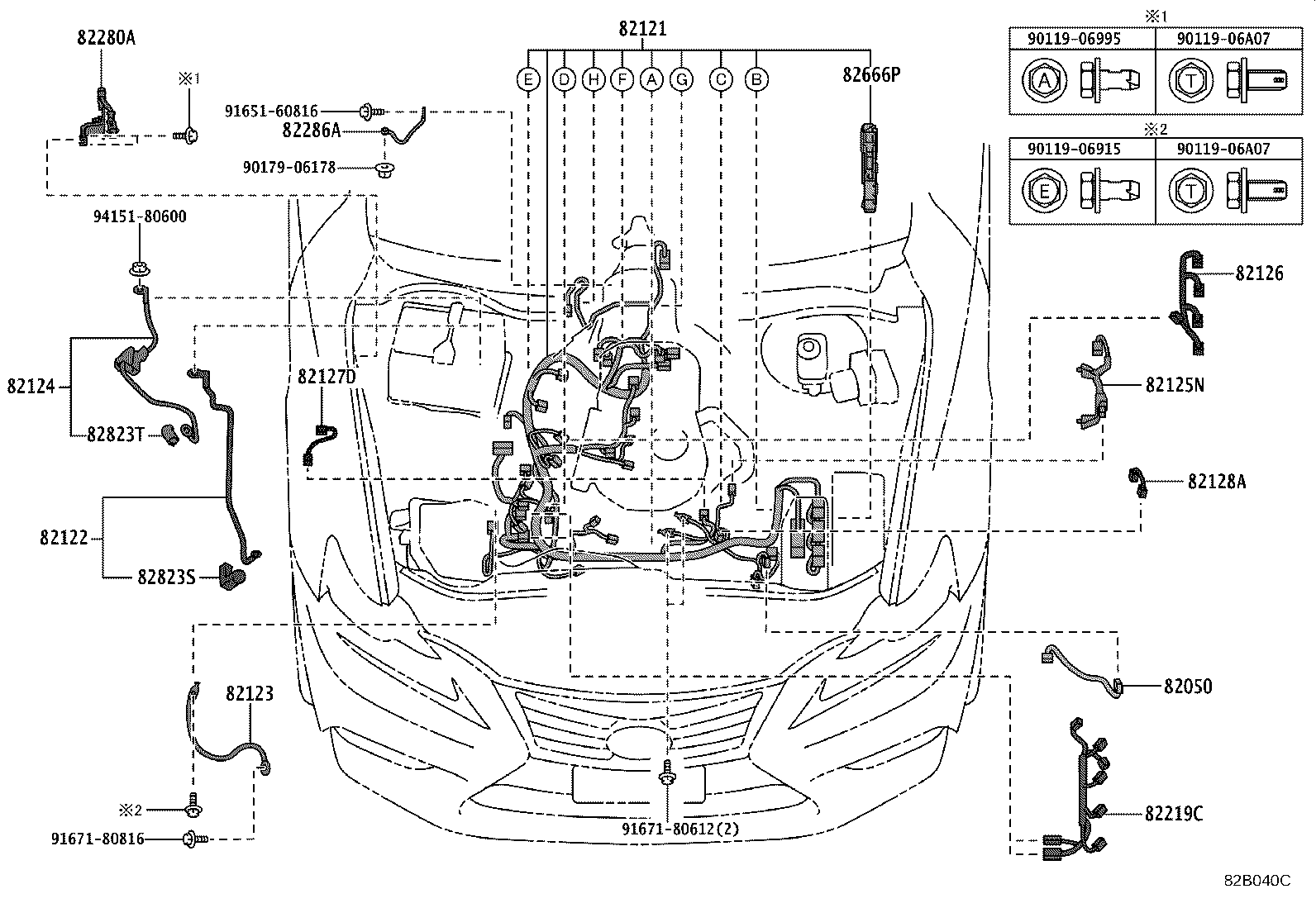

82050 Wire Assy, Engine
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82119C Wire, Engine Room, NO.5
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125N Wire, Engine, NO.5
82126 Wire, Engine
82127D Wire, Engine, NO.7
82128A Wire, Engine, NO.8
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3

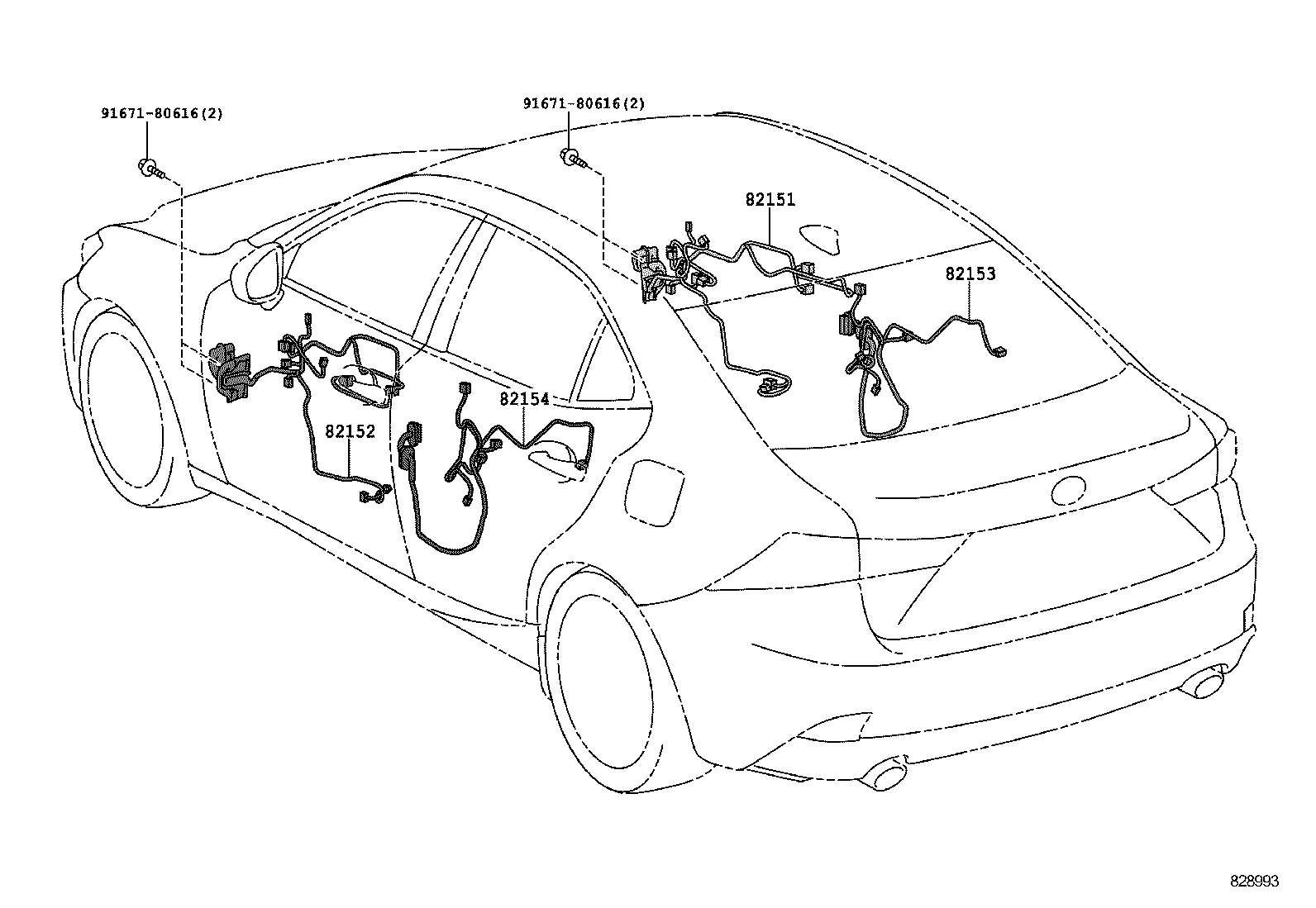

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82183 Wire, Luggage Room, NO.3

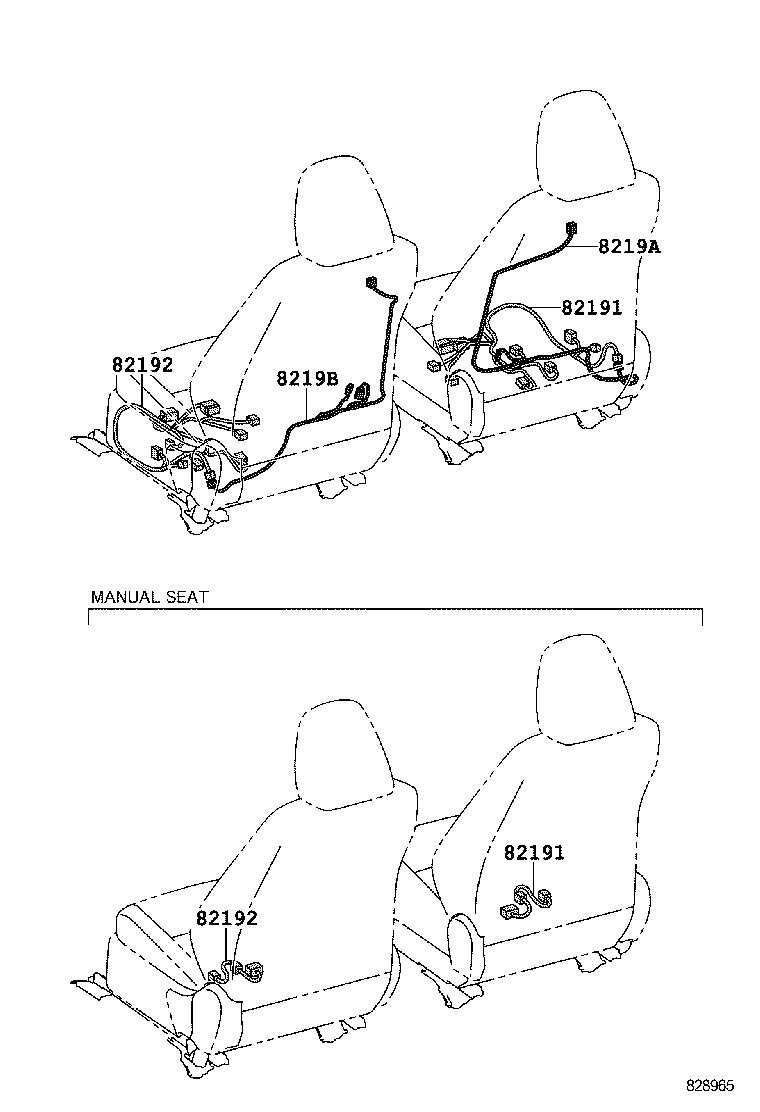

82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
82212A Harness, Air Conditioner
82219A Wire, Sensor
82219C Wire, Sensor
82280A Wire Assy, Battery TO Cowl Top Side
82284 Wire, Earth
82286A Wire, Earth, NO.2
82666A Holder, Connector NO.2
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11

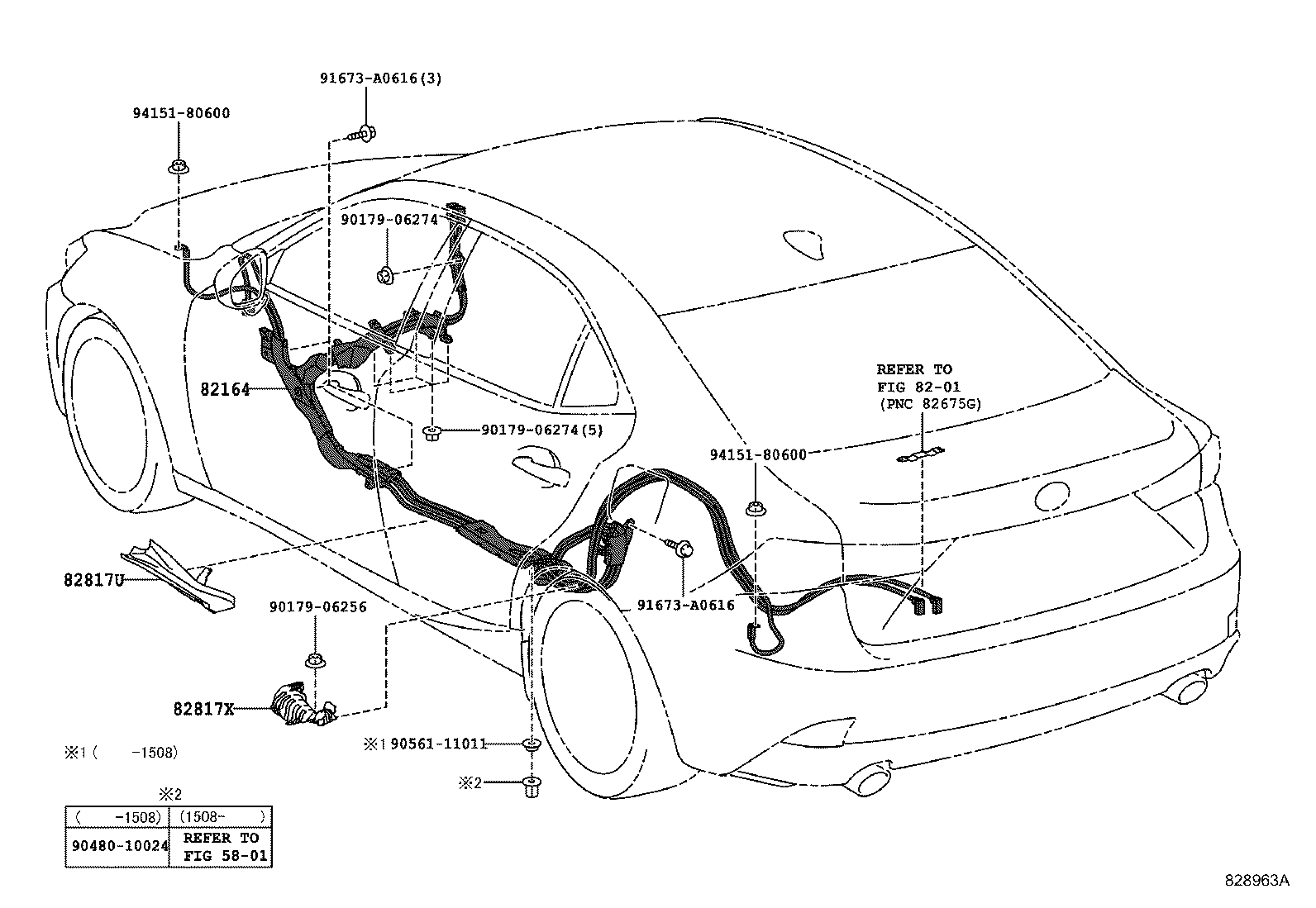

82811 Plate, Wiring Harness Through Hole, NO.1
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9

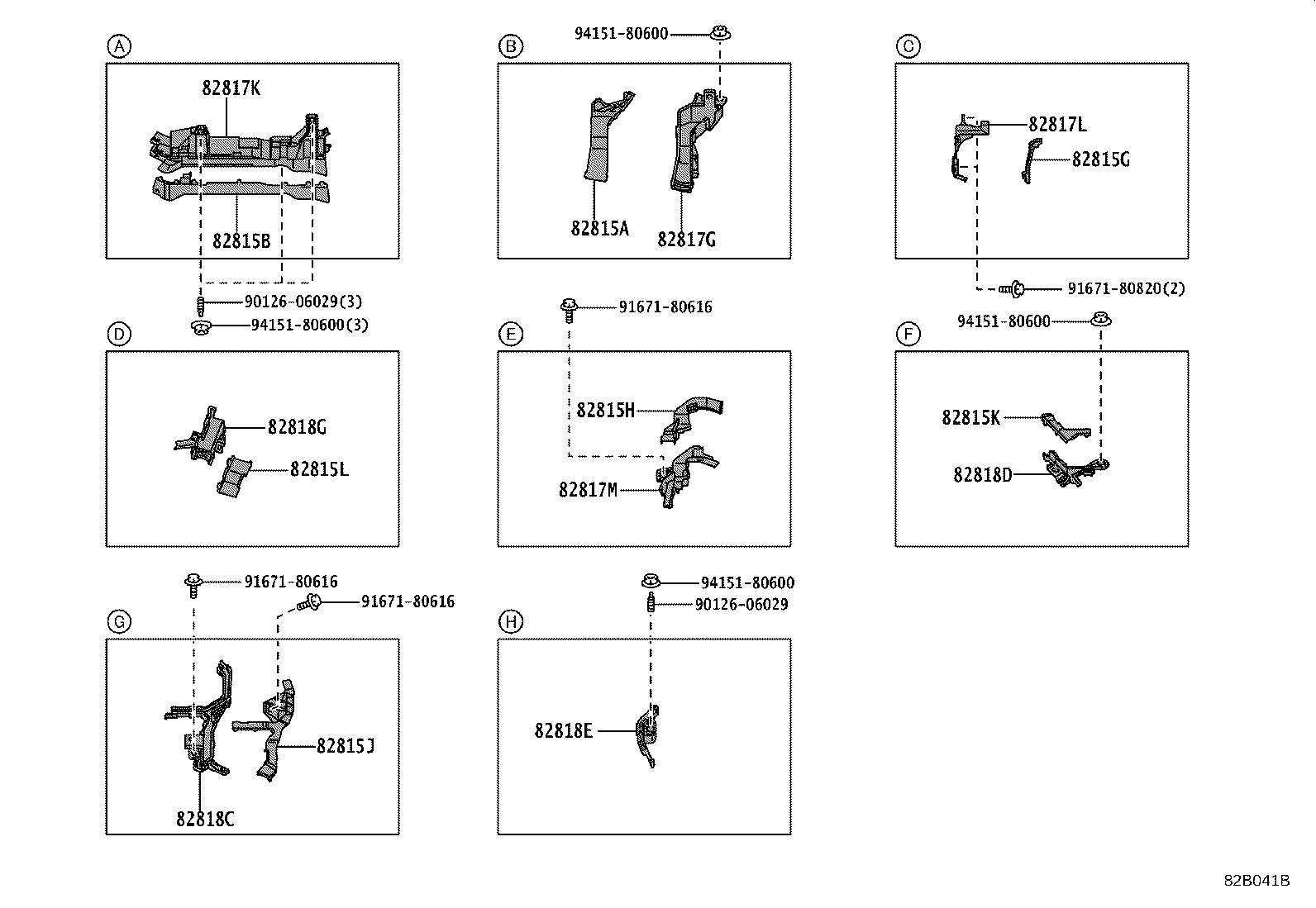

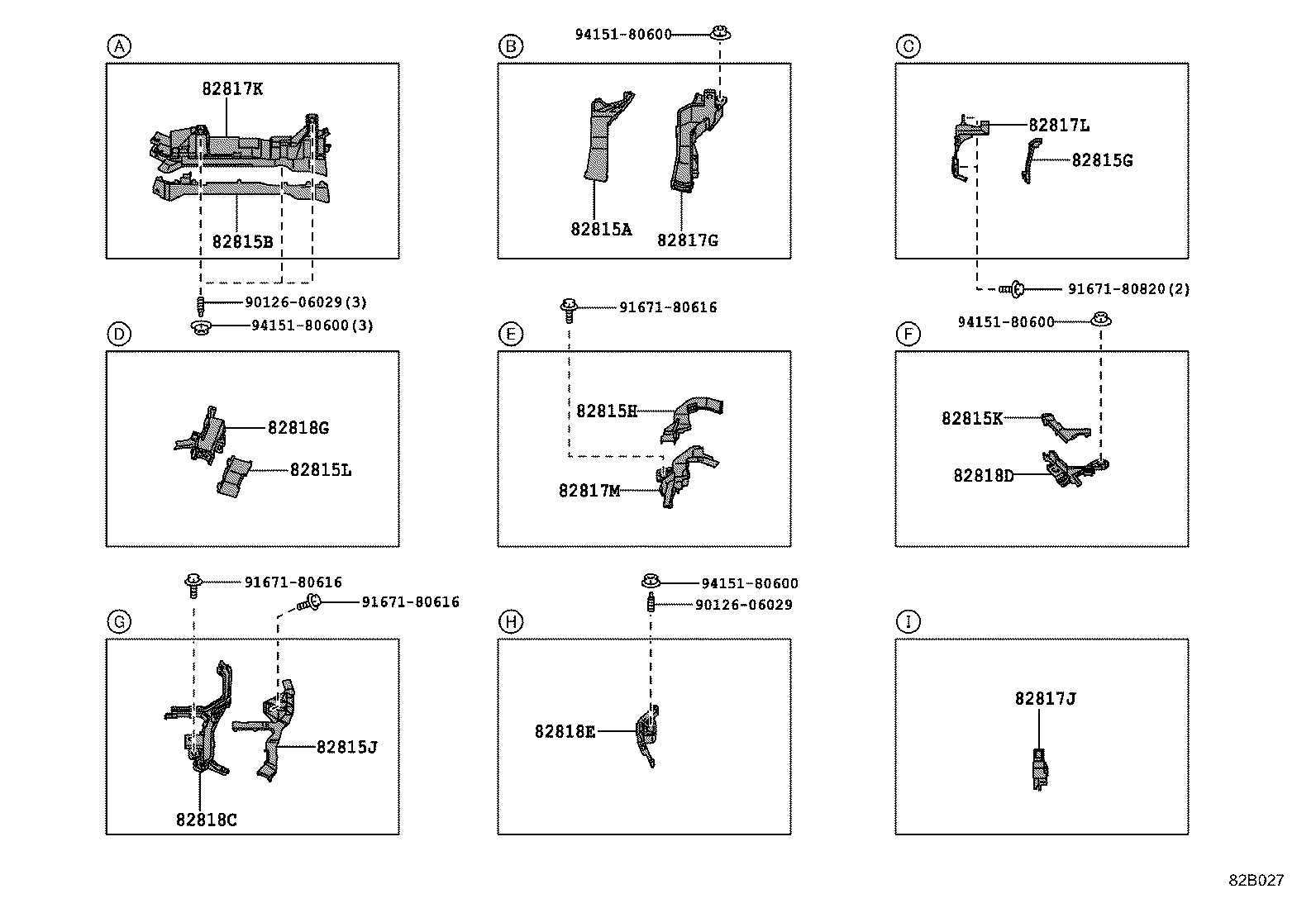

82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818D Protector, Wiring Harness, NO.5
82818E Protector, Wiring Harness, NO.6
82818G Protector, Wiring Harness, NO.8
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal

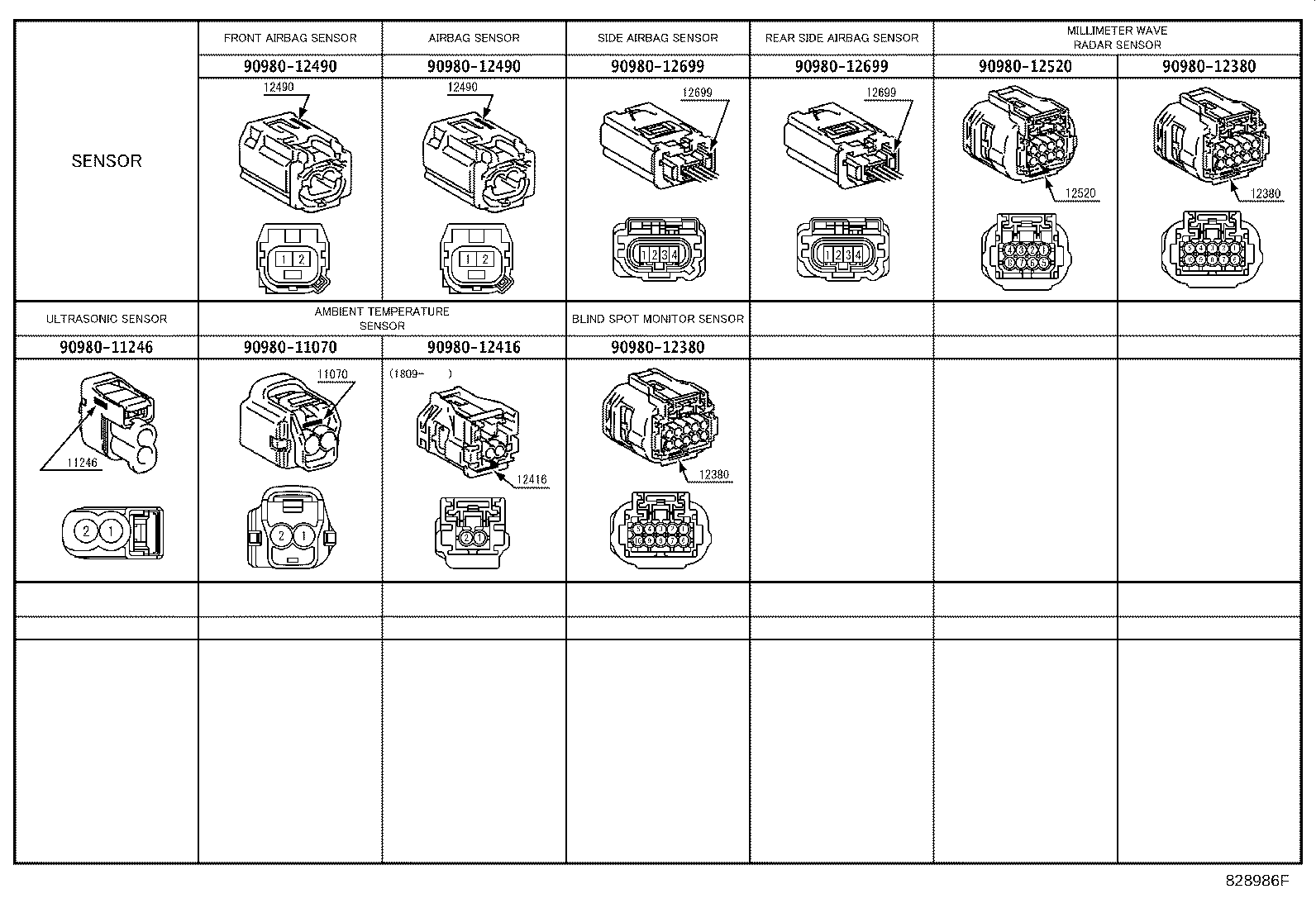

82824 Connector, Wiring Harness
82824A Connector, Wiring Harness
82824D Connector, Wiring Harness
82930 Condenser Assy, Wiring Harness, NO.1
