Toyota Lexus IS2###/3###

2013-04 → present · chassis ASE30,AVE30,GSE30 · catalogue 242530 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

126 part groups · 23 illustrations

Illustrations

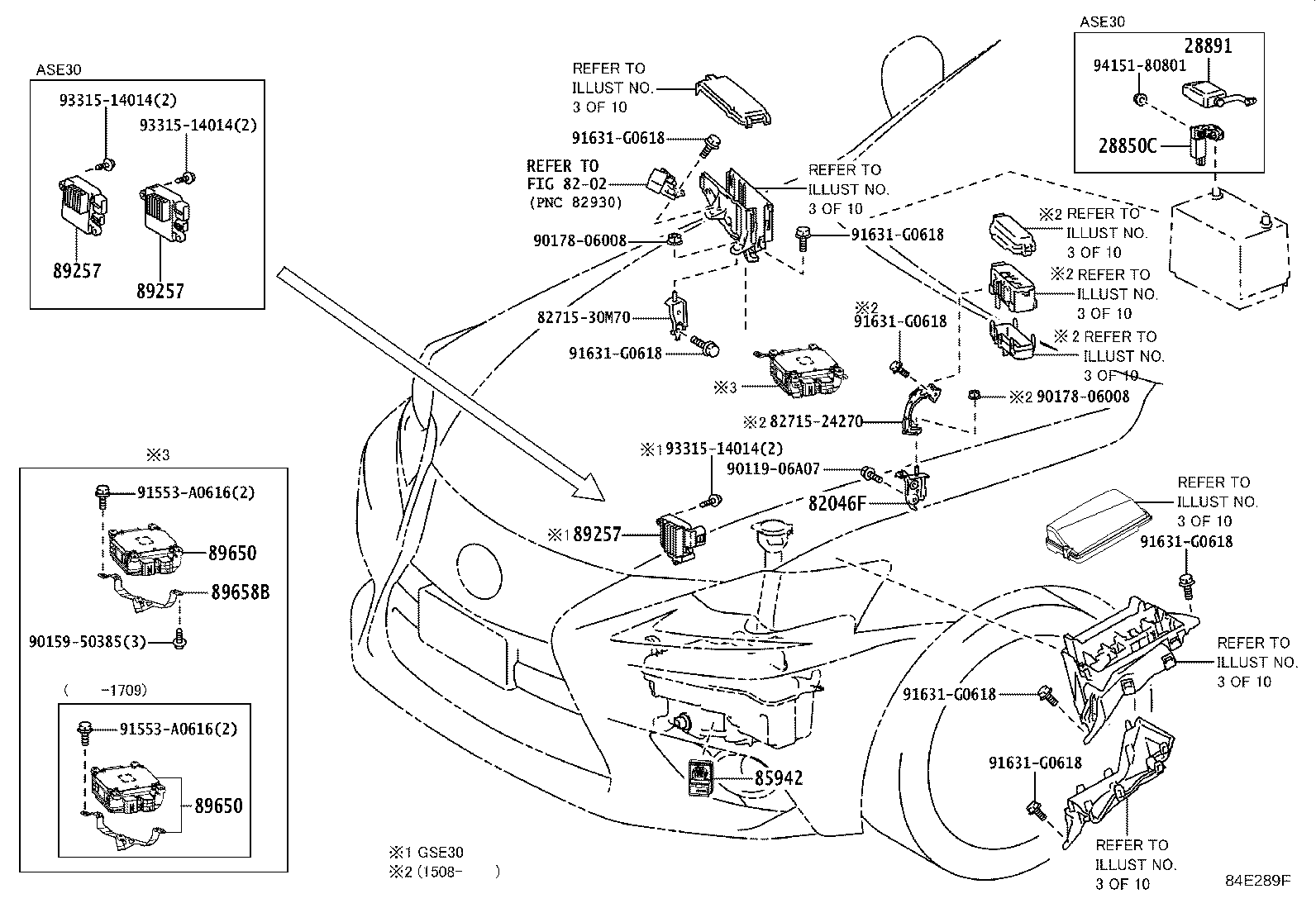

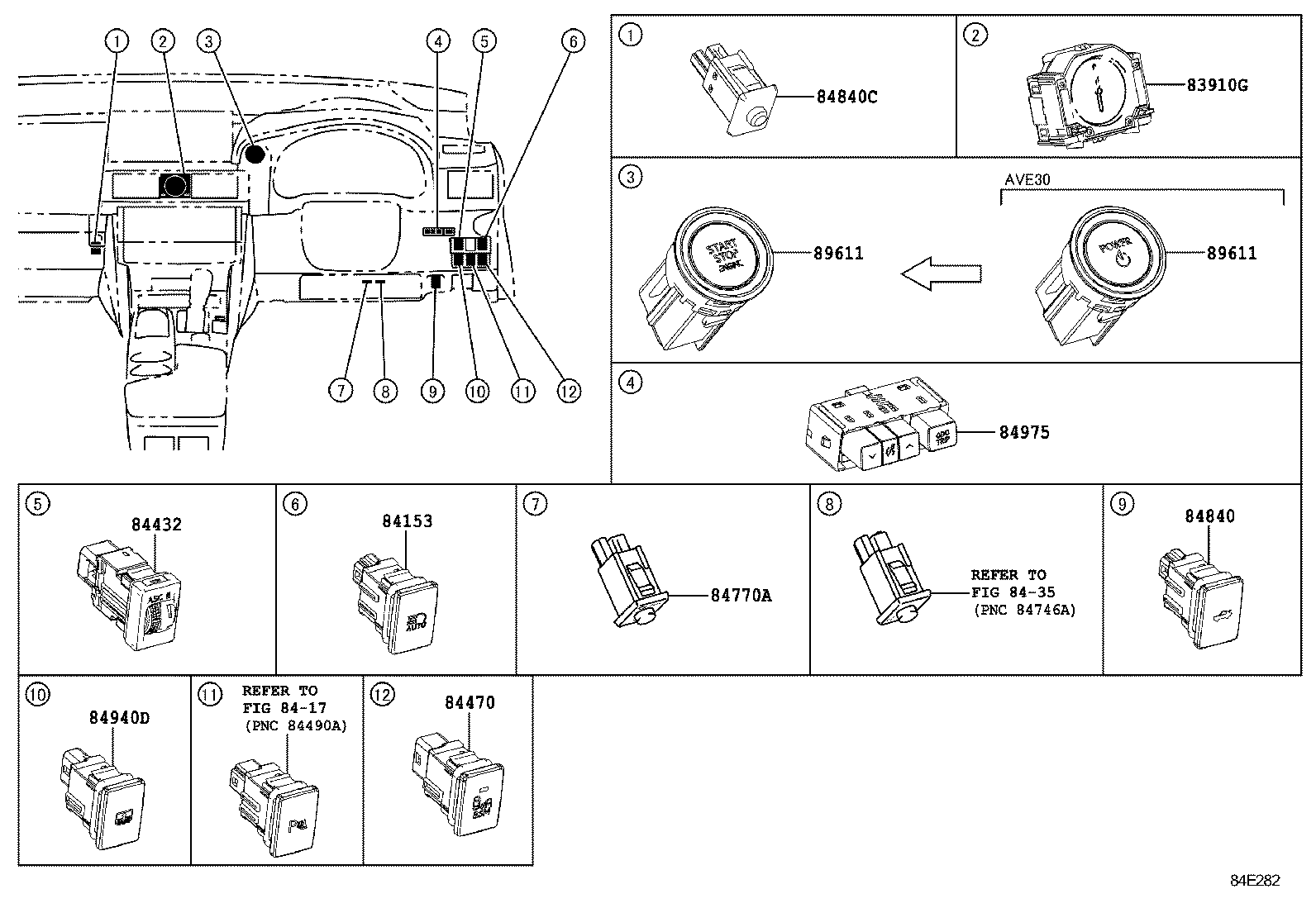

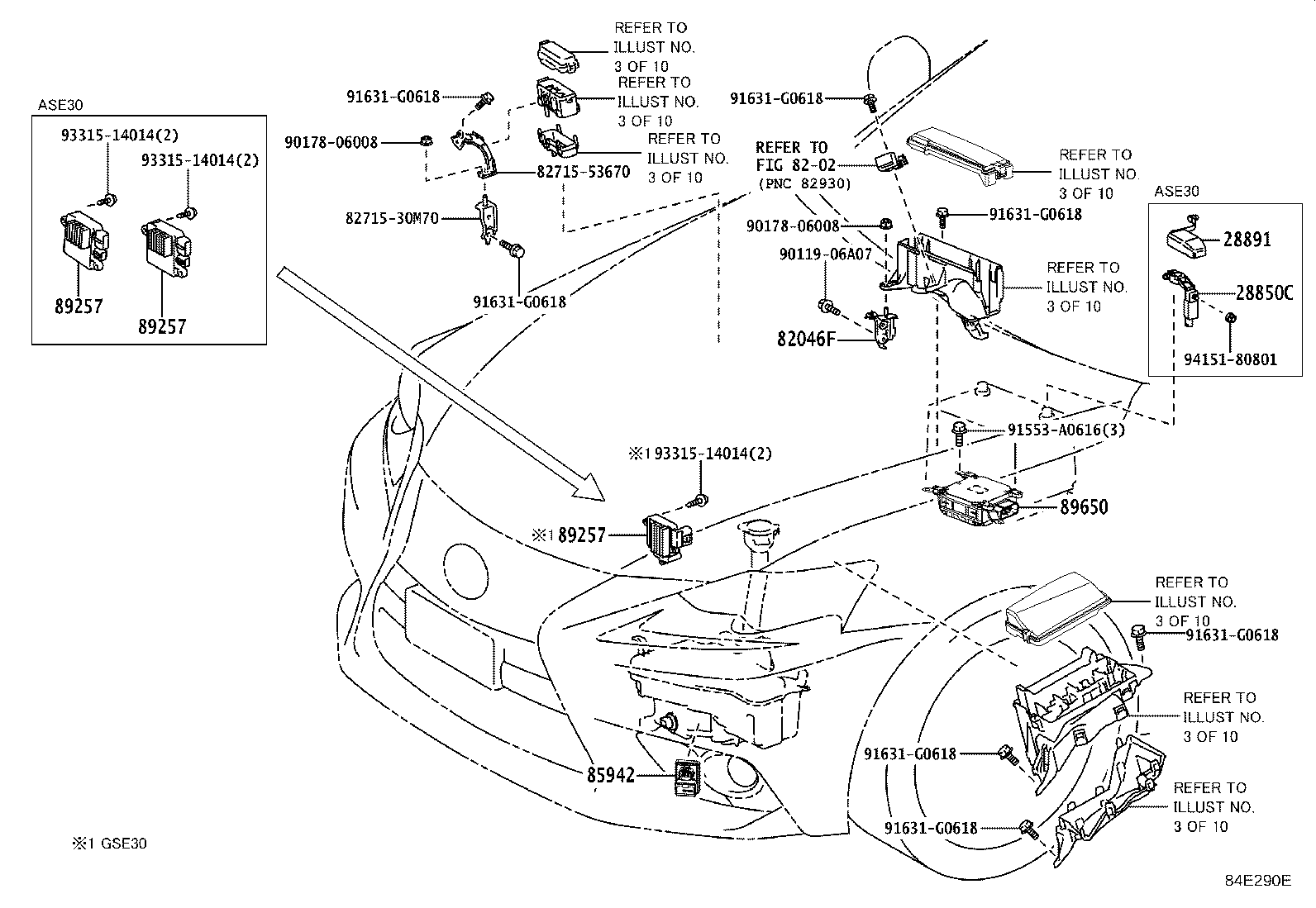

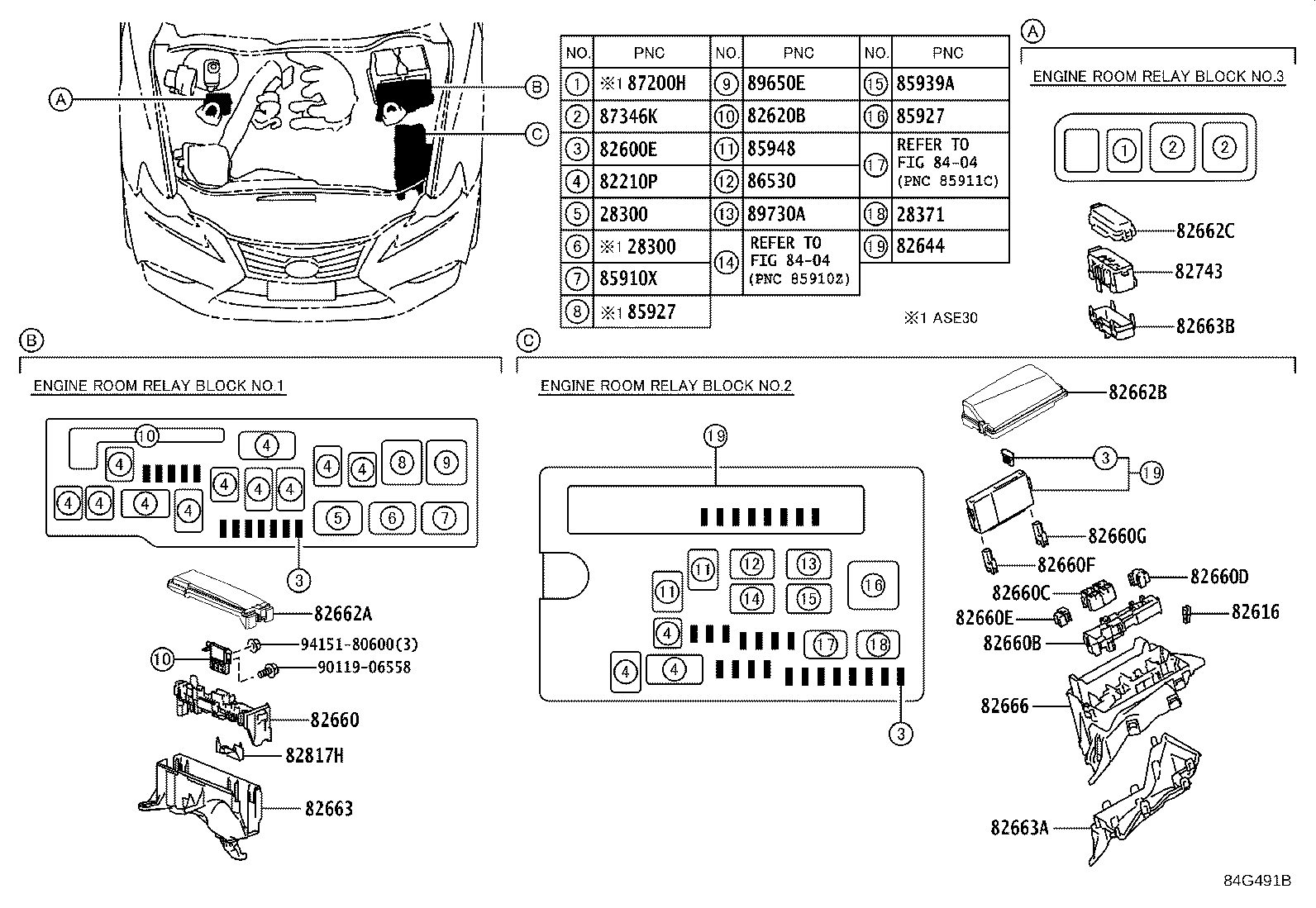

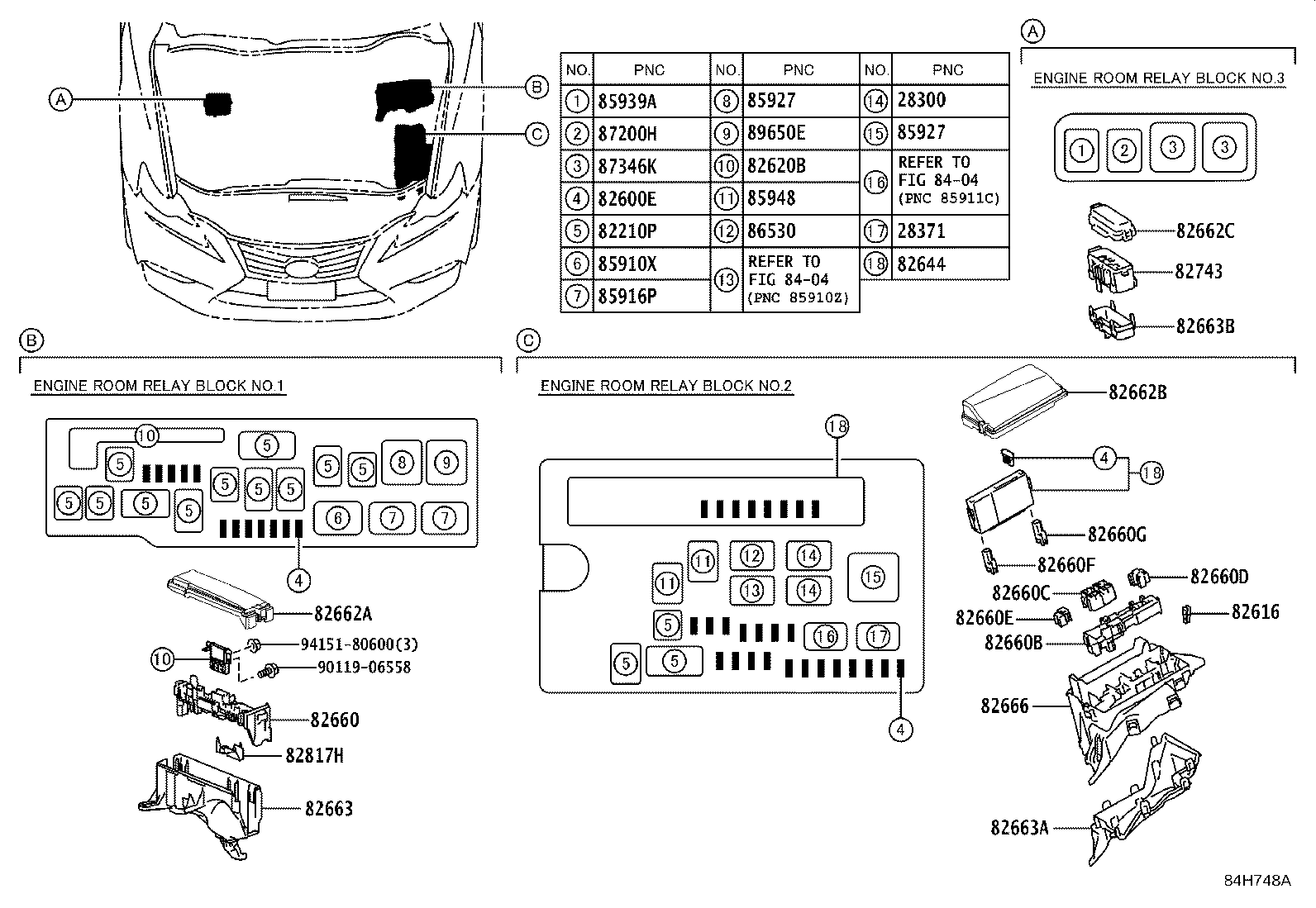

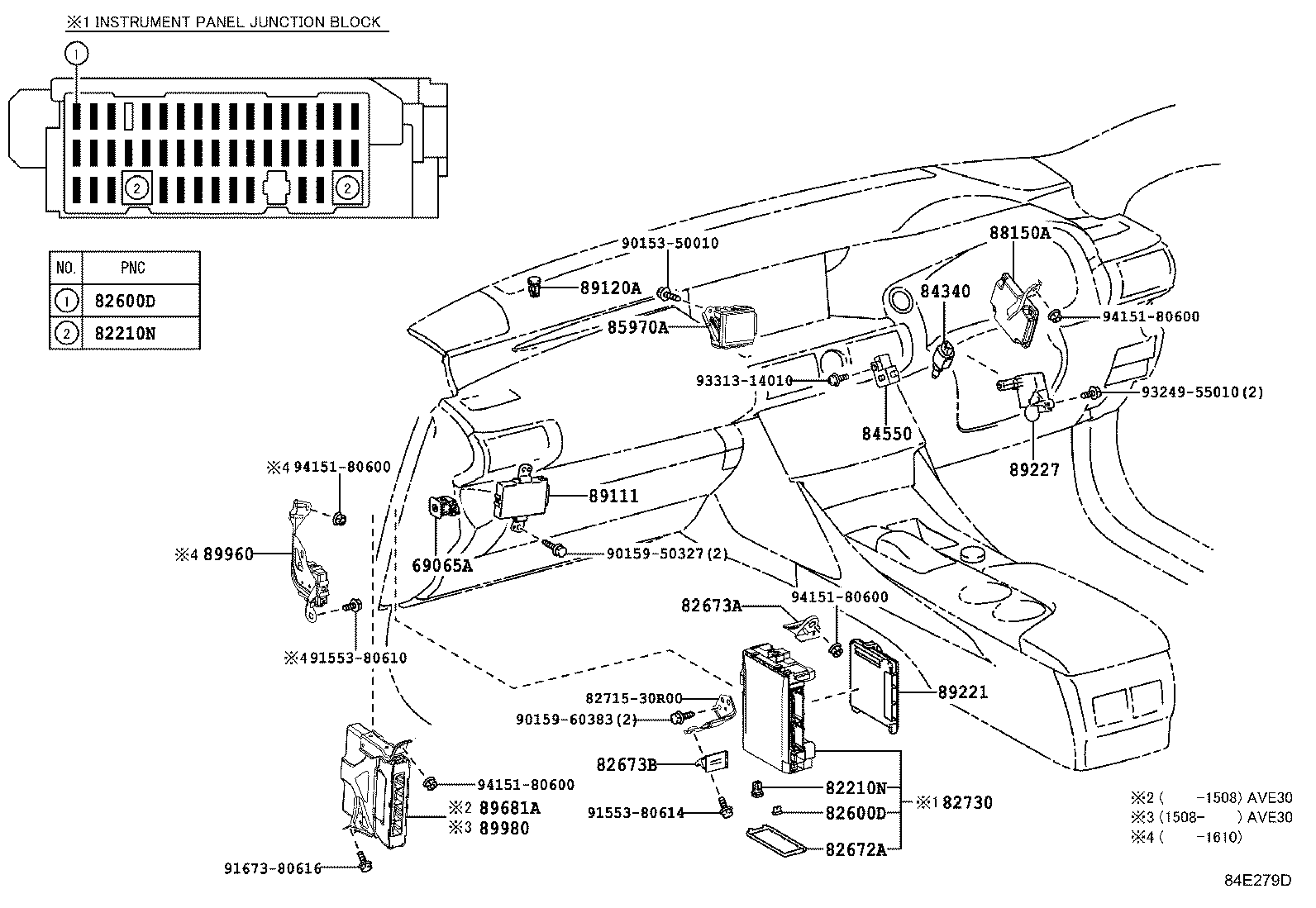

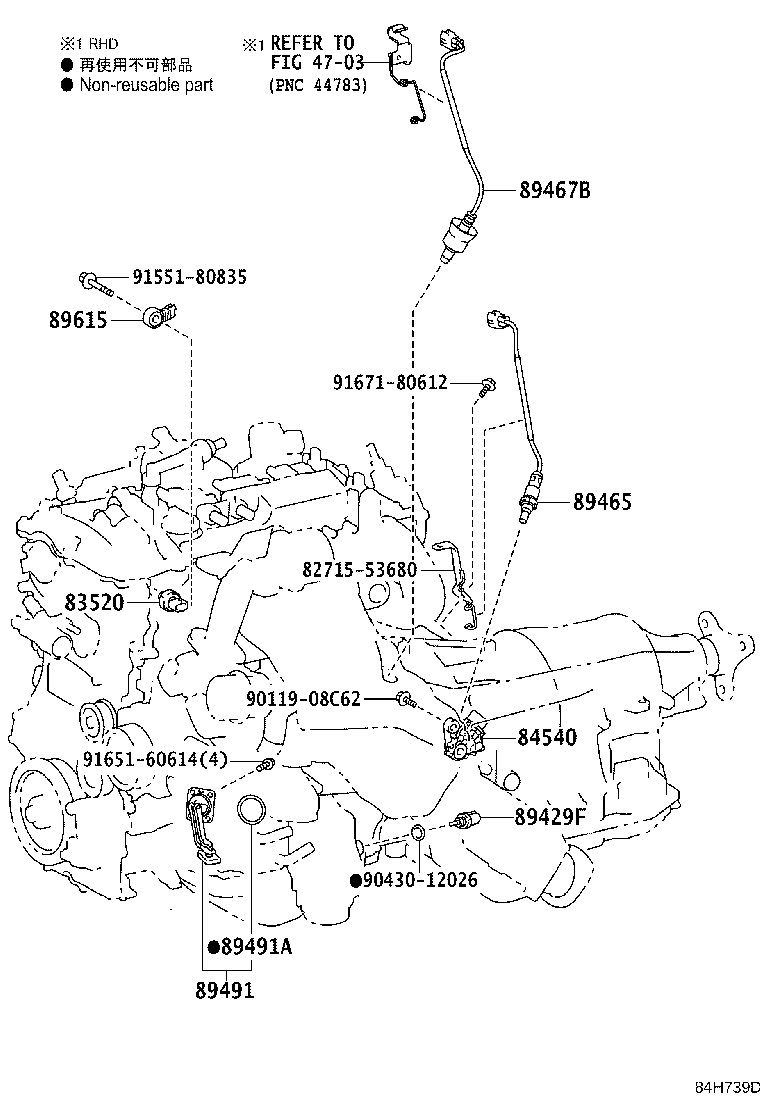

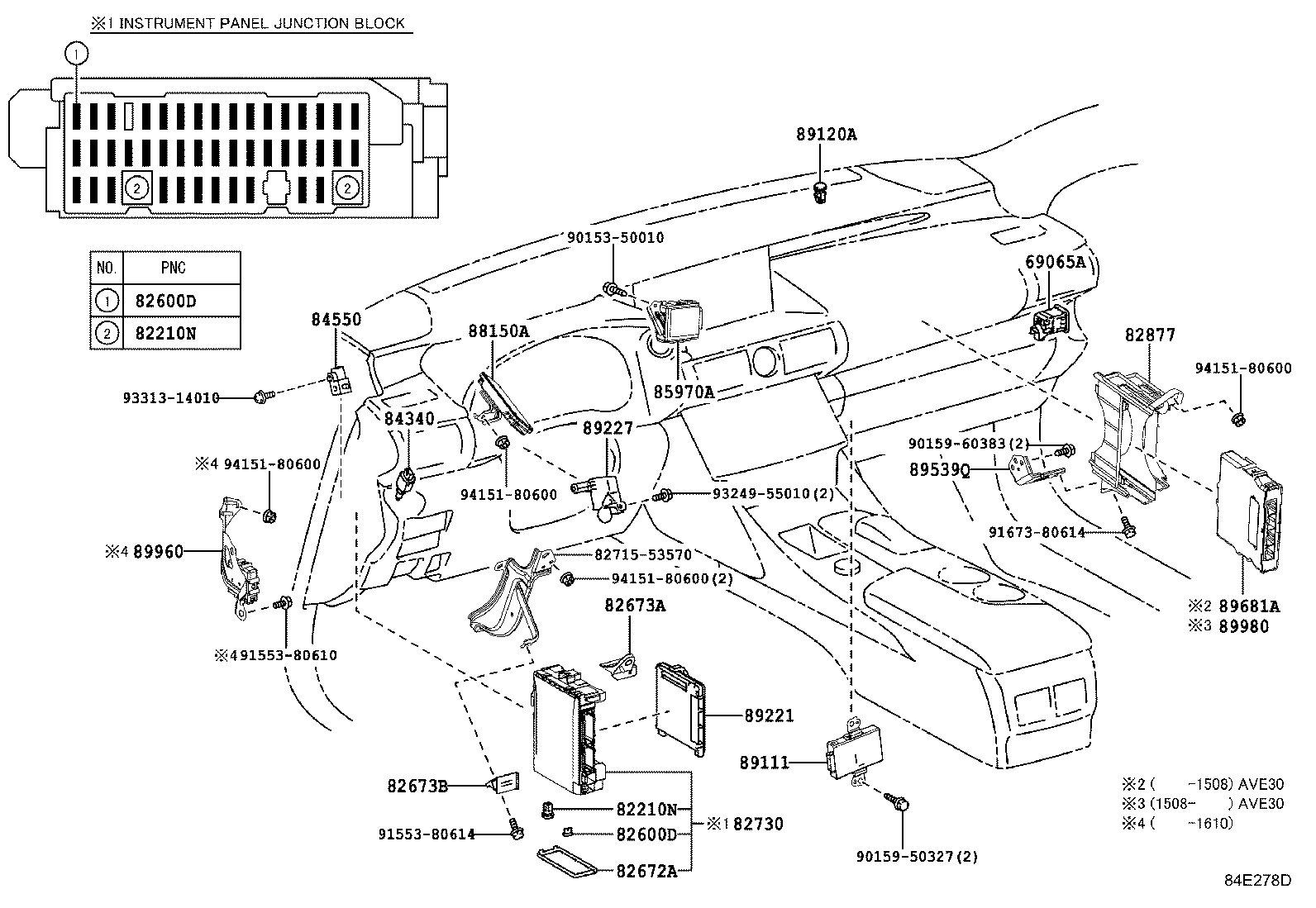

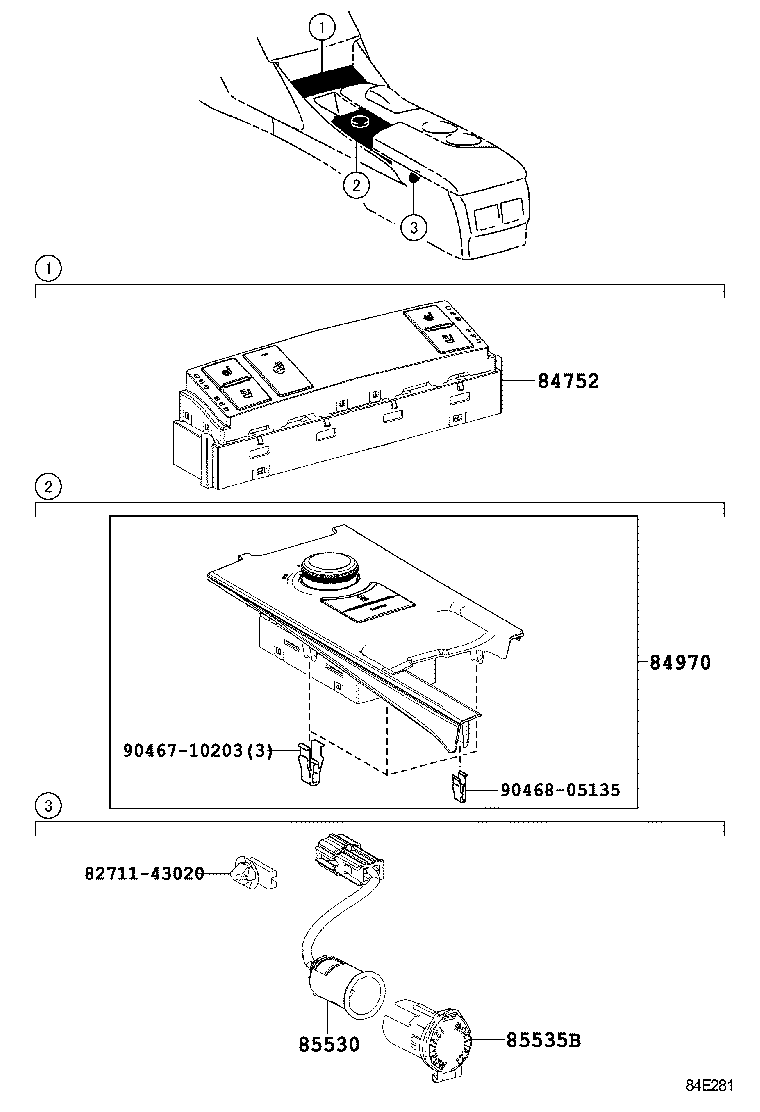

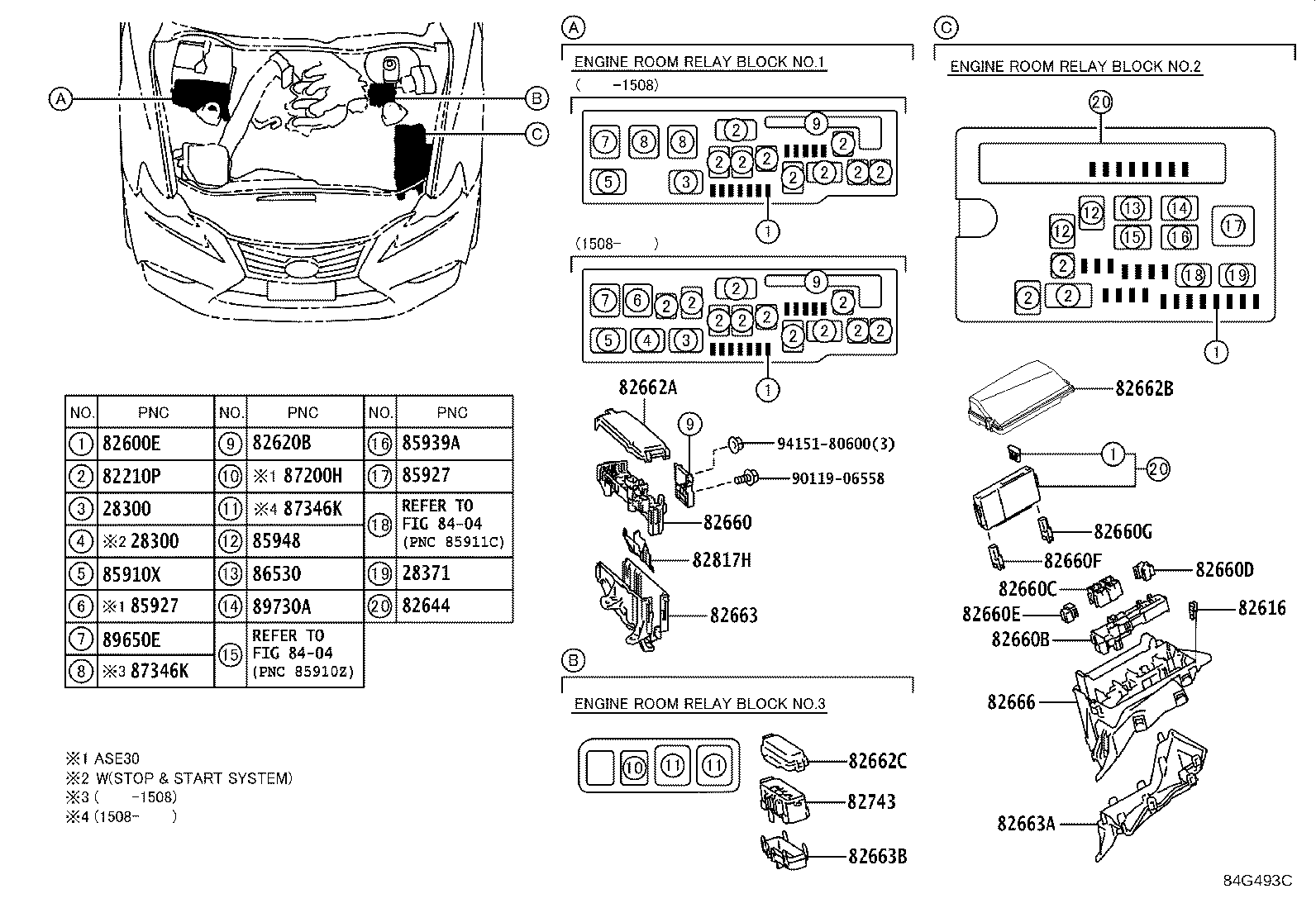

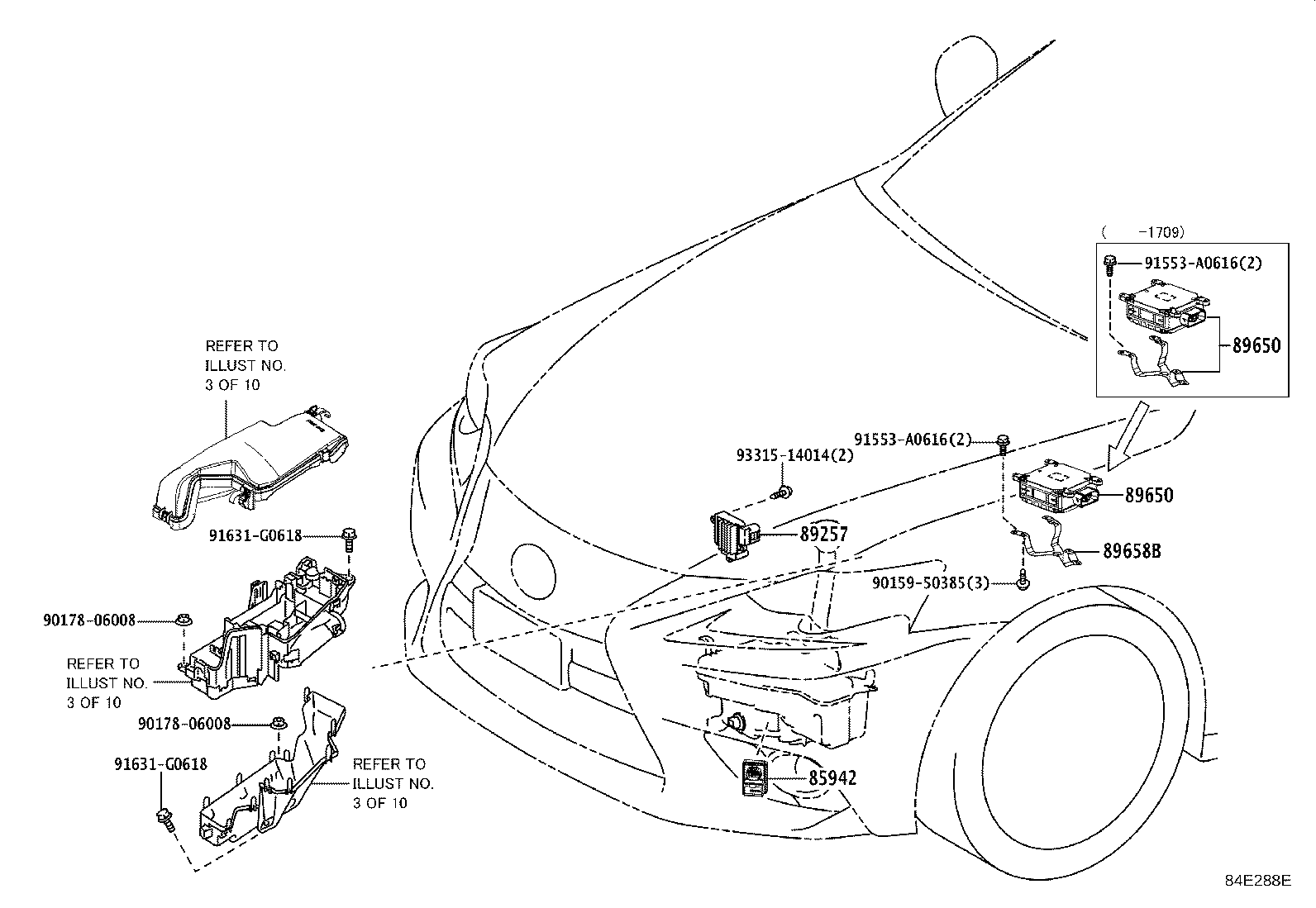

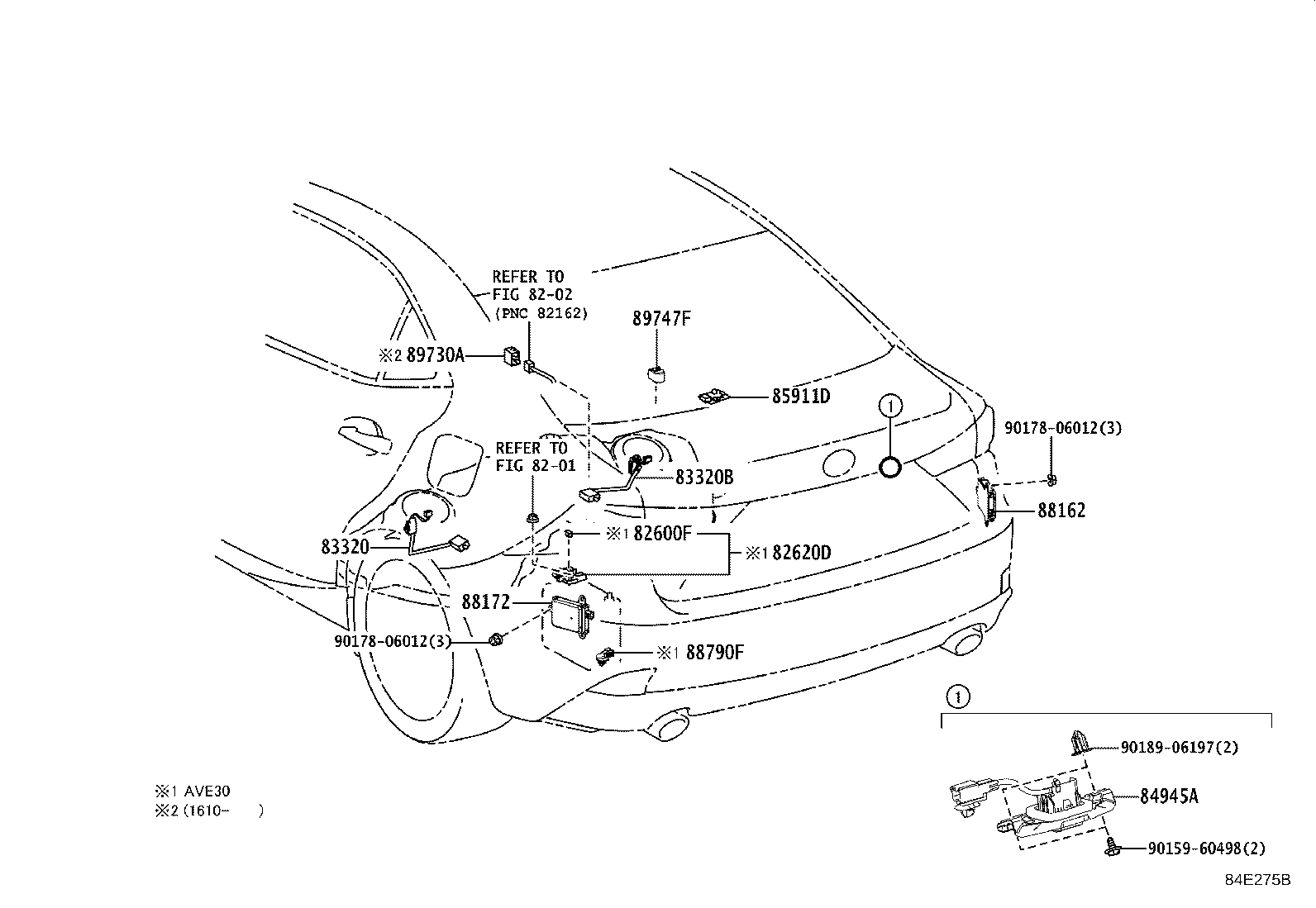

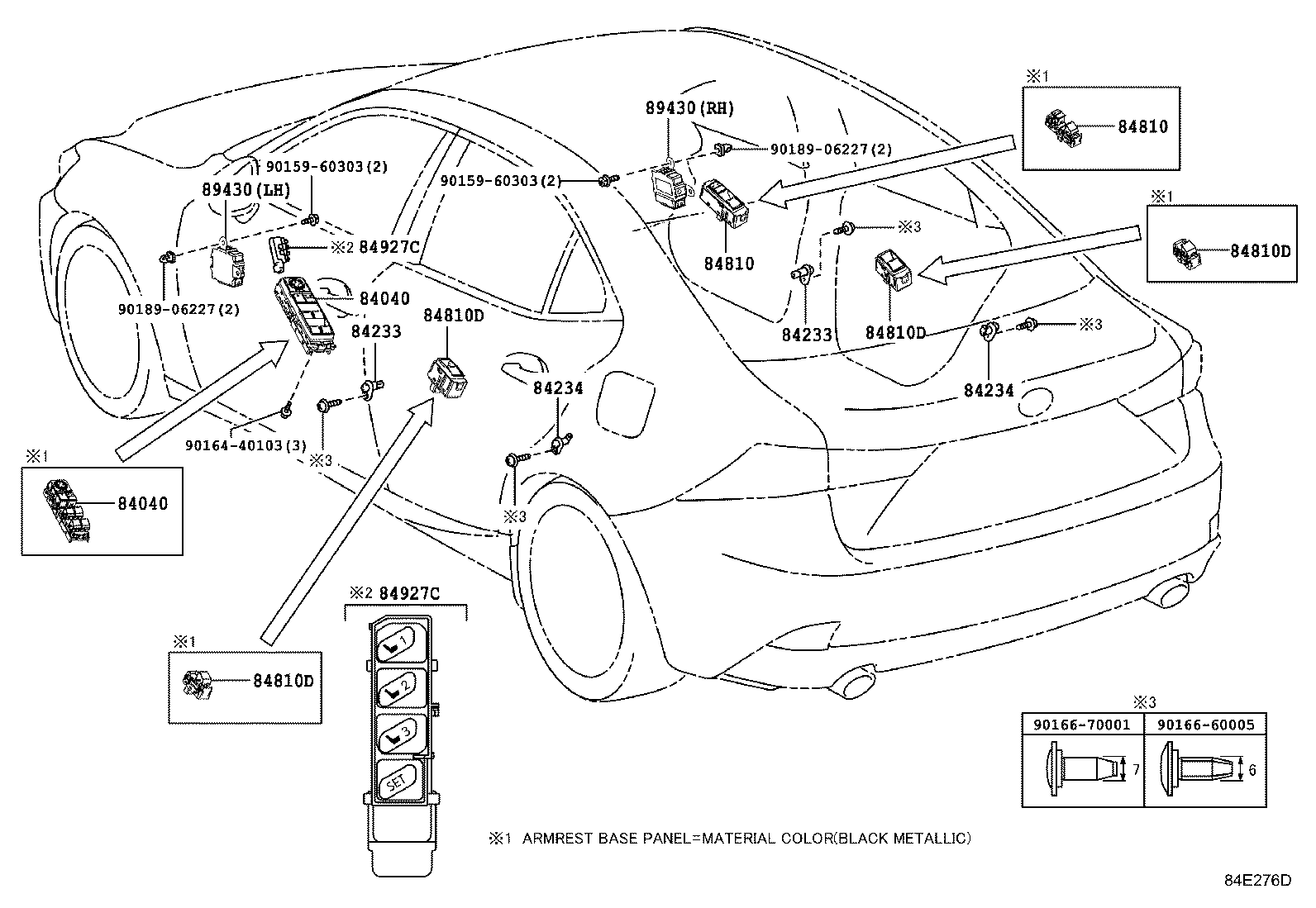

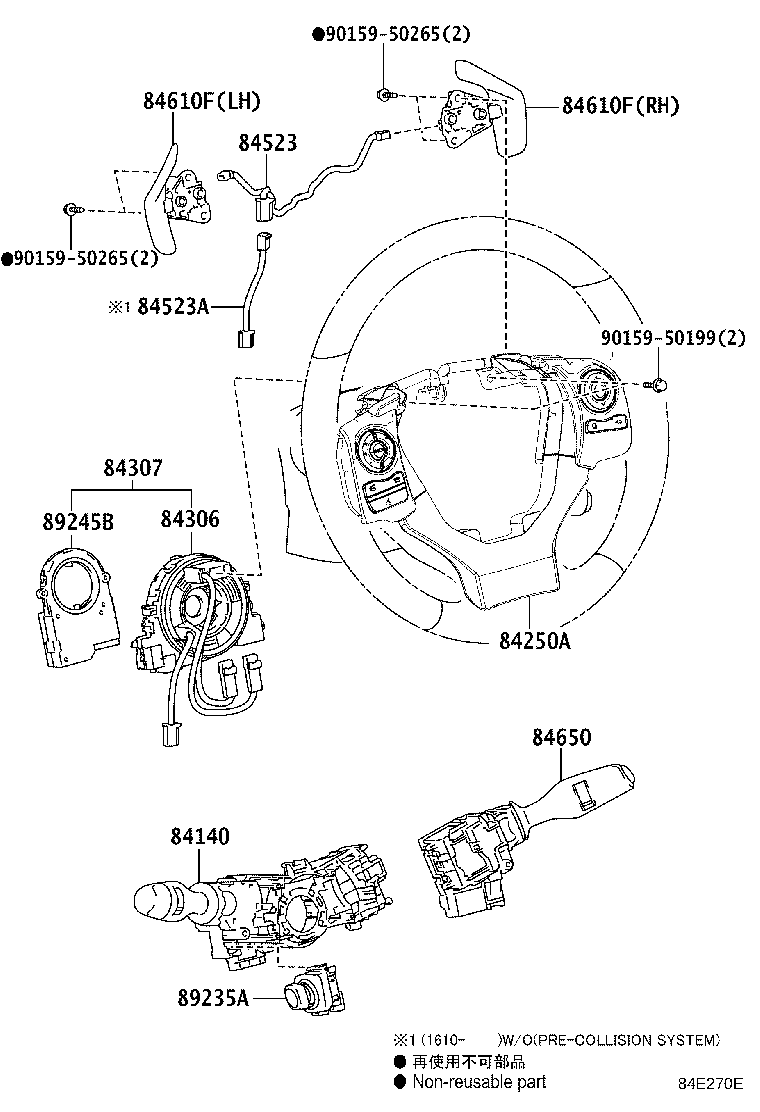

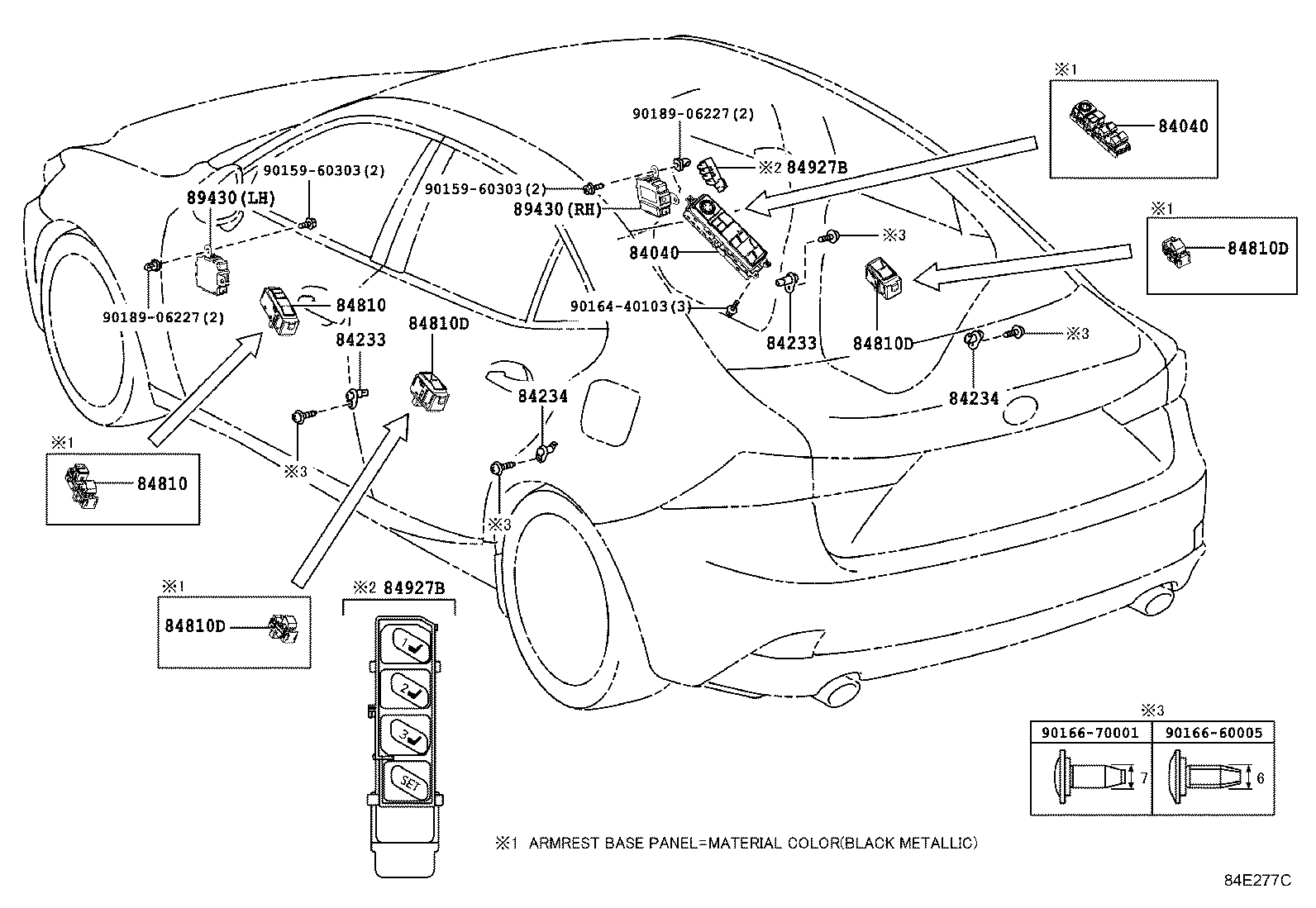

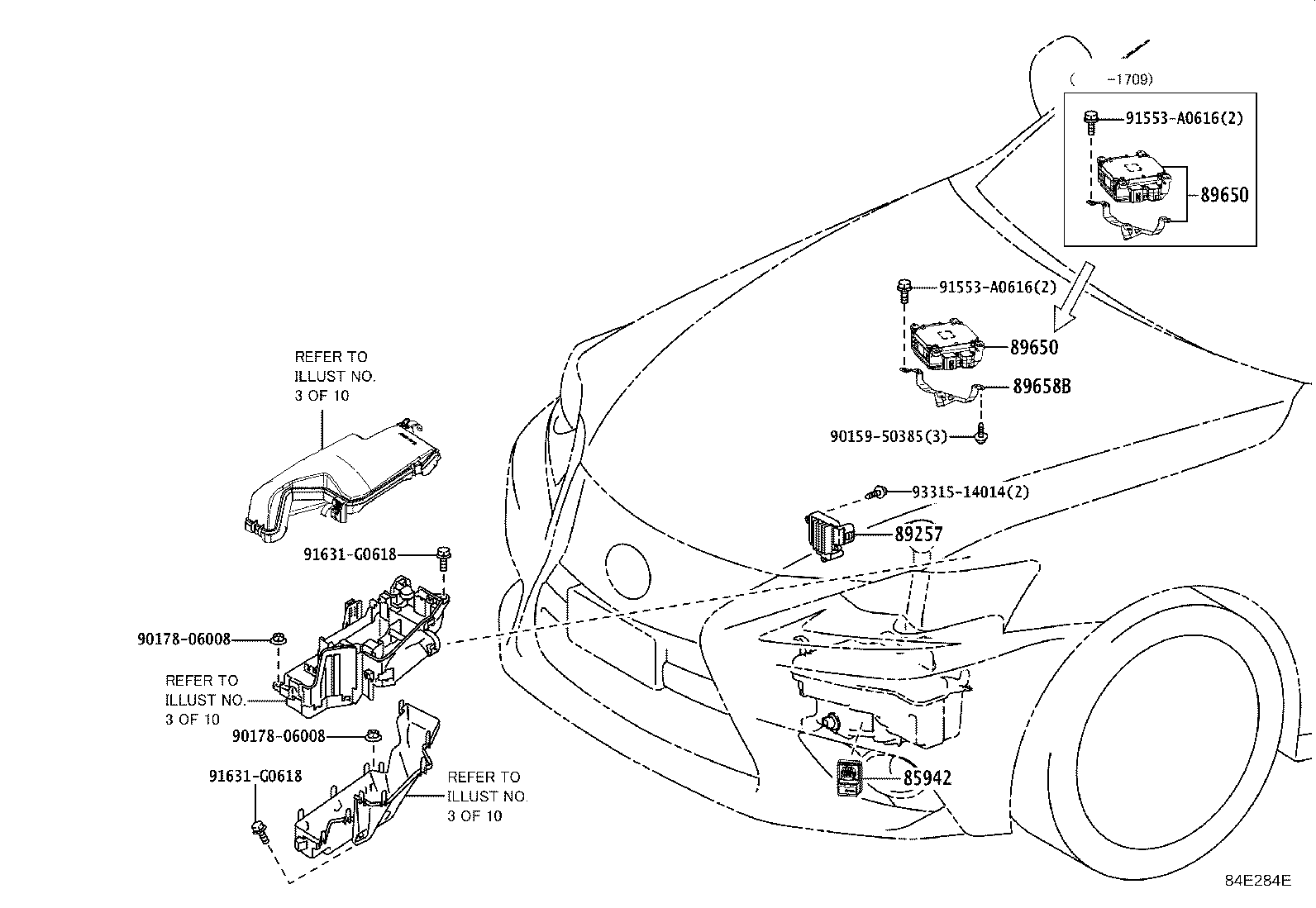

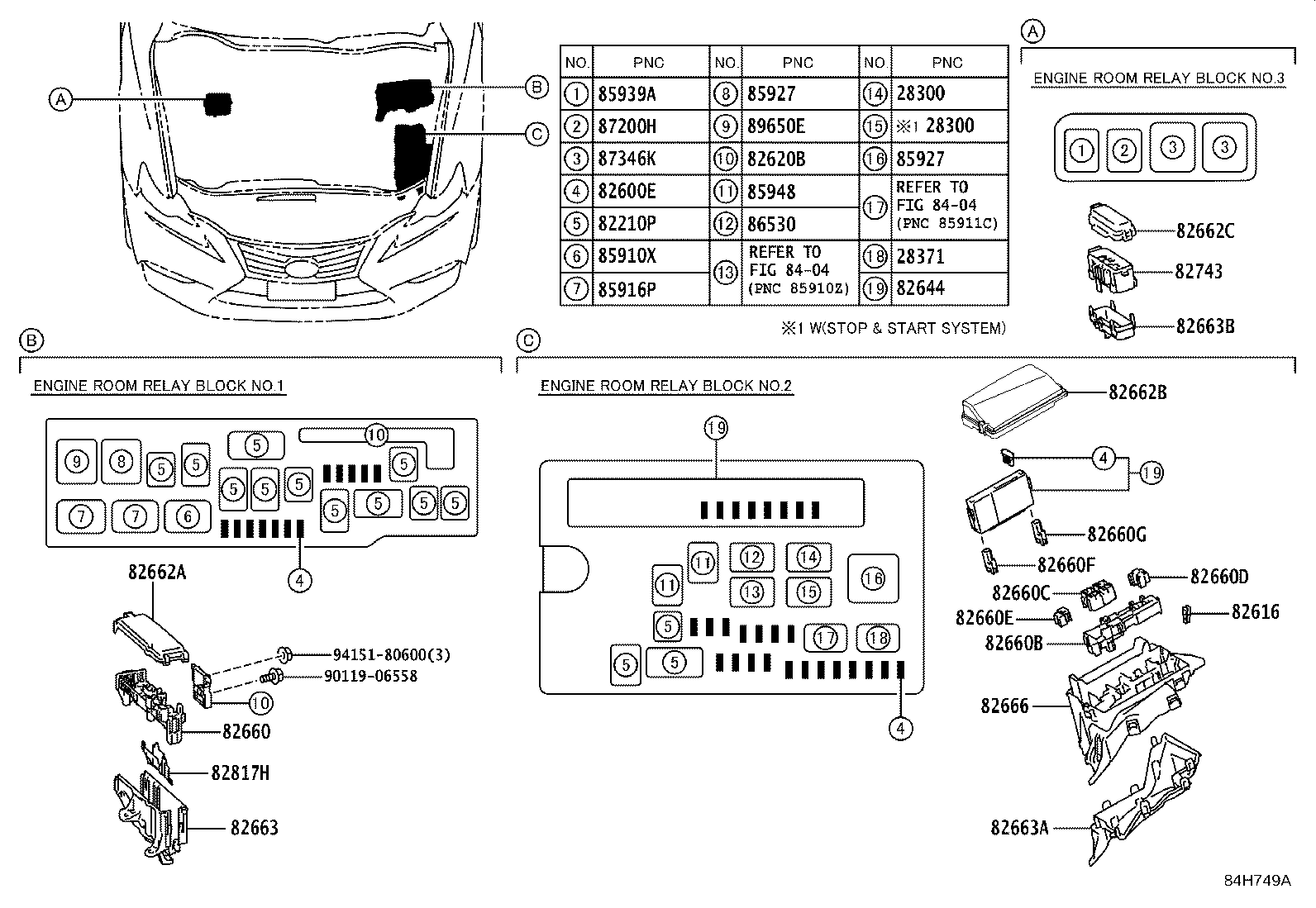

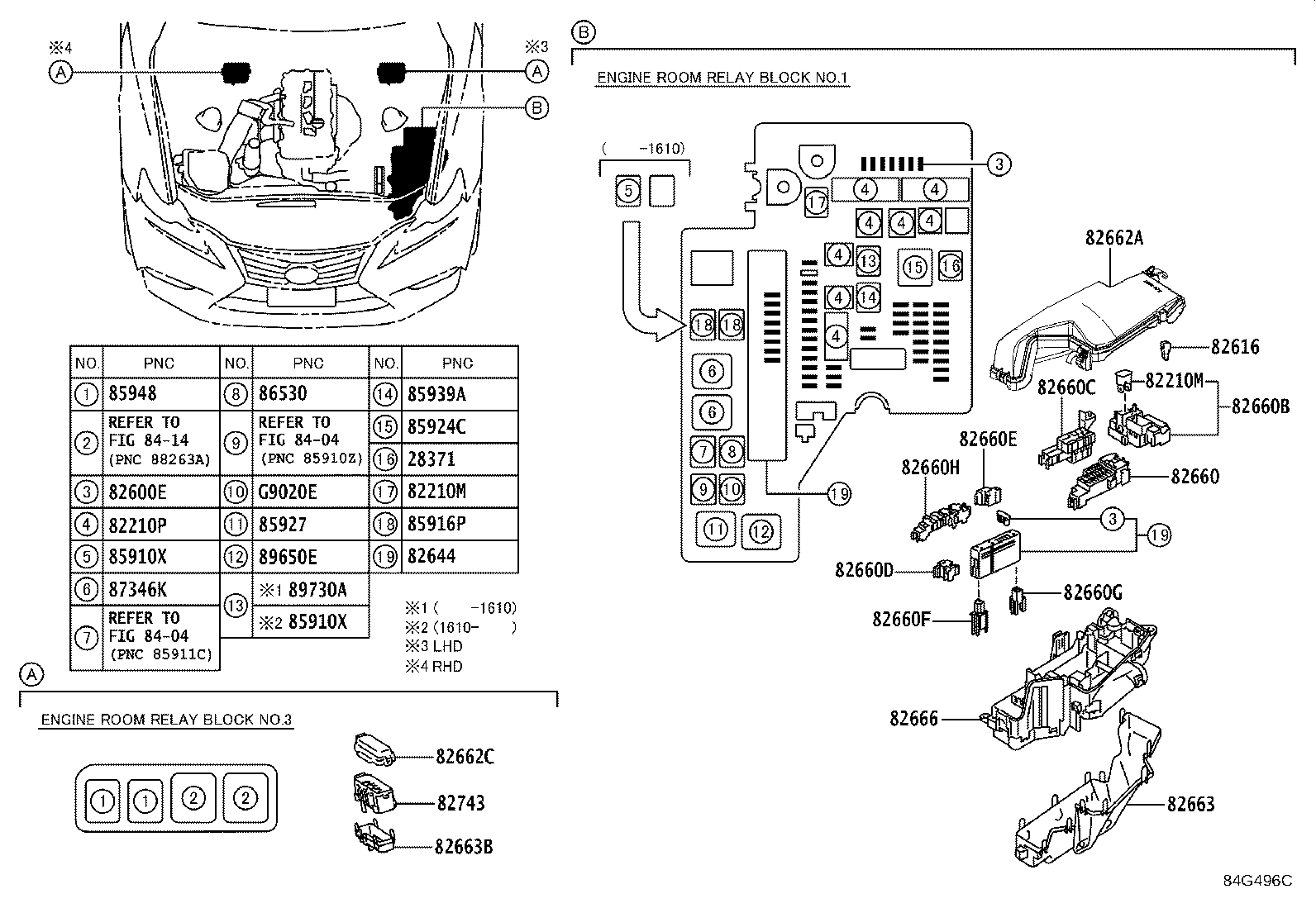

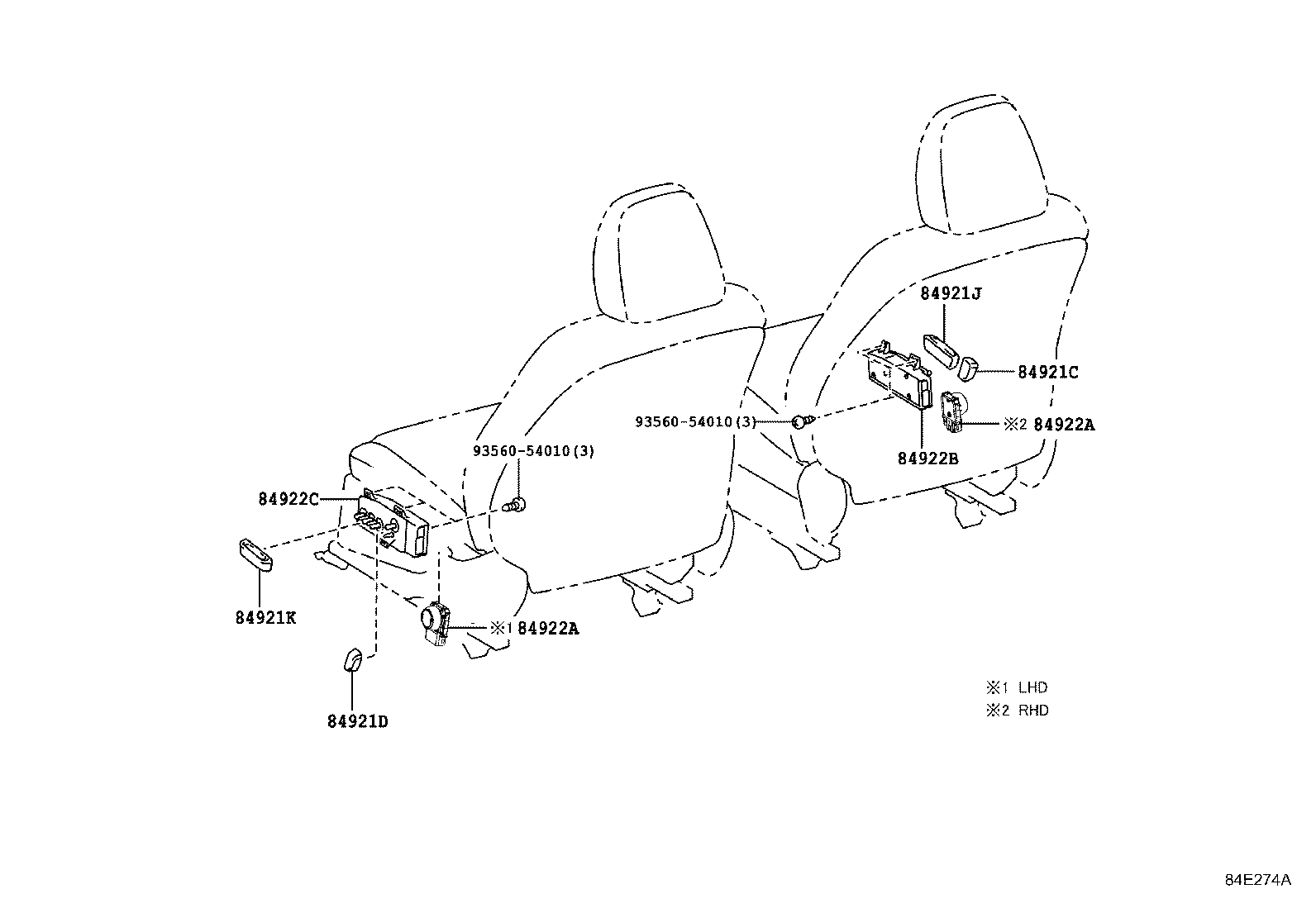

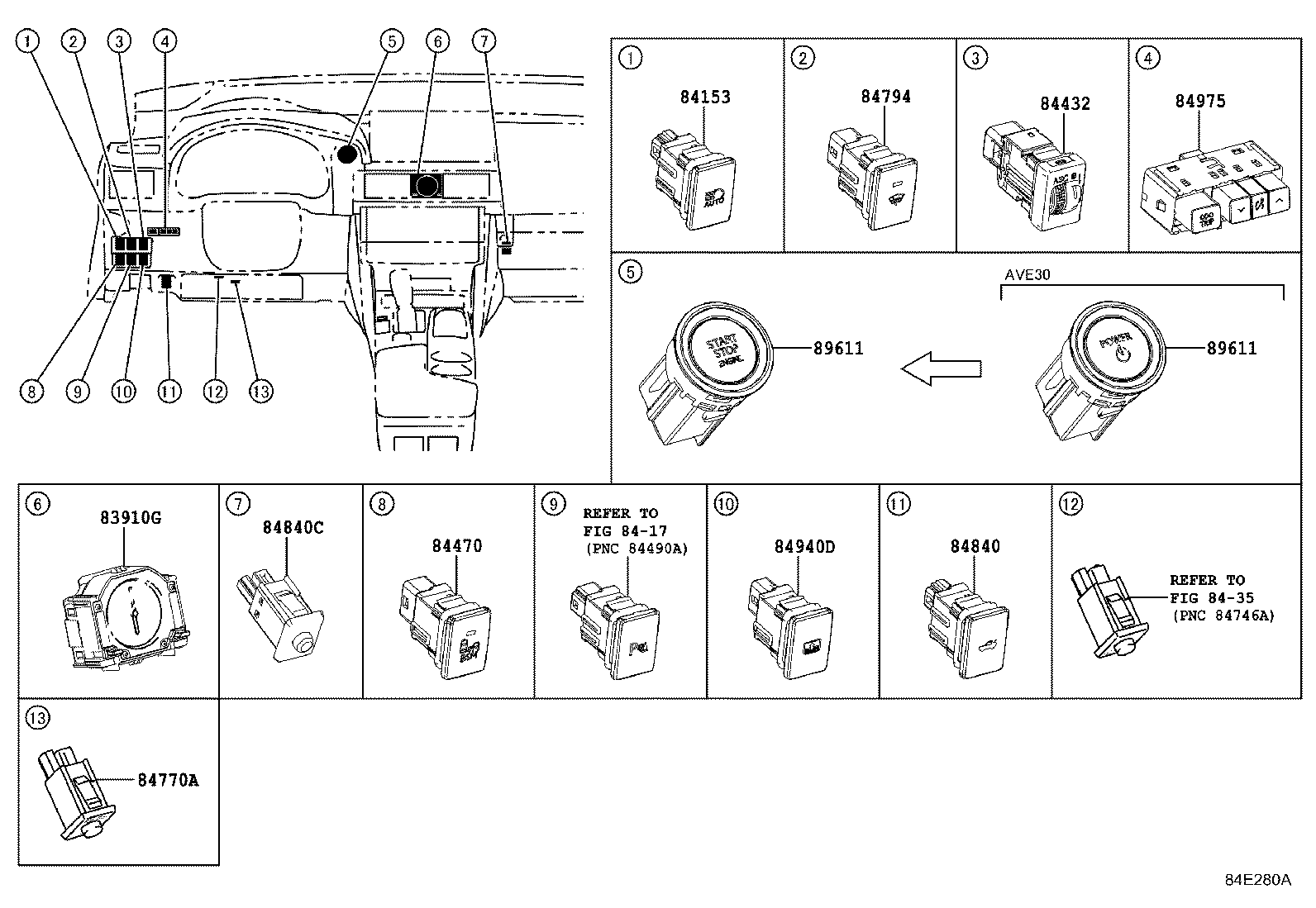

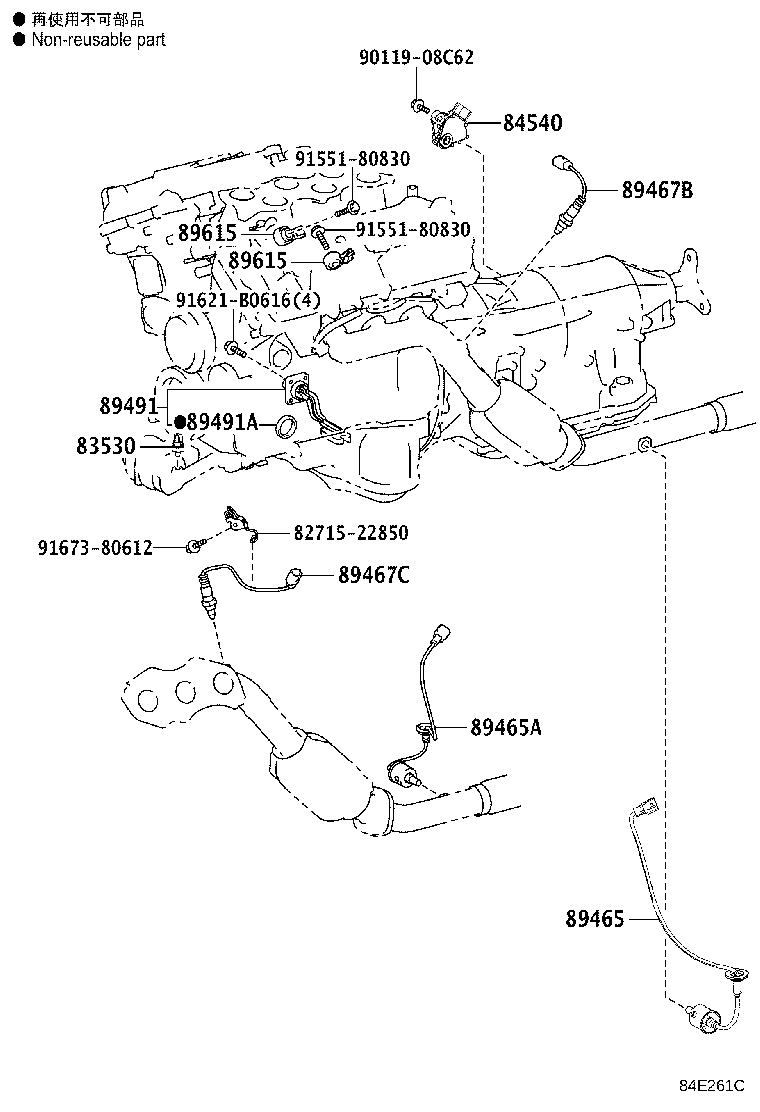

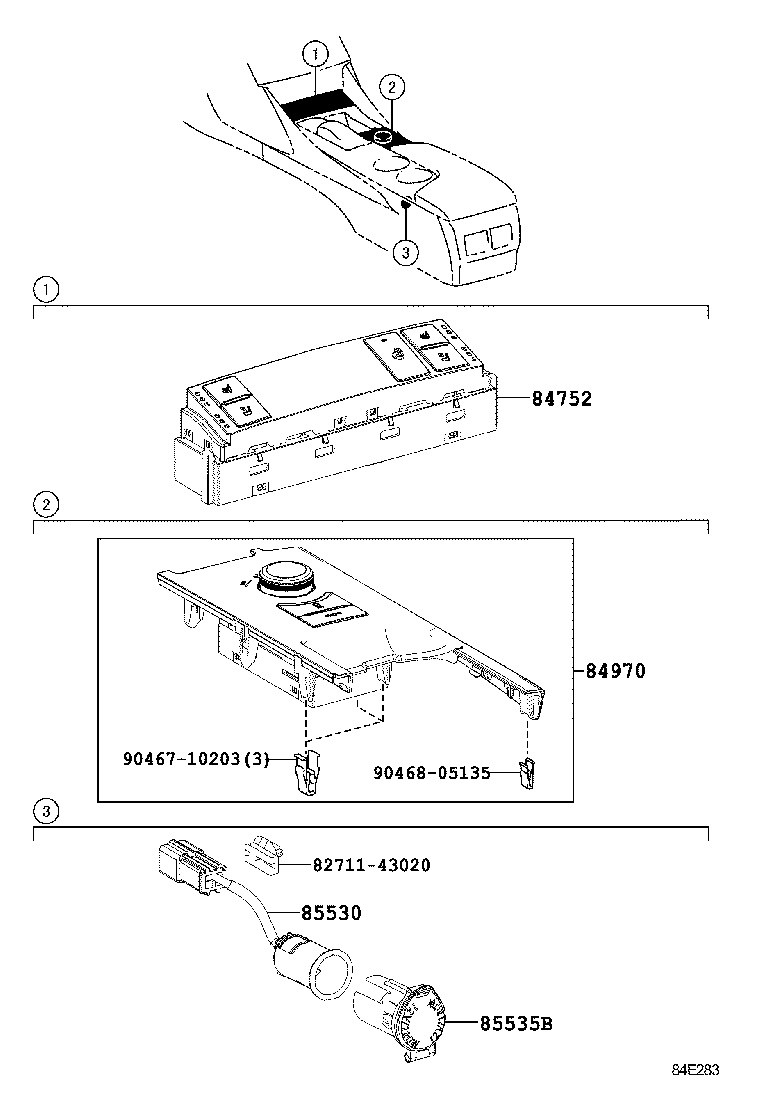

Figure 84E212E 84E212E 2013-04 → — Figure 84E261C 84E261C 2013-04 → 2015-08 Figure 84H739D 84H739D 2015-08 → — Figure 84E284E 84E284E 2013-04 → — Figure 84E288E 84E288E 2013-04 → — Figure 84E289F 84E289F 2013-04 → — Figure 84E290E 84E290E 2013-04 → — Figure 84G493C 84G493C 2013-04 → 2016-10 Figure 84G491B 84G491B 2013-04 → 2016-10 Figure 84G496C 84G496C 2013-04 → — Figure 84H748A 84H748A 2016-10 → — Figure 84H749A 84H749A 2016-10 → — Figure 84E278D 84E278D 2013-04 → — Figure 84E279D 84E279D 2013-04 → — Figure 84E280A 84E280A 2013-04 → — Figure 84E282 84E282 2013-04 → — Figure 84E281 84E281 2013-04 → — Figure 84E283 84E283 2013-04 → — Figure 84E270E 84E270E 2013-04 → — Figure 84E274A 84E274A 2013-04 → — Figure 84E276D 84E276D 2013-04 → — Figure 84E277C 84E277C 2013-04 → — Figure 84E275B 84E275B 2013-04 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
28850C Sensor Assy, Battery State
28891 Cover, Battery Terminal
69065A Cylinder Sub-assy, Airbag Cut Off Switch
82046F Wire Sub-assy, Body Ground, NO.1
82210M Fusible Link
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82600F Fuse, Fuse Block
82616 Puller, Fuse
82620B Block Assy, Fusible Link
82620D Block Assy, Fusible Link
82644 Computer, Semiconductor Power Integration
82660 Block Assy, Relay, Engine Room
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82660F Block Assy, Relay
82660G Block Assy, Relay
82660H Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82662C Cover, Relay Block, Upper, NO.3
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82663B Cover, Relay Block, Lower, NO.3
82666 Holder, Connector
82672A Cover, Junction Block
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82730 Block Assy, Instrument Panel Junction
82743 Block, Engine Room Relay, NO.3
82817H Protector, Wiring Harness
82877 Box, Computer Integration, RH
83320 Gage Assy, Fuel Sender
83320B Gage Assy, Fuel Sender, NO.2
83520 Gage Assy,Oil Pressure Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83910G Clock Assy
84040 Master Switch Assy,Multiplex Network
84140 Switch Assy, Headlamp Dimmer
84153 Switch, Auto High Beam
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral
84307 Cable Sub-assy, Spiral W/Sensor
84340 Switch Assy, Stop Lamp
84432 Switch, Vehicle Sound
84470 Switch Assy, Warning Canceling
84523 Wire, Switch NO.1
84523A Wire, Switch NO.2
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84610F Switch Assy, Transmission Shift
84650 Switch Assy, Windshield Wiper
84752 Switch, Refreshing Seat
84770A Switch Assy, Pre-collision System Cancel
84794 Switch, FR Wiper Deicer
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84840 Switch Assy, Luggage Compartment Door Opening
84840C Switch Assy, Luggage Door Opening, Cancel
84921C Knob, Power Seat Switch, RH
84921D Knob, Power Seat Switch, LH
84921J Knob, Power Seat Switch, RH
84921K Knob, Power Seat Switch, LH
84922A Switch, Front Power Seat(FOR LUMBAR)
84922B Switch, Front Power Seat, RH
84922C Switch, Front Power Seat, LH
84927B Switch, Seat Memory, RH
84927C Switch, Seat Memory, LH
84940D Switch Assy, Rear Sun Shade
84945A Switch, Luggage Electrical Key
84970 Switch Assy, Combination
84975 Switch, Trip
85530 Socket Assy, Power Outlet, NO.1
85535B Cover, Power Outlet Socket, NO.1
85910X Relay, Heater Mirror
85911D Relay, Rear Sunshade
85916P Relay, Headlamp
85924C Relay, Igct
85927 Relay, Cooling Fan
85939A Relay, Steering Heater
85942 Relay, Headlamp Cleaner Control
85948 Relay, Windshield Wiper
85970A Relay Assy, Double Lock Door Control
86530 Relay Assy, Horn
87200H Relay, Heater Water Pump
87346K Relay, Ptc Heater
88150A Computer Assy, Driving Support
88162 Sensor, Blind Spot Monitor, RH
88172 Sensor, Blind Spot Monitor, LH
88790F Thermistor Assy
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89221 Computer, Multiplex Network Body
89227 Computer, Multiplex Tilt & Telescopic
89235A Switch, Tilt & Telescopic
89245B Sensor, Steering
89257 Computer, Cooling Fan
89429F Sensor, Temperature
89430 Computer Assy, Outer Mirror Control
89451A Sensor, Shift Lever Position
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89467C Sensor, Air Fuel Ratio, NO.2
89491 Sensor, Engine Oil Level
89491A Gasket, Engine Oil Level Sensor
89539Q Bracket, Computer
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89650E Relay, Electric Power Steering
89658B Bracket, Power Steering, NO.1
89681A Computer, Power Management Control
89730A Relay(FOR SECURITY WARNING)
89747F Buzzer, Blind Spot Monitor
89960 Computer Assy, Headlamp Leveling
89980 Computer Assy, Hybrid Vehicle Control
G9020E Relay, Hybrid Water Pump
