Toyota Lexus IS2###/3###
2013-04 → present · chassis ASE30,AVE30,GSE30 · catalogue 242530 · Europe
Supported model
Data version 2018-09
Abs & Vsc

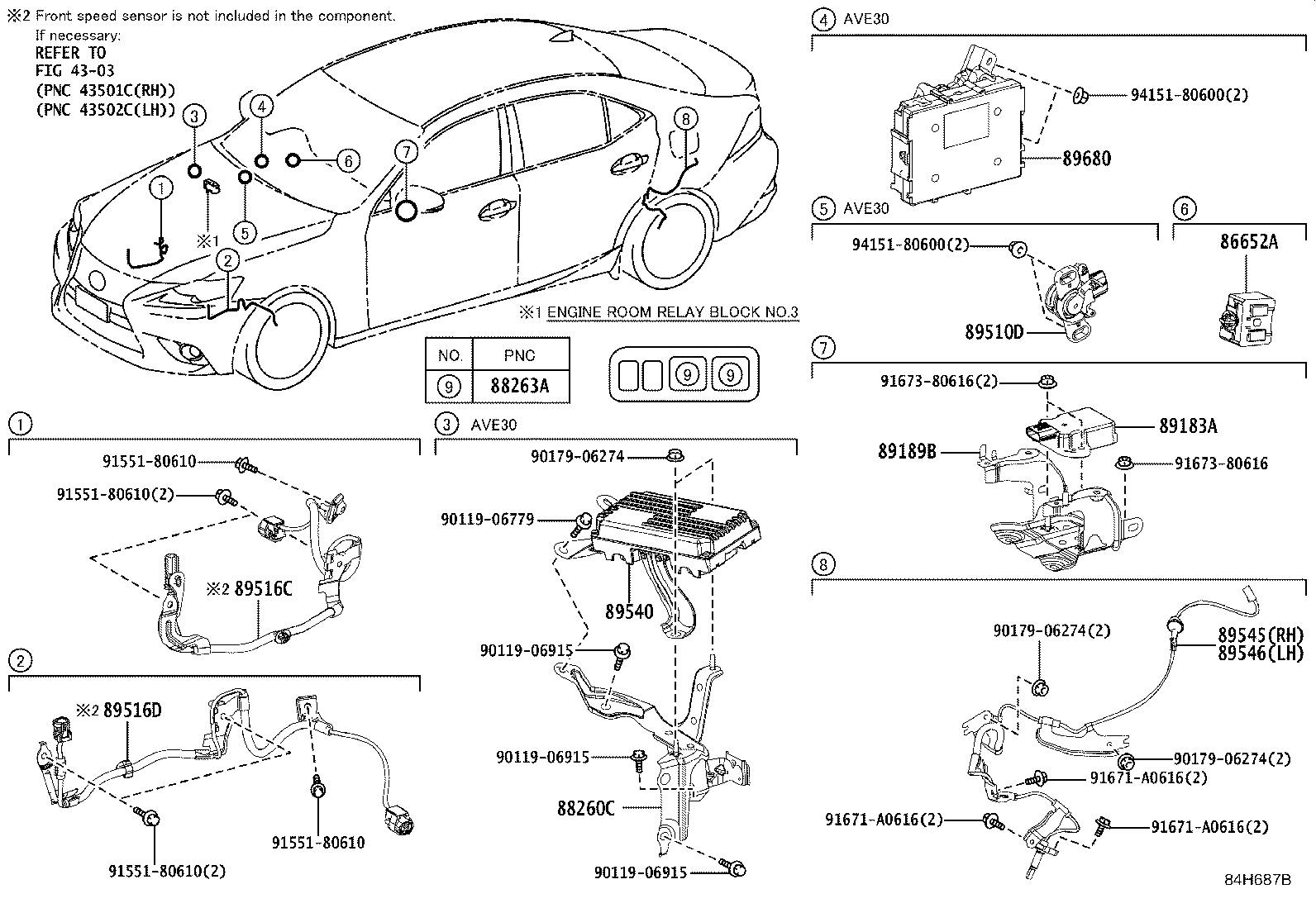

12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86652A | Buzzer Assy, Skid Control |
| 88260C | Bracket Assy, Skid Control Computer |
| 88263A | Relay, Skid Control |
| 89183A | Sensor, Yawrate |
| 89189B | Bracket, Yawrate Sensor |
| 89510D | Sensor Assy, Brake Pedal Stroke |
| 89516C | Wire, Skid Control Sensor, RH |
| 89516D | Wire, Skid Control Sensor, LH |
| 89540 | Computer Assy, Skid Control |
| 89545 | Sensor, Speed, Rear RH |
| 89546 | Sensor, Speed, Rear LH |
| 89680 | Supply Assy, Brake Control Power |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
