Toyota Lexus IS2###/3###
2013-04 → present · chassis ASE30,AVE30,GSE30 · catalogue 242530 · Europe
Supported model
Data version 2018-09
Clearance & Back Sonar

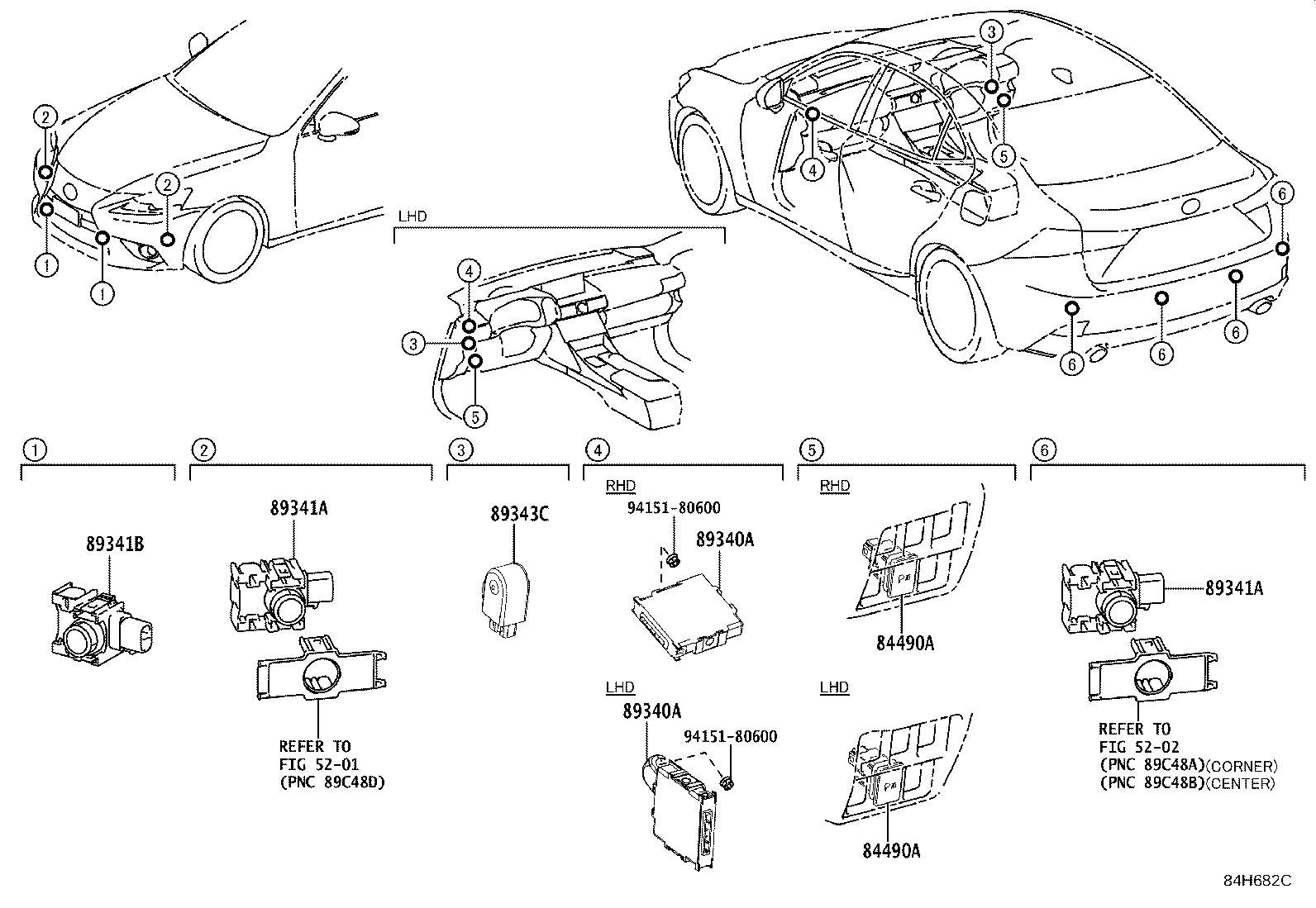

6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 84490A | Switch Assy, Back Sonar OR Clearance Sonar |
| 89340A | Computer Assy, Clearance Warning |
| 89341A | Sensor, Ultrasonic, NO.1 |
| 89341B | Sensor, Ultrasonic, NO.2 |
| 89343C | Buzzer, Clearance Warning, NO.1 |
| 89348D | Clip, Ultrasonic Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
