Toyota Lexus IS2###/3###

2013-04 → present · chassis ASE30,AVE30,GSE30 · catalogue 242530 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

9 part groups · 4 illustrations

Illustrations

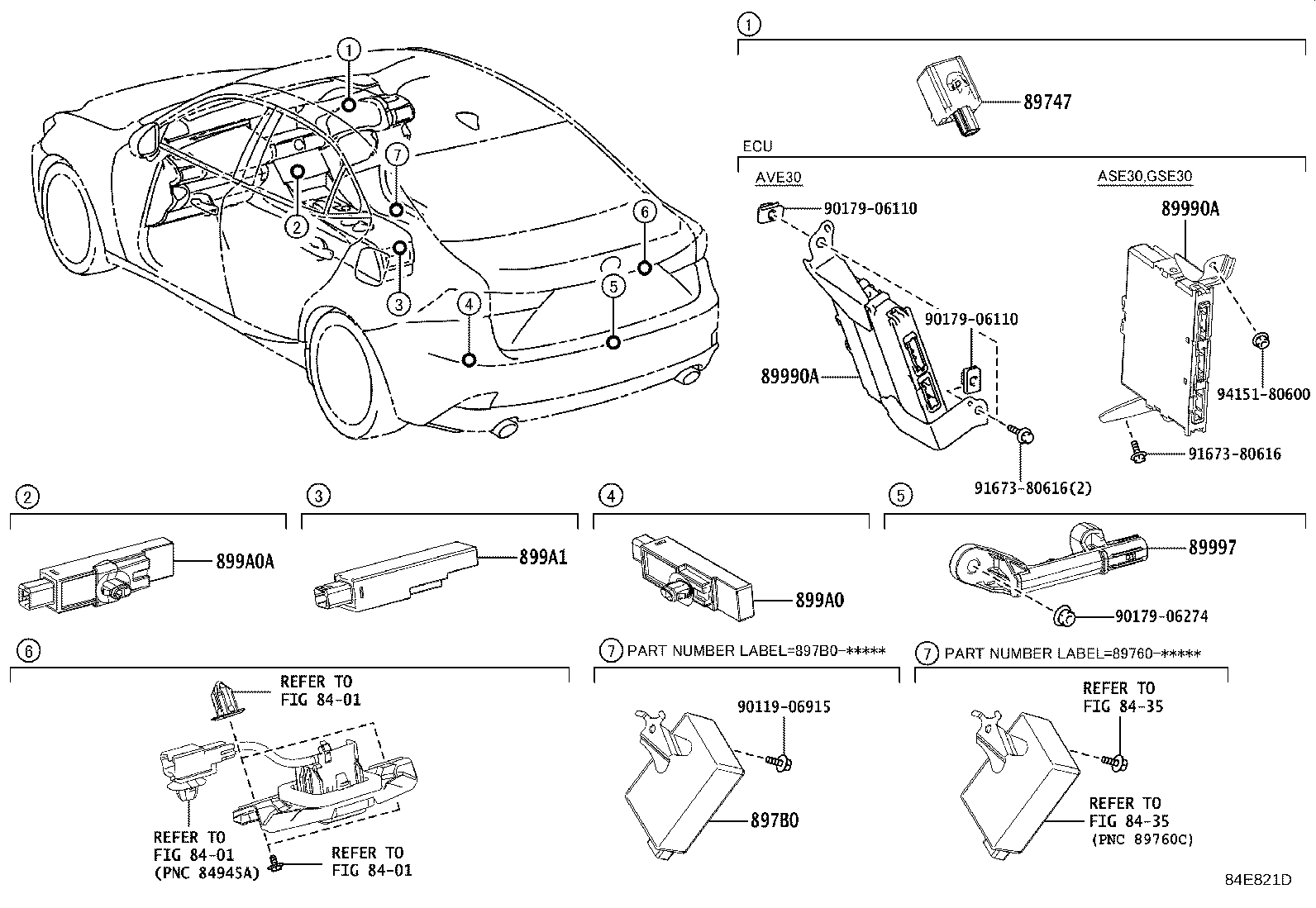

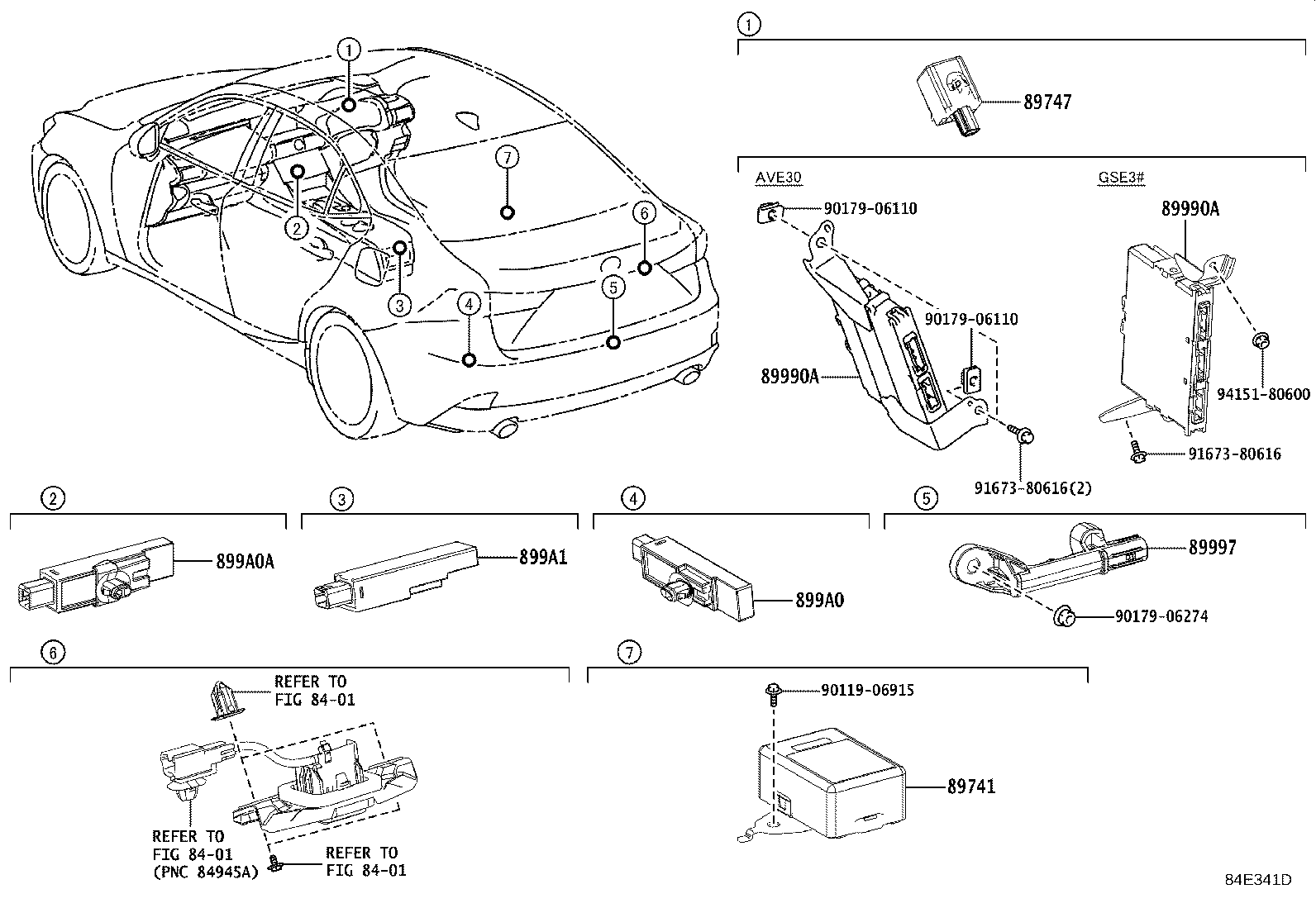

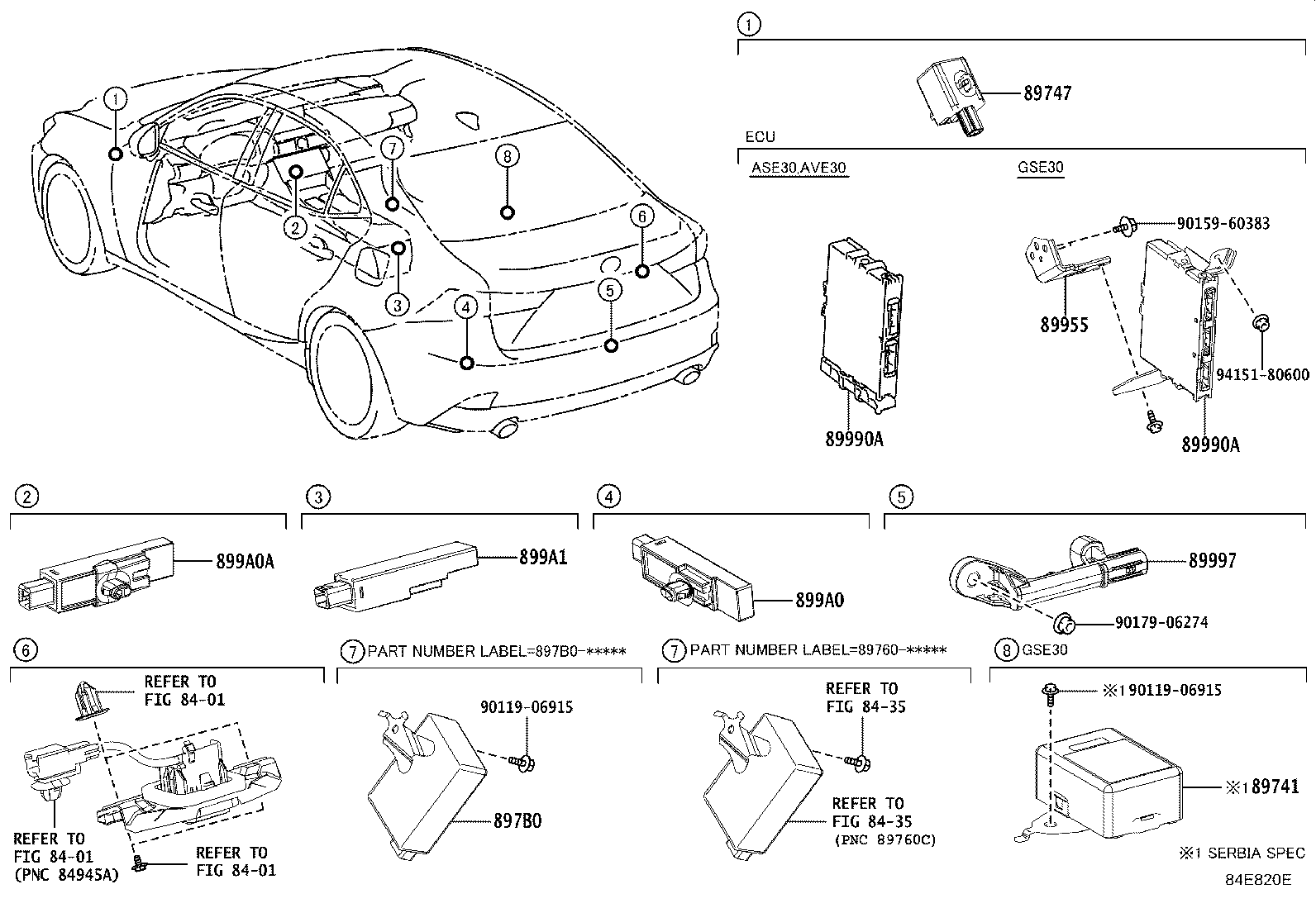

Figure 84E340C 84E340C 2013-04 → 2014-07 Figure 84E820E 84E820E 2014-07 → — Figure 84E341D 84E341D 2013-04 → 2014-07 Figure 84E821D 84E821D 2014-07 → —

Part groups

PNCDescription
89741 Receiver, Door Control
89747 Buzzer, Wireless Door Lock
897B0 Receiver Assy, Electrical Key & Tpms
89955 Bracket, Smart Key Computer
89990A Computer Assy, Smart Key
89997 Antenna, Electrical Key
899A0 Antenna Assy, Indoor Electrical Key, NO.1
899A0A Antenna Assy, Indoor Electrical Key, NO.2
899A1 Antenna, Indoor Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
