Toyota Lexus IS2###/3###

2013-04 → present · chassis ASE30,AVE30,GSE30 · catalogue 242530 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hev Inverter

10 part groups · 2 illustrations

Illustrations

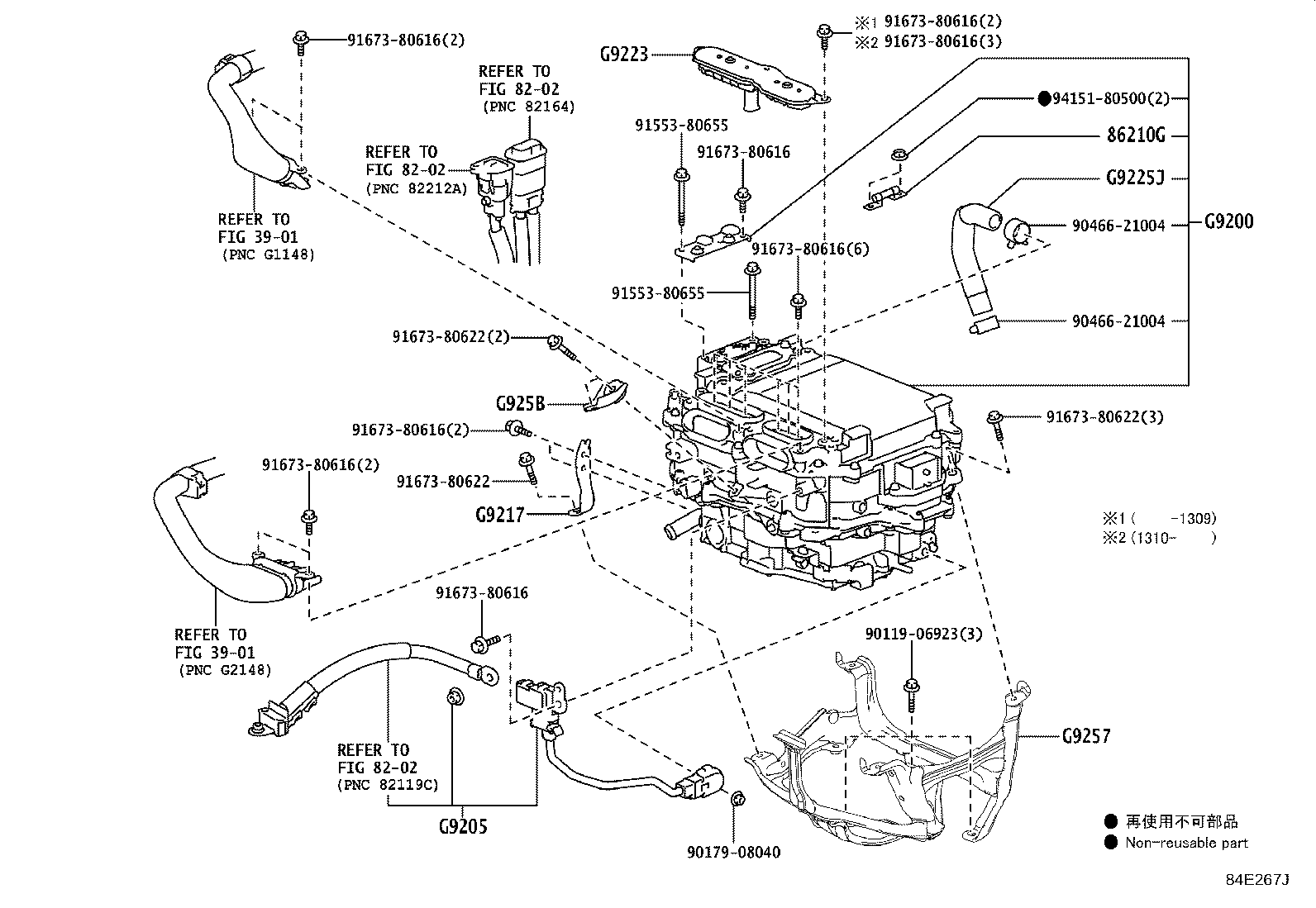

Figure 84E266J 84E266J 2013-04 → — Figure 84E267J 84E267J 2013-04 → —

Part groups

PNCDescription
82650G Block Assy, Terminal
86210G Fuse, High Voltage
G9118A Label, HV Motor Control Inverter Caution
G9200 Inverter Assy, W/Converter
G9205 Plate Sub-assy, Inverter Bus-bar
G9217 Bracket, Inverter, NO.4
G9223 Cover, Inverter Terminal
G9225J Hose, Inverter Cooling, NO.1
G9257 Bracket, Inverter, NO.5
G925B Bracket, Inverter, NO.6
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
