Toyota Lexus IS2###/3###

2013-04 → present · chassis ASE30,AVE30,GSE30 · catalogue 242530 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

14 part groups · 6 illustrations

Illustrations

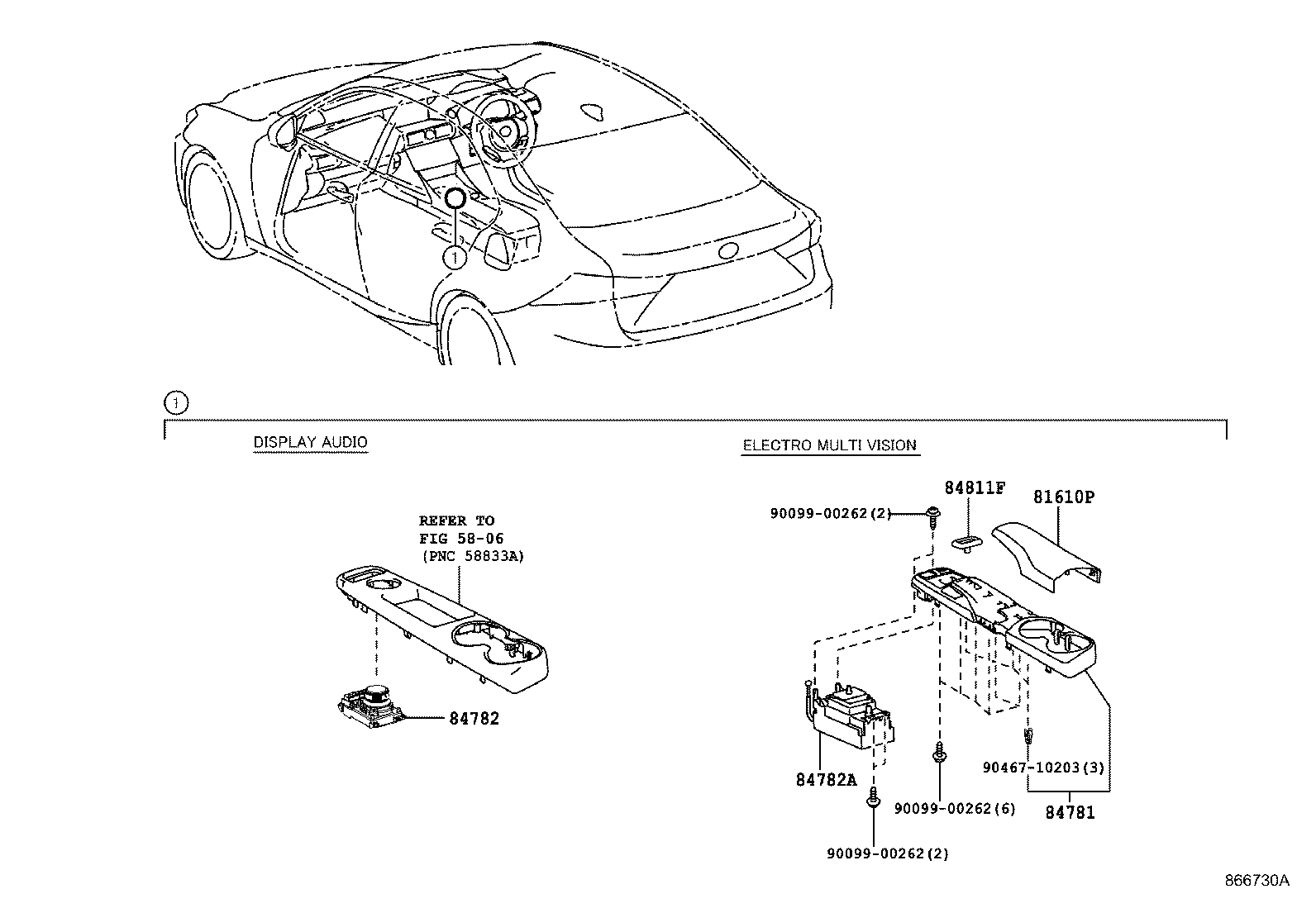

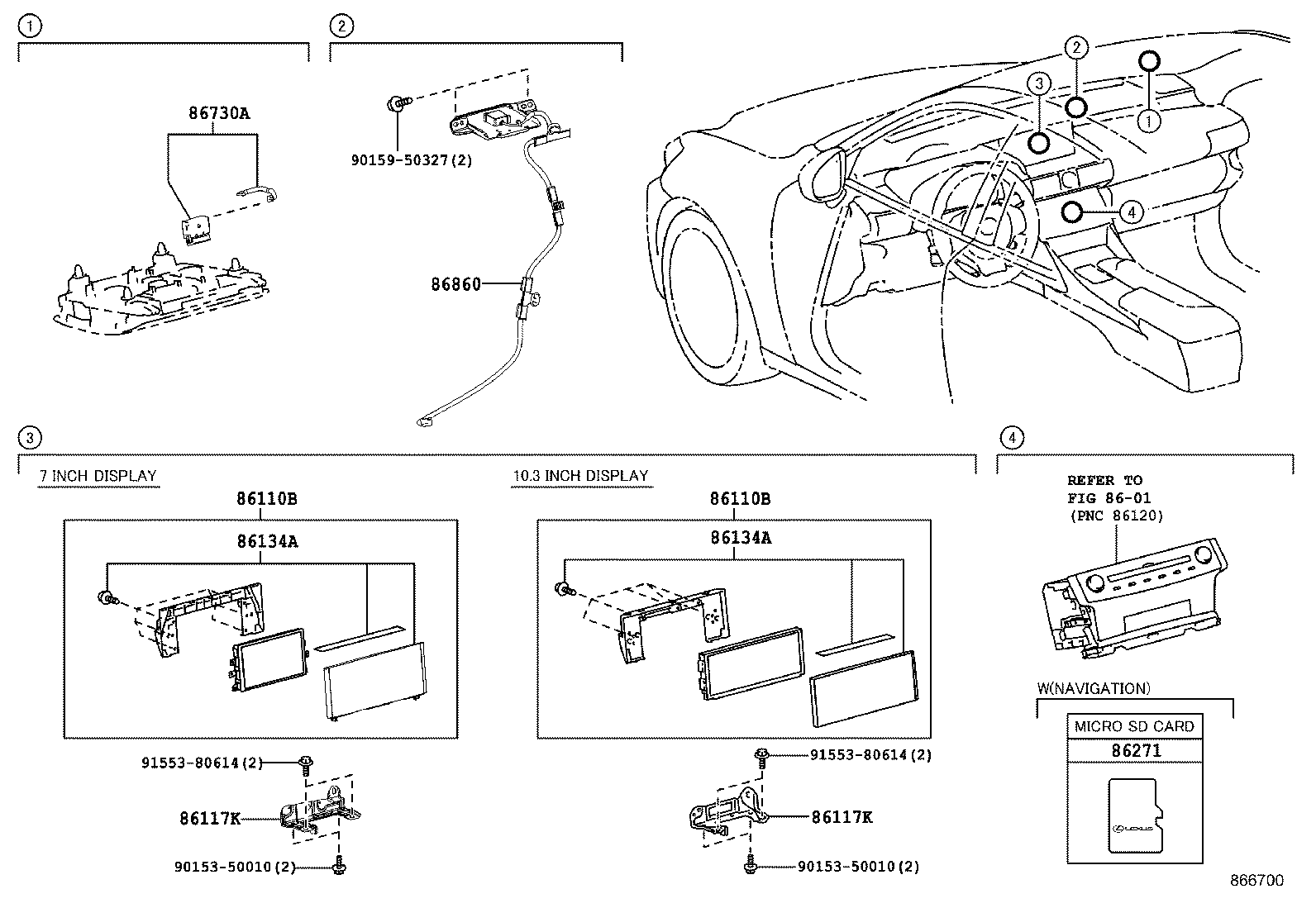

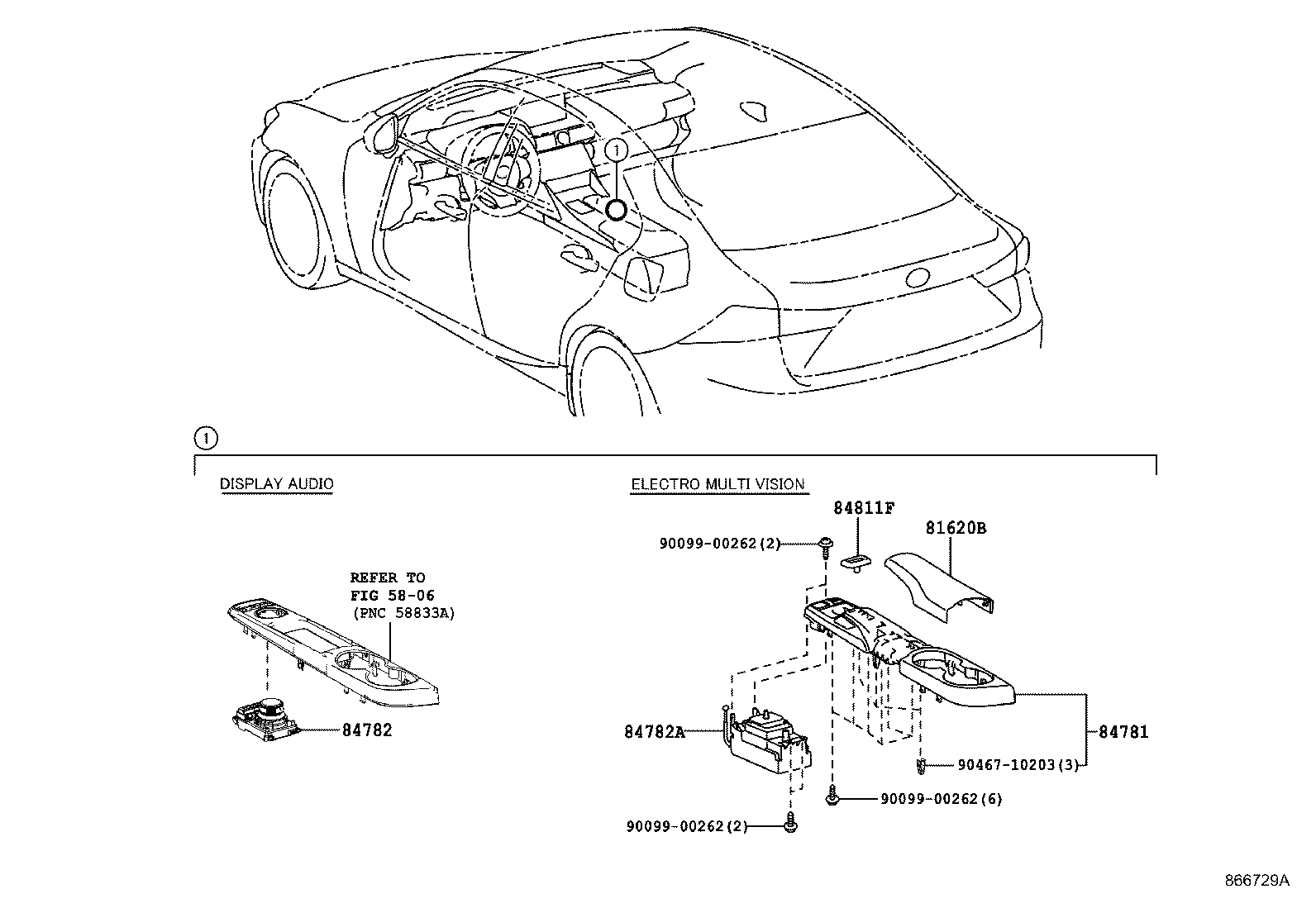

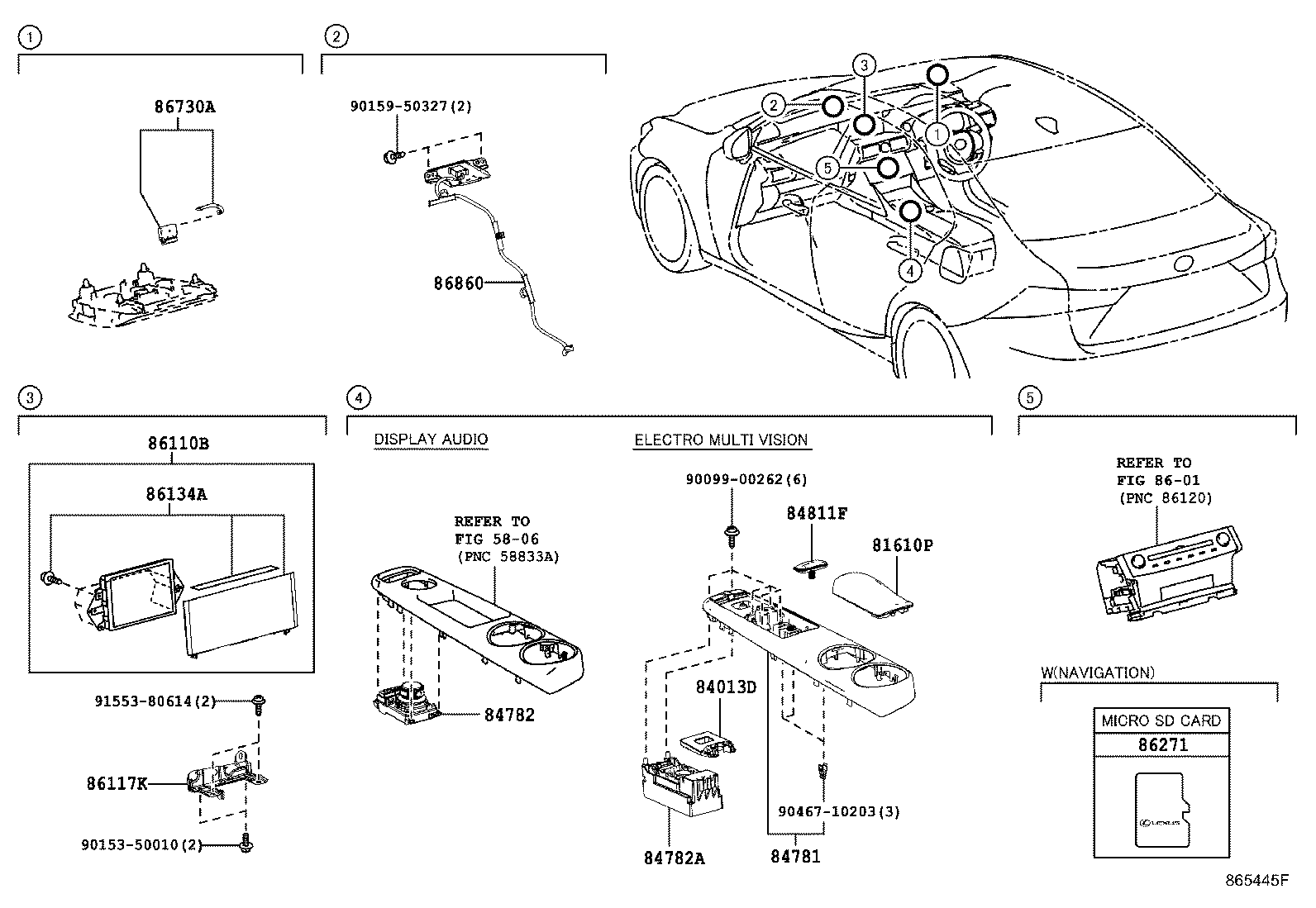

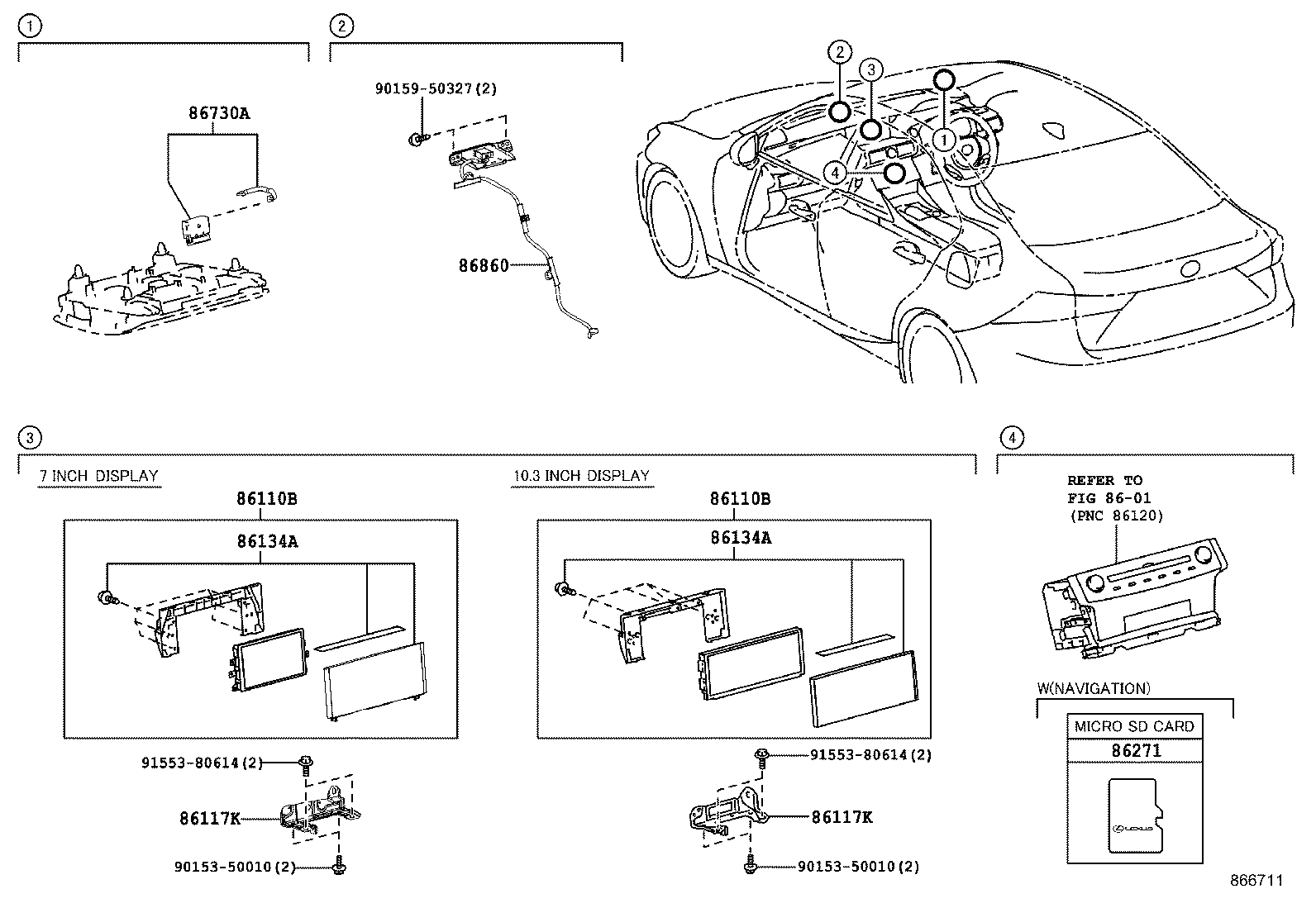

Figure 865444F 865444F 2013-04 → 2016-10 Figure 865445F 865445F 2013-04 → 2016-10 Figure 866700 866700 2016-10 → — Figure 866711 866711 2016-10 → — Figure 866729A 866729A 2016-10 → — Figure 866730A 866730A 2016-10 → —

Part groups

PNCDescription
81610P Cover Assy, RH
81620B Cover Assy LH
84013D Panel Sub-assy, Integration
84781 Switch, Remote Operation
84782 Board, Remote Operation
84782A Board, Remote Operation
84811F Knob, Switch
86110B Multi-display Assy
86117K Bracket, Multi-display, NO.1
86134A Parts, Multi-display
86250E Microphone Assy, Amplifier
86271 Disc, Disc Player
86730A Microphone Assy, Telephone
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
