Toyota Lexus IS F
2007-12 → 2014-08 · chassis USE20 · catalogue 245510 · Europe
Supported model
Data version 2015-01

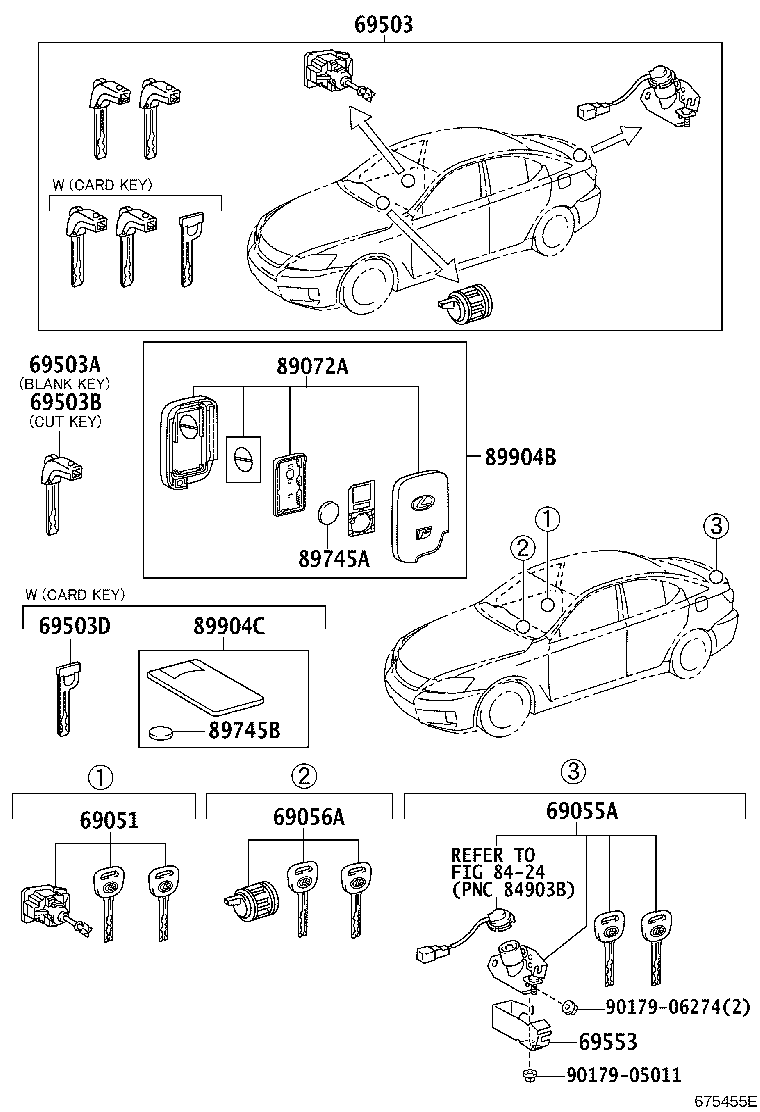

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 69051 — Cylinder & Key Set, Door Lock, RH | ||||
| 69051-50180 |
Cylinder & Key Set, Door Lock, RH
2007-12 → —
|
USE20 RHD | — | |
| 69055A — Cylinder & Key Set, Luggage Compartment Lock | ||||
| 69055-53050 |
Cylinder & Key Set, Luggage Compartment Lock
2007-12 → —
|
USE20 | — | |
| 69056A — Cylinder & Key Set, Glove Compartment Lock | ||||
| 69056-50160 |
Cylinder & Key Set, Glove Compartment Lock
2007-12 → —
|
USE20 | — | |
| 69503 — Cylinder Set, Lock | ||||
| 69005-53300 note |
Cylinder Set, Lock
2007-12 → 2008-08
ended
|
USE20 RHD | — | |
| 69005-53300 note |
Cylinder Set, Lock
2007-12 → 2008-08
ended
|
USE20 RHD | — | |
| 69005-53310 |
Cylinder Set, Lock
2007-12 → —
|
USE20 RHD | — | |
| 69005-53320 |
Cylinder Set, Lock
2007-12 → —
|
USE20 LHD | — | |
| 69005-53350 note |
Cylinder Set, Lock
2008-08 → —
|
USE20 RHD | — | |
| 69005-53350 note |
Cylinder Set, Lock
2008-08 → —
|
USE20 RHD | — | |
| 69005-53350 note |
Cylinder Set, Lock
2008-08 → —
|
USE20 RHD | — | |
| 69005-53360 note |
Cylinder Set, Lock
2008-08 → —
|
USE20 LHD | — | |
| 69503A — Key, Blank | ||||
| 69515-50260 note |
Key, Blank
2007-12 → 2014-08
ended
|
USE20 | — | |
| 69503B — Key, Cut | ||||
| 69515-50240 note |
Key, Cut
2007-12 → 2014-08
ended
|
USE20 | — | |
| 69503D — Key, Cut(CARD KEY) | ||||
| 69515-30330 note |
Key, Cut(CARD KEY)
2009-11 → —
|
USE20 | — | |
| 69515-30330 note |
Key, Cut(CARD KEY)
2009-11 → —
|
USE20 RHD | — | |
| 69515-30330 note |
Key, Cut(CARD KEY)
2009-11 → —
|
USE20 RHD | — | |
| 69515-50220 note |
Key, Cut(CARD KEY)
2008-08 → 2009-10
ended
|
USE20 RHD | — | |
| 69515-50220 note |
Key, Cut(CARD KEY)
2008-08 → 2009-10
ended
|
USE20 | — | |
| 69515-50220 note |
Key, Cut(CARD KEY)
2008-08 → 2009-10
ended
|
USE20 RHD | — | |
| 69553 — Protector, Luggage Compartment Key Cylinder | ||||
| 69553-50010 |
Protector, Luggage Compartment Key Cylinder
2007-12 → —
|
USE20 | — | |
| 89072A — Housing Set, Door Control Transmitter | ||||
| 89072-53320 note |
Housing Set, Door Control Transmitter
2010-08 → —
|
USE20 LHD | — | |
| 89072-53320 note |
Housing Set, Door Control Transmitter
2010-08 → —
|
USE20 LHD | — | |
| 89072-53350 note |
Housing Set, Door Control Transmitter
2011-04 → —
|
USE20 RHD | — | |
| 89072-53350 note |
Housing Set, Door Control Transmitter
2011-04 → —
|
USE20 RHD | — | |
| 89072-53350 note |
Housing Set, Door Control Transmitter
2011-04 → —
|
USE20 RHD | — | |
| 89072-53350 note |
Housing Set, Door Control Transmitter
2011-04 → —
|
USE20 RHD | — | |
| 89072-53391 note |
Housing Set, Door Control Transmitter
2008-08 → 2011-04
ended
|
USE20 RHD | — | |
| 89072-53391 note |
Housing Set, Door Control Transmitter
2008-08 → 2011-04
ended
|
USE20 RHD | — | |
| 89072-53391 note |
Housing Set, Door Control Transmitter
2008-08 → 2011-04
ended
|
USE20 RHD | — | |
| 89072-53391 note |
Housing Set, Door Control Transmitter
2008-08 → 2011-04
ended
|
USE20 RHD | — | |
| 89072-53391 note |
Housing Set, Door Control Transmitter
2007-12 → 2008-08
ended
|
USE20 RHD | — | |
| 89072-53391 note |
Housing Set, Door Control Transmitter
2007-12 → 2008-08
ended
|
USE20 RHD | — | |
| 89072-53401 |
Housing Set, Door Control Transmitter
2008-08 → —
|
USE20 | — | |
| 89072-53401 |
Housing Set, Door Control Transmitter
2007-12 → 2008-08
ended
|
USE20 | — | |
| 89745A — Battery, Transmitter | ||||
| 89745-52020 |
Battery, Transmitter
2007-12 → —
|
USE20 | — | |
| 89745B — Battery, Transmitter(CARD KEY) | ||||
| 89745-50030 note |
Battery, Transmitter(CARD KEY)
2008-08 → 2010-07
ended
|
USE20 RHD | — | |
| 89745-50030 note |
Battery, Transmitter(CARD KEY)
2008-08 → 2010-07
ended
|
USE20 RHD | — | |
| 89745-50030 note |
Battery, Transmitter(CARD KEY)
2008-08 → —
|
USE20 | — | |
| 89745-50030 note |
Battery, Transmitter(CARD KEY)
2010-08 → —
|
USE20 RHD | — | |
| 89745-50030 note |
Battery, Transmitter(CARD KEY)
2010-08 → —
|
USE20 RHD | — | |
| 89745-50030 note |
Battery, Transmitter(CARD KEY)
2010-08 → —
|
USE20 LHD | — | |
| 89904B — Transmitter Sub-assy, Electrical Key | ||||
| 89904-53060 note |
Transmitter Sub-assy, Electrical Key
2007-12 → 2008-08
ended
|
USE20 RHD | — | |
| 89904-53060 note |
Transmitter Sub-assy, Electrical Key
2007-12 → 2008-08
ended
|
USE20 RHD | — | |
| 89904-53070 |
Transmitter Sub-assy, Electrical Key
2007-12 → 2008-08
ended
|
USE20 | — | |
| 89904-53190 note |
Transmitter Sub-assy, Electrical Key
2008-08 → 2011-04
ended
|
USE20 RHD | — | |
| 89904-53190 note |
Transmitter Sub-assy, Electrical Key
2008-08 → 2011-04
ended
|
USE20 RHD | — | |
| 89904-53190 note |
Transmitter Sub-assy, Electrical Key
2008-08 → 2011-04
ended
|
USE20 RHD | — | |
| 89904-53190 note |
Transmitter Sub-assy, Electrical Key
2008-08 → 2011-04
ended
|
USE20 RHD | — | |
| 89904-53200 |
Transmitter Sub-assy, Electrical Key
2008-08 → 2009-07
ended
|
USE20 | — | |
| 89904-53230 |
Transmitter Sub-assy, Electrical Key
2009-08 → —
|
USE20 | — | |
| 89904-53380 note |
Transmitter Sub-assy, Electrical Key
2010-08 → —
|
USE20 LHD | — | |
| 89904-53380 note |
Transmitter Sub-assy, Electrical Key
2010-08 → —
|
USE20 LHD | — | |
| 89904-53430 note |
Transmitter Sub-assy, Electrical Key
2011-04 → —
|
USE20 RHD | — | |
| 89904-53430 note |
Transmitter Sub-assy, Electrical Key
2011-04 → —
|
USE20 RHD | — | |
| 89904-53430 note |
Transmitter Sub-assy, Electrical Key
2011-04 → —
|
USE20 RHD | — | |
| 89904-53430 note |
Transmitter Sub-assy, Electrical Key
2011-04 → —
|
USE20 RHD | — | |
| 89904C — Transmitter Sub-assy, Electrical Key(CARD KEY) | ||||
| 89904-50480 note |
Transmitter Sub-assy, Electrical Key(CARD KEY)
2008-08 → 2009-08
ended
|
USE20 RHD | — | |
| 89904-50480 note |
Transmitter Sub-assy, Electrical Key(CARD KEY)
2008-08 → 2009-08
ended
|
USE20 RHD | — | |
| 89904-50500 note |
Transmitter Sub-assy, Electrical Key(CARD KEY)
2008-08 → 2009-08
ended
|
USE20 | — | |
| 89904-53130 note |
Transmitter Sub-assy, Electrical Key(CARD KEY)
2009-08 → 2010-07
ended
|
USE20 RHD | — | |
| 89904-53130 note |
Transmitter Sub-assy, Electrical Key(CARD KEY)
2009-08 → 2010-07
ended
|
USE20 RHD | — | |
| 89904-53131 note |
Transmitter Sub-assy, Electrical Key(CARD KEY)
2010-08 → —
|
USE20 RHD | — | |
| 89904-53131 note |
Transmitter Sub-assy, Electrical Key(CARD KEY)
2010-08 → —
|
USE20 RHD | — | |
| 89904-53150 note |
Transmitter Sub-assy, Electrical Key(CARD KEY)
2009-08 → 2010-08
ended
|
USE20 | — | |
| 89904-53390 note |
Transmitter Sub-assy, Electrical Key(CARD KEY)
2010-08 → —
|
USE20 LHD | — | |
| 89904-53420 note |
Transmitter Sub-assy, Electrical Key(CARD KEY)
2010-08 → 2011-06
ended
|
USE20 | — | |
| 89904-53420 note |
Transmitter Sub-assy, Electrical Key(CARD KEY)
2011-07 → —
|
USE20 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
