Toyota Lexus IS F
2007-12 → 2014-08 · chassis USE20 · catalogue 245510 · Europe
Supported model
Data version 2015-01
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

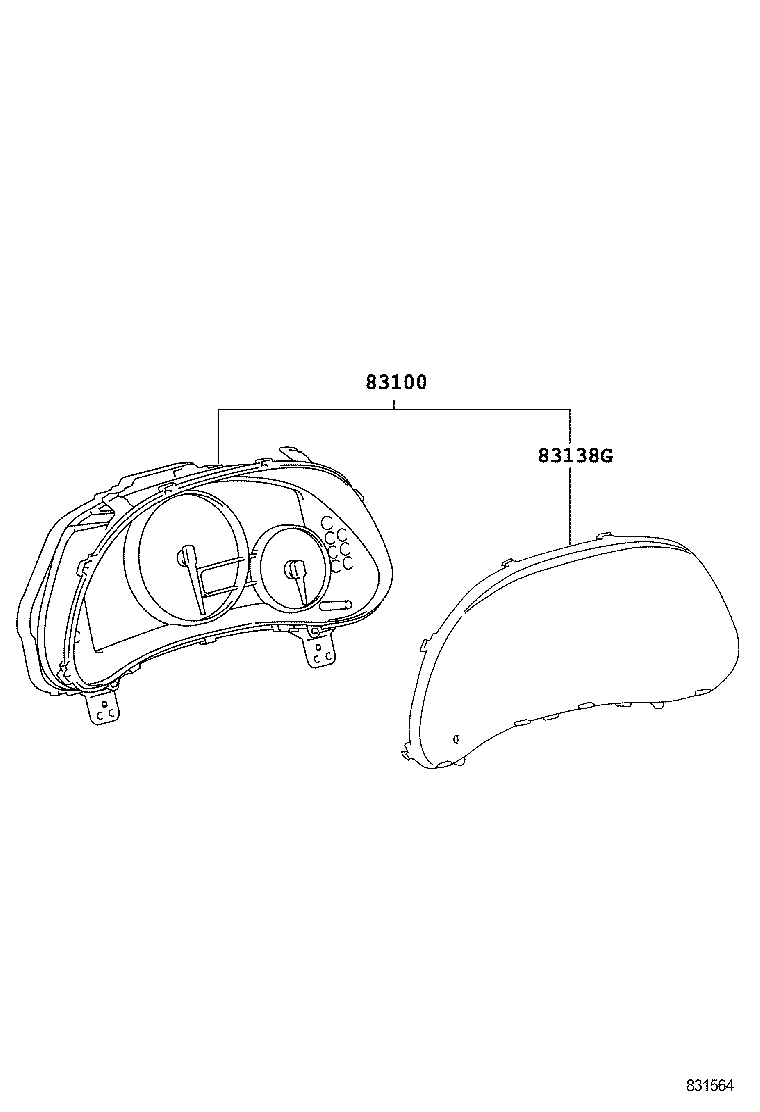

| 83100 — Meter Assy, Combination | ||||
| 83800-53800 |
Meter Assy, Combination
2007-12 → 2009-08
ended
|
USE20 RHD | — | |
| 83800-53801 |
Meter Assy, Combination
2009-08 → 2010-08
ended
|
USE20 RHD | — | |
| 83800-53810 |
Meter Assy, Combination
2007-12 → 2009-08
ended
|
USE20 LHD | — | |
| 83800-53811 |
Meter Assy, Combination
2009-08 → 2010-08
ended
|
USE20 LHD | — | |
| 83800-53850 note |
Meter Assy, Combination
2007-12 → 2009-08
ended
|
USE20 RHD | — | |
| 83800-53850 note |
Meter Assy, Combination
2007-12 → 2009-08
ended
|
USE20 RHD | — | |
| 83800-53851 note |
Meter Assy, Combination
2009-08 → 2010-08
ended
|
USE20 RHD | — | |
| 83800-53851 note |
Meter Assy, Combination
2009-08 → 2010-08
ended
|
USE20 RHD | — | |
| 83800-53E10 |
Meter Assy, Combination
2010-08 → —
|
USE20 RHD | — | |
| 83800-53E20 |
Meter Assy, Combination
2010-08 → —
|
USE20 LHD | — | |
| 83800-53E40 note |
Meter Assy, Combination
2010-08 → —
|
USE20 RHD | — | |
| 83800-53E40 note |
Meter Assy, Combination
2010-08 → —
|
USE20 RHD | — | |
| 83138G — Glass, Combination Meter | ||||
| 83852-53820 |
Glass, Combination Meter
2007-12 → 2010-08
ended
|
USE20 | — | |
| 83852-53E30 |
Glass, Combination Meter
2010-08 → —
|
USE20 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
