Toyota Lexus IS F

2007-12 → 2014-08 · chassis USE20 · catalogue 245510 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Injection System

44 part groups · 2 illustrations

Illustrations

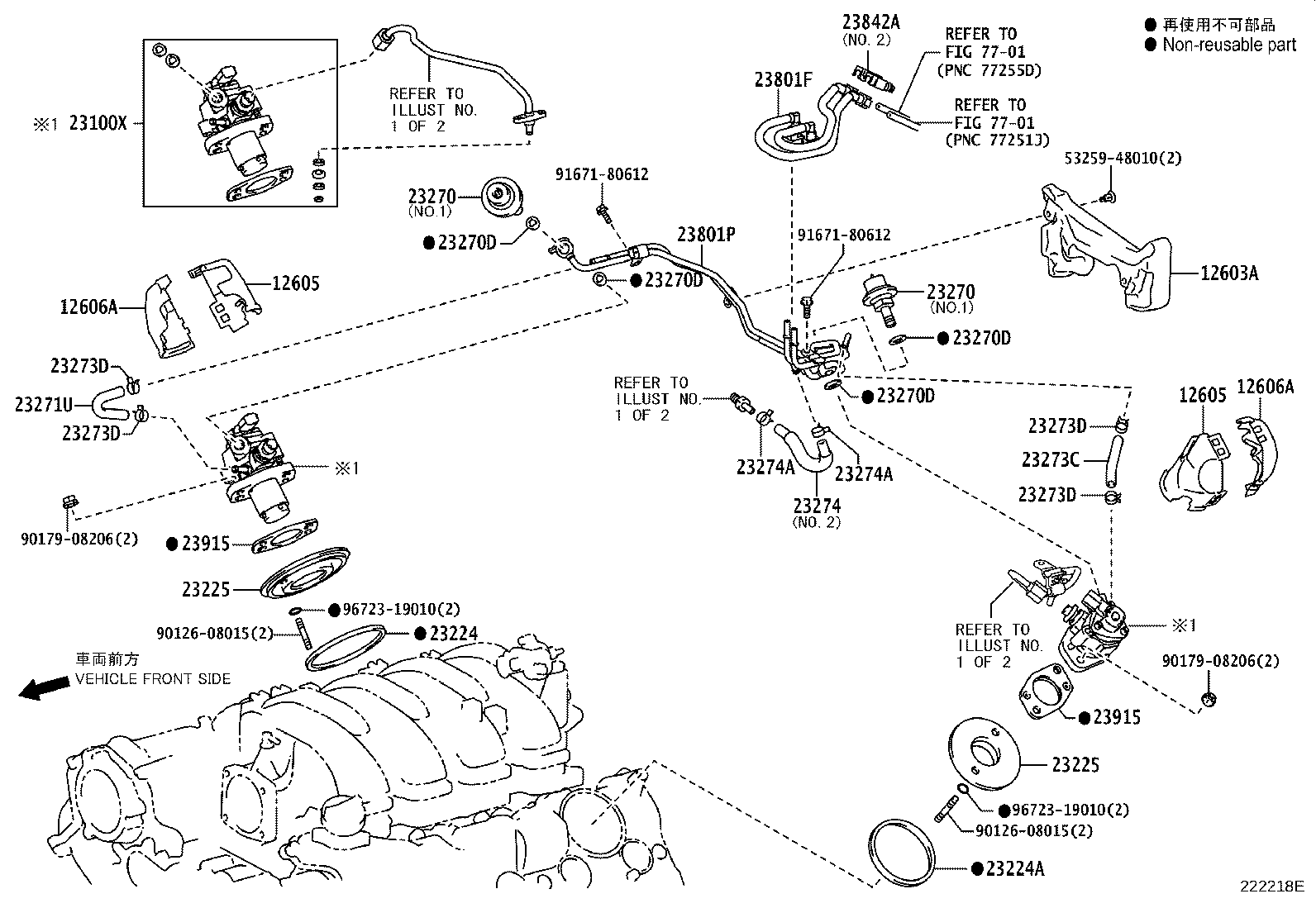

Figure 222217I 222217I 2007-12 → — Figure 222218E 222218E 2007-12 → —

Part groups

PNCDescription
12603A Cover, Sub-assy, Engine, NO.3
12605 Cover Sub-assy, Engine, RH
12606A Cover Sub-assy, Engine, LH
20320 Valve Assy, Fuel Relief
22210 Body Assy, Throttle
22271 Gasket, Throttle Body
23100X Pump Assy, Fuel (ENGINE ROOM SIDE)
23224 Gasket, Fuel Pump Spacer, RH
23224A Gasket, Fuel Pump Spacer, LH
23225 Spacer, Fuel Pump
23250B Ring, O(FOR FUEL INJECTOR)
23250E Injector Assy, Fuel(FOR DIRECT)
23250F Injector Assy, Fuel(FOR PORT)
23255A Seal, Fuel Injector
23256 Ring, Fuel Injector Back-up, NO.1
23256A Ring, Fuel Pipe, NO.1
23257 Ring, Fuel Injector Back-up, NO.2
23257A Ring, Fuel Pipe, NO.2
23258 Ring, Fuel Injector Back-up, NO.3
23270 Damper Assy, Fuel Pressure Pulsation
23270D Gasket(FOR PULSATION DAMPER)
23271U Hose, Fuel, NO.1
23273C Hose, Fuel, NO.2
23273D Clip(FOR FUEL HOSE NO.2)
23274 Hose, Fuel, NO.3
23274A Clip(FOR HOSE, FUEL, NO.3)
23291A Insulator, Injector Vibration
23695A Clamp, Nozzle Holder
23801F Hose, Fuel, NO.1
23801P Pipe Sub-assy, Fuel, NO.1
23802B Pipe Sub-assy, Fuel, NO.2
23803B Pipe Sub-assy, Fuel, NO.3
23804 Pipe Sub-assy, Fuel, NO.4
23807 Pipe Sub-assy, Fuel Delivery
23807R Plug, Fuel Delivary Pipe
23807V Spacer, NO.1(FOR DELIVERY PIPE)
23808 Pipe Sub-assy, Fuel Delivery, NO.2
23809 Support Sub-assy, Fuel Pipe
23814B Pipe, Fuel Delivery
23841B Clamp, Fuel Pipe, NO.1(FOR EFI)
23842A Clamp, Fuel Pipe, NO.2(FOR EFI)
23860 Pipe Assy, Fuel Delivery W/Sensor, LH
23901 Tube Sub-assy, Fuel
23915 Insulator, Fuel Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
