Toyota Lexus IS F

2007-12 → 2014-08 · chassis USE20 · catalogue 245510 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

14 part groups · 2 illustrations

Illustrations

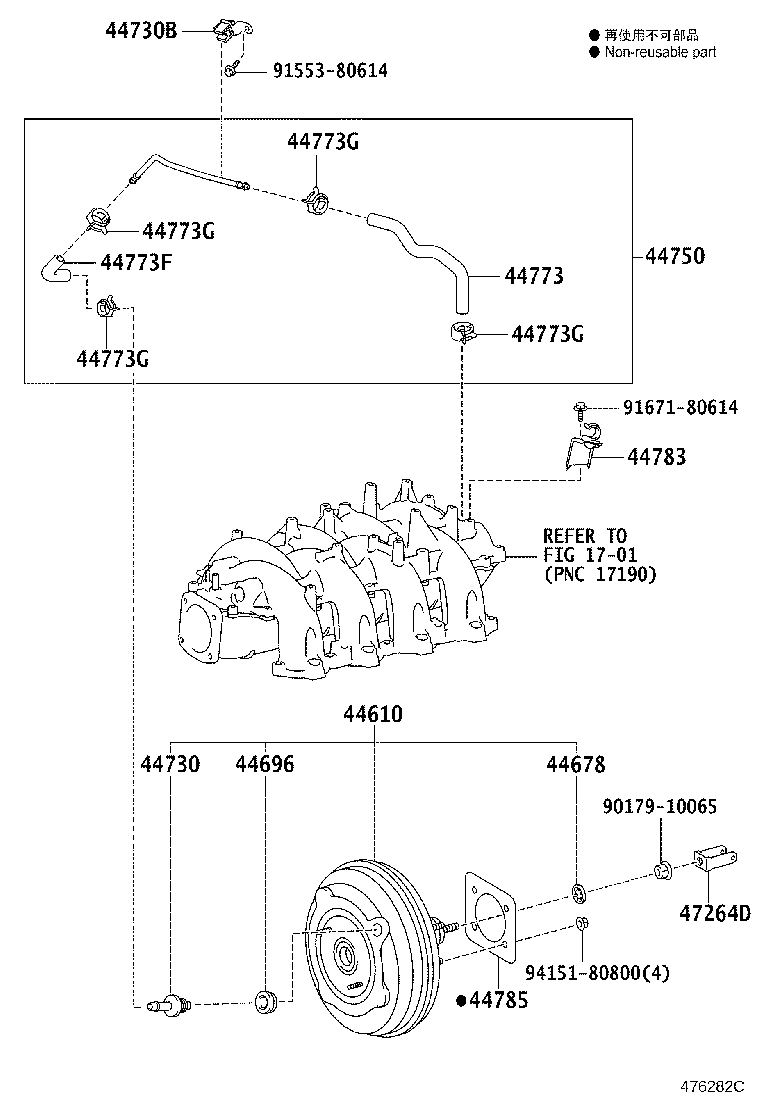

Figure 476281C 476281C 2007-12 → — Figure 476282C 476282C 2007-12 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44678 Retainer, Booster Air Cleaner
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730B Clamp, Vacuum Hose
44750 Hose Assy, Vacuum
44761D Clamp, Vacuum Check Valve TO Connector Tube
44773 Hose, Vacuum, NO.2
44773F Hose, Union TO Check Valve
44773G Clip(FOR UNION TO CHECK VALVE HOSE)
44773H Clamp(FOR UNION TO CHECK VALVE HOSE)
44783 Clamp, Vacuum Hose
44785 Gasket, Brake Booster
47264D Clevis, Brake Master Cylinder Push Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
