Toyota Lexus IS F

2007-12 → 2014-08 · chassis USE20 · catalogue 245510 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

19 part groups · 2 illustrations

Illustrations

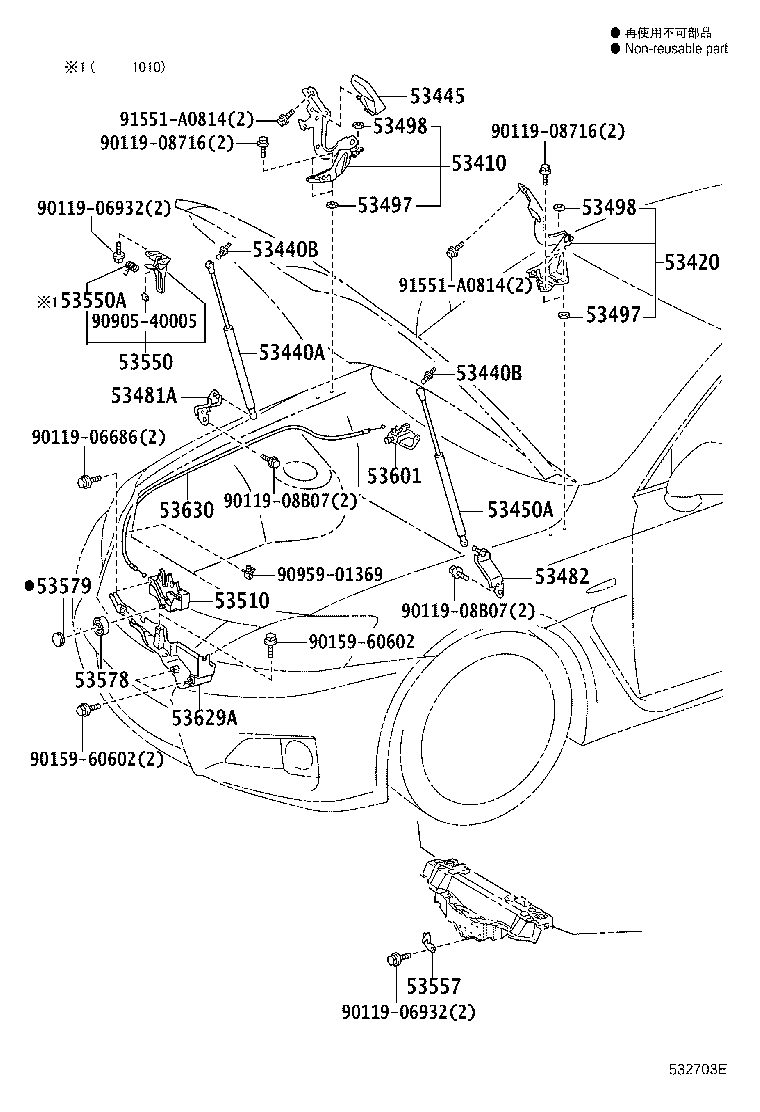

Figure 532702E 532702E 2007-12 → — Figure 532703E 532703E 2007-12 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53420 Hinge Assy, Hood, LH
53440A Support Assy, Hood, RH
53440B Bolt, Hood Support, NO.1
53445 Cover, Hood Hinge, RH
53450A Support Assy, Hood, LH
53481A Bracket, Hood Support, RH
53482 Bracket, Hood Support, LH
53497 Pad, Hood Hinge, NO.1
53498 Pad, Hood Hinge, NO.2
53510 Lock Assy, Hood
53550 Hook Assy, Hood Auxiliary Catch
53550A Spring, Torsion(FOR HOOD LOCK HOOK)
53557 Catch, Hood Auxiliary Hook
53578 Nut, Hood Lock
53579 Cap, Hood Lock Nut
53601 Lever Sub-assy, Hood Lock Control
53629A Cover, Hood Lock Control Cable
53630 Cable Assy, Hood Lock Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
