Toyota Lexus IS F

2007-12 → 2014-08 · chassis USE20 · catalogue 245510 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

21 part groups · 2 illustrations

Illustrations

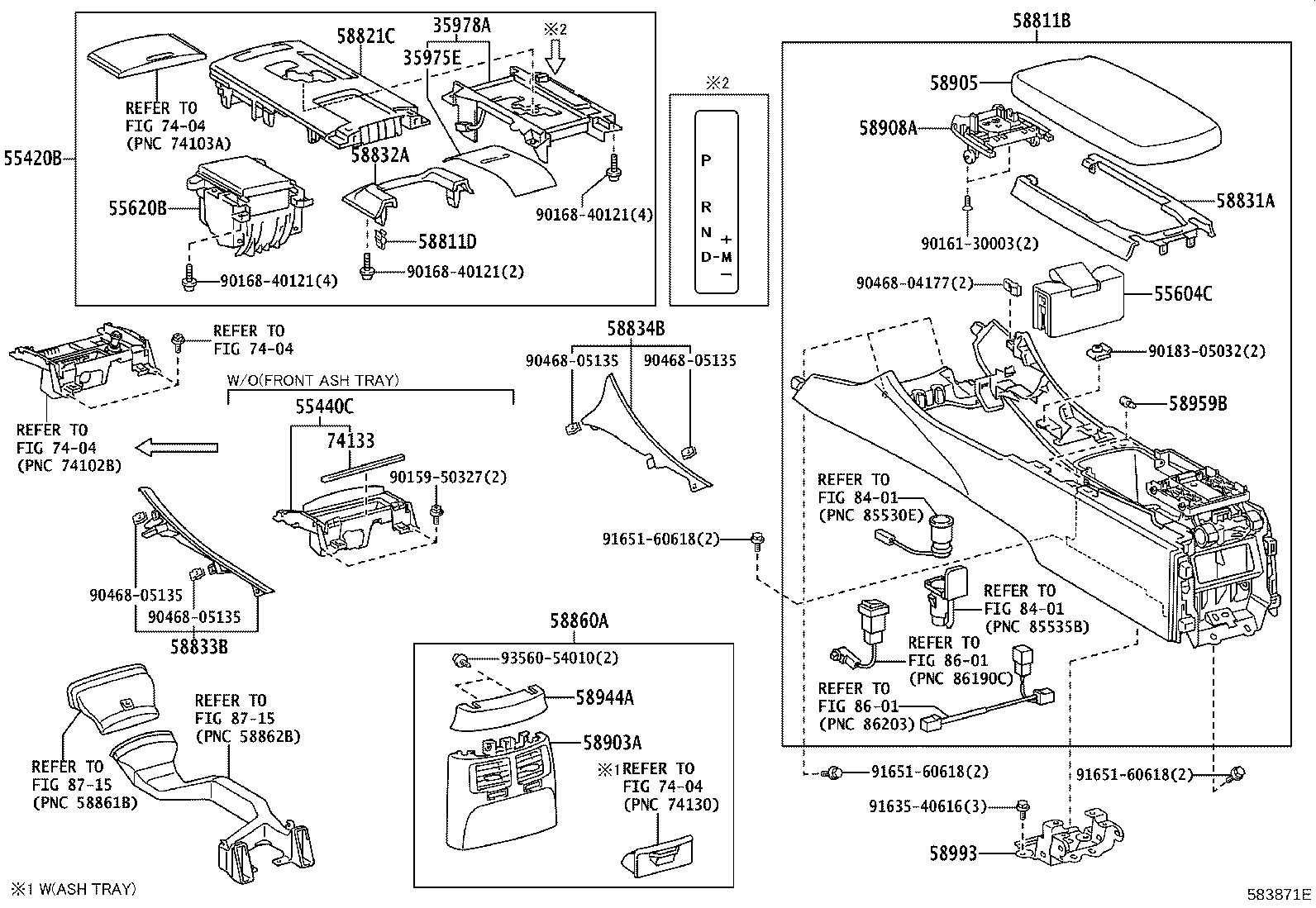

Figure 583668F 583668F 2007-12 → 2009-08 Figure 583871E 583871E 2009-08 → —

Part groups

PNCDescription
35975E Cover, Slide (FOR POSITION INDICATOR)
35978A Indicator, Shift Position
55420B Panel Assy, Instrument Cluster Finish, Center NO.1
55440C Box Assy, Instrument Panel
55604C Holder Sub-assy, Console Box Cup
55620B Holder, Instrument Panel Cup
58811B Box, Console
58811D Clip(FOR CONSOLE BOX)
58821C Panel, Console, Upper
58831A Garnish, Console Upper Panel, Front
58832A Garnish, Console Upper Panel, Rear
58833B Garnish, Console Upper Panel, NO.1
58834B Garnish, Console Upper Panel, NO.2
58860A Register Assy, Console Box
58903A Panel Sub-assy, Console Rear End
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58944A Cover, Console, Rear
58959B Cushion, Console Compartment Door
58993 Bracket, Console Box Mounting, Rear
74133 Seal, Front Ash Receptacle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
