Toyota Lexus IS F

2007-12 → 2014-08 · chassis USE20 · catalogue 245510 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

63 part groups · 15 illustrations

Illustrations

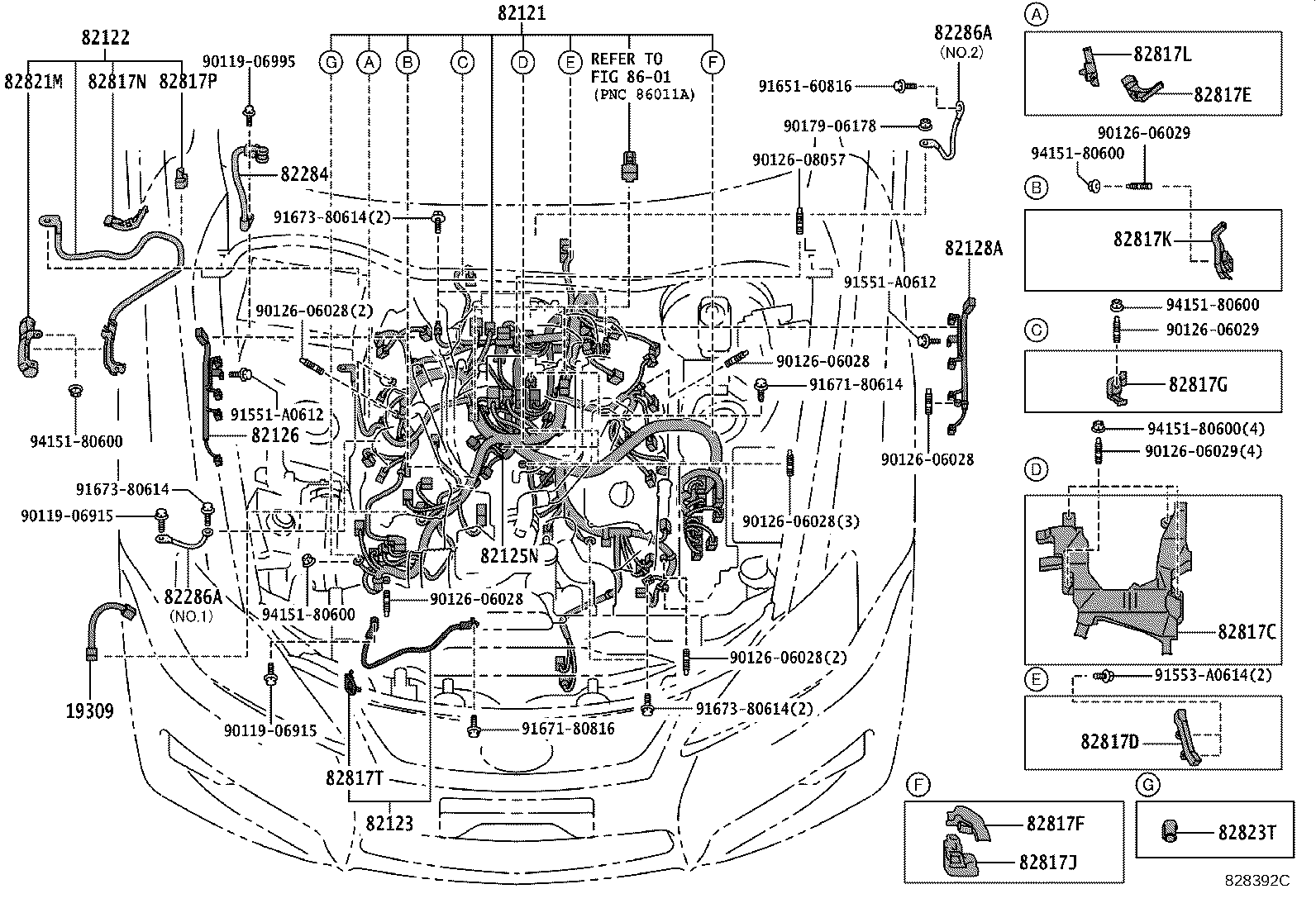

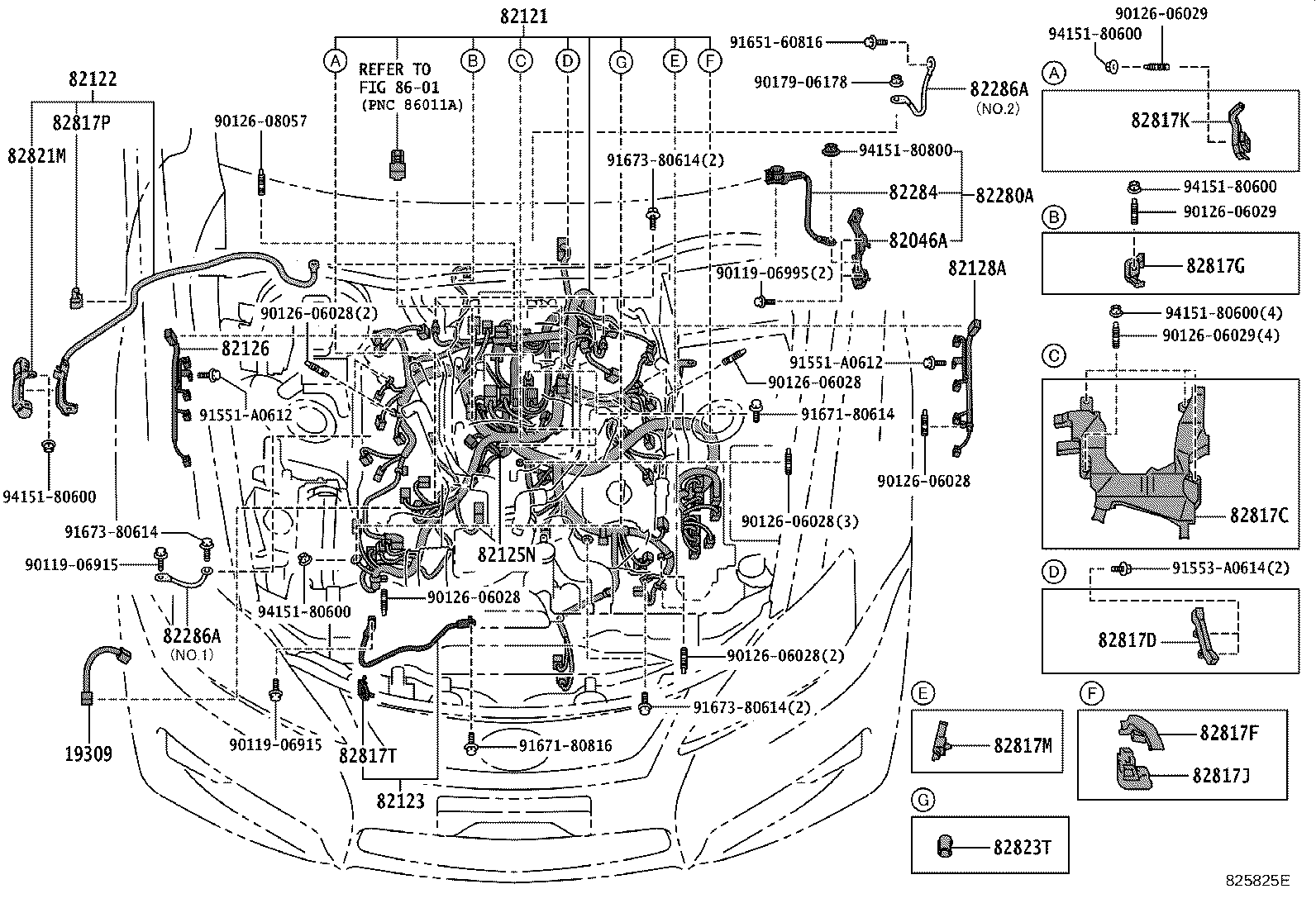

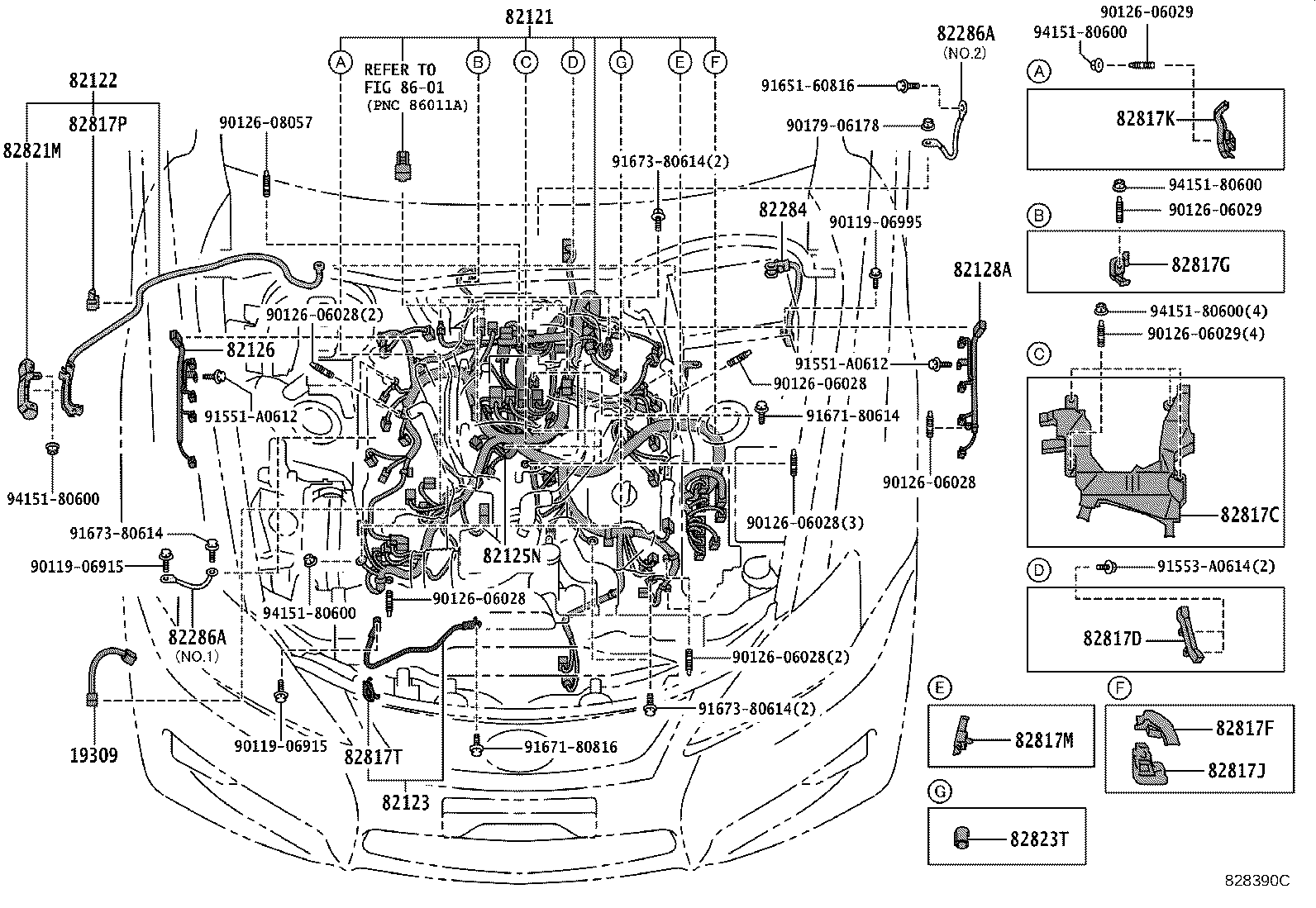

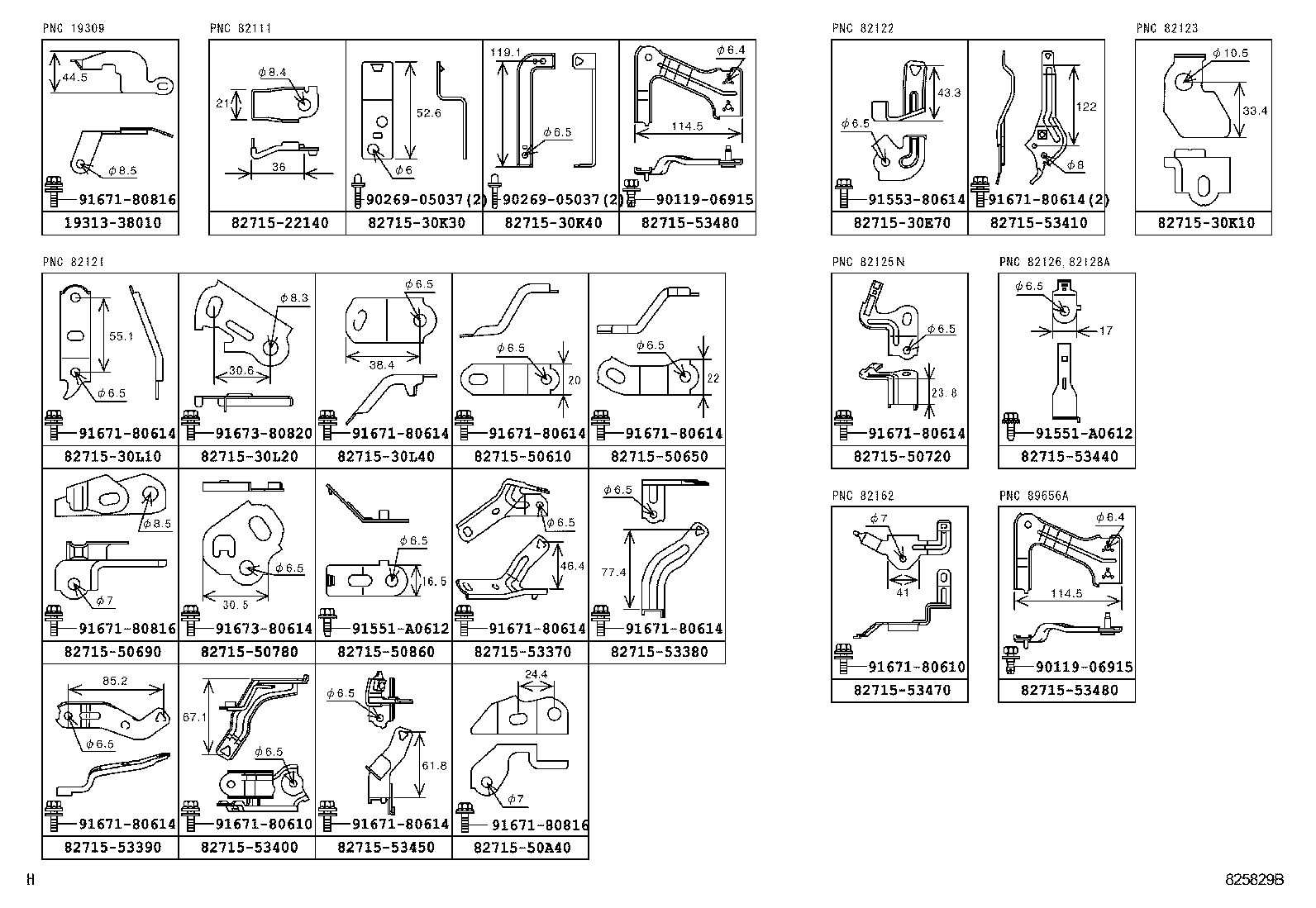

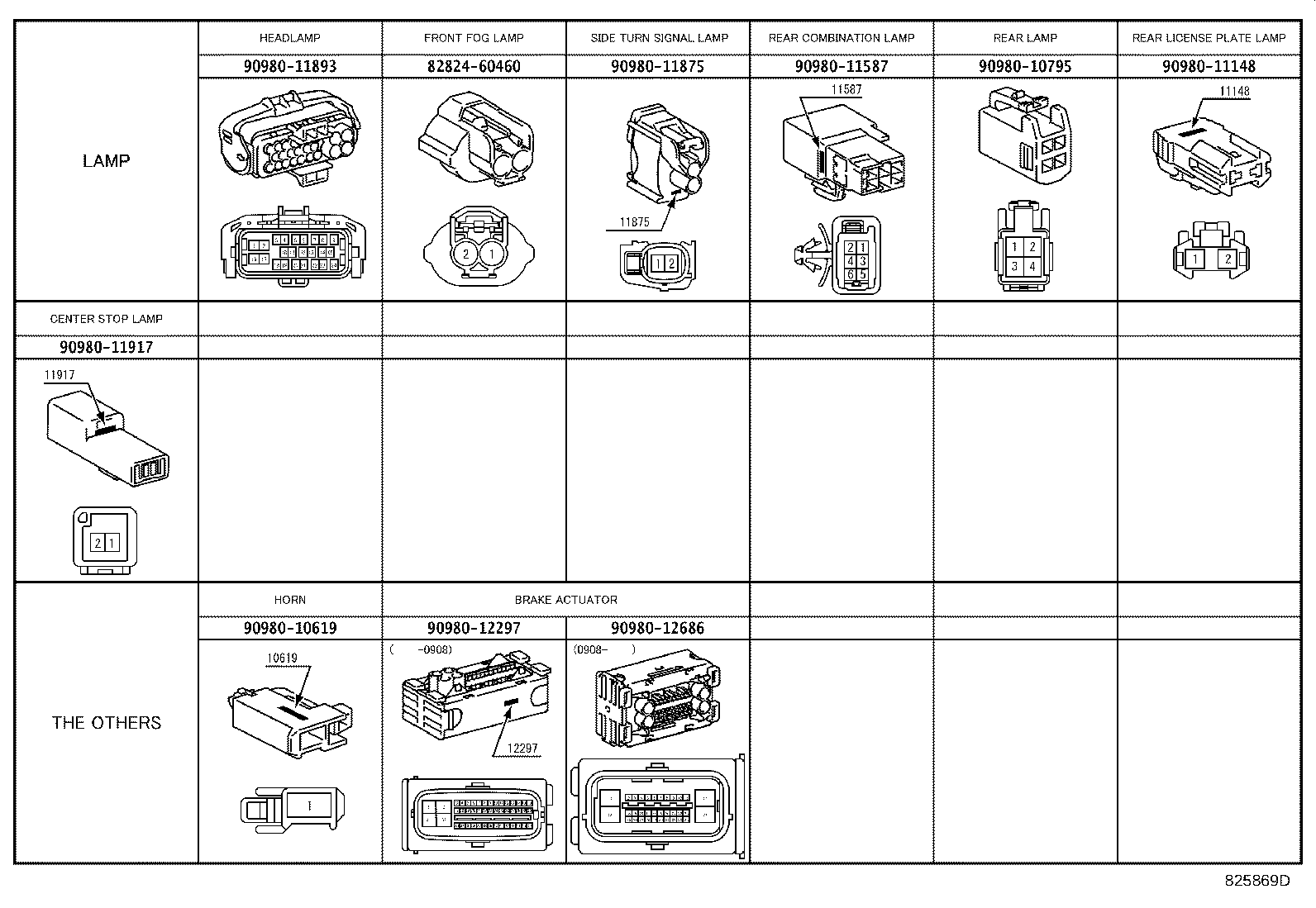

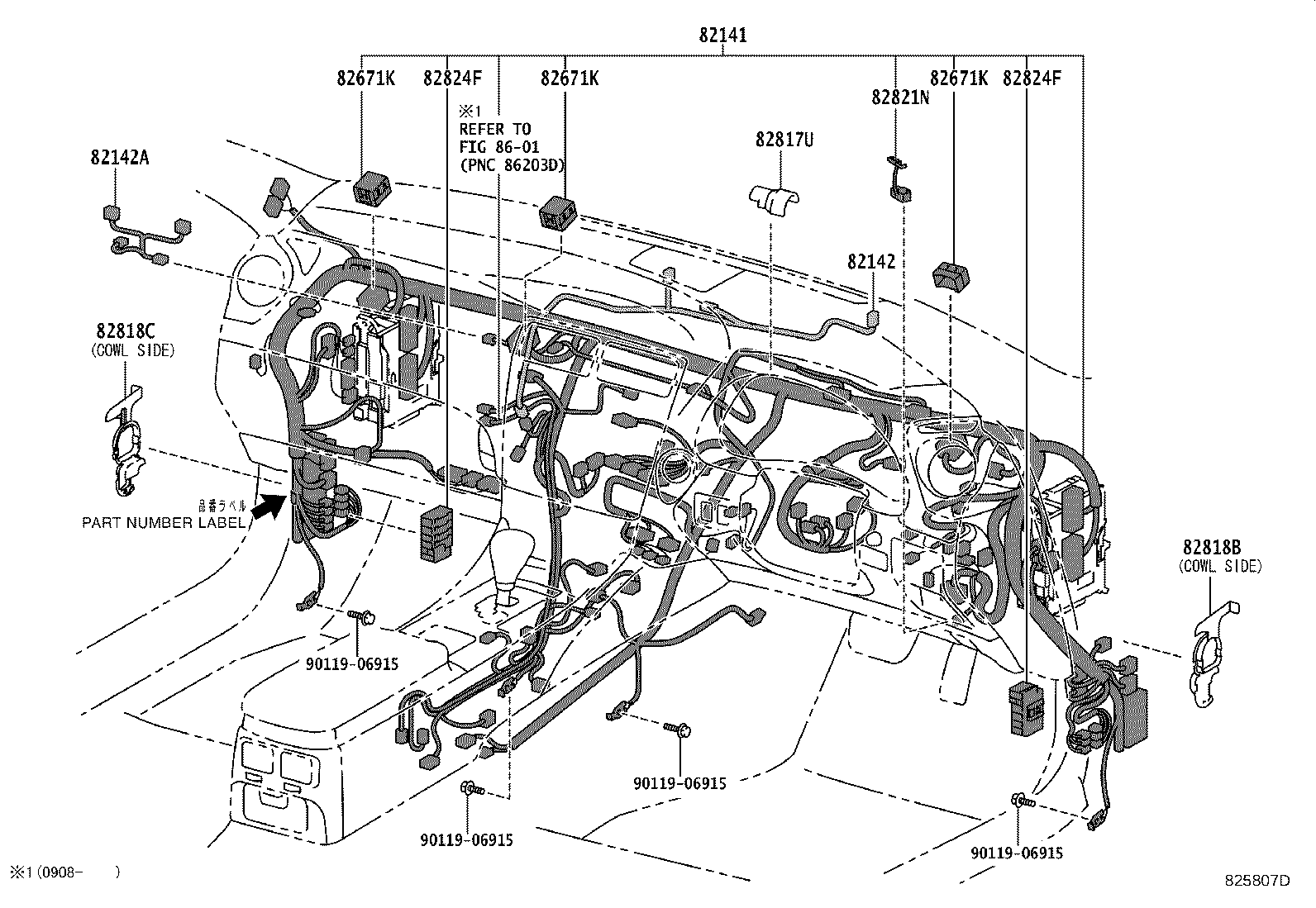

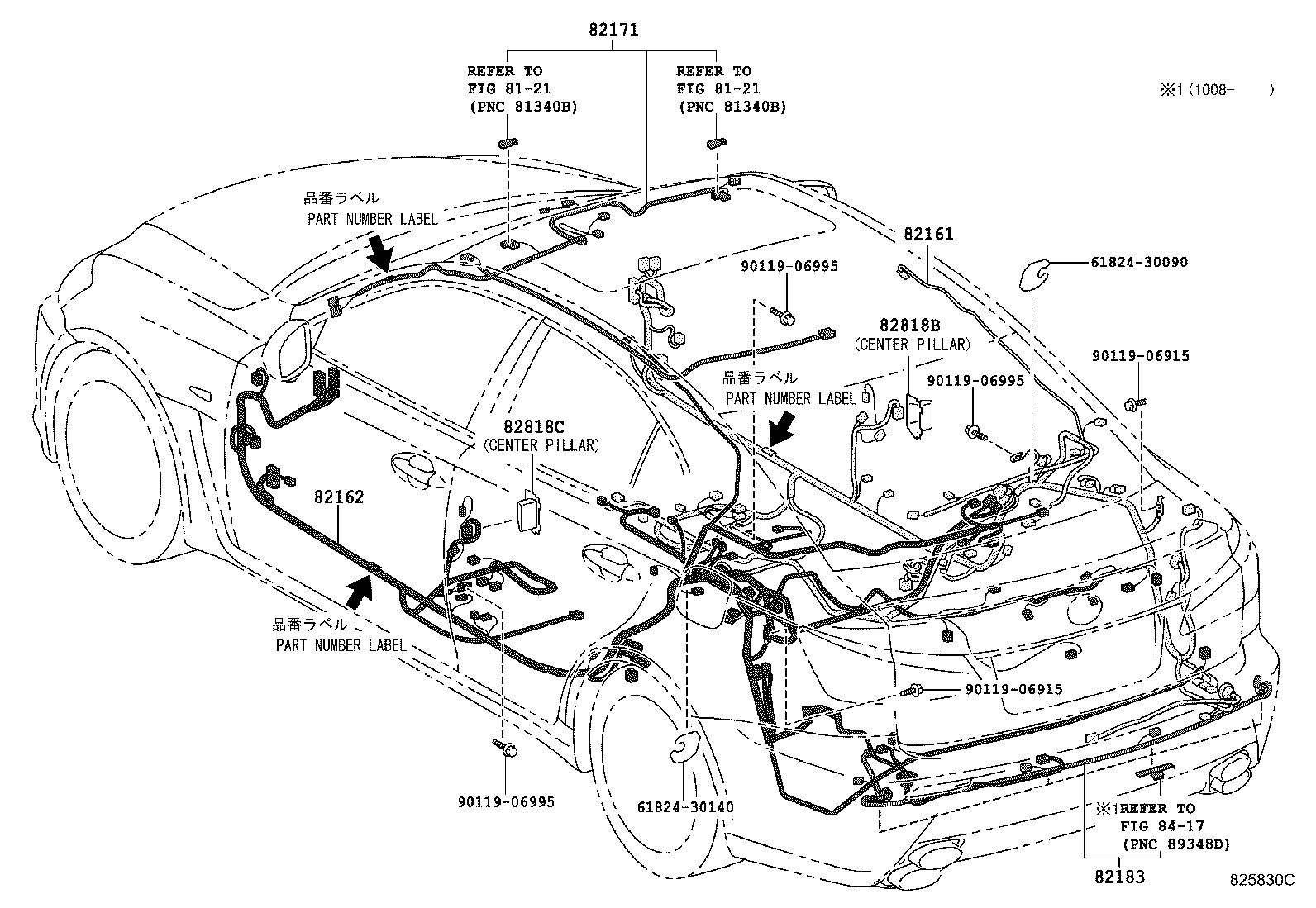

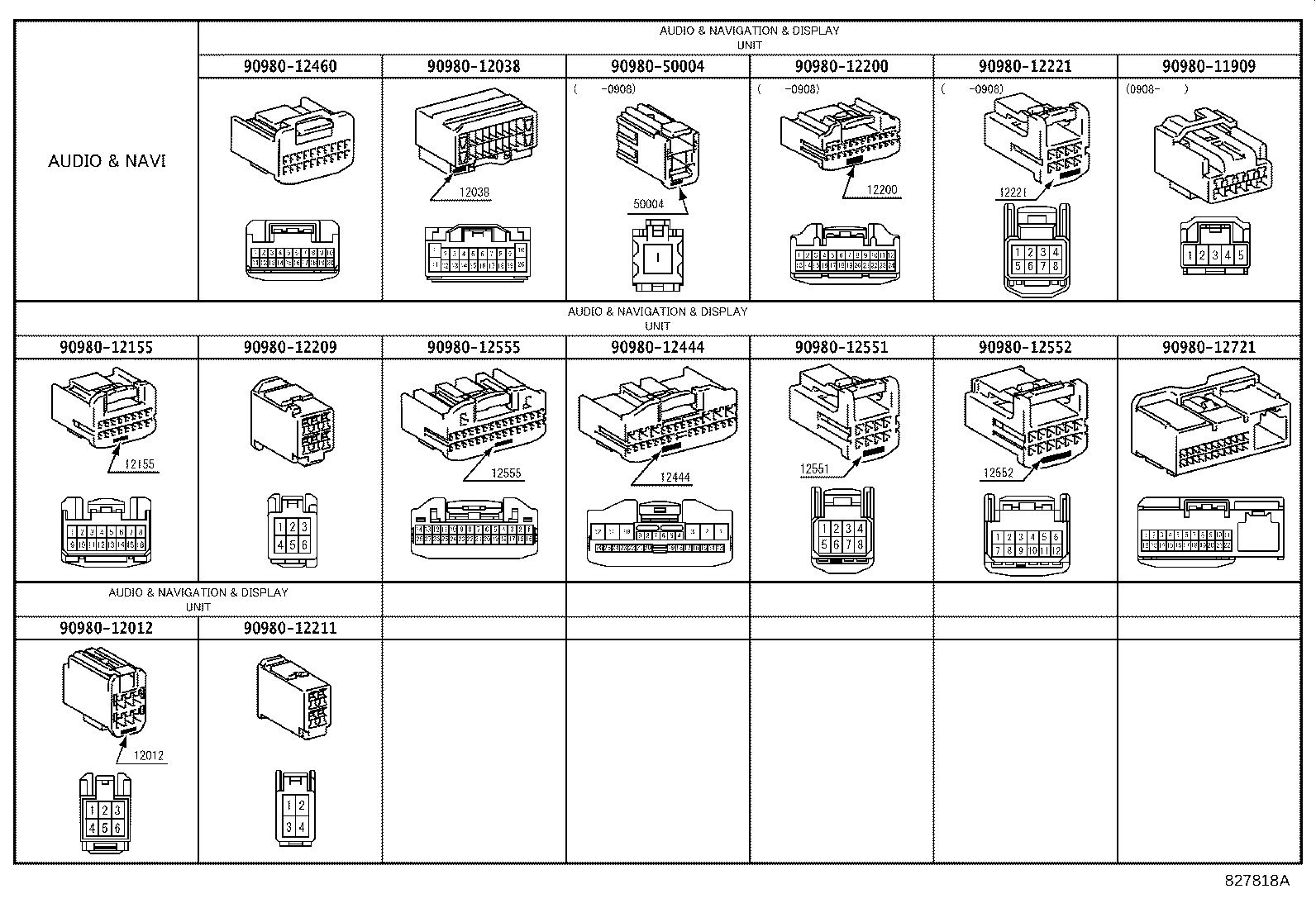

Figure 825832E 825832E 2007-12 → — Figure 827232B 827232B 2007-12 → — Figure 828392C 828392C 2007-12 → 2012-08 Figure 828390C 828390C 2007-12 → 2012-08 Figure 825826E 825826E 2012-08 → — Figure 825825E 825825E 2012-08 → — Figure 825808D 825808D 2007-12 → — Figure 825807D 825807D 2007-12 → — Figure 825804 825804 2007-12 → — Figure 825830C 825830C 2007-12 → — Figure 825805 825805 2007-12 → — Figure 825829B 825829B 2007-12 → — Figure 825869D 825869D 2007-12 → — Figure 825870C 825870C 2007-12 → — Figure 827818A 827818A 2007-12 → —

Part groups

PNCDescription
16364A Wire, Cooling Fan
19309 Harness Sub-assy, Cam Position Sensor
82046A Wire Sub-assy, Body Ground, NO.1

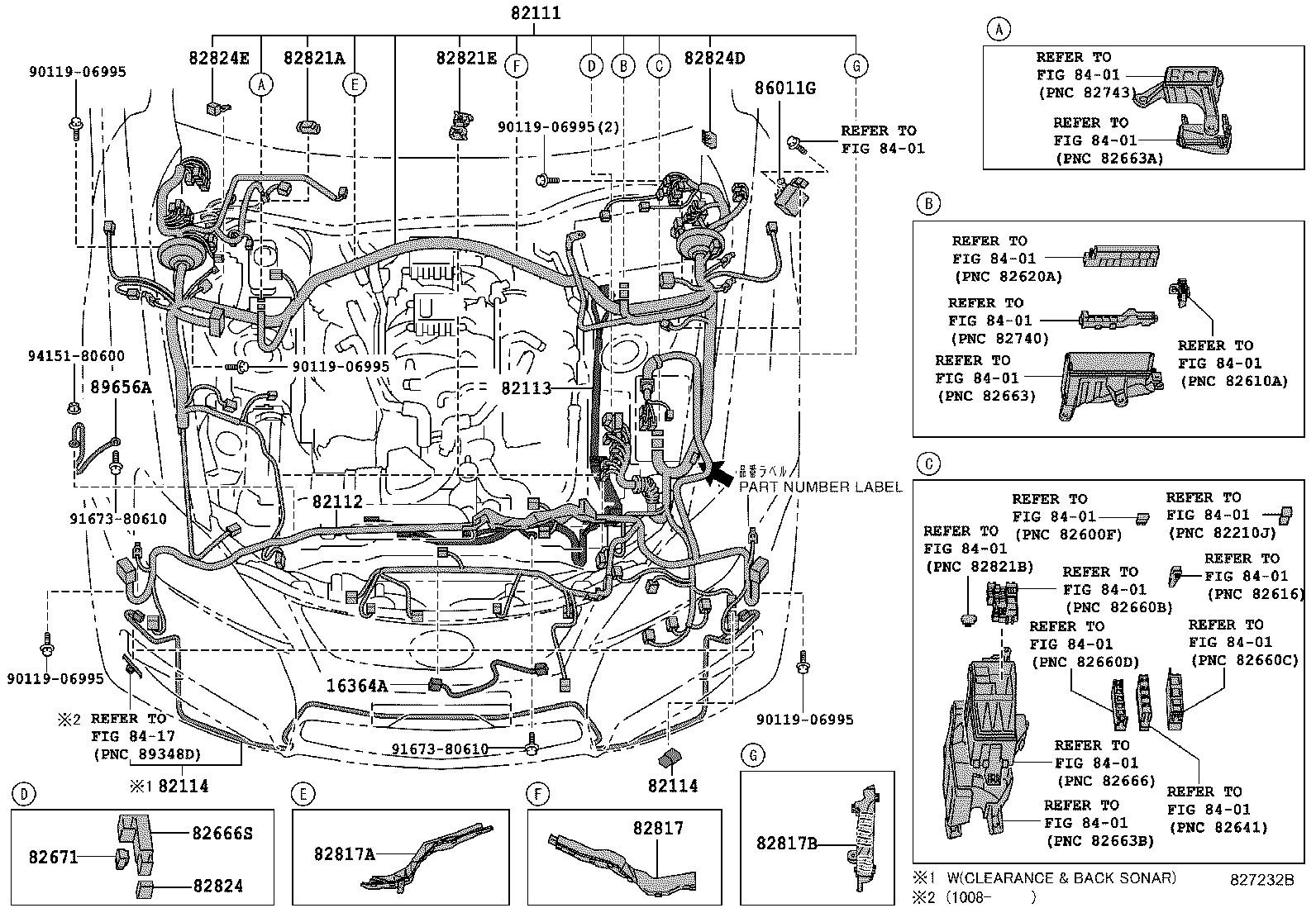

82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3

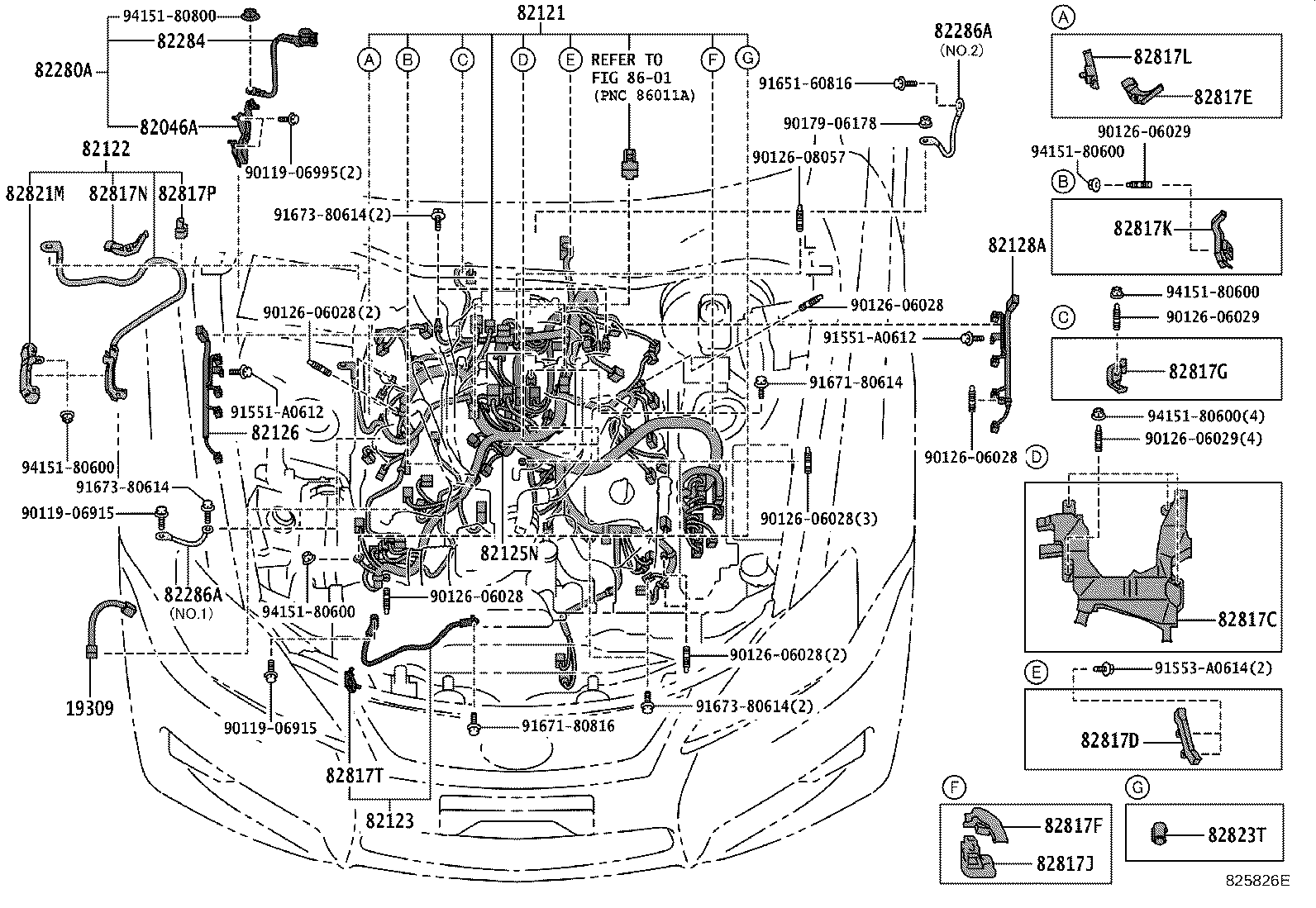

82125N Wire, Engine, NO.5
82126 Wire, Engine
82128A Wire, Engine, NO.8

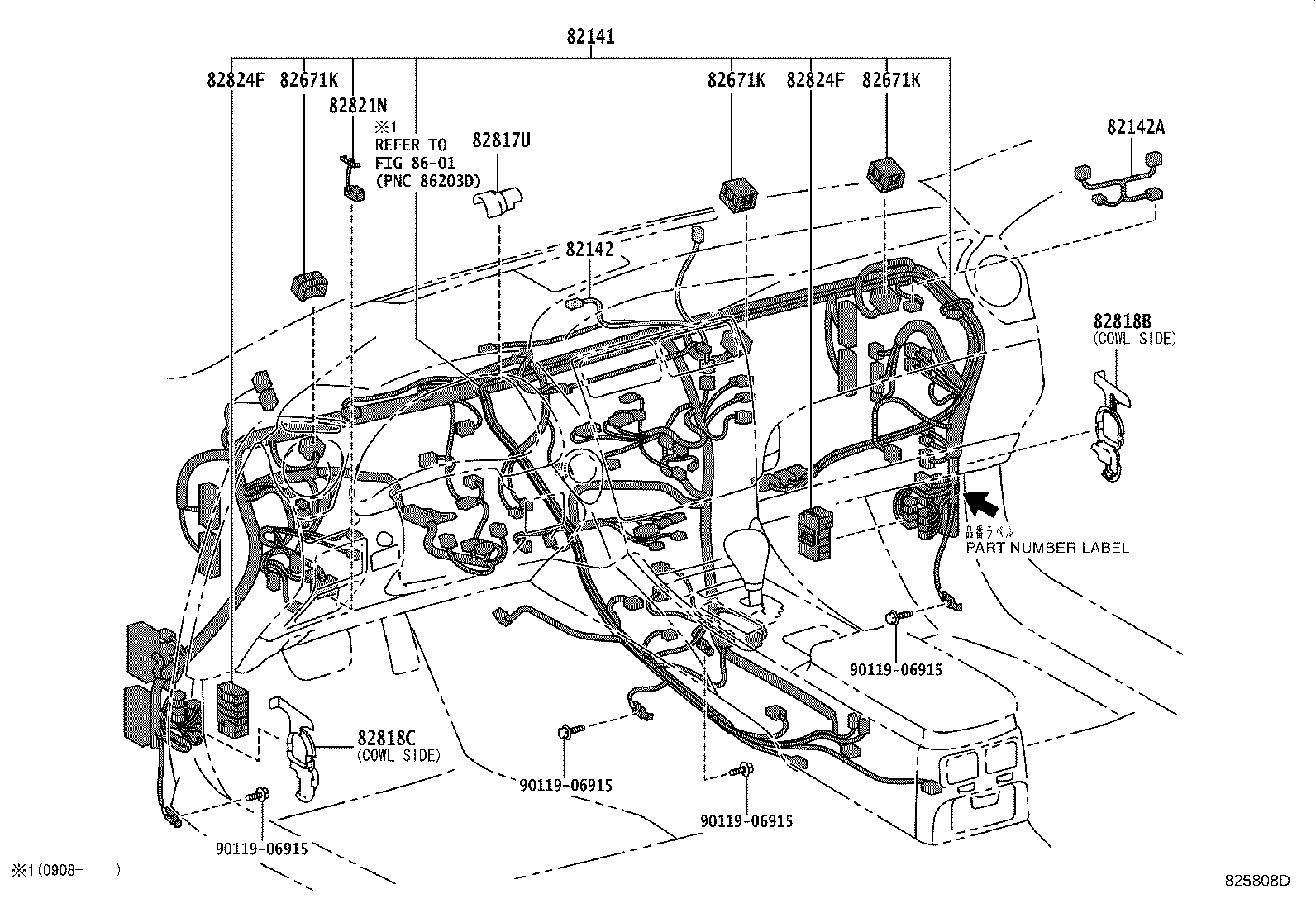

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2

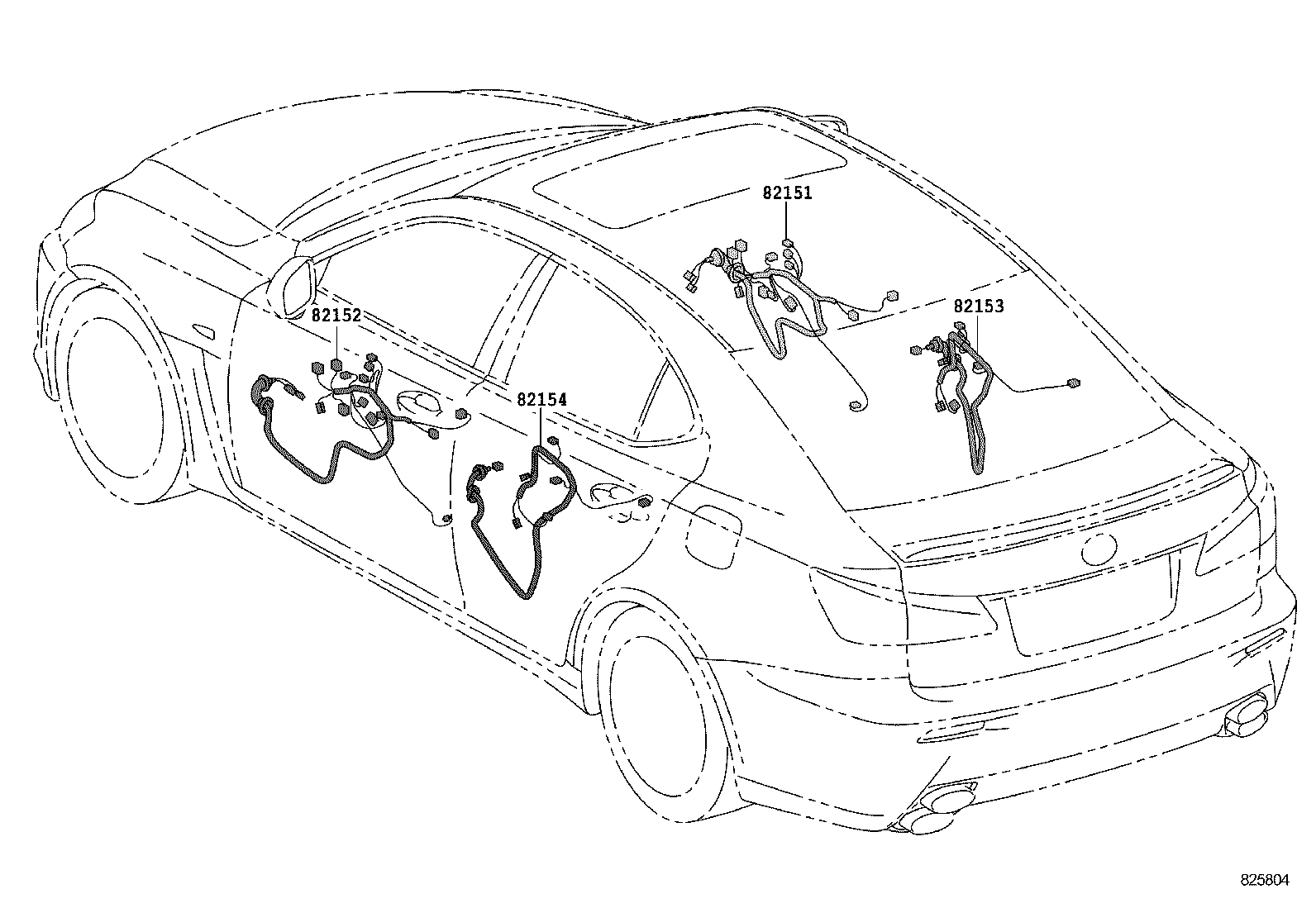

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82171 Wire, Roof, NO.1
82183 Wire, Luggage Room, NO.3
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82280A Wire Assy, Battery TO Cowl Top Side
82284 Wire, Earth
82286A Wire, Earth, NO.2
82666S Holder, Connector NO.13
82671 Block, Junction
82671K Block, Junction, NO.3
82671L Block, Junction, NO.4
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818D Protector, Wiring Harness, NO.5
82821A Cover, Connector
82821E Cover, Connector
82821M Cover, Connector
82821N Cover, Connector
82823T Cap, Alternator Terminal

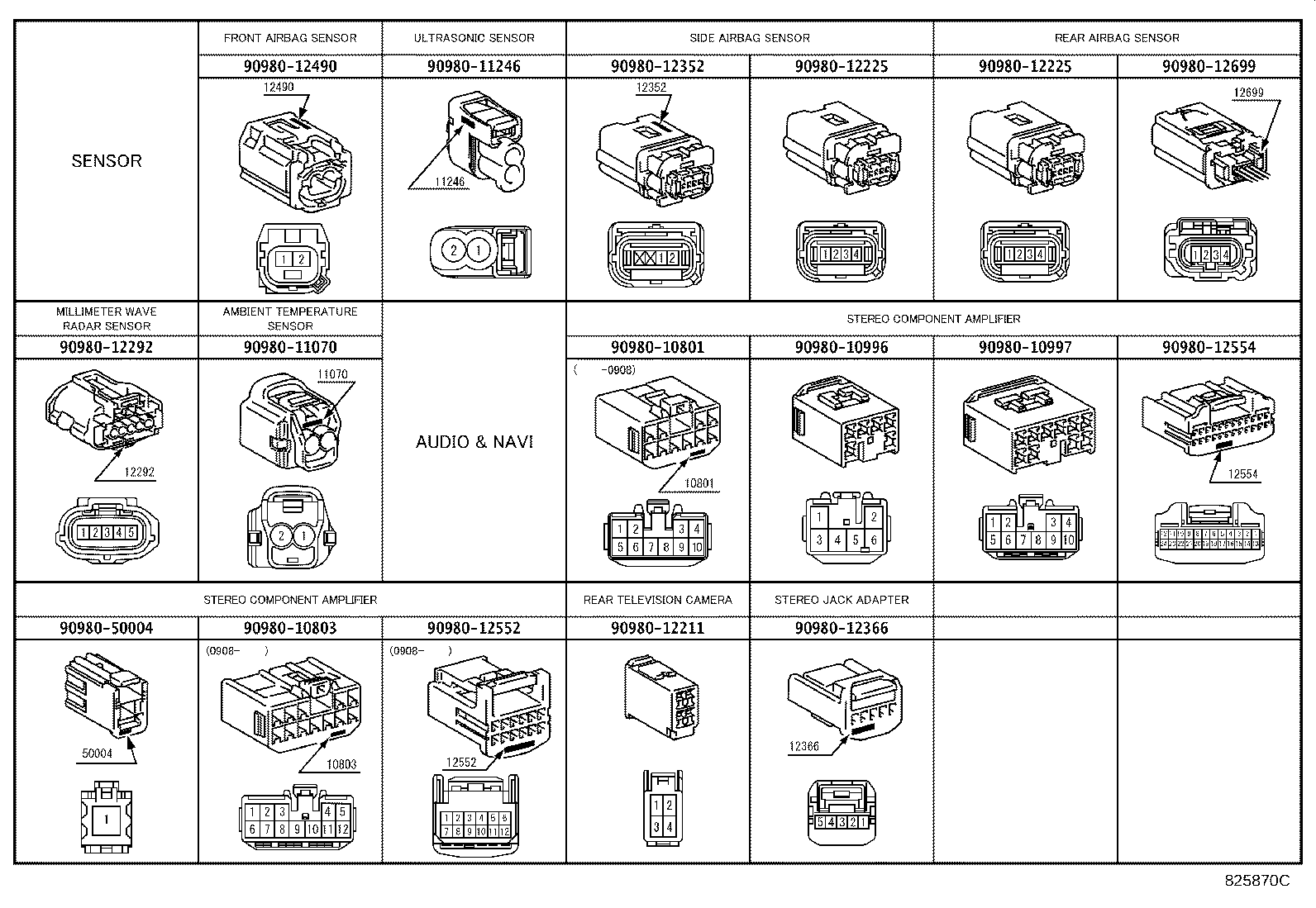

82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
86011G Condenser
89656A Wire, Power Steering Earth
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
