Toyota Lexus IS F

2007-12 → 2014-08 · chassis USE20 · catalogue 245510 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cruise Control (AUTO DRIVE)

4 part groups · 2 illustrations

Illustrations

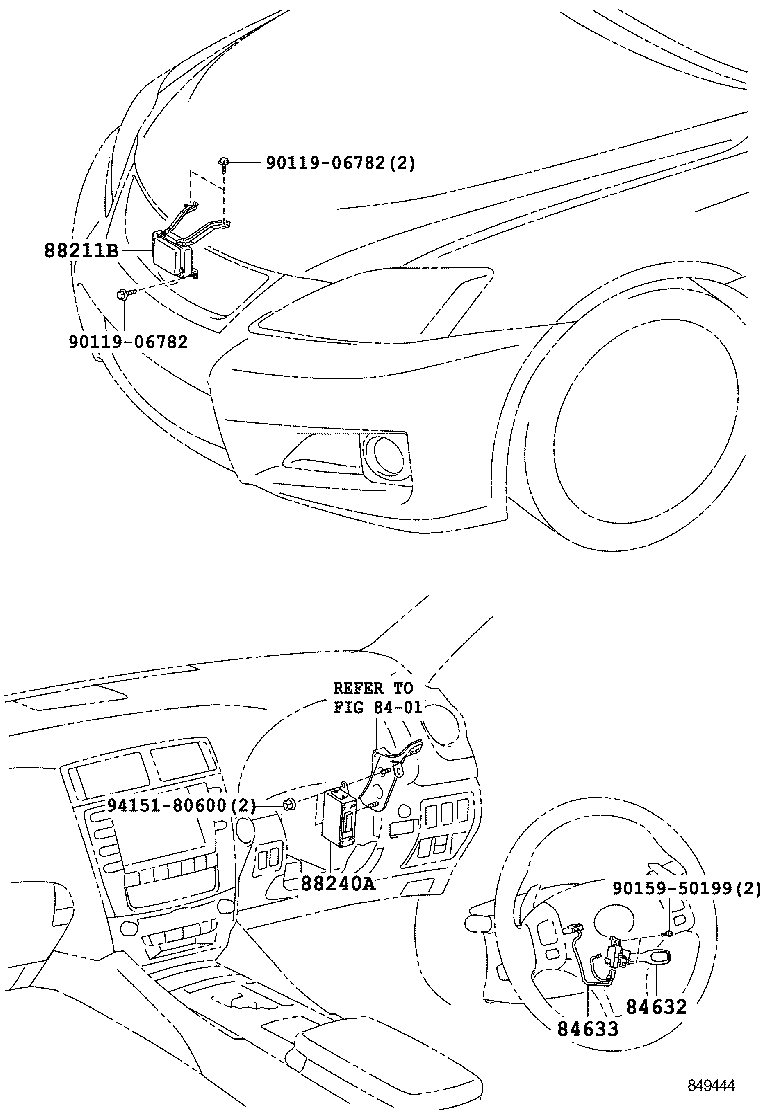

Figure 849443 849443 2007-12 → — Figure 849444 849444 2007-12 → —

Part groups

PNCDescription
84632 Switch, Cruise Control Main
84633 Wire, Cruise Control Switch
88211B Sensor Assy, Millimeter Wave Radar
88240A Computer Assy, Distance Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
