Toyota Lexus IS F

2007-12 → 2014-08 · chassis USE20 · catalogue 245510 · Europe

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

12 part groups · 2 illustrations

Illustrations

Figure 849460F

849460F 2007-12 → —

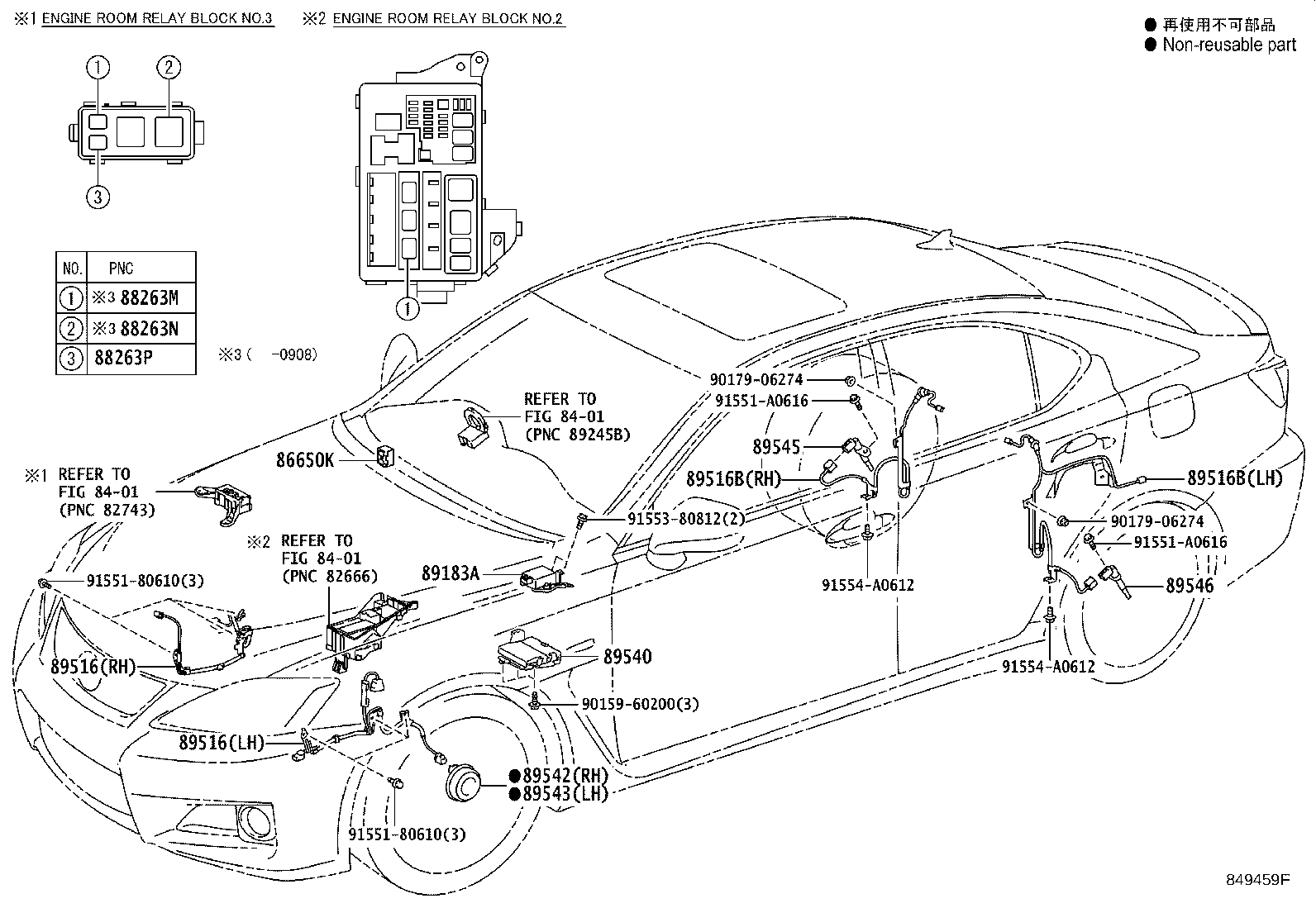

Figure 849459F

849459F 2007-12 → —

Part groups

PNC	Description
86650K	Buzzer Assy, Skid Control
88263M	Relay, Abs Solenoid
88263N	Relay, Abs Motor
88263P	Relay, Stop Lamp Control
89183A	Sensor, Yawrate
89516	Wire, Skid Control Sensor
89516B	Wire, Skid Control Sensor
89540	Computer Assy, Skid Control
89542	Sensor, Speed, Front RH
89543	Sensor, Speed, Front LH
89545	Sensor, Speed, Rear RH
89546	Sensor, Speed, Rear LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
