Toyota Lexus IS F

2007-12 → 2014-08 · chassis USE20 · catalogue 245510 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

5 part groups · 4 illustrations

Illustrations

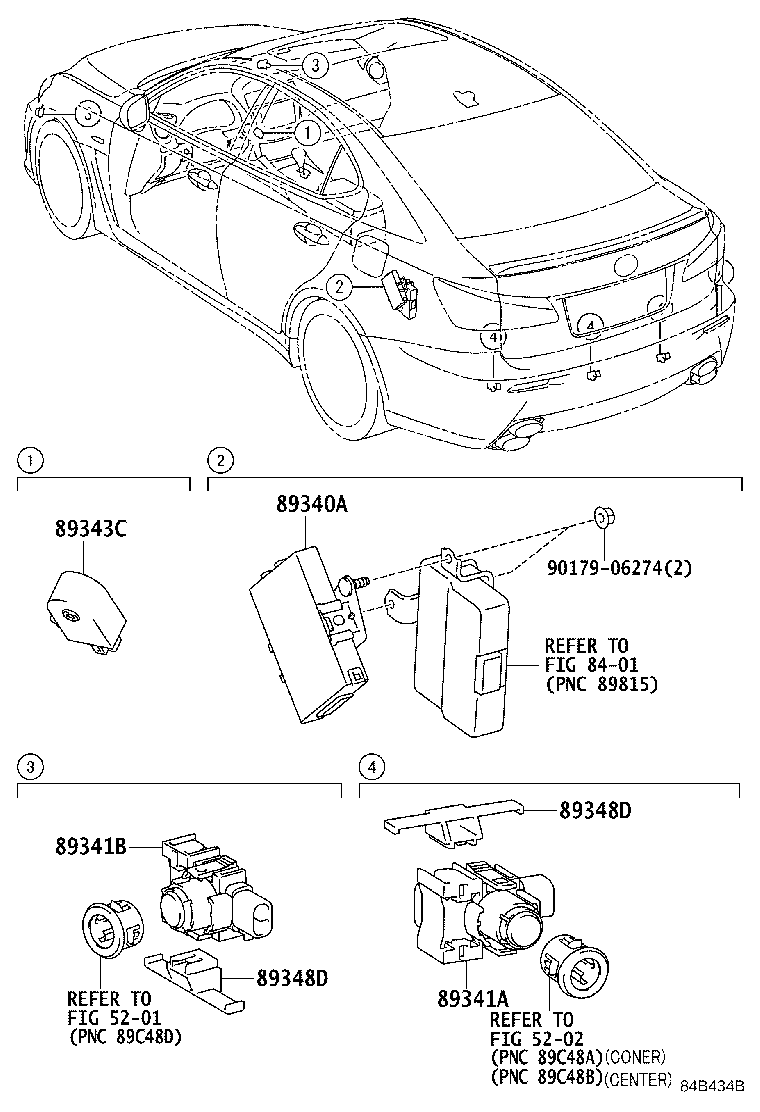

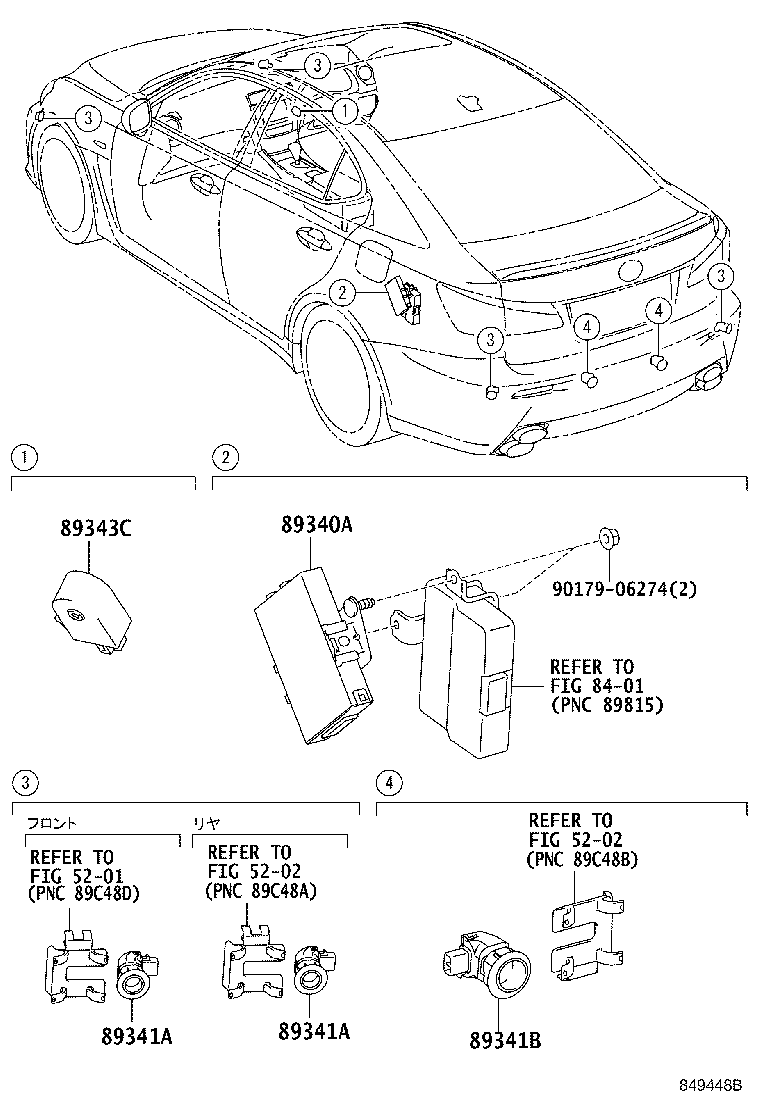

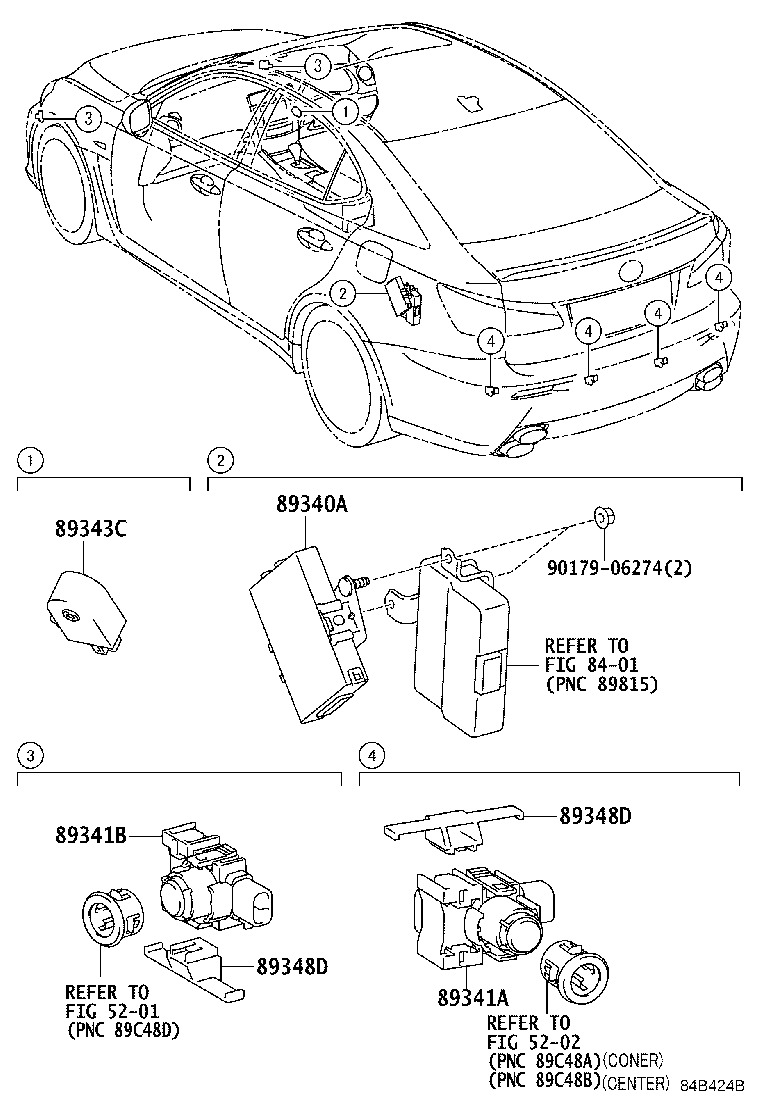

Figure 849447B 849447B 2007-12 → 2010-08 Figure 849448B 849448B 2007-12 → 2010-08 Figure 84B434B 84B434B 2010-08 → — Figure 84B424B 84B424B 2010-08 → —

Part groups

PNCDescription
89340A Computer Assy, Clearance Warning
89341A Sensor, Ultrasonic, NO.1
89341B Sensor, Ultrasonic, NO.2
89343C Buzzer, Clearance Warning, NO.1
89348D Clip, Ultrasonic Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
