Toyota Lexus IS F

2007-12 → 2014-08 · chassis USE20 · catalogue 245510 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

18 part groups · 6 illustrations

Illustrations

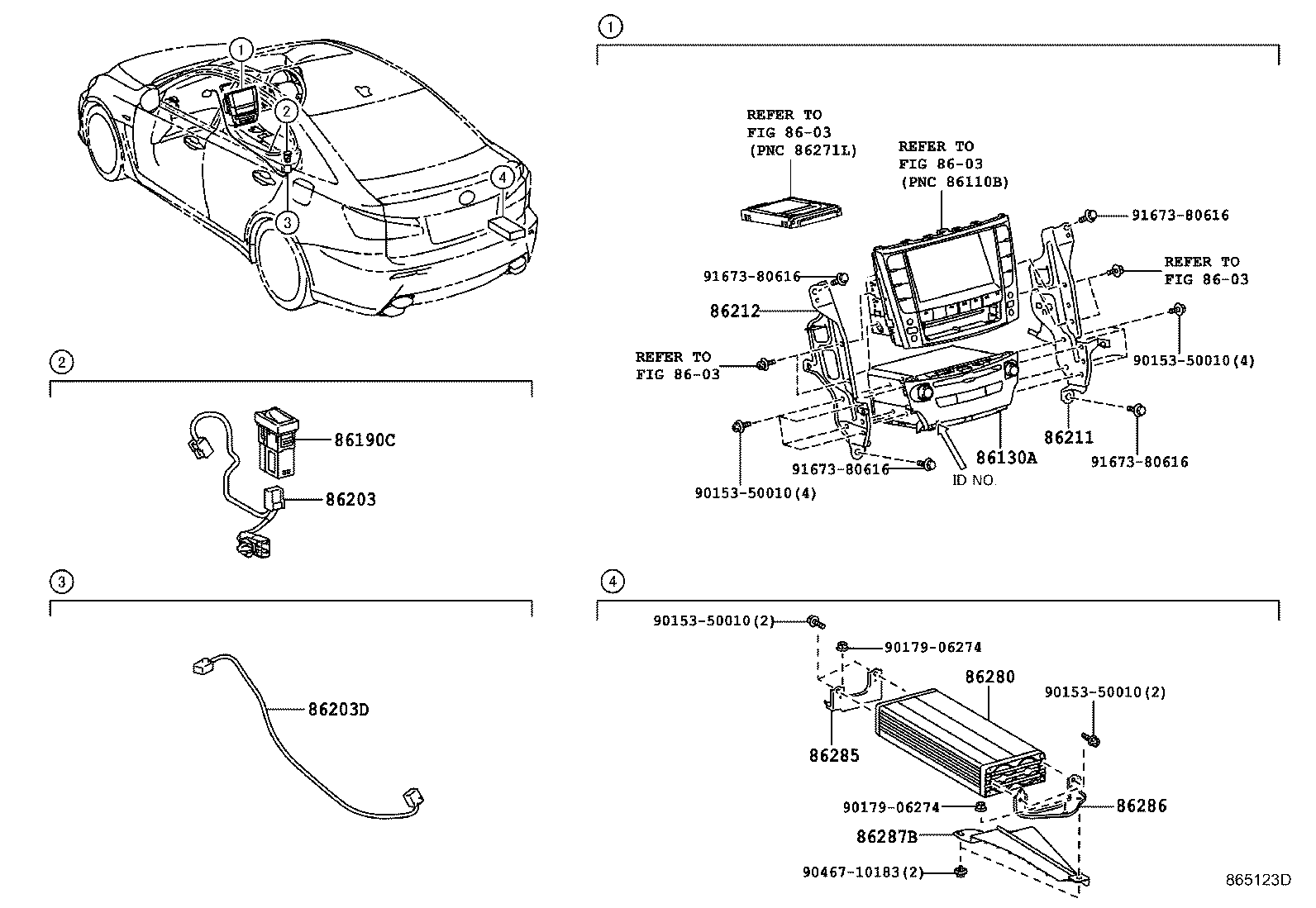

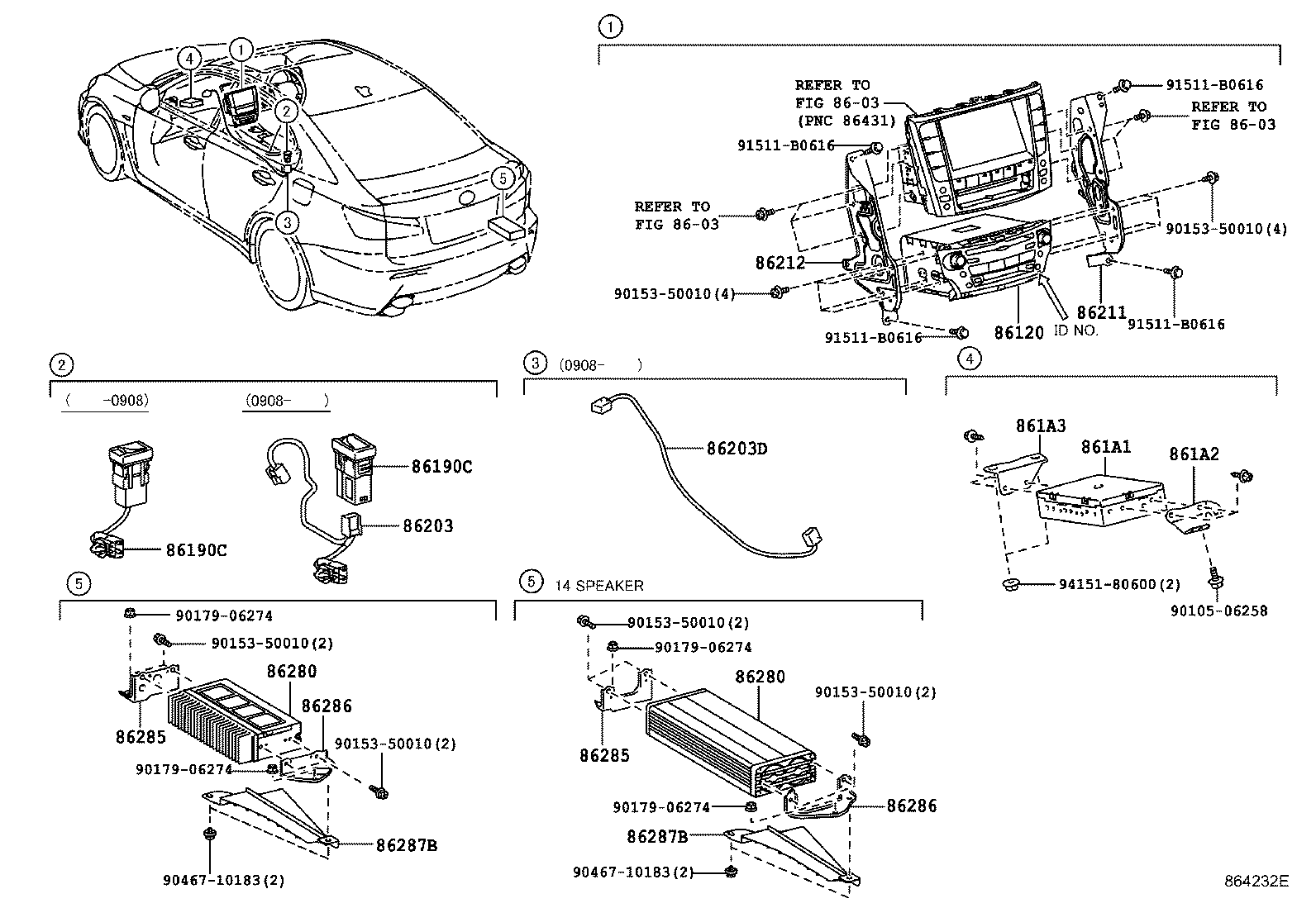

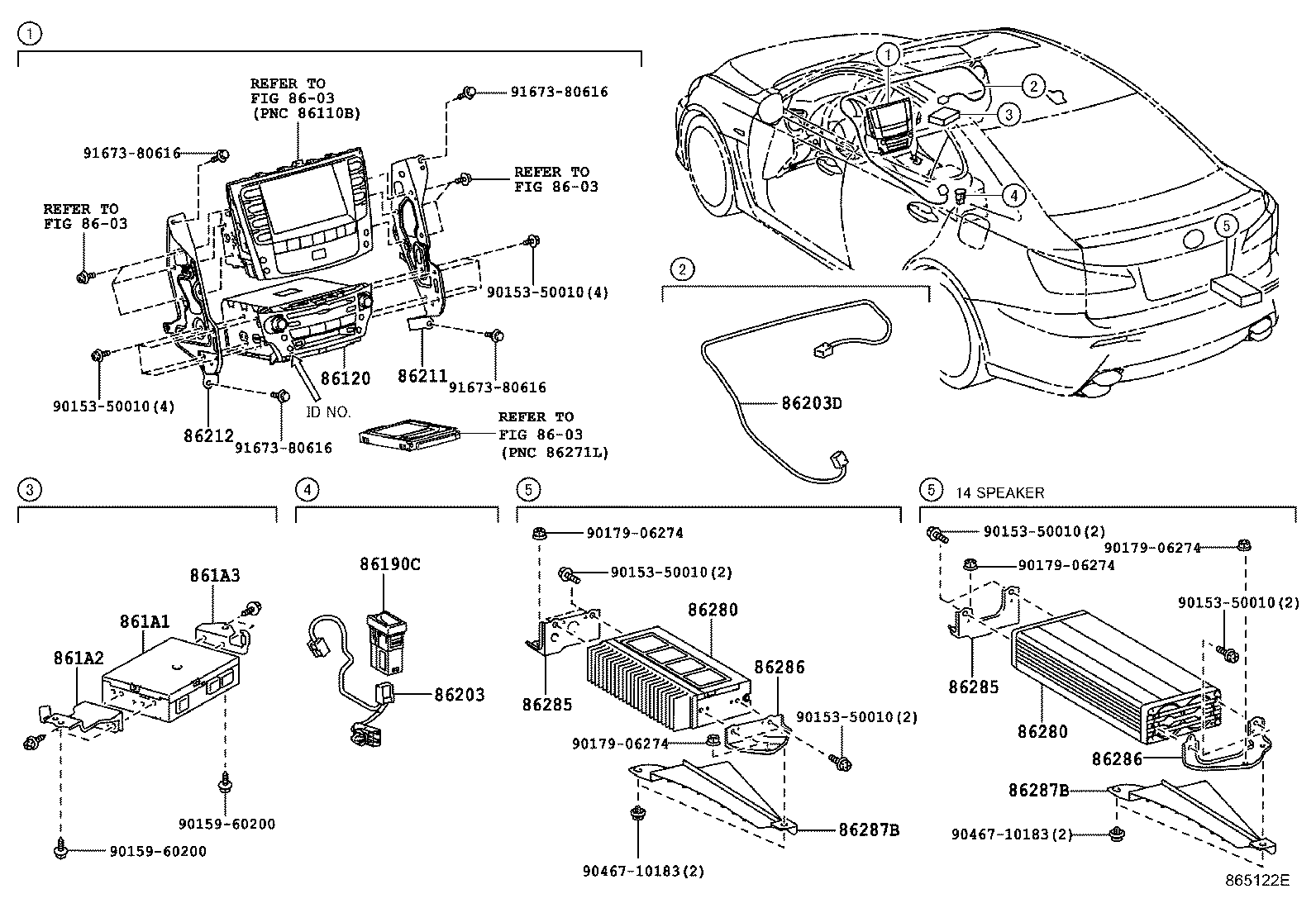

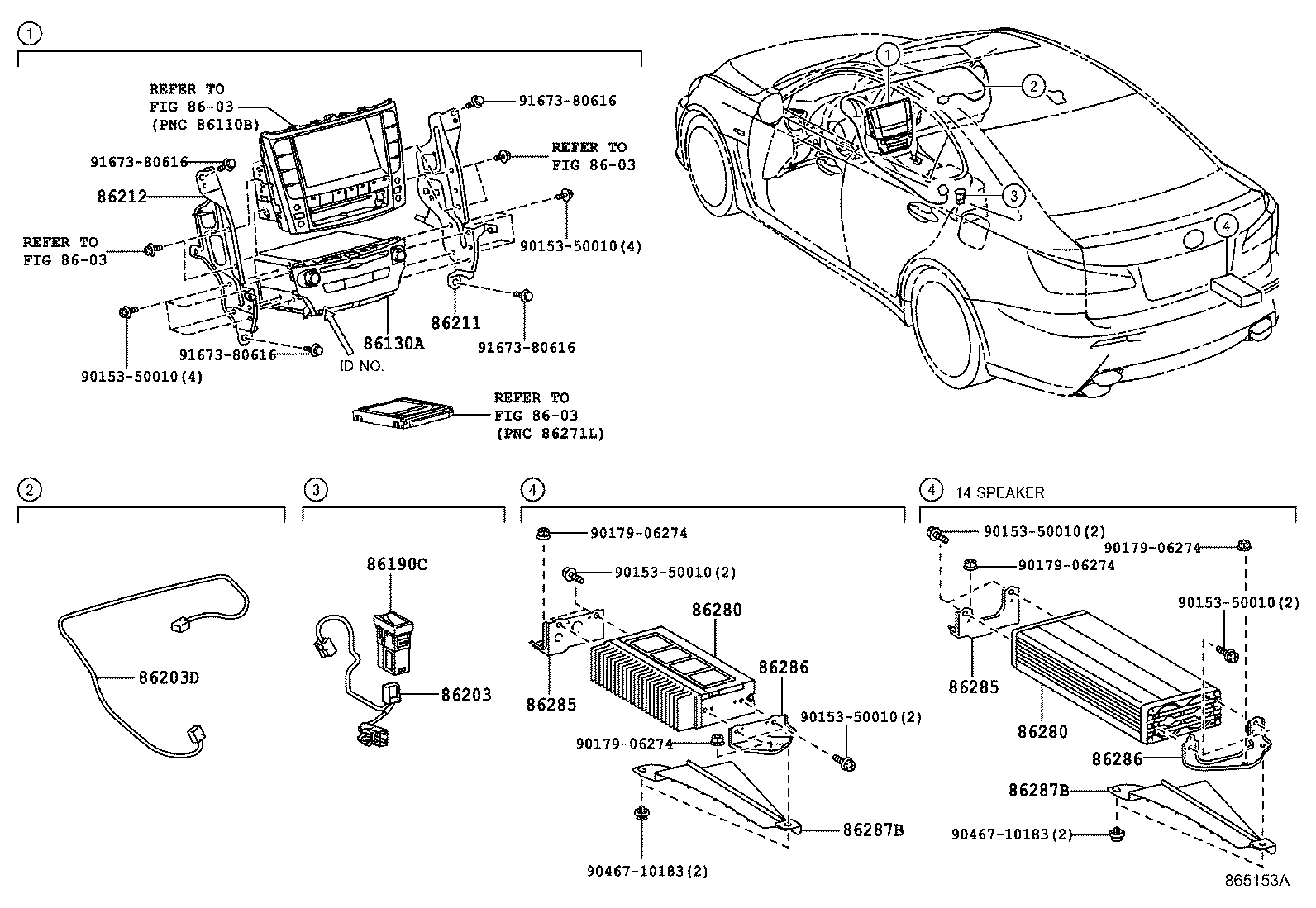

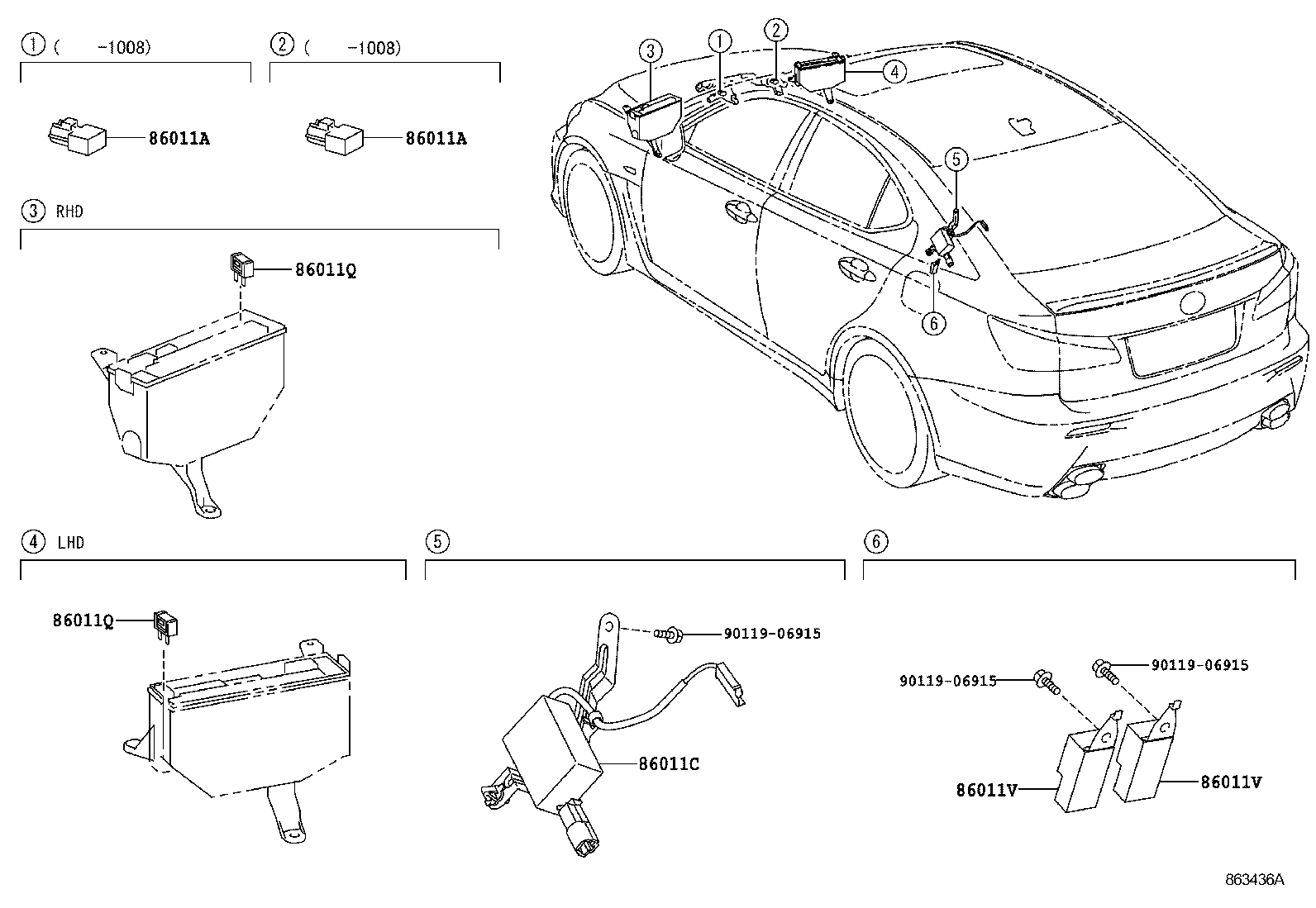

Figure 863404G 863404G 2007-12 → 2012-08 Figure 865122E 865122E 2012-08 → — Figure 865153A 865153A 2012-08 → — Figure 864232E 864232E 2007-12 → 2012-08 Figure 865123D 865123D 2012-08 → — Figure 863436A 863436A 2007-12 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86011Q Condenser, Radio Setting
86011V Condenser, Radio Setting
86120 Receiver Assy, Radio
86130A Receiver Assy, Multi-media Module
86190C Adapter Assy, Stereo Jack, NO.1
861A1 Computer, Multi-media Interface
861A2 Bracket, Multi-media Interface, NO.1
861A3 Bracket, Multi-media Interface, NO.2
86203 Wire, Radio
86203D Wire, Stereo Component, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
86287B Cover, Amplifier
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
