Toyota Lexus IS F

2007-12 → 2014-08 · chassis USE20 · catalogue 245510 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

9 part groups · 2 illustrations

Illustrations

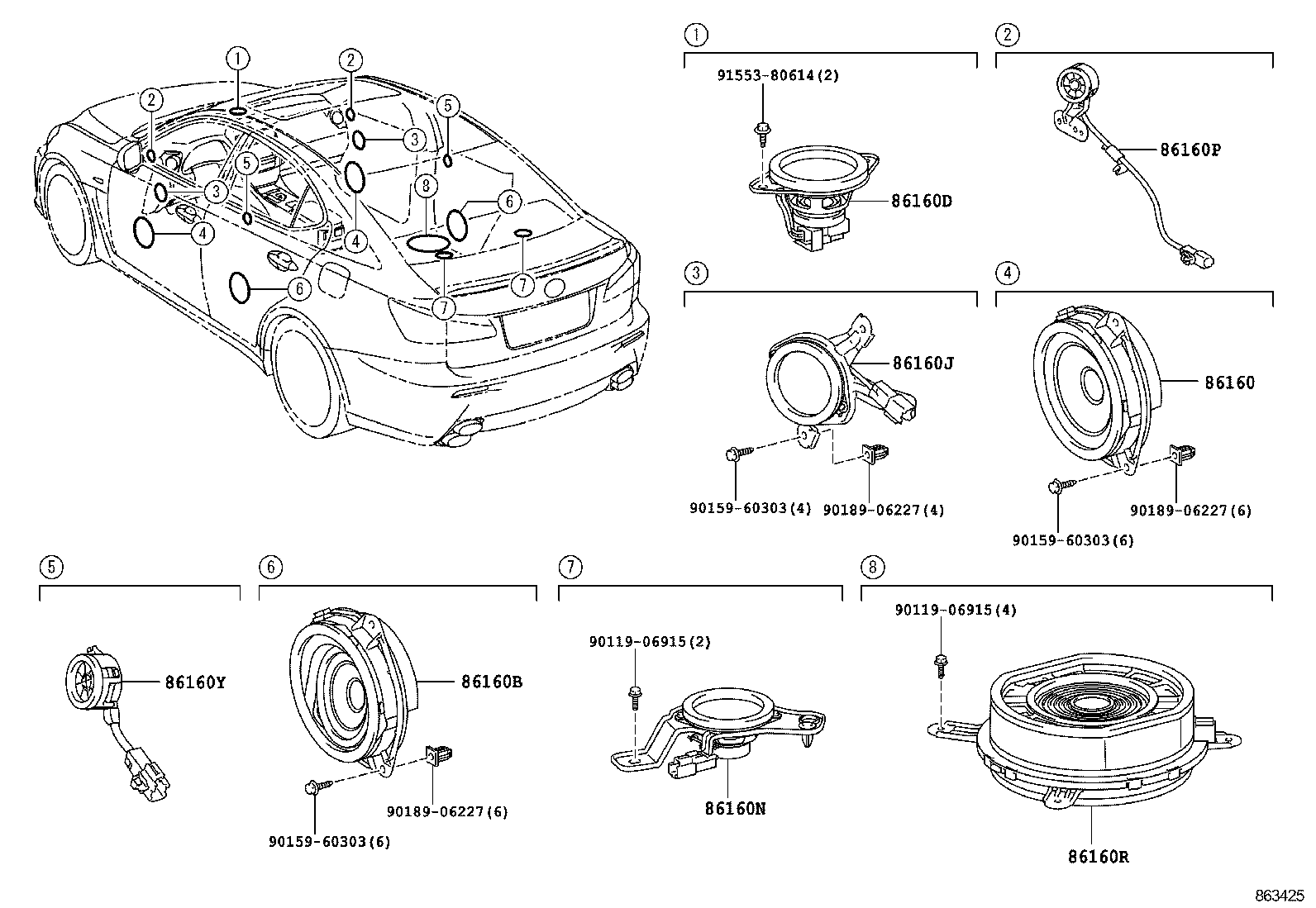

Figure 863424 863424 2007-12 → — Figure 863425 863425 2007-12 → —

Part groups

PNCDescription
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86160D Speaker Assy, Stereo Component, Front
86160J Speaker Assy, Front NO.3
86160N Speaker Assy, Stereo Component, Rear
86160P Speaker Assy, Front NO.2
86160R Speaker Assy, Stereo Component
86160Y Speaker Assy, Rear NO.2
86160Z Speaker Assy, Rear NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
