Toyota Lexus IS F

2007-12 → 2014-08 · chassis USE20 · catalogue 245510 · Europe

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

14 part groups · 10 illustrations

Illustrations

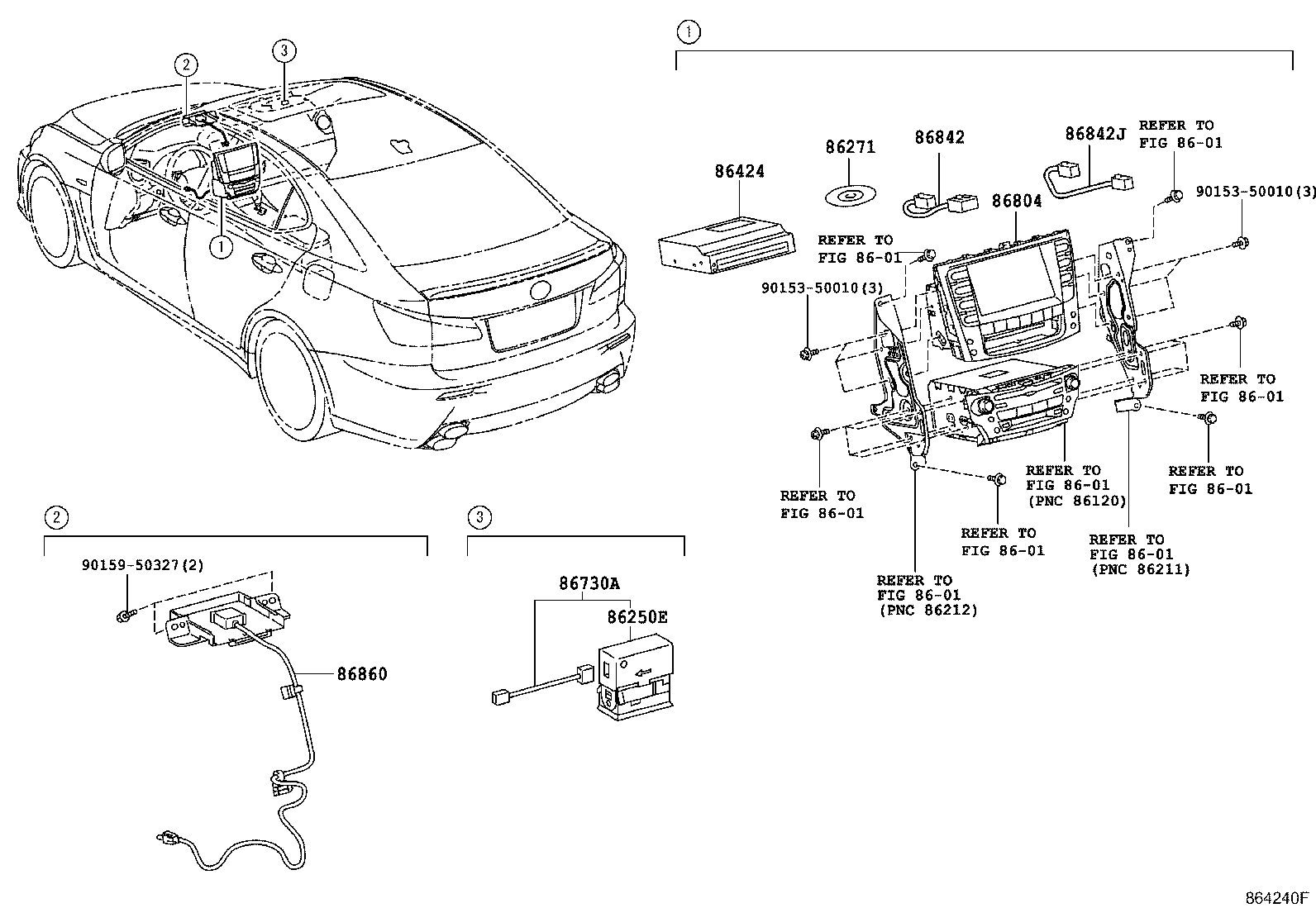

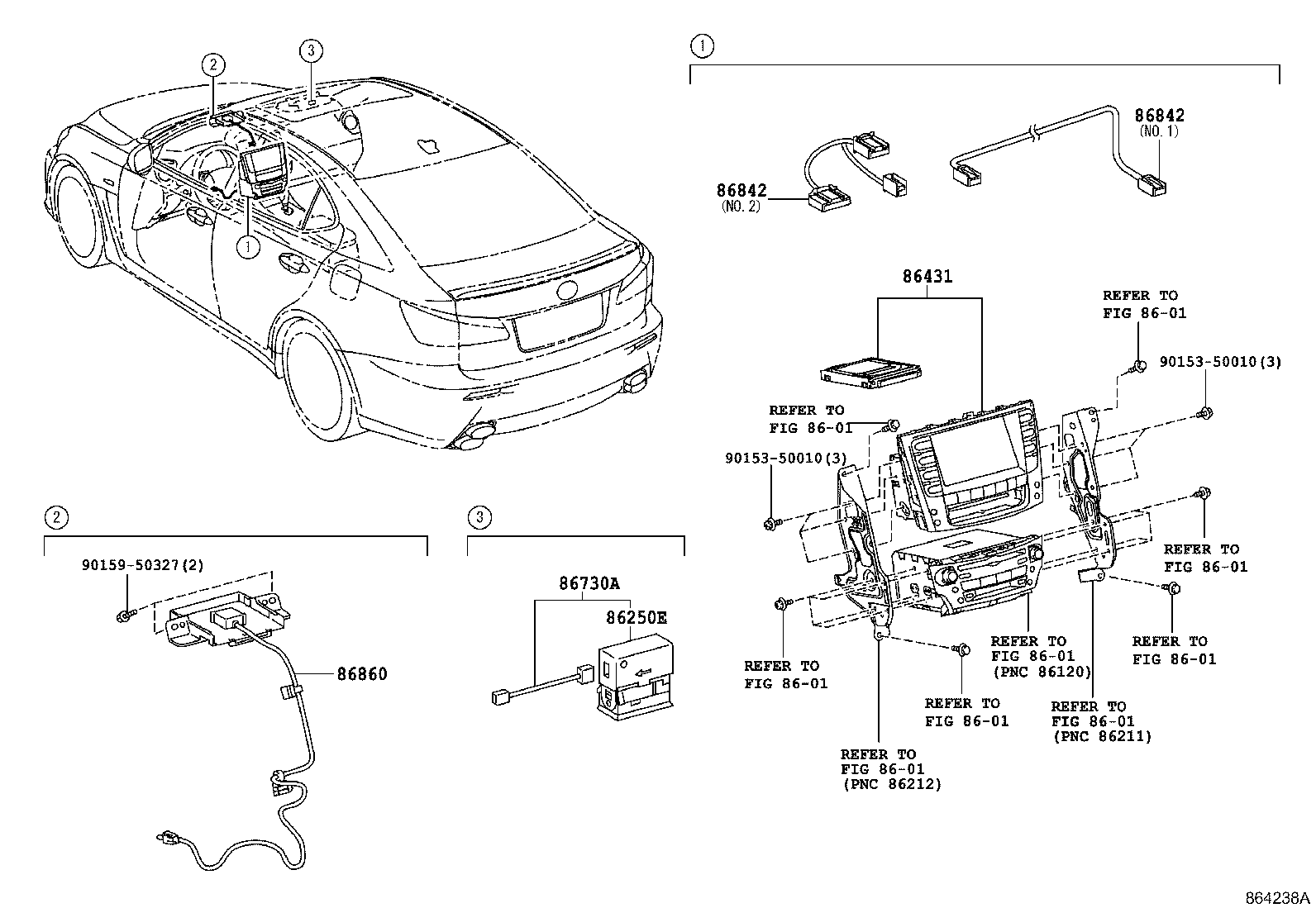

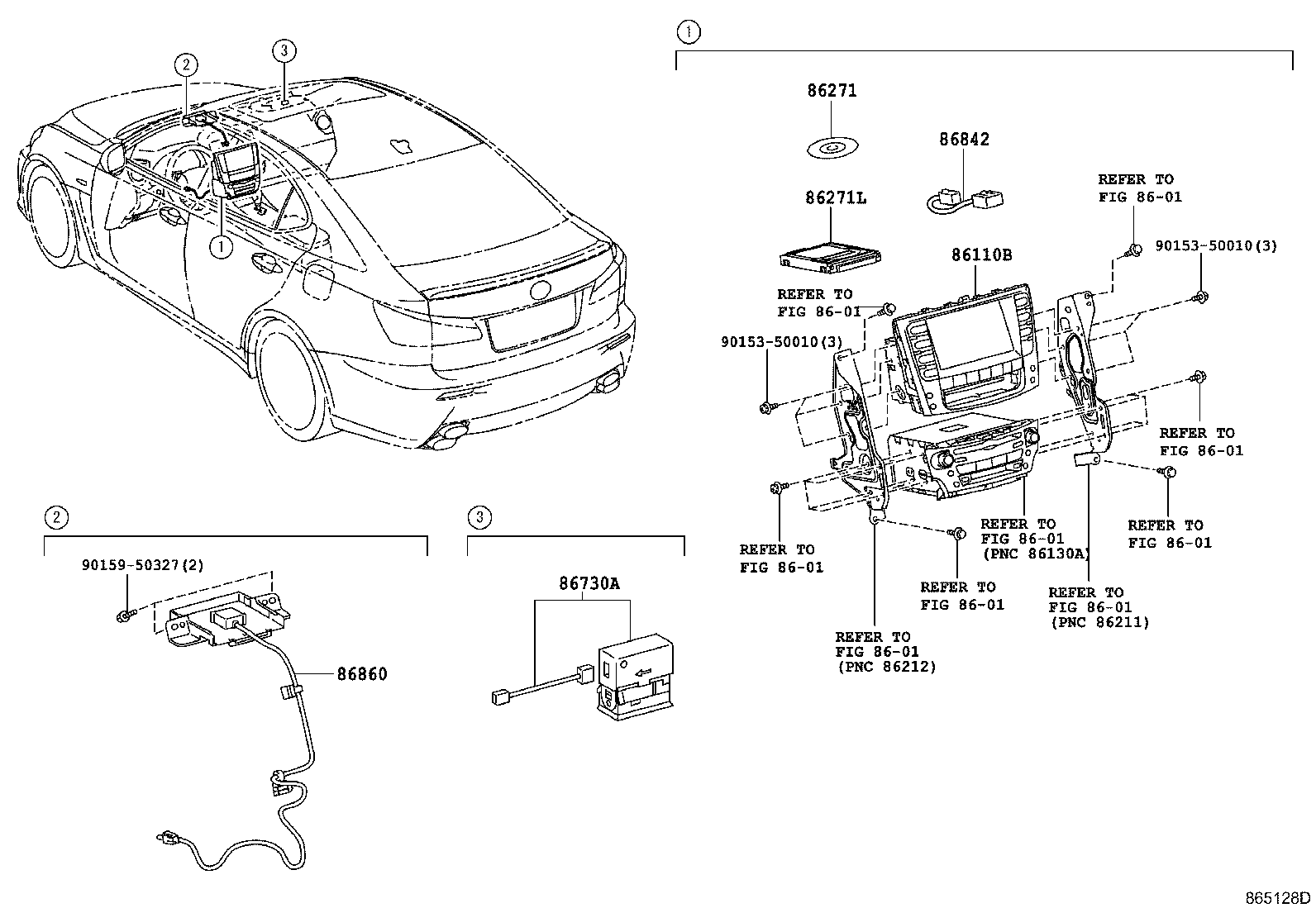

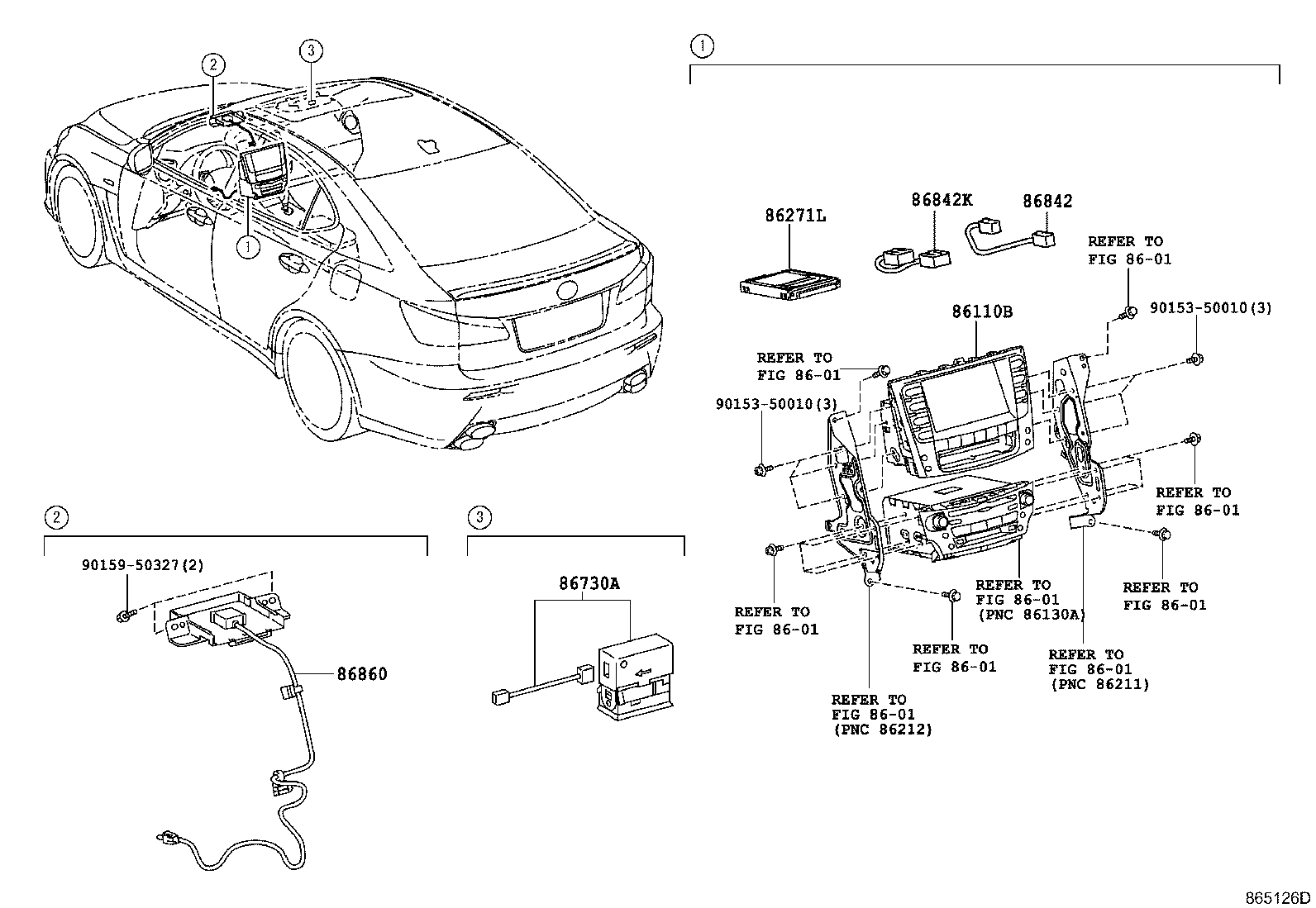

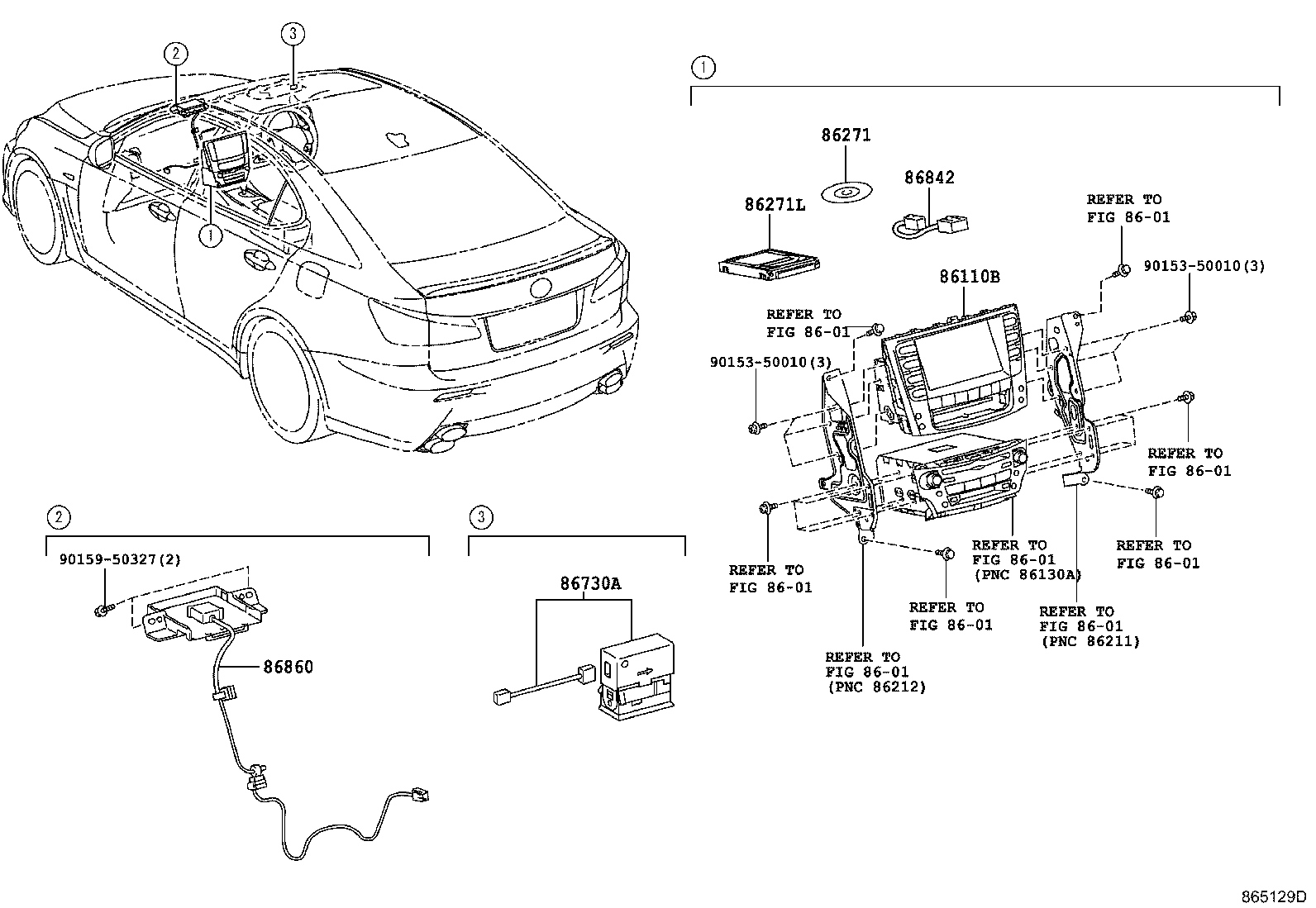

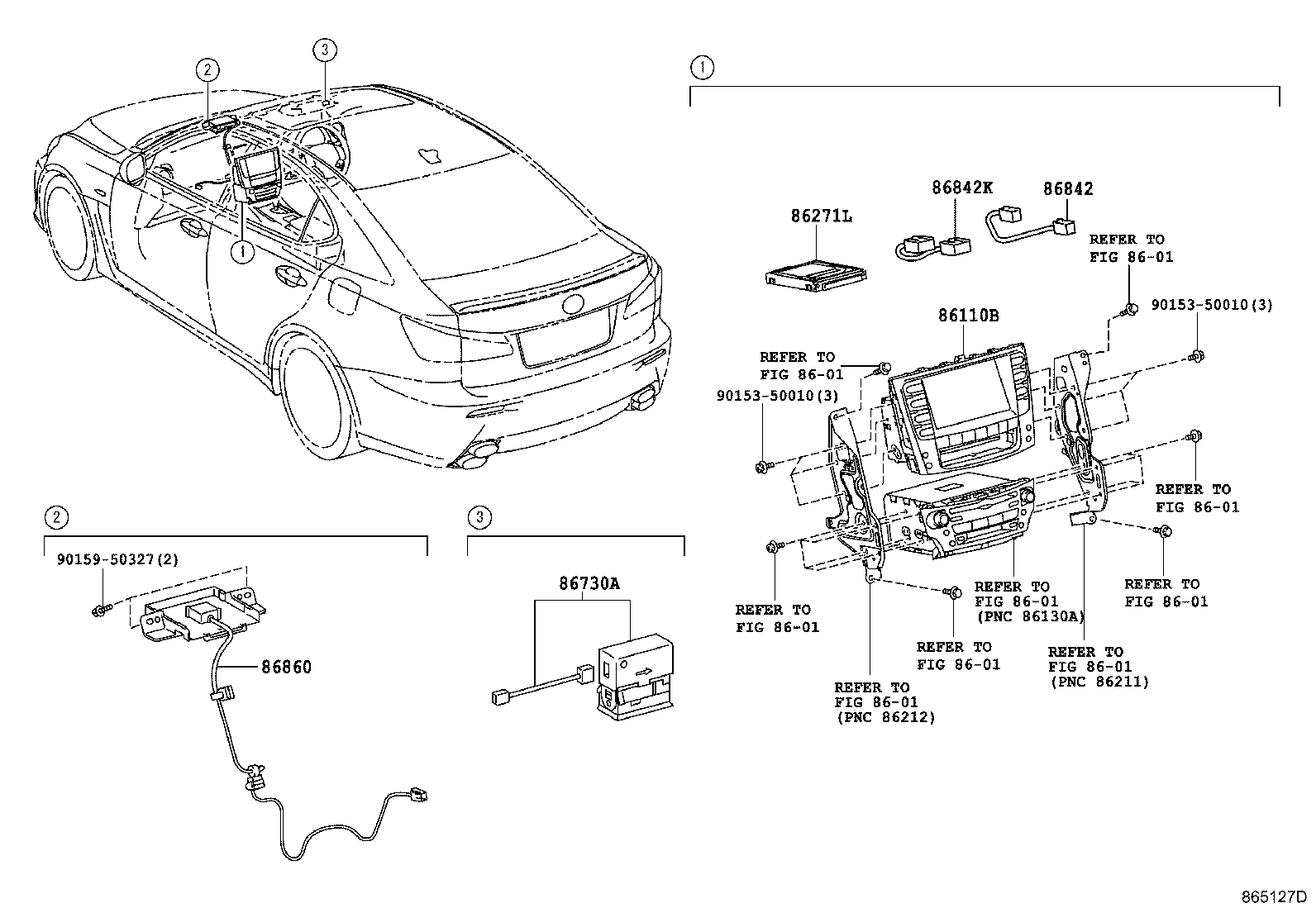

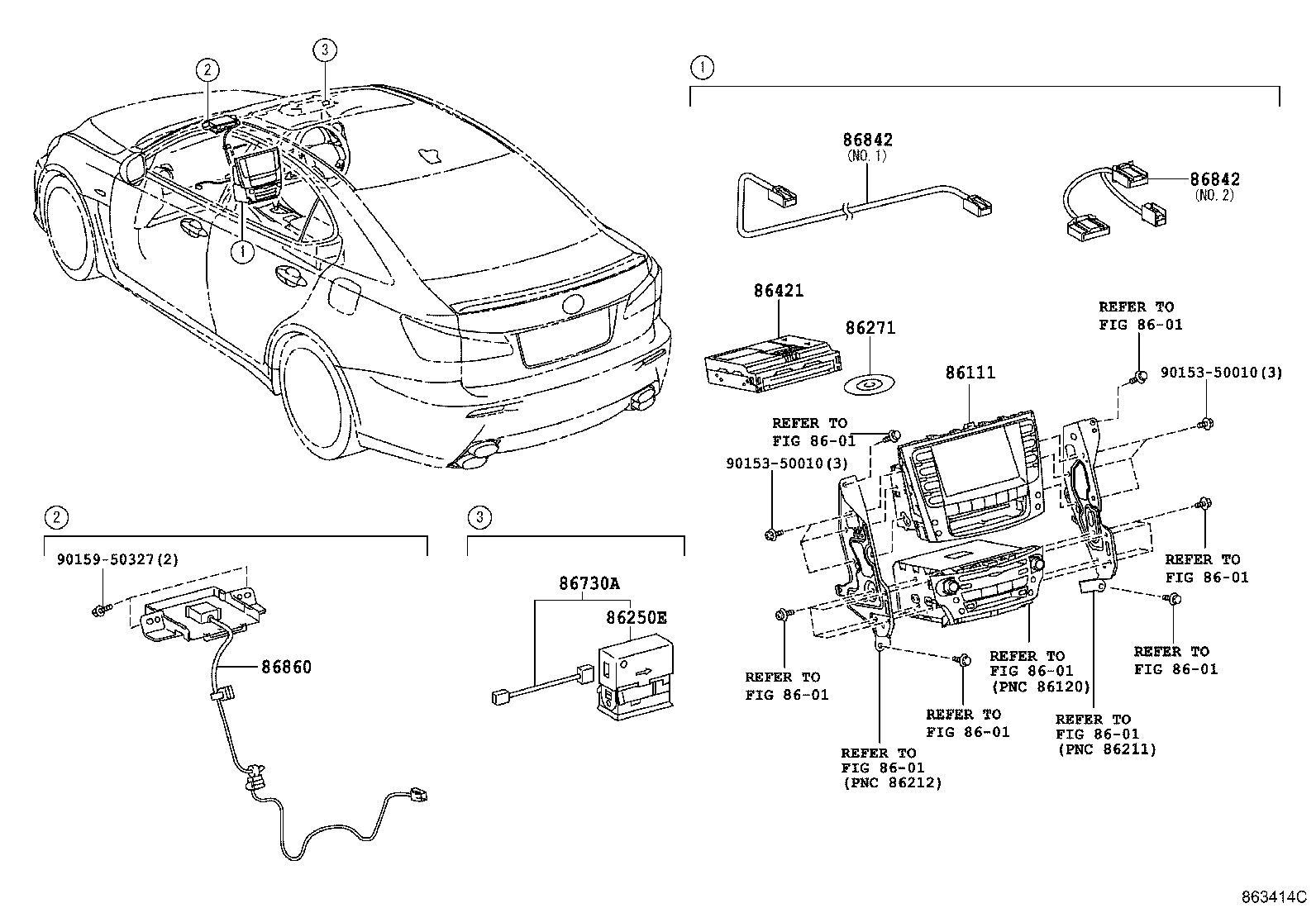

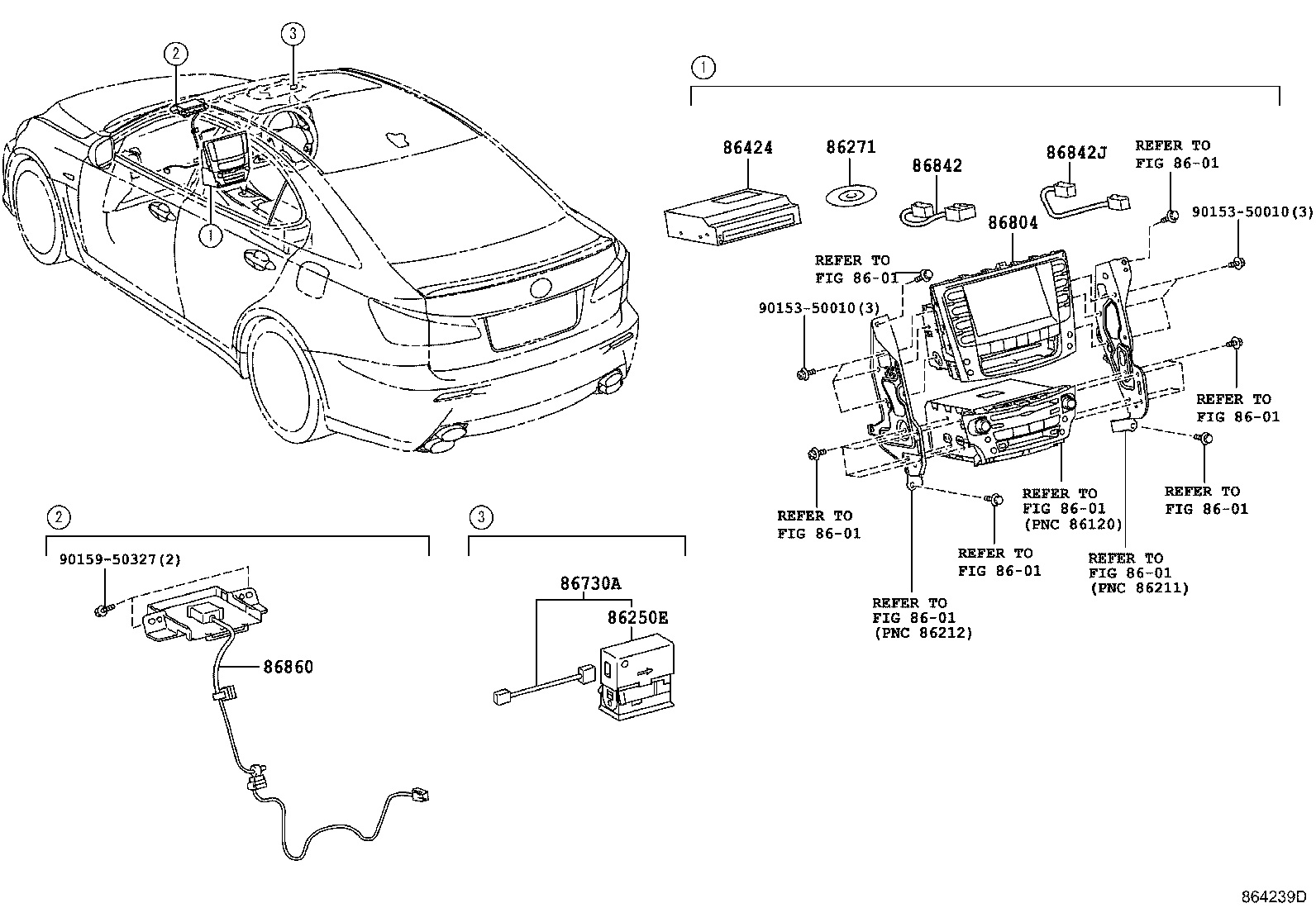

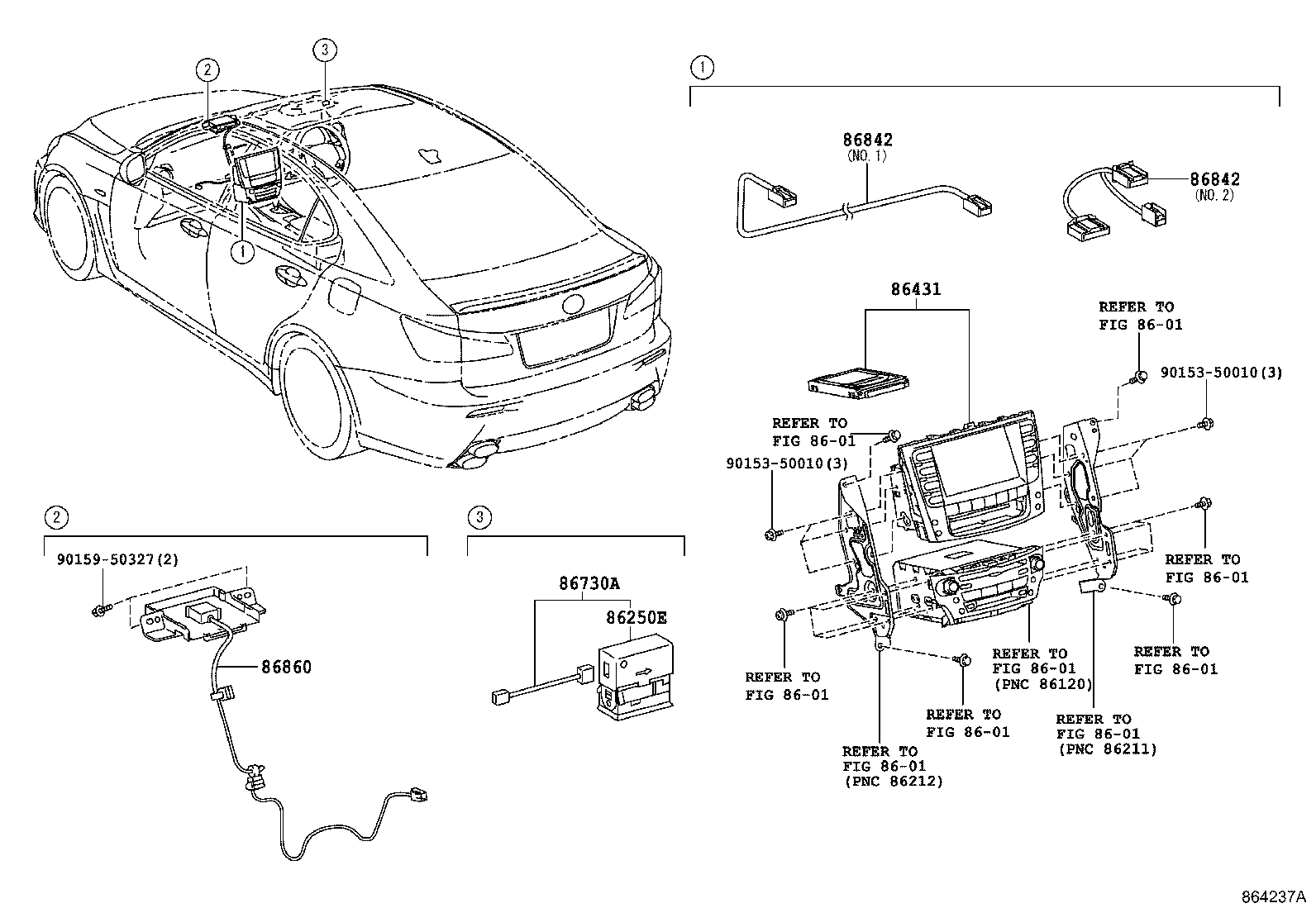

Figure 863413C 863413C 2007-12 → 2009-08 Figure 863414C 863414C 2007-12 → 2009-08 Figure 864238A 864238A 2009-08 → 2012-08 Figure 864237A 864237A 2009-08 → 2012-08 Figure 865126D 865126D 2012-08 → — Figure 865127D 865127D 2012-08 → — Figure 864240F 864240F 2010-08 → 2012-08 Figure 865128D 865128D 2012-08 → — Figure 864239D 864239D 2009-08 → 2012-08 Figure 865129D 865129D 2012-08 → —

Part groups

PNCDescription
86110B Multi-display Assy
86111 Multi-display
86250E Microphone Assy, Amplifier
86271 Disc, Disc Player
86271L Hard Disc
86421 Board, Navigation Module
86424 Deck, Dvd
86431 Display, Display & Navigation Module
86730A Microphone Assy, Telephone
86804 Cover Sub-assy, Navigation Computer
86842 Wire, Navigation, NO.1
86842J Wire, Navigation, NO.2
86842K Wire, Navigation, NO.3
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
