Toyota Lexus IS F
2007-12 → 2014-08 · chassis USE20 · catalogue 245510 · Europe
Supported model
Data version 2015-01
Heating & Air Conditioning - Cooler Unit

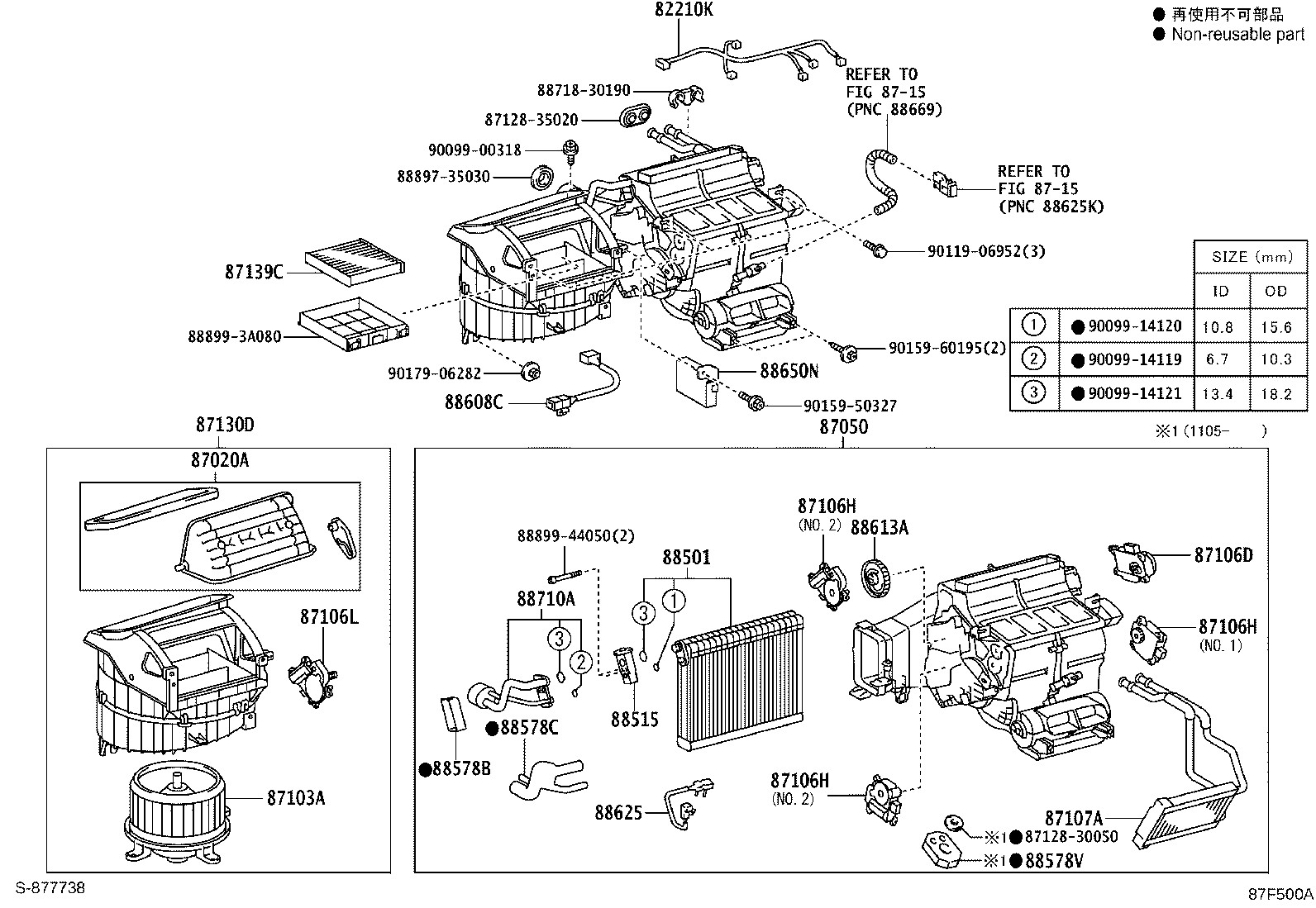

20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 82210K | Harness Assy, Air Conditioner |
| 87020A | Damper Assy, Heater Air |
| 87050 | Radiator Assy, Air Conditioner |
| 87103A | Motor Sub-assy, Cooling Unit, W/Fan |
| 87106D | Servo Sub-assy, Damper, NO.1 |
| 87106H | Servo Sub-assy, Damper(FOR AIRMIX) |
| 87106L | Servo Sub-assy, Damper |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87130D | Blower Assy |
| 87139C | Filter, Clean Air |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88515 | Valve, Cooler Expansion |
| 88578B | Packing, Cooling Unit, NO.1 |
| 88578C | Packing, Cooling Unit, NO.2 |
| 88578V | Packing, Cooling Unit, NO.3 |
| 88608C | Harness Sub-assy, Wiring Air Indicator, NO.2 |
| 88613A | Lever, Cooler Control, NO.1 |
| 88625 | Thermistor, Cooler, NO.1 |
| 88650N | Amplifier Assy, Air Conditioner |
| 88710A | Tube Assy, Air Conditioner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
