Toyota Lexus RC3###/200T
2014-09 → 2020-08 · chassis ASC10,AVC10,GSC10 · catalogue 245520 · Europe
Supported model
Data version 2020-12

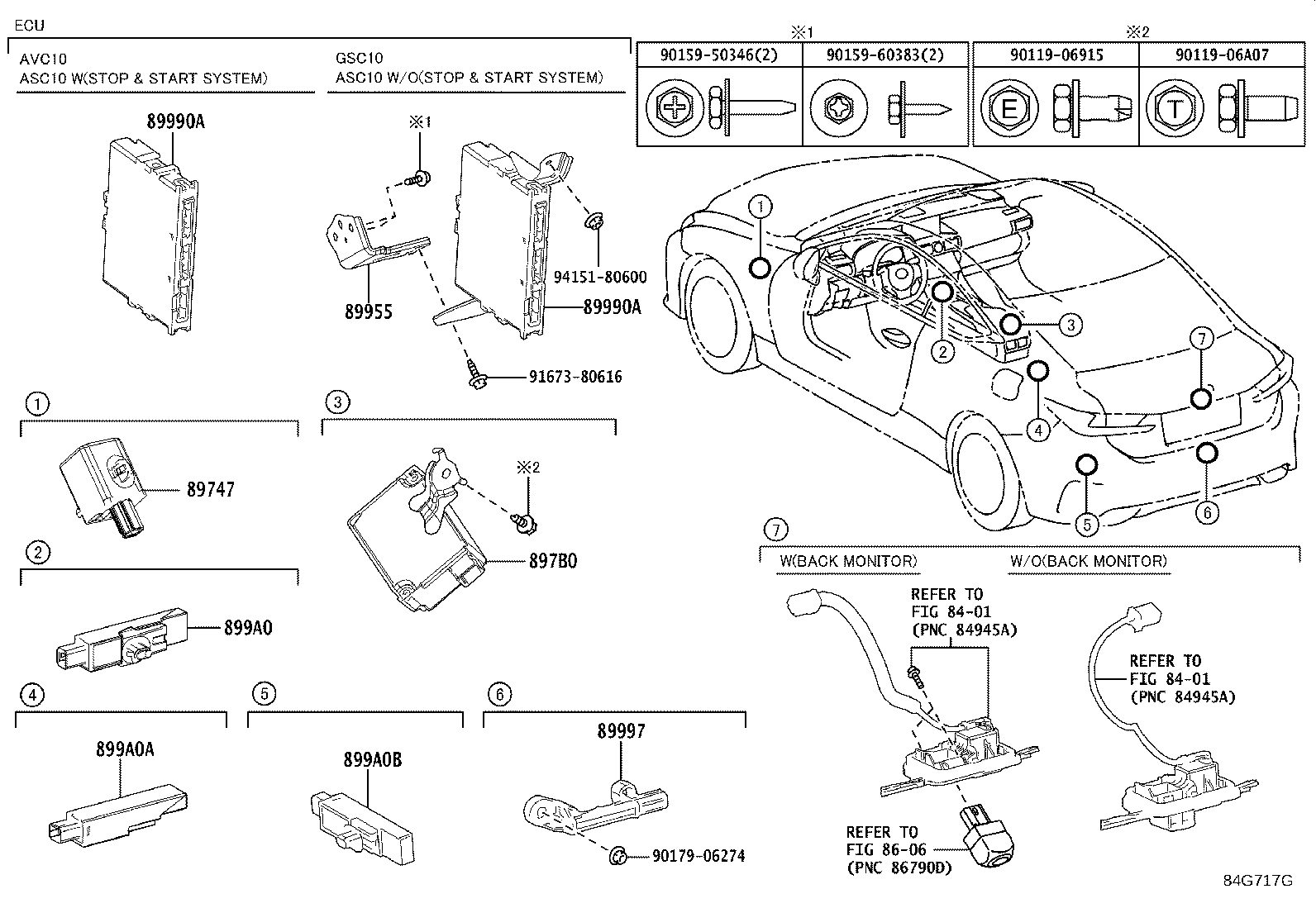

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89747 — Buzzer, Wireless Door Lock | ||||
| 89747-30040 |
Buzzer, Wireless Door Lock
2014-09 → 2015-10
ended
|
GSC10 | — | |
| 89747-30040 |
Buzzer, Wireless Door Lock
2015-10 → 2018-10
ended
|
ASC10,AVC10,GSC10 | — | |
| 89747-30040 |
Buzzer, Wireless Door Lock
2018-10 → 2020-08
ended
|
ASC10,AVC10 | — | |
| 897B0 — Receiver Assy, Electrical Key & Tpms | ||||
| 897B0-24060 |
Receiver Assy, Electrical Key & Tpms
2014-09 → 2015-06
ended
|
GSC10 | — | |
| 897B0-24061 |
Receiver Assy, Electrical Key & Tpms
2015-07 → 2015-10
ended
|
GSC10 | — | |
| 897B0-24061 note |
Receiver Assy, Electrical Key & Tpms
2015-10 → 2018-10
ended
|
ASC10 LHD | — | |
| 897B0-24061 note |
Receiver Assy, Electrical Key & Tpms
2015-10 → 2018-10
ended
|
ASC10 LHD | — | |
| 897B0-24061 note |
Receiver Assy, Electrical Key & Tpms
2015-10 → 2018-10
ended
|
ASC10 LHD | — | |
| 897B0-24061 |
Receiver Assy, Electrical Key & Tpms
2015-10 → 2016-09
ended
|
GSC10 | — | |
| 897B0-24061 note |
Receiver Assy, Electrical Key & Tpms
2016-09 → 2017-11
ended
|
GSC10 | — | |
| 897B0-24070 note |
Receiver Assy, Electrical Key & Tpms
2015-10 → 2018-05
ended
|
ASC10 LHD | — | |
| 897B0-24070 note |
Receiver Assy, Electrical Key & Tpms
2016-09 → 2018-05
ended
|
ASC10 LHD | — | |
| 897B0-24210 |
Receiver Assy, Electrical Key & Tpms
2016-09 → 2017-11
ended
|
GSC10 | — | |
| 897B0-24210 |
Receiver Assy, Electrical Key & Tpms
2015-10 → 2018-04
ended
|
ASC10 RHD | — | |
| 897B0-24210 note |
Receiver Assy, Electrical Key & Tpms
2015-10 → 2016-09
ended
|
GSC10 | — | |
| 897B0-24210 note |
Receiver Assy, Electrical Key & Tpms
2015-10 → 2016-09
ended
|
GSC10 | — | |
| 897B0-24210 |
Receiver Assy, Electrical Key & Tpms
2015-10 → 2018-10
ended
|
AVC10;ASC10 LHD | — | |
| 897B0-24061 note |
Receiver Assy, Electrical Key & Tpms
2018-10 → 2020-08
ended
|
ASC10 | — | |
| 897B0-24210 |
Receiver Assy, Electrical Key & Tpms
2018-10 → 2020-08
ended
|
ASC10,AVC10 | — | |
| 89955 — Bracket, Smart Key Computer | ||||
| 89955-53010 |
Bracket, Smart Key Computer
2014-09 → 2015-10
ended
|
GSC10 | — | |
| 89955-53010 |
Bracket, Smart Key Computer
2015-10 → 2017-11
ended
|
GSC10 | — | |
| 89955-53010 note |
Bracket, Smart Key Computer
2015-10 → 2018-05
ended
|
ASC10 LHD | — | |
| 89955-53010 |
Bracket, Smart Key Computer
2018-05 → 2018-10
ended
|
ASC10 | — | |
| 89955-53010 |
Bracket, Smart Key Computer
2018-10 → 2020-08
ended
|
ASC10 | — | |
| 89990A — Computer Assy, Smart Key | ||||
| 89990-24030 |
Computer Assy, Smart Key
2014-09 → 2015-10
ended
|
GSC10 | — | |
| 89990-24060 |
Computer Assy, Smart Key
2015-10 → 2018-04
ended
|
ASC10 RHD | — | |
| 89990-24070 |
Computer Assy, Smart Key
2015-10 → 2018-10
ended
|
AVC10 RHD | — | |
| 89990-24080 |
Computer Assy, Smart Key
2015-10 → 2017-10
ended
|
ASC10 LHD | — | |
| 89990-24081 |
Computer Assy, Smart Key
2017-11 → 2018-05
ended
|
ASC10 LHD | — | |
| 89990-24090 |
Computer Assy, Smart Key
2015-10 → 2018-10
ended
|
AVC10 LHD | — | |
| 89990-24110 |
Computer Assy, Smart Key
2015-10 → 2017-11
ended
|
GSC10 | — | |
| 89990-24110 note |
Computer Assy, Smart Key
2015-10 → 2017-11
ended
|
ASC10 LHD | — | |
| 89990-24111 note |
Computer Assy, Smart Key
2017-11 → 2018-05
ended
|
ASC10 LHD | — | |
| 89990-24111 |
Computer Assy, Smart Key
2018-05 → 2018-10
ended
|
ASC10 | — | |
| 89990-24050 |
Computer Assy, Smart Key
2019-11 → 2020-08
ended
|
ASC10 | — | |
| 89990-24150 |
Computer Assy, Smart Key
2018-10 → 2020-08
ended
|
AVC10 RHD | — | |
| 89990-24170 |
Computer Assy, Smart Key
2018-10 → 2020-08
ended
|
AVC10 LHD | — | |
| 89990-24180 |
Computer Assy, Smart Key
2018-10 → 2019-01
ended
|
ASC10 | — | |
| 89990-24181 |
Computer Assy, Smart Key
2019-02 → 2019-11
ended
|
ASC10 | — | |
| 89997 — Antenna, Electrical Key | ||||
| 89997-30100 |
Antenna, Electrical Key
2014-09 → 2015-10
ended
|
GSC10 | — | |
| 89997-30100 |
Antenna, Electrical Key
2015-10 → 2017-11
ended
|
GSC10 | — | |
| 89997-30100 |
Antenna, Electrical Key
2015-10 → 2018-04
ended
|
ASC10 RHD | — | |
| 89997-30100 |
Antenna, Electrical Key
2015-10 → 2018-10
ended
|
AVC10;ASC10 LHD | — | |
| 89997-30100 |
Antenna, Electrical Key
2018-10 → 2020-08
ended
|
ASC10,AVC10 | — | |
| 899A0 — Antenna Assy, Indoor Electrical Key, NO.1 | ||||
| 899A0-60010 |
Antenna Assy, Indoor Electrical Key, NO.1
2014-09 → 2015-10
ended
|
GSC10 | — | |
| 899A0-60010 |
Antenna Assy, Indoor Electrical Key, NO.1
2015-10 → 2017-11
ended
|
GSC10 | — | |
| 899A0-60010 |
Antenna Assy, Indoor Electrical Key, NO.1
2015-10 → 2018-04
ended
|
ASC10 RHD | — | |
| 899A0-60010 |
Antenna Assy, Indoor Electrical Key, NO.1
2015-10 → 2018-10
ended
|
AVC10;ASC10 LHD | — | |
| 899A0-60010 |
Antenna Assy, Indoor Electrical Key, NO.1
2018-10 → 2020-08
ended
|
ASC10,AVC10 | — | |
| 899A0A — Antenna Assy, Indoor Electrical Key, NO.2 | ||||
| 899A1-60010 |
Antenna Assy, Indoor Electrical Key, NO.2
2014-09 → 2015-10
ended
|
GSC10 | — | |
| 899A1-60010 |
Antenna Assy, Indoor Electrical Key, NO.2
2015-10 → 2017-11
ended
|
GSC10 | — | |
| 899A1-60010 |
Antenna Assy, Indoor Electrical Key, NO.2
2015-10 → 2018-04
ended
|
ASC10 RHD | — | |
| 899A1-60010 |
Antenna Assy, Indoor Electrical Key, NO.2
2015-10 → 2018-10
ended
|
AVC10;ASC10 LHD | — | |
| 899A1-60010 |
Antenna Assy, Indoor Electrical Key, NO.2
2018-10 → 2020-08
ended
|
ASC10,AVC10 | — | |
| 899A0B — Antenna Assy, Indoor Electrical Key, NO.3 | ||||
| 899A0-47010 |
Antenna Assy, Indoor Electrical Key, NO.3
2014-09 → 2015-10
ended
|
GSC10 | — | |
| 899A0-47010 |
Antenna Assy, Indoor Electrical Key, NO.3
2015-10 → 2017-11
ended
|
GSC10 | — | |
| 899A0-47010 |
Antenna Assy, Indoor Electrical Key, NO.3
2015-10 → 2018-04
ended
|
ASC10 RHD | — | |
| 899A0-47010 |
Antenna Assy, Indoor Electrical Key, NO.3
2015-10 → 2018-10
ended
|
AVC10;ASC10 LHD | — | |
| 899A0-47010 |
Antenna Assy, Indoor Electrical Key, NO.3
2018-10 → 2020-08
ended
|
ASC10,AVC10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
