Toyota Lexus RC3###/200T

2014-09 → 2020-08 · chassis ASC10,AVC10,GSC10 · catalogue 245520 · Europe

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

26 part groups · 4 illustrations

Illustrations

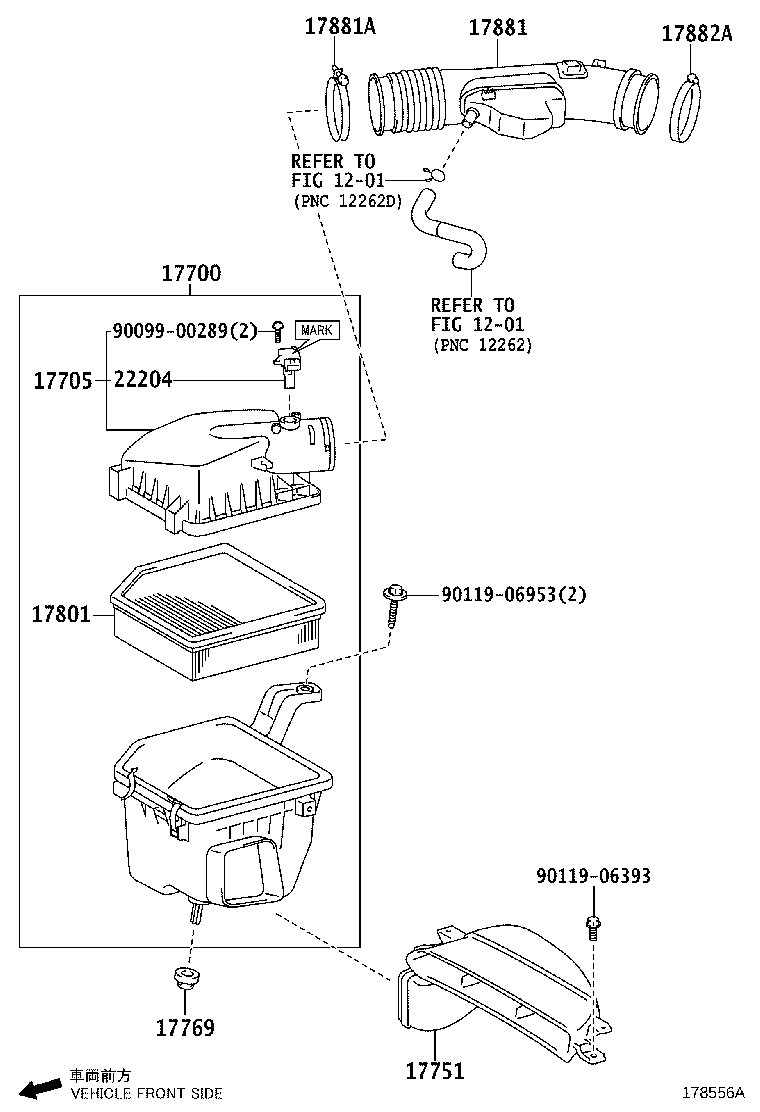

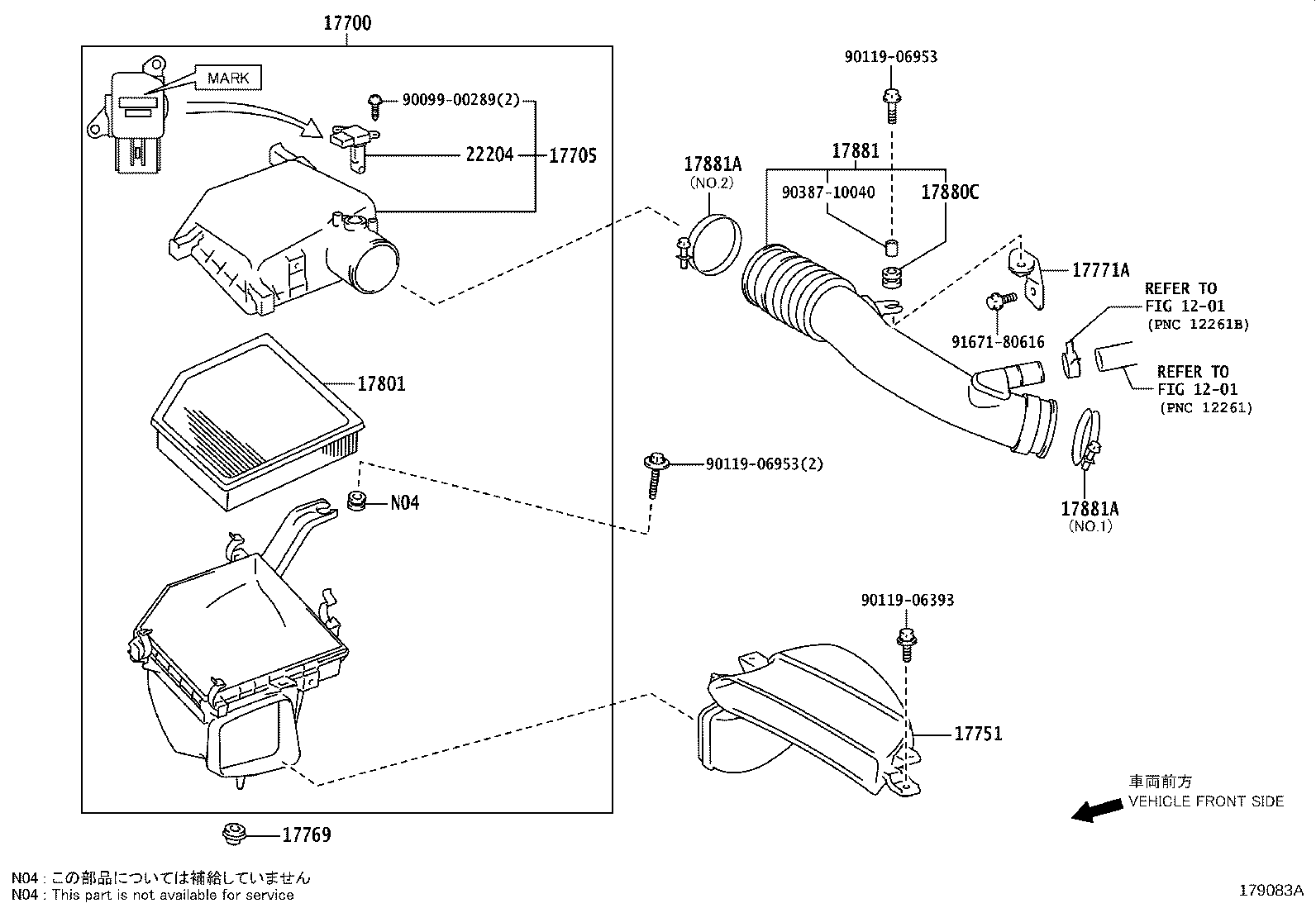

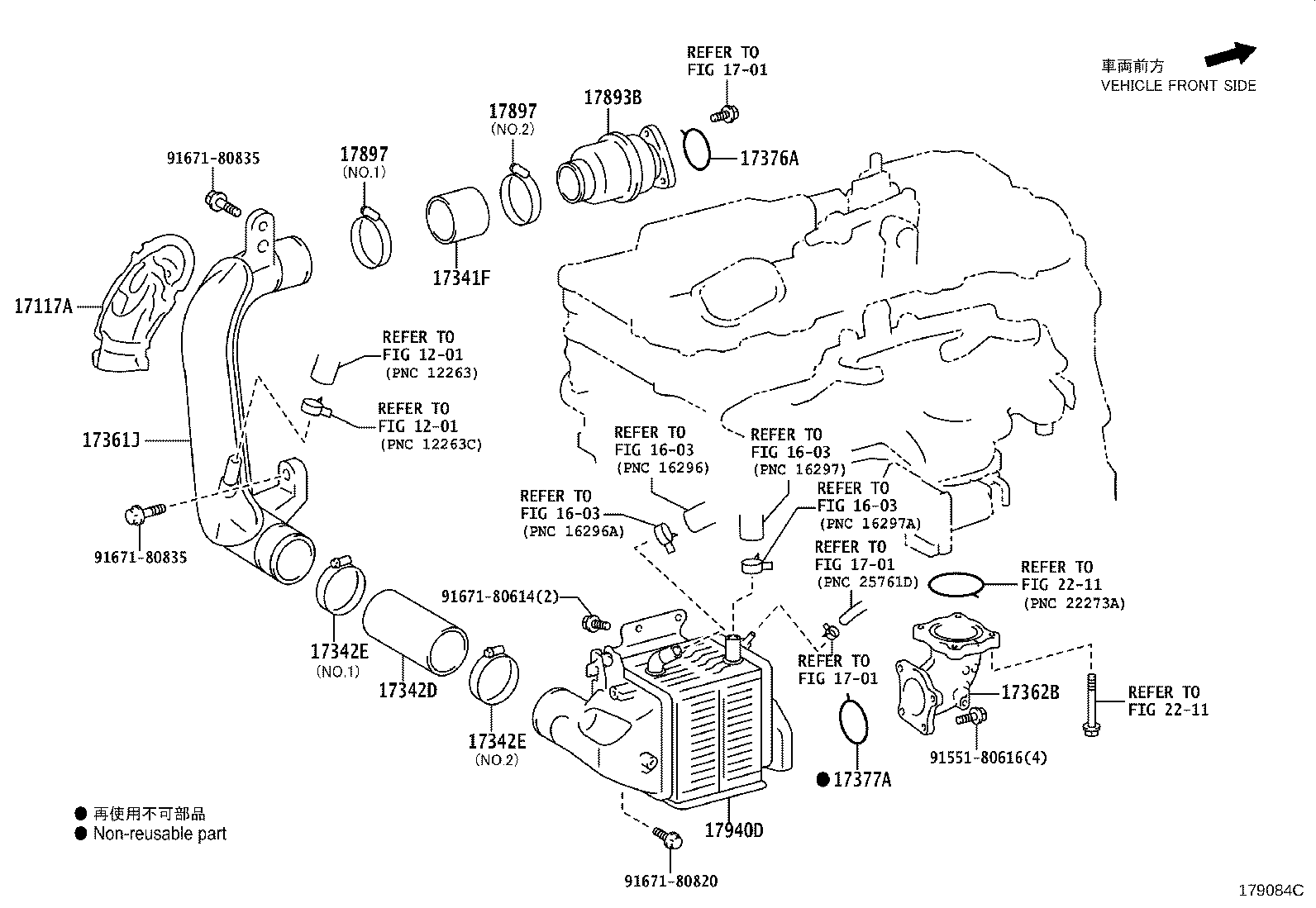

Figure 178550B 178550B 2015-10 → — Figure 179083A 179083A 2015-10 → — Figure 179084C 179084C 2015-10 → — Figure 178556A 178556A 2014-09 → —

Part groups

PNCDescription
17117A Insulator, Intake Pipe
17341F Hose, Air, NO.1
17342D Hose, Air, NO.2
17342E Clamp OR Clip(FOR AIR HOSE, NO.2)
17361J Tube, Air, NO.1
17362B Tube, Air, NO.2
17376A Gasket, Air Tube
17377A Gasket, Air Tube, NO.2
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17710B Grommet
17751 Inlet, Air Cleaner, NO.1
17769 Support, Air Cleaner
17771A Bracket, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17880 Hose Assy, Air Cleaner
17880C Grommet(FOR AIR CLEANER HOSE)
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17893 Resonator, Intake Air
17893B Resonator, Intake Air, NO.2
17897 Clamp, Hose(FOR AIR CLEANER)
17940D Intercooler Assy
22204 Meter Sub-assy, Intake Air Flow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
