Toyota Lexus RC3###/200T

2014-09 → 2020-08 · chassis ASC10,AVC10,GSC10 · catalogue 245520 · Europe

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

13 part groups · 3 illustrations

Illustrations

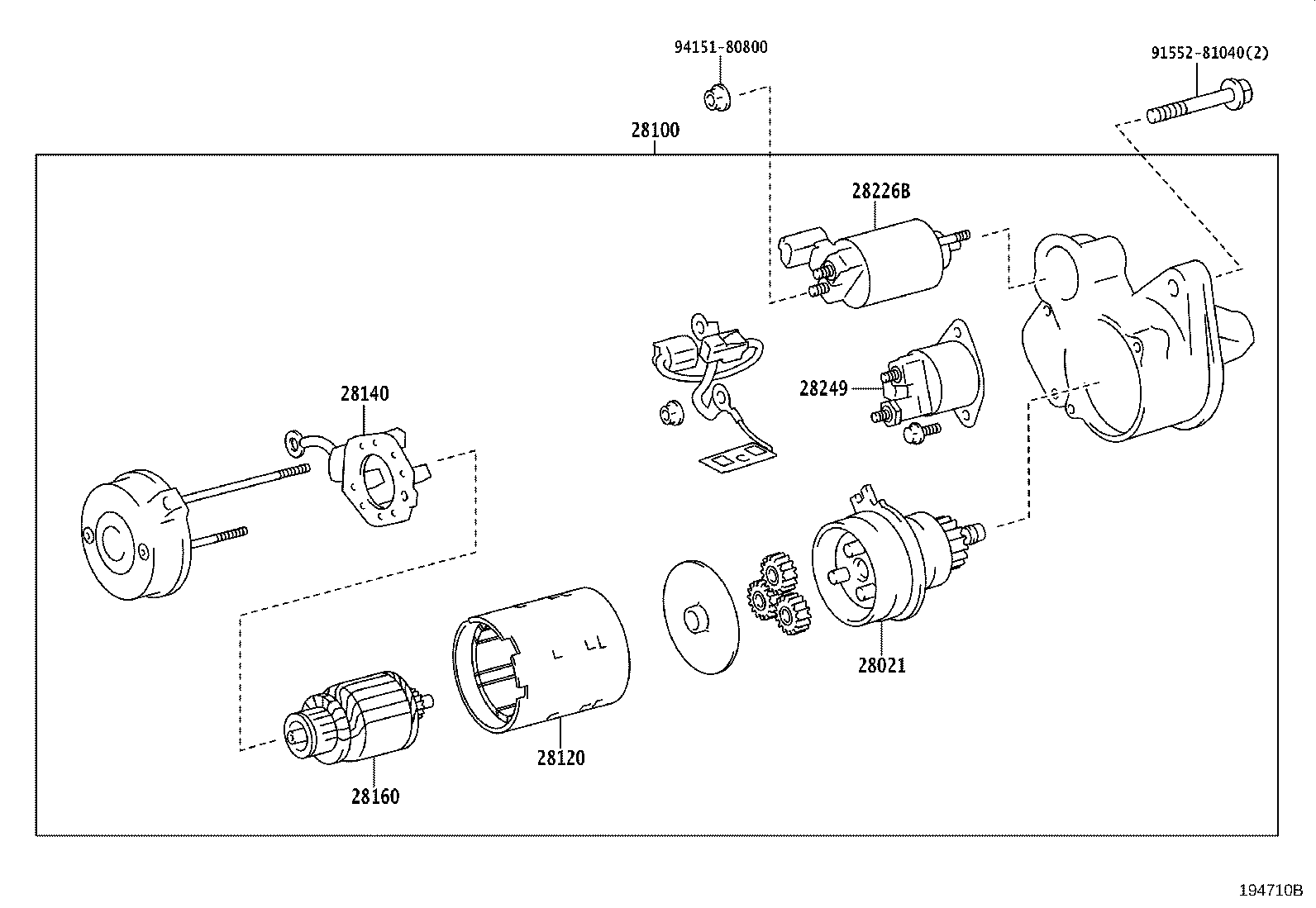

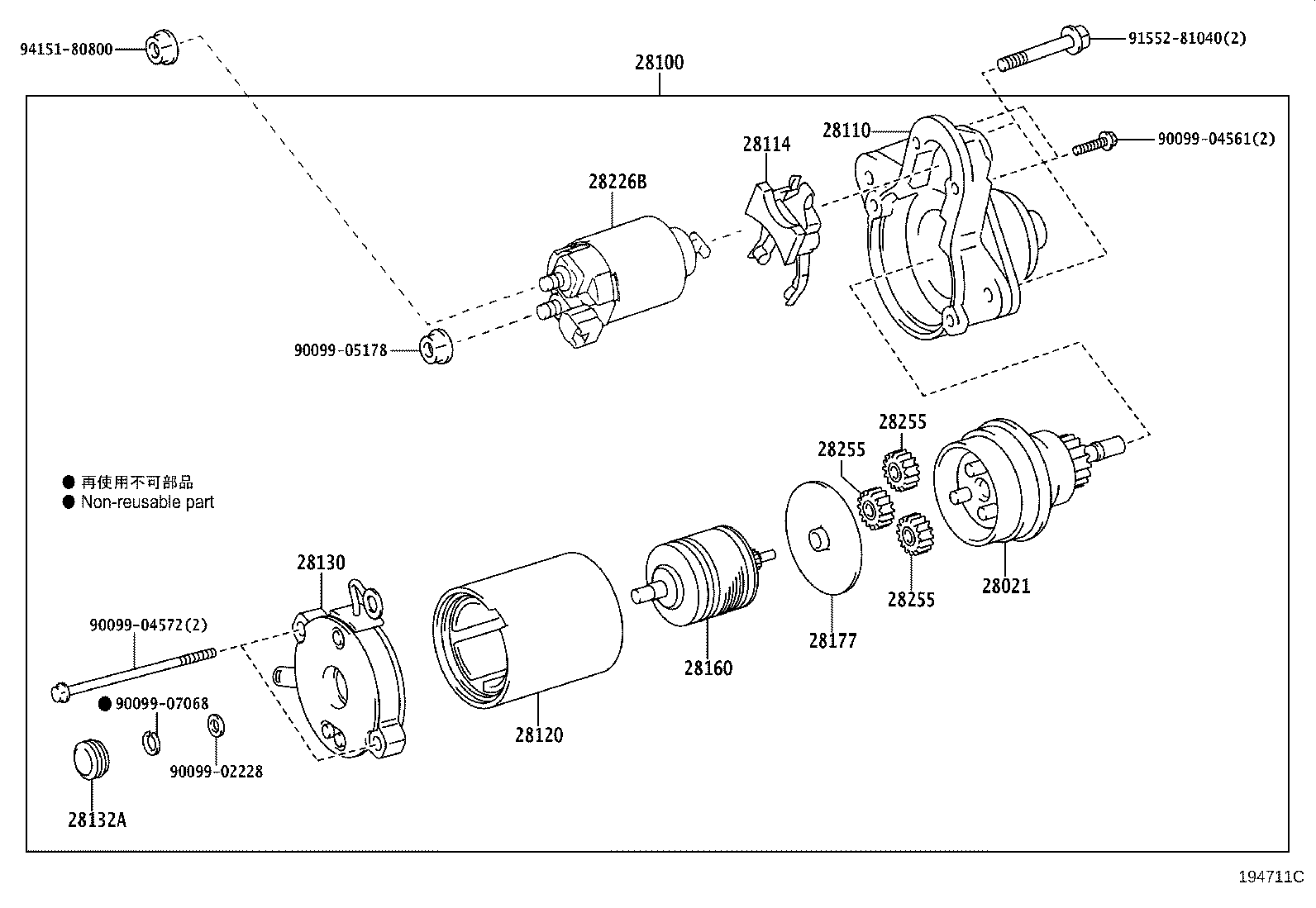

Figure 194440B 194440B 2014-09 → — Figure 194710B 194710B 2015-10 → — Figure 194711C 194711C 2015-10 → —

Part groups

PNCDescription
28021 Clutch Sub-assy, Starter Center Bearing
28100 Starter Assy
28110 Housing Assy, Starter Drive
28114 Pin, Starter Drive Lever Set
28120 Yoke Assy, Starter
28130 Frame Assy, Starter Commutator End
28132A Cover, Starter Commutator End Frame
28140 Holder Assy, Starter Brush
28160 Armature Assy, Starter
28177 Plate(FOR STARTER ARMATURE)
28226B Starter Kit, Repair Service
28249 Relay, Starter Inrush Current Reduction
28255 Gear, Planet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
