Toyota Lexus RC3###/200T

2014-09 → 2020-08 · chassis ASC10,AVC10,GSC10 · catalogue 245520 · Europe

Supported model Data version 2020-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

2 part groups · 2 illustrations

Illustrations

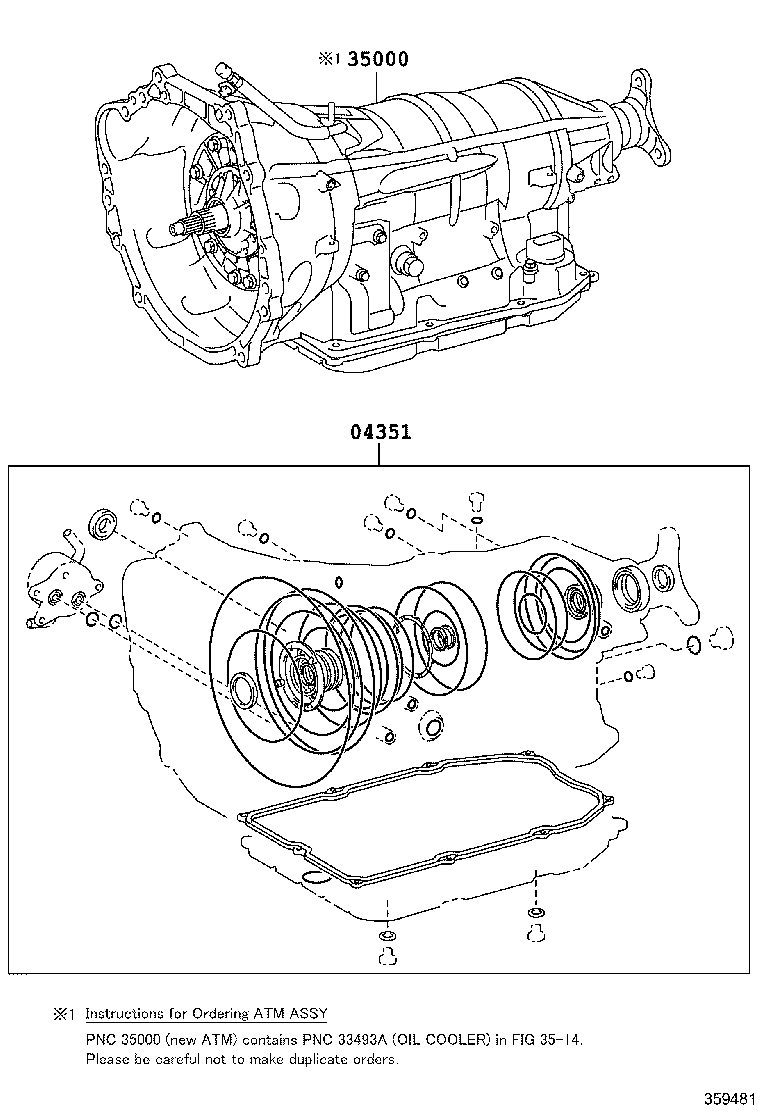

Figure 358988 358988 2014-09 → — Figure 359481 359481 2015-10 → —

Part groups

PNCDescription
04351 Gasket Kit, Automatic Transmission Overhaul
35000 Transmission Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
